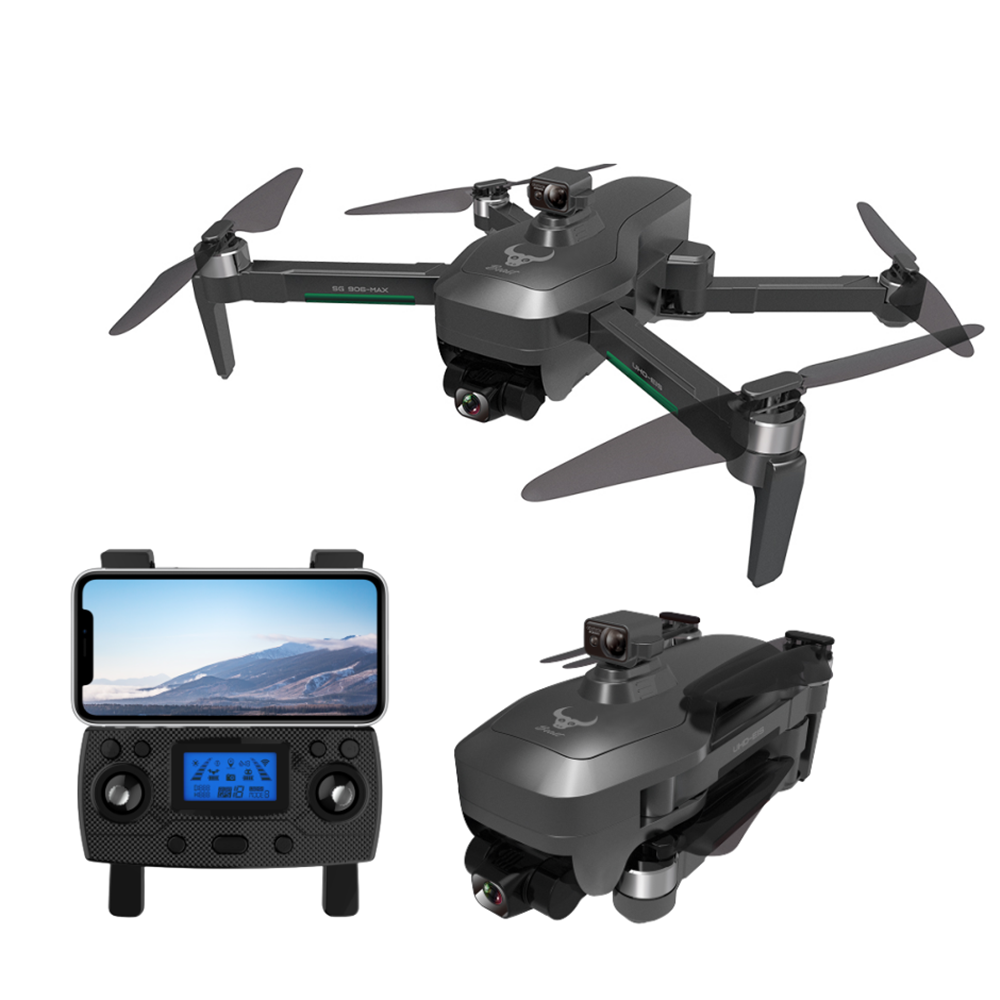

ZLL SG906 MAX GPS 5G WIFI FPV With 4K HD Camera 3-Axis EIS Anti-shake Gimbal Obstacle Avoidance Brushless Foldable RC Drone Quadcopter RTF
Note: The ZLRC will change its brand name to ZLL, the “ZLL” will replace
“ZLRC” to be showed on future products and advertising.
Description:
| Item | Specification | |
| SG906 MAX | Pressure sensor | Height setting |
| Motor | 1806 brushless motor | |
| Motor power | 1700/KV | |
| Wheelbase | 36cm | |
| Electric power adjustment | 30A | |
| Image transmission receiving method | 5G WIFI | |
| Gimbal | Three-Axis EIS Anti-shake Gimbal | |
| Lens | Self-stabilizing electronic anti-shake Lens | |
| Obstacle avoidance detection range | Forward-fan-shaped 120 ° | |
| Obstacle avoidance detection range | ≤20M | |
| Max remote control phone clip size | 7inch | |
| Remote control battery | 500mAh Lipo Battery | |
| Capacity of smart lithium battery | 7.6V 3400mAh | |
| Control distance (Free interference and no occlusion) | 1200M | |
| Cruising mileage(max) | 8KM | |
| Wind resistance level(max) | level 6 | |
| Ascent speed(max) | 4m/s | |
| Descent speed(max) | 3m/s | |
| Take-off altitude(max) | 4500m | |
| Flying speed(max) | 45km/h | |
| Flight time | About 23-26 min | |
| Charging time | About 6 hours | |
| USB Charging | 5V | |
| Product size | 17.4×8.4x7cm | |
| 28.3×25.3x7cm | ||
| Product’s Weight | 585.6g(Included Obstacle Avoider) | |
| Battery Weight | 152g | |
| Storage Card | High speed 32G(Max) | |
| Camera Gimbal parameters | Image sensor | 1/3.2 Inches |
| Pixel | 4K HD Camera | |
| APP Name | HFun PIus(IOS Android) | |
| Gimbal Angle(adjustment angle range) | 110 ° automatic restores (Vertical) | |
| 65° automatic restores (Sideways) | ||
| 45° automatic restores (Horizontal) | ||
| Camera lens | Adjustable camera by transmitter, 110° | |
| Wifi image transmission distance | About 800m | |
| GPS Follow me | 30m | |
| IMAGE Follow me | 1-5m | |
| Focal length | 50X | |
| Hand gesture shooting/video reconization | 1-5M | |
| Video resolution(Front camera) | 2048*1080（TF） | |
| SD mode：1208*720 (APP) | ||
| HD mode：2048*1080（APP） | ||
| Photo resolution(Front camera) | 4096*3072P(TF) | |
| 4096*3072P(APP) | ||
| Video resolution(Down-looking camera) | 1280*720p | |
| Photo resolution(Down-looking camera) | 1280*720p | |
| Frame rate | 25 fps | |
| Obstacle Avoider | Measuring mileage | 0.05-20 meters |
| Measurement accuracy | 2% | |
| Measuring speed | 100HZ | |
| Resolution | 1cm | |
| Operating Voltage | 3.5-5.5VDC | |
| Power Consumption | 60NA@5V | |
| Communication Interface | 12C | |
| Communication Baud Rate | Up to 400k | |
| Communication Level | TTJ3.3VDC | |
Parameter comparison:
| Item | SG906 Pro 2 | SG906 Pro 3 |
| Weight | 557g | 585.6g |
| Flight Time | 26mins | 26mins |
| Camera | 3-Axis mechanical self-stabilizing | 3-Axis EIS Anti-shake Gimbal |
| Obstacle Avoidance Function | × | √ |
| Battery | 7.6V 3400mAh | 7.6V 3400mAh |
| Image Transmission Distance | 800m | 800m |
Features:
– Forward laser obstacle avoidance function
–GPS/GLONASS double mode
– 4K HD adjustable camera
-Mechanical three axis EIS anti-shake gimbal
– Optical flow positioning mode
-Real-time image transmission
-Intelligent follow
-Surround flight
-Waypoint flight
-Trajectory pointing flight
-Folding portable fuselage
-One key course reversal
-Creative video
-Gesture control
-Brushless motor
– 50X Focal length
-Aircraft retrieval function
-MV functions: filters, video effects, add background music, picture / video sharing
PS: The obstacle avoider uses a laser to scan the front with a 120° fan-shaped scan to detect whether there is an obstacle in the front, and the obstacle is detected within 20 meters. The remote control will sound an alarm and the drone will automatically hover and cannot move forward.
Package Included:
1 x SG906 Pro 3 RC Quadcopter
1 x Remote Controller
1 x 7.6V 3400mAh Lipo Battery
4 x Spare Propellers
1 x USB Charging Cable
1 x Screwdriver
2 x Remote Control Stick
8 x Spare Screw
1 x Obstacle Avoider
1 x User Manual
