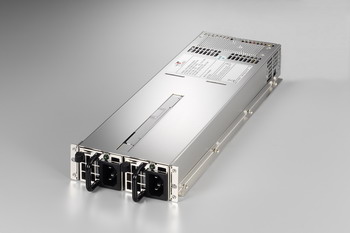

Description

Featurs

• TEMPERATURE RANGE???OPERATING 0??????50??????STORAGE -20??????80???
• HOLD UP TIME???20mS MIN. AT FULL LOAD & 115 VAC INPUT VOLTAGE
• DIELECTRIC WITHSTAND???INPUT/OUTPUT 1500 VAC FOR 1 MINUTE
• EFFICIENCY???TYPICAL 78%(+/-2%) AT FULL LOAD 230VAC
• POWER GOOD SIGNAL???ON DELAY 100mS TO 600mS???OFF DELAY 1mS
• OVER POWER PROTECTION???110???170% MAX
• OVER VOLTAGE PROTECTION???+3.3V→3.6~4.3V, +5V→5.6~6.5V, +12V→13.2~15V
• SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V
• SAFETY???TO MEET UL, CUL, TUV, CCC
• FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
• MEET IEC-1000-3-2 CLASS D (ACTIVE PFC)

specification

• VOLTAGE??? 90???264VAC FULL RANGE
• FREQUENCY??? 47???63HZ
• INPUT CURRENT???2A???RMS???FOR 230VAC
• 4A???RMS???FOR 115VAC
• INRUSH CURRENT???35A MAX. FOR 115 VAC PER MODULE
• 70A MAX. FOR 230 VAC PER MODULE

Dimension

260x106x41.3(mm)
10.24×4.17×1.63(inch)
