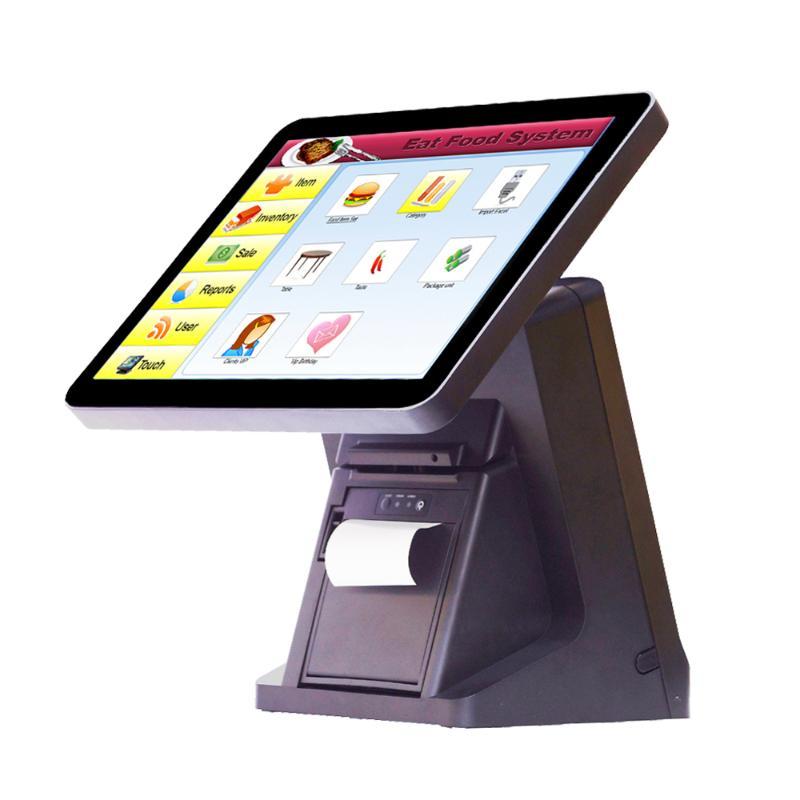

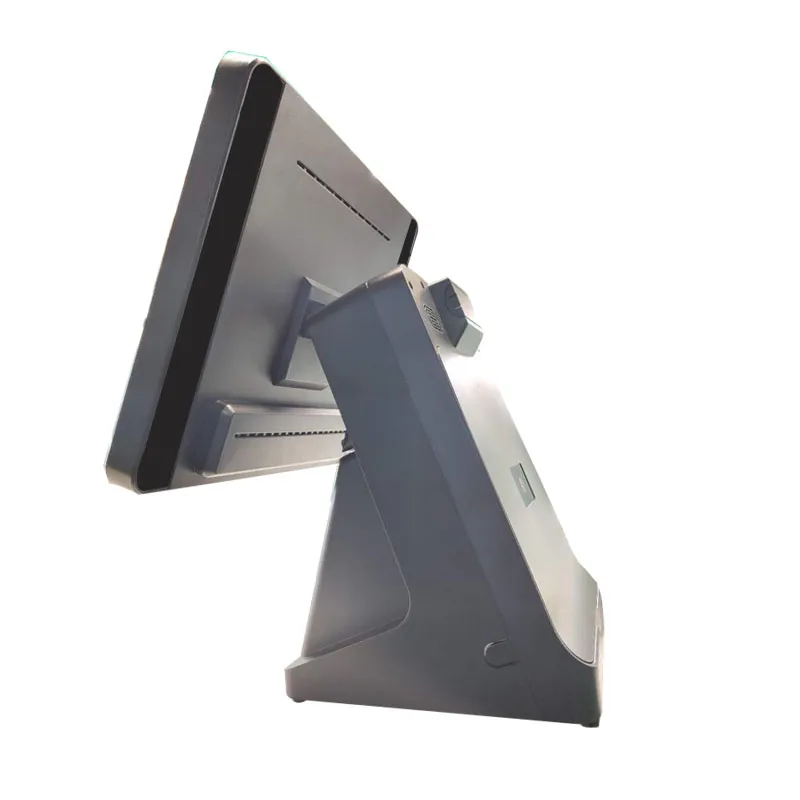

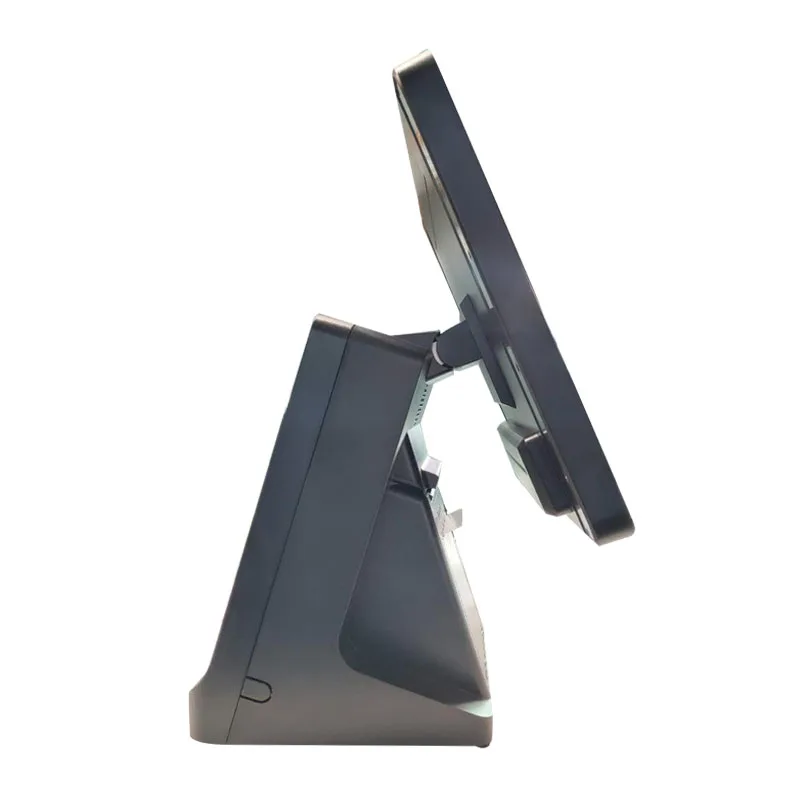

PC Epos system Hardware 15 inch capacitive touch screen Cash register Windows
Specifications: | |
Model | 1520WIN&1520WIN-Prt(Printer) |
Optional Color | Black |
Main Board | J1900MB |
CPU&GPU | Intel Celeron Bay Trail-D J1900 quad core 2.0 GHZ |
Memory Support | DDR3 2GB(Optiona:4GB,8GB) |
Internal Storage | SSD 32GB (default) Optional:64G/128/256GSSD |
Primary Display& touch(default) | 15 inch TFT LCD/LED + Flat screen capacitive touch screen |
Second display(Optional) | 15 inch TFT / Customer Display (Optional:touch) |
Brightness | 350cd/m2 |
Resolution | 1024*768(max) |
Built-in Module | Support Optional: |
Thermal Printer 80mm receipt printer | |
WIFI & Bluetooth,3G/4G,Speaker,Card Reader) | |
View Angle | Horizon: 150; Vertical :140 |

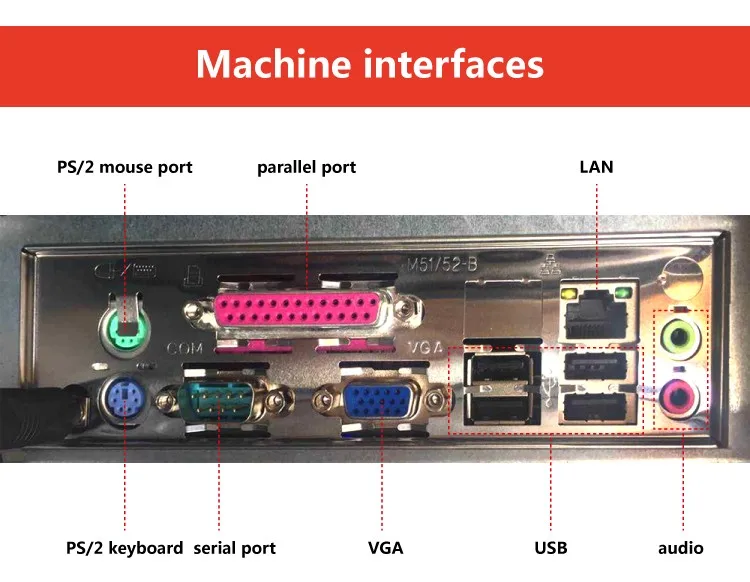

I/O port | 1* power button 12V DC in jack*1 |
Serial*1 DB9 male | |
VGA(15Pin D-sub)*1 | |
LAN:RJ-45*1 | |
USB(2.0)*4 USB(3.0)*2 | |
RJ11 | |
Audio out*1 | |
Operating temperature | 0℃ to 40℃ |
Storage temperature | -20℃to 60℃ |
Compliance | FCC /CE /CCC |
Packing dimension/ Weight | 410*310*410mm / 7.6 Kgs |
Operating System | Windows7 beta version(default)/Windows10 beta version |
Power adapter |
110-240V/50-60HZ AC power, Input DC12/5A out put |
