Description:
The AC600 HighPower Wi-Fi AP/Repeater is mainly used for providing free Wi-Fi service in big area such as factory, community, street or etc. The AP/Repeater can take an existing 2.4GHz or 5GHz wireless signal, repeat and extend it to a longer range where it is too far away for the router or access point to reach. The AP/Repeater simultaneously supports 2.4G and 5G wireless network connection, and it can supports 2.4G and 5G transmission speeds of up to 600Mbps. It has 2 x External Antennas providing even better wireless performance, transmission rates, stability technology automatically avoids channel conflicts using its channel selection feature.
Features:
• The next generation of Wi-Fi, leading 802.11ac standard
• Complies with IEEE 802.11 ac/a/b/g/n, standards
• Dual-Band Speed up to 2.4GHz 150Mbps, 5GHz 433Mbps
• Weater-Proof RJ45 Connector, Integragted Passive Power over Ethernet (PoE)
• Passive PoE Support for Flexible Deployment
• Provides high performance at a Long-Range Links, depending on its antenna.
• Features up to 600mW of power and an enhanced receiver design
• Robust weatherproof case withstands harsh outdoor conditions.
• Operation Modes : Router , AP , Repeater , WISP
• Maxmum Security with 802.1X, WAP, and WPA2
• Support 3 LEDs Wireless Signal Strength
• Build in lightning arrester (15kV ESD)
Specifications:
| Hardware | |
| Ports | 1 x WAN/LAN |
| Button | 1 x Reset 8s |
| LED | 1 x Power, 1xWAN/LAN, 1 x WiFI , 3 x Signal |
| Chipset | MT7688A+7610E |
| Flash | 64Mb |
| DDR2 | 512Mb |
| Power Supply | DC24V / 0.5A Power over Ethernet ( Passive PoE) |
| Power Consumption | 7W MAX |
| Rated Voltage/ requency | input:100-240 Va.c. 50/60Hz |
| Dimensions | |
| Unit Dimensions | 180mm x 50mm x 50mm (L x W x H) |
| Wireless | |
| Standard | IEEE 802.11b/g/n/a/ac |
| Frequency band | 2.4GHz, 5GHz, |
| Transmit Power | 27DBm MAX |
| Sensitivity | 802.11b: -93dBm /802.11g: -73dBm / 802.11n: -68dBm |
| Speed | 802.11ac: up to 433Mbps, 802.11n: up to 150Mbps |
| 802.11a: up to 54Mbps, 802.11g: 54Mbps | |
| 802.11b: 11Mbps | |
| Wireless Security | WPA-PSK/ WPA2-PSK encryption |
| Antennas | 2x7dBi Detachable Omni Directional |
| Distance | Outdoors 500m, Indoor 150m(According to the actual environment change) |

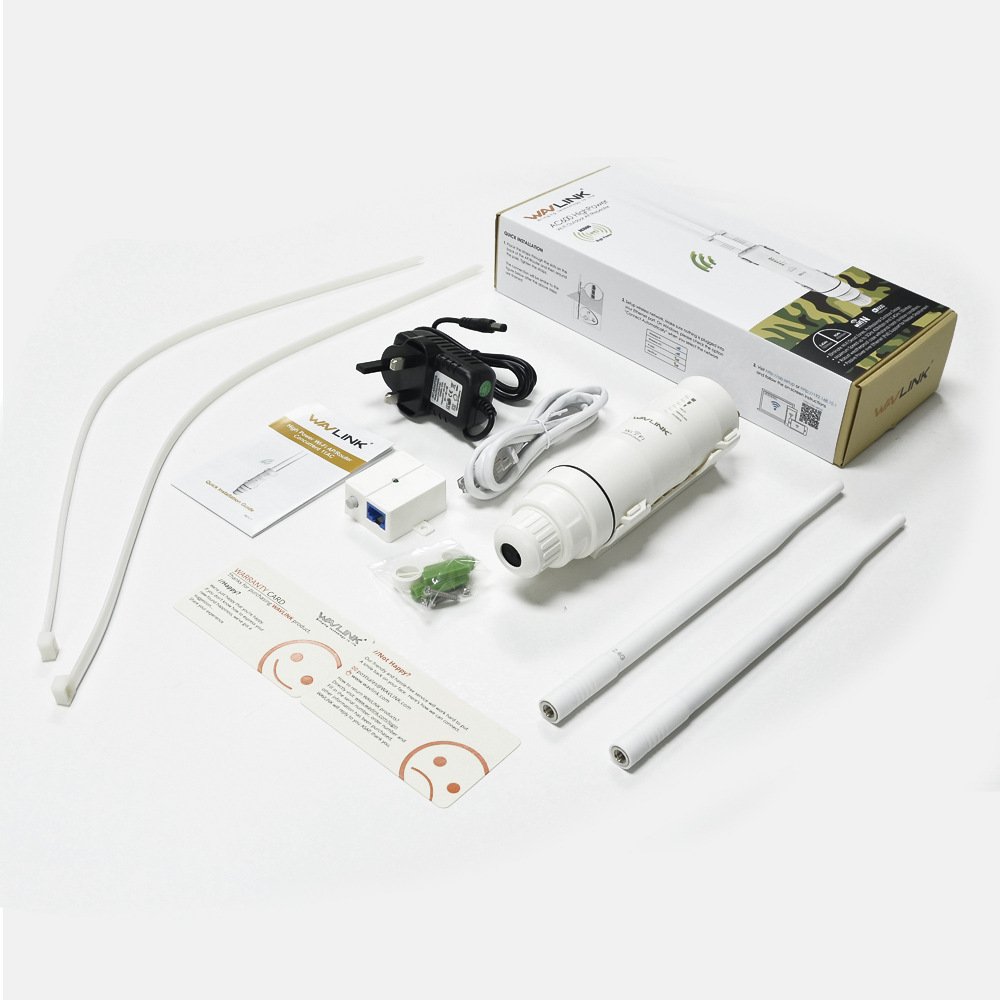

Package includes:
2x Omni antenna
1 x Wi-Fi AP/Router
1 x RJ-45 Networking Cable
1 x Power Adapter (We will send you a plug adapter according to your country.)
1 x POE Converter
1 x Main body holder
2 x Cable ties
1 x Screw fittings
1 x Quick Installation
