Description

Specification:

1. Brand model: Wavlink AC1200
2. Interface: 2X LAN Ports

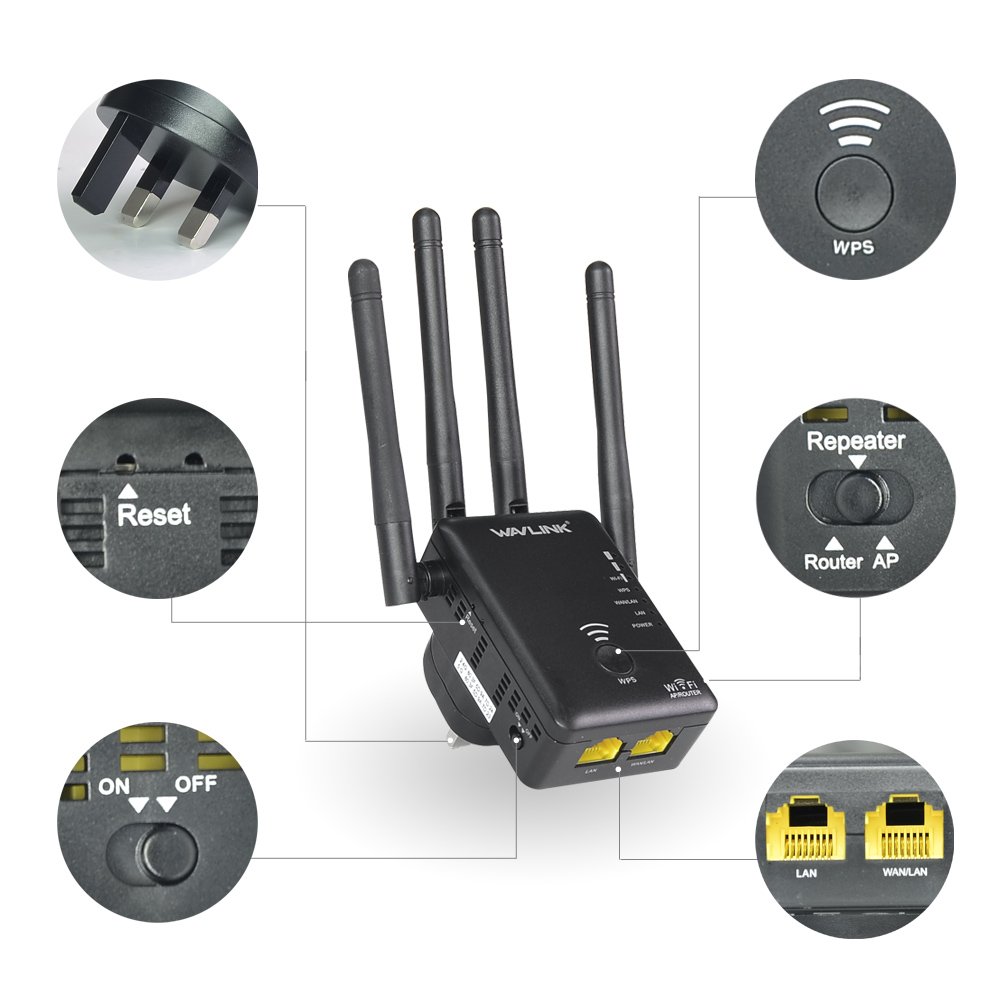

3. Button: WPS button / On & Off / Reset / Function selection button (AP Repeater or Router)
4. Wired transfer rate: 10/100Mbps
5. Wi-Fi transmission speed: 1200Mbps
6. Standards and protocols: Wi-Fi 802.11g, Wi-Fi 802.11n, Wi-Fi 802.11b
7. Wi-Fi supported frequency: 2.4G & 5G
8. 2.4G Wi-Fi transmission rate: 450 Mbps
9. 5G Wi-Fi transmission rate: 867Mbps
10. Item weight: 260g
11. Dimensions(LXWxH): 6.5 x 5.1 x 1inches / 16.5×5.1×2.6cm
12. Plug specification: US plug / EU plug / UK plug/ AU plug

Features:

1. 3-MODE-IN-1: Support router, repeater and AP mode; Multi-function mode is easily to meet all your requirements.
2. Support 802.11AC standard, backward compatible with 802.11 a/b/g/n; Simultaneously it supports 2.4G and 5G wireless network connection, transmission speeds can up to 1167Mbps; Co-work with any WiFi-based routers or devices.
3. AC1200 WiFi AP/Router-Eliminate Wi-Fi dead zones and extend coverage of your Wi-Fi. Mainly used for provide good Wi-Fi service in big areas such as factory, community, street or etc.
4. High performance antennas, 4x 3dBi high performance antennas, providing even better wireless performance and transmission rate, support 2T2R dual band concurrent, optimize WiFi signal intensity and connection reliability.
5. Smart LED light indicates the best location to balance coverage and performance; WPS button supports “One-Press” connection and encryption, simplify configuration. Note: Select the Wi-Fi network with a signal strength greater than 70% for the most reliable connection.
6. Sharing 2x 10/100Mbps ethernet LAN/WAN ports, providing a multiple-choice for you.

Multiple Functions:


WiFi Range Extender(Repeater)- Extend WiFi coverage of an existing wireless network.
Wireless Access Point- Convert a wired network to a wireless network.
Wireless Router- Create an instant private wireless Ac1200 network.

System Requirement:


100 ~ 240-volt socket
The WLAN client must support at least the WPA encryption standard.
WLAN access point and the WLAN client with automatic IP address assignment (DHCP)
Forwarding of IPv4-based protocols/address resolution protocol.
The network name (SSID) of the WLAN access point must be set to”visible”.

Package included:

1X Wavlink AC1200 1200Mbps Dual Band 4x3dBi External Antennas Mini Wireless WIFI Repeater Signal Booster
1X RJ45 networking cable
1X User’s manual

,
,
,
,
,
,
,
,
