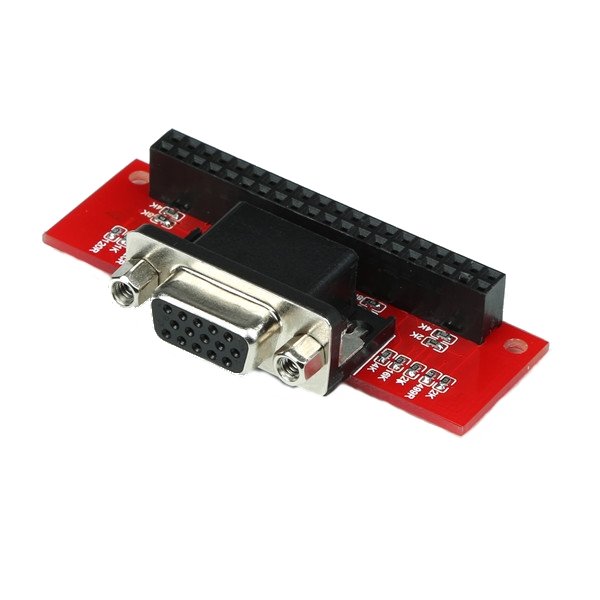

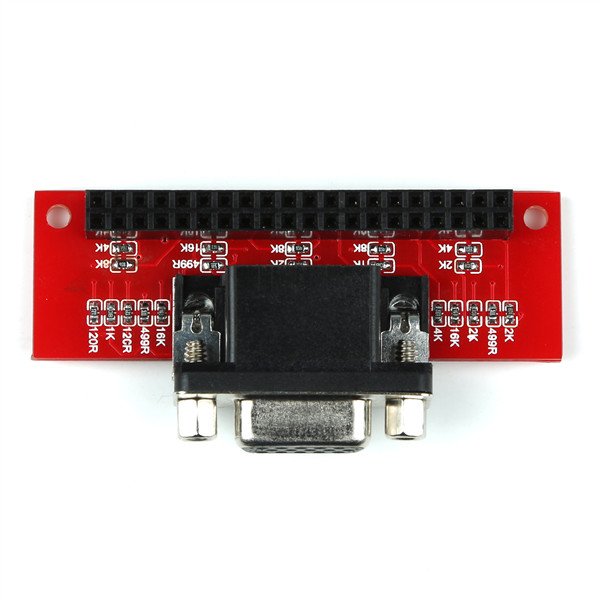

VGA 666 Adapter Board For Raspberry Pi 3 Model B 2B B+ A+

Description:

It is a
neat and very useful solution for using a VGA screen / monitor with your Raspberry Pi and is far cheaper than an HDMI to VGA adapter or similar. The VGA connection is driven natively in hardware over the GPIO pins (using a parallel interface) and uses around the same CPU load as the HDMI connection on board. It is
capable of displaying 1080p60 VGA video with no CPU load. It is also
possible to drive this interface at the same time as the HDMI connection, so a dual screen set up is also possible.

This add-on board uses all but 6 of the GPIO pins so it may not be possible to use other add-on boards at the same time as the VGA adapter.
You should disable all of GPIO pin’s function so that it can work properly.

We strongly recommend that you use
800×600 resolution. The highly resolution will slow down your Pi and cost more RAM.

Feature:

– Support for Raspberry Pi 3B / 2B / B+ / A+

– The VGA output supports resolution:from 640 x 480 up to 1920 x 1024 at 60fps.

– With 6 bits per channel you have a maximum of 262144 colours.

– Easy to setup.

– Easy to configure.

– Dimension: 64.00mm x 32.3mm

– Net weight: 16.5g

Note:

Raspberry Pi main board is not included.

Know more about this item, please click:

http://wiki.52pi.com/index.php/VGA666_Module_For_RPi_SKU:EP-0073

Package included:

1 × Adapter Board
