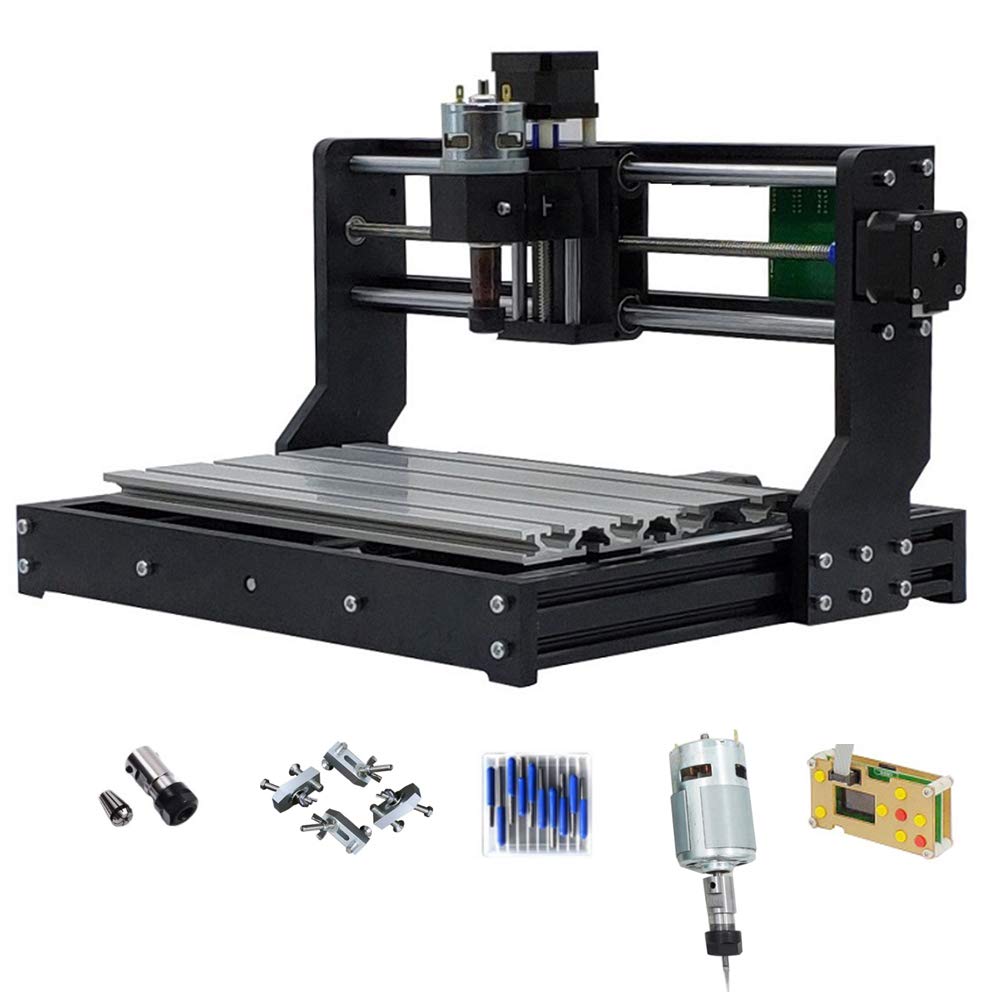

Description

OVERVIEW

[Software & Documents Download :] http://pwproducts.oss-cn-shenzhen.aliyuncs.com/CNCMini.rar

This Kit includes all the necessary parts for you to Do It Yourself to assemble. Interesting, Joyful and Effective.
Engrave both on Drill and Laser by a easy swift, managed by GRBLcontrol and laserGRBL software
DO NOT regard this kit as those engraving machine for industrial use.
.

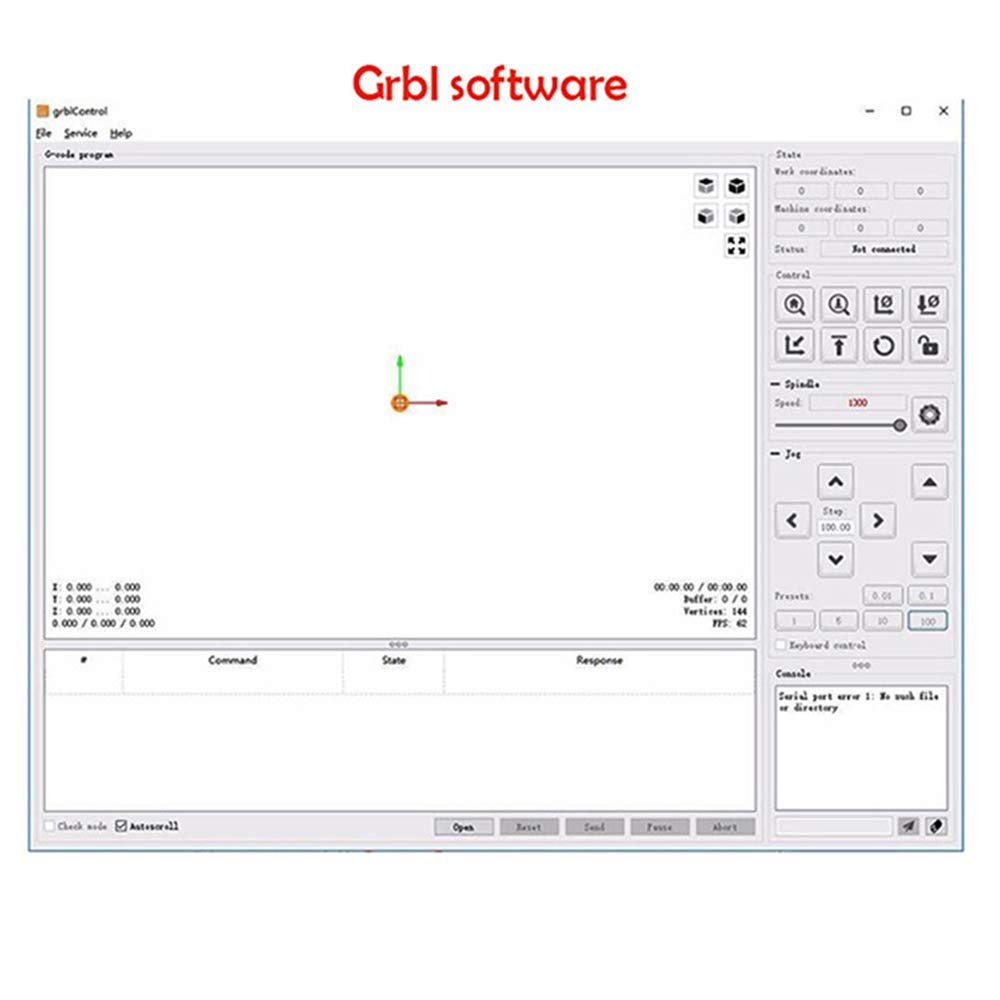

SOFTWARE DESCRIPTION :

– Control Software: GrblController (inclusive)

TECHNICAL DETAILS

-Working area (Table size) 300 x 180 x 45mm;
-Supported windows xp, win 7, win8, win10 ;
-Supported graphic plt, bmp, jpg, png, tip, pcx, tga, ico, dxf ;
-Drill bits: diameter 3. 17 mm, tip 0. 1mm; length 30mm, 20 degree ;
-Voltage： 110v / 220v ;
-Interface： USB ;
-Screw： t8 t-screw stainless steel lead screw diameter 8mm ;
-High quality stepper motors： 3pc two-phase step motor 1. 3a 0. 25nm ;
-Power consumed： 24v 5. 6a power adapter ;
-Laser spindle with diameter of 45 mm ;
-Adapter for different standard ( US, Eu, UK Au) ;
-Material cnc: Non-Metal as Pcb board, acrylic, plastics, woods ;
.

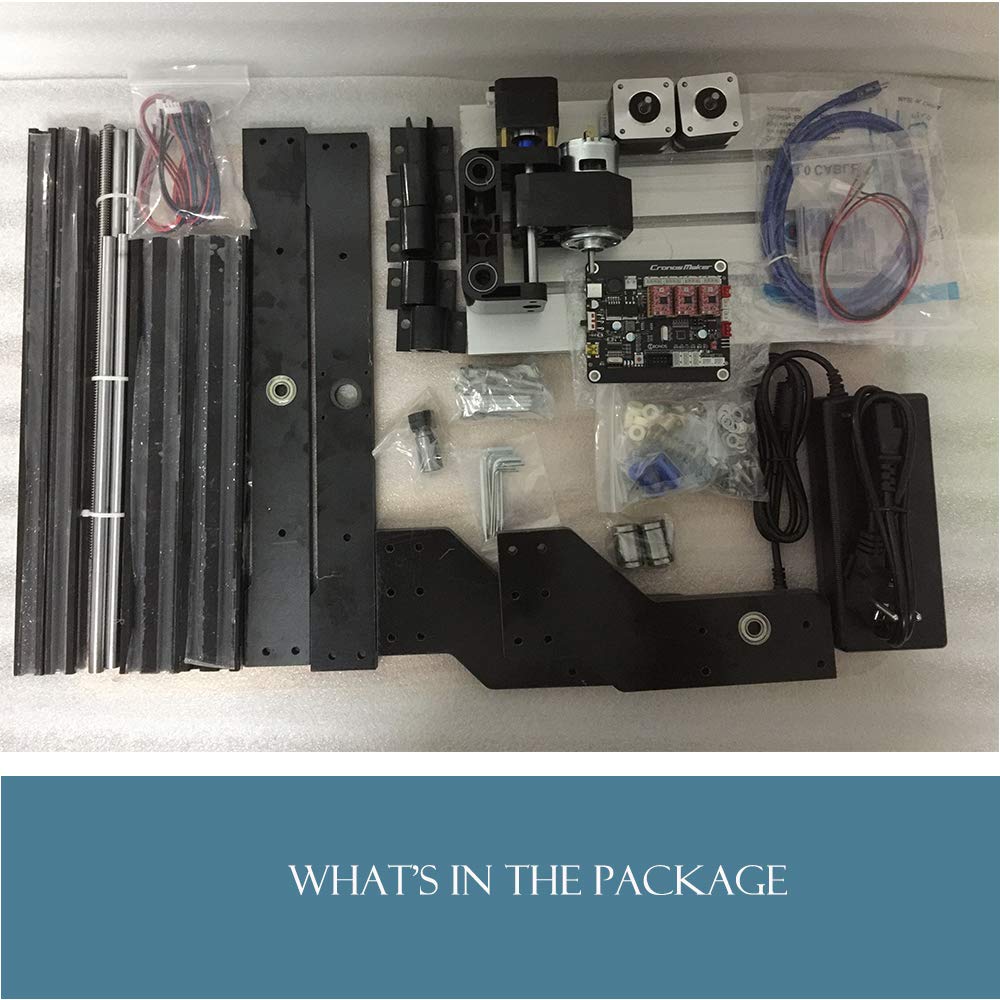

WHAT’S INCLUDED

1 x ONE SET of DIY staff for cnc router
1 x CD ROM disk for software and documents
10 x additional drill bits
1 x ER11
4 x Clamps
