Upgrade Hit & Miss Gas Engine Stirling Engine Model Combustion Engine Collection

Description:

• Item Name: Full Metal Hit & Miss Gas Engine
• Color: Sliver
• Material: Aluminium Alloy
• Weight: About 2.2kg(Engine+Wooden Base)
• Size Of Engine: 180*125*75mm(L*W*H)
• Size Of Wooden Base: 180*66*50mm(L*W*H)
• Cylinder Diameter: 22mm
• Ltinerary: 20mm
• Voltage: 3.5V
• Fuel: Kerosene or Gasoline
• The best tappet clearance: 0.5mm
• Weight: 1610g
• Revolutions Per minute:1200rmp

Engine Startup Steps:

1. Open the bottom of base to check the wiring of the engine, connect the fuel tank piep, and install 3 AA batteries.
2.Fill the fuel tank with gasoline(95#). When the filling is completed, make sure there’s no air in the oil pipe.
3.On the right side of the engine(installation of the flying hammer position), slowly turn conterclockwise by hand to buy more than one turn.Its role can make the mixed gasoline fully enter the cylinder.

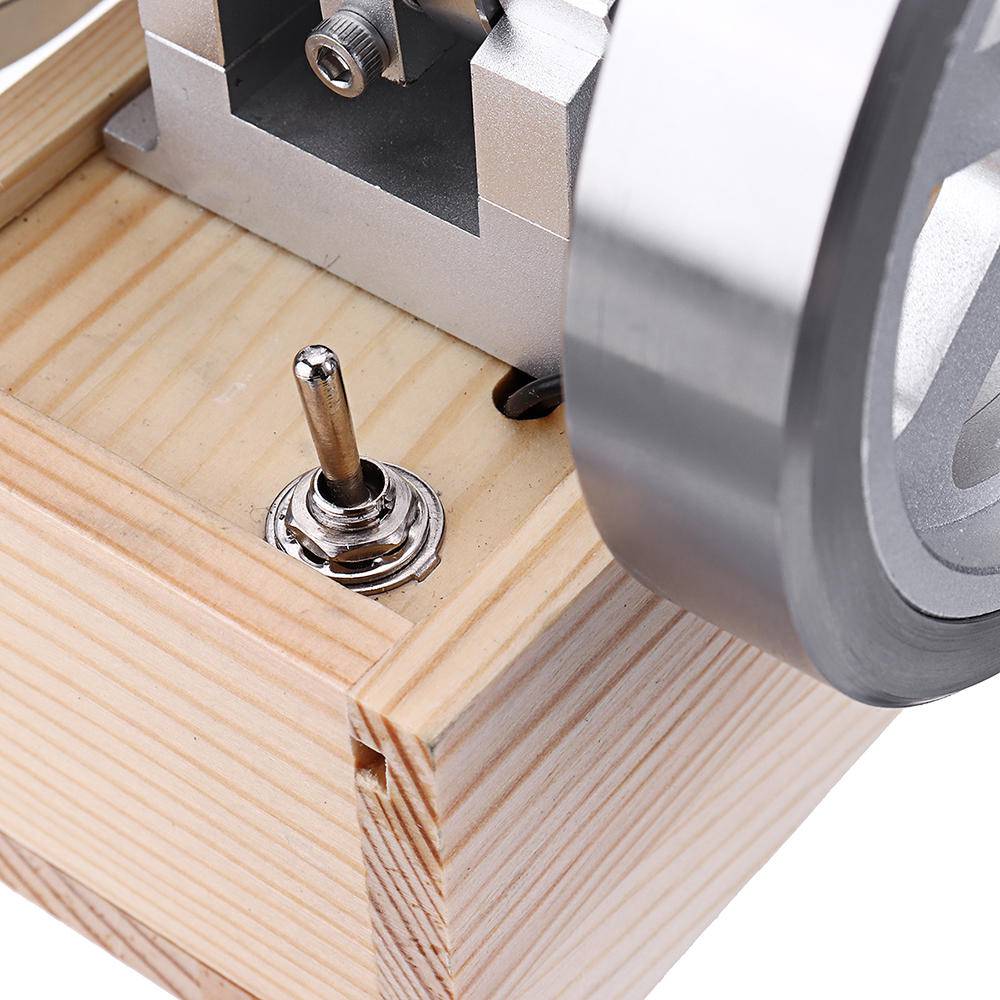

4.Turn on the power switch and turn the flywheel to start the engine counterclockwise on the right side of the engine(installing the flying hammer position)

Precautions:

1.If the ignition device is normal and the cylinder is under normal compression, if the machine still does not start normally, it’s very likely that the carburetor needle should be adjusted.

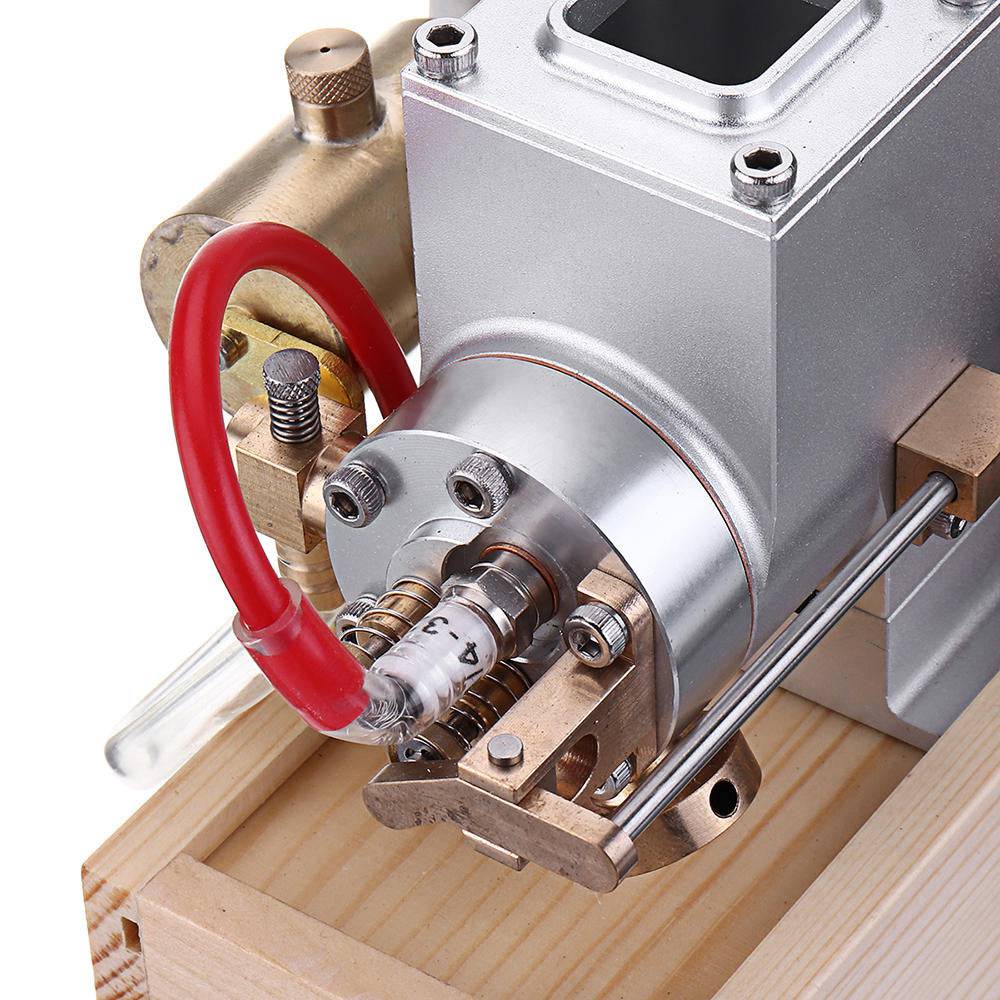

2.Screw the screw on the top of the carburetor, then loosen 1/4 turn, start the flywheel. This can be done several times to make the mixing ratio od gasonline and air re ach the normal working mix ratio.

Note:

Package Included:

• 1 X Upgrade Hit & Miss Gas Engine (With Base)
