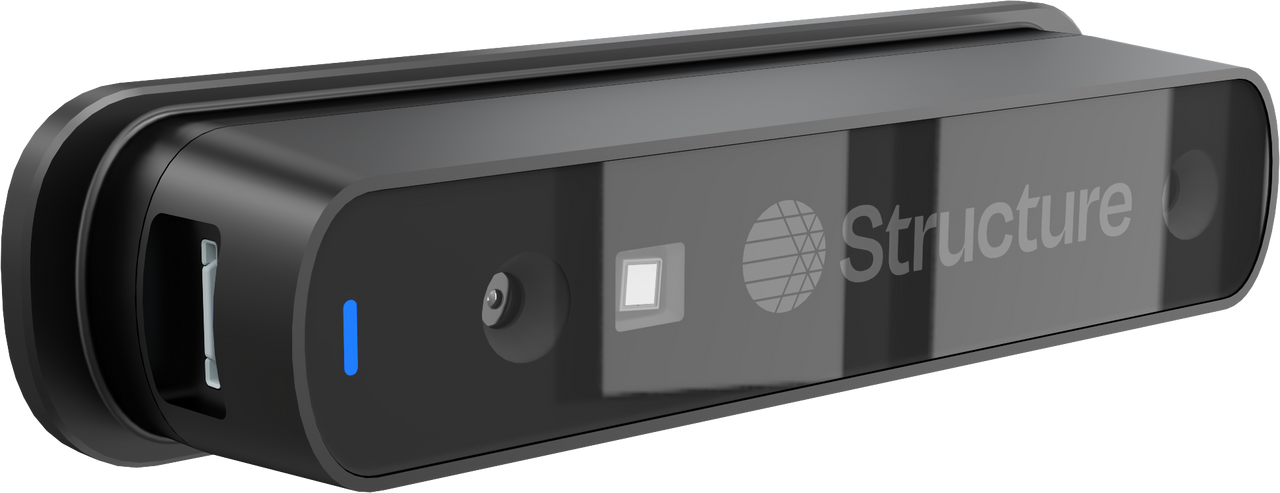

Structure Sensor 3 – Sensor Only No Bracket
3x the performance.
3x the battery life.
3x the durability.
Introducing the new Structure Sensor 3.
Good things come in 3s.
The all-new Structure Sensor 3 toughens up with our most durable, longest-lasting, and most powerful scanning platform to date. Push the limits of what’s possible with three times the battery life, a sensor redesigned with the rigors of your practice in mind, and more performance than ever.
3x the performance.
With an all-new neural processor, a fully redesigned sensor, advanced Structure SDK features, and anatomic landmark detection and measurements in Structure Cloud, Structure Sensor 3 is our most powerful platform to date. With a free year of Structure Capture included and hundreds of support apps, it’s never been easier to get scanning right out of the box.
3x the battery life.
With triple the battery capacity, 20% less power consumption during scanning, and a custom-designed heatsink with enhanced thermal dissipation, Structure Sensor 3 is ready to scan more patients than ever. Save time and eliminate repeat patient visits with Structure SDK features like Scan Quality Indicator that helps ensure your first scan is a perfect one. Whether it’s at the clinic or in the field, Structure Sensor 3 is designed to be ready to scan whenever you need it.
3x the durability.
With a 30% thicker housing, an integrated aluminum mounting plate, a rigidized internal chassis, and hundreds of hours of quality testing, Structure Sensor 3 is ready for the rigors of your practice. And with an improved factory calibration that lasts longer in the field, you can ensure you’re getting high-quality scans without the need for a recalibration.
Designed for your practice.
Technical Specifications
| Dimensions: | 29.5mm x 115.5mm x 29.1mm |
| Use Environment: | Indoors: Defused light
Outdoors: Overcast skies or shade |
| Weight: 115g | Battery life (hours) : 3.5+ (operation), 48h+ (standard) |
| Minimum distance: 33 cm | Maximum distance: 5+ m |
| Depth resolution: 1040H x 1280V (maximum) | Frame rate (fps): 30 (typical), 45 (maximum) |
| Accuracy: 1mm | IR Resolution: 1080H x 1280V (maximum) |
| Field of View (FOV): 50°(H) x 59°(V) | Operating wavelength (nm): 940 |
| Illumination: Class 1 Laser Projector | Operating temperature: 10 to 40° C |
Structure Sensor 3
It’s time to move away from the antiquated. Join us on the bleeding edge of 3D capture so you can go back to doing what you do best: caring for your patients.
