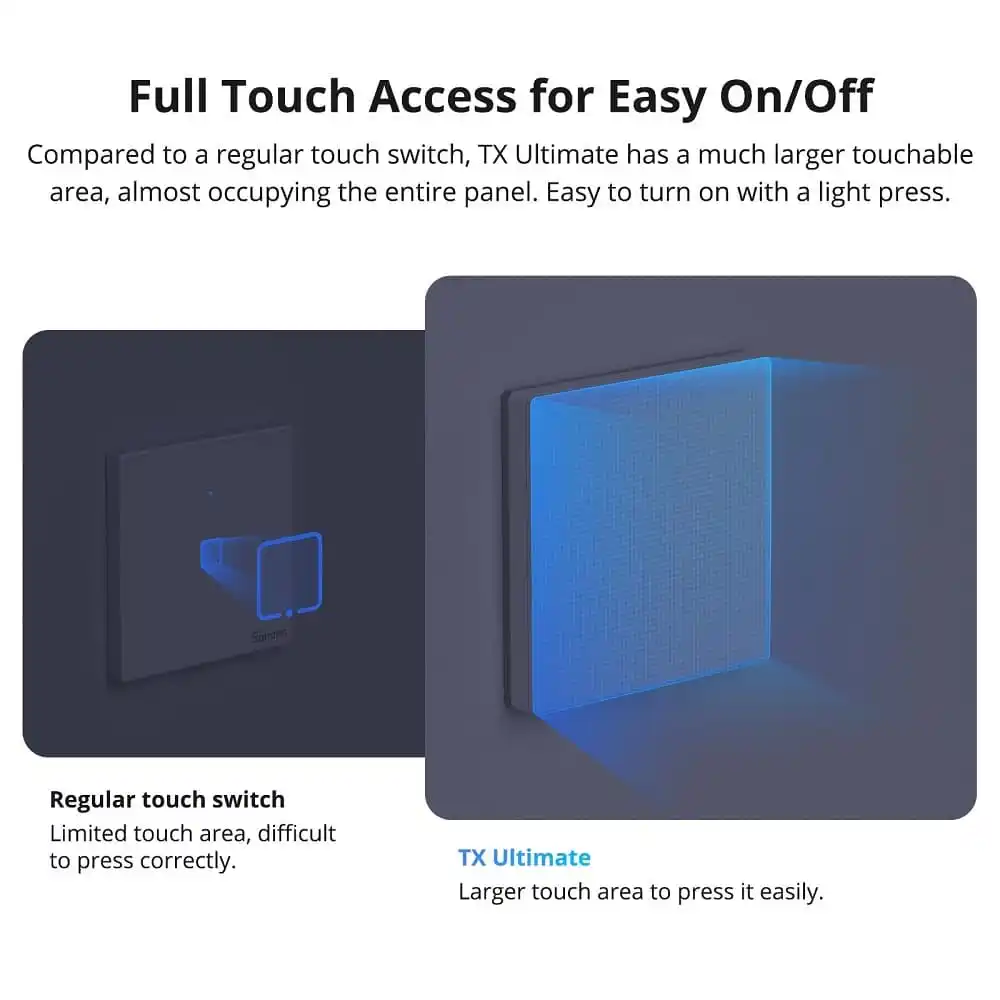

【Full Touch Access】Compared to a regular touch switch, TX Ultimate has a much larger touchable area, almost occupying the entire panel. Easy to turn on/off with a light press.
【Smart LED Light】There is a circle of RGB color edge lights around. In addition to being used as a switch status indicator, it can also be used as a night light or ambient light, to light up your night!
【Multi-sensory Touch Experience】TX Ultimate integrates LED light, speaker, and built-in motor. Pressing it can trigger the light transition, sound transition, and panel vibration at the same time, bringing a more futuristic trigger experience.
【Replaceable Switch Cover】The cover of TX Ultimate can be replaced. A star style and cartoon style are available. You can consider whether to purchase other panels according to different decoration styles.
【“eWeLink-Remote” Control】TX Ultimate is a smart switch with the gateway function of “eWeLink-Remote“. If you want to use the “eWeLink-Remote” control function, you need to use it with the S-MATE or scene remote controller R5.
Additional information
| Model | T5-1C-86/T5-2C-86/T5-3C-86 |
|---|---|
| Wi-Fi | IEEE 802.11 b/g/n 2.4GHz |
| Input | 1Gang: 100-240V~50/60 Hz Max 5A, 2Gang: 100-240V~50/60Hz Max 10A, 3Gang: 100-240V-50/60 Hz Max 15A |
| Output | 1Gang: 100-240V~50/60 Hz Max 5A, 2Gang: 100-240V 50/60Hz Max 5A/Gang 10A/Total, 3Gang: 100-240V 50/60Hz Max 5A/Gang 15A/Total |
| Color | White |
| Casing materials | PC+CRS |
| Dimension | 86x86x39mm |
Overview

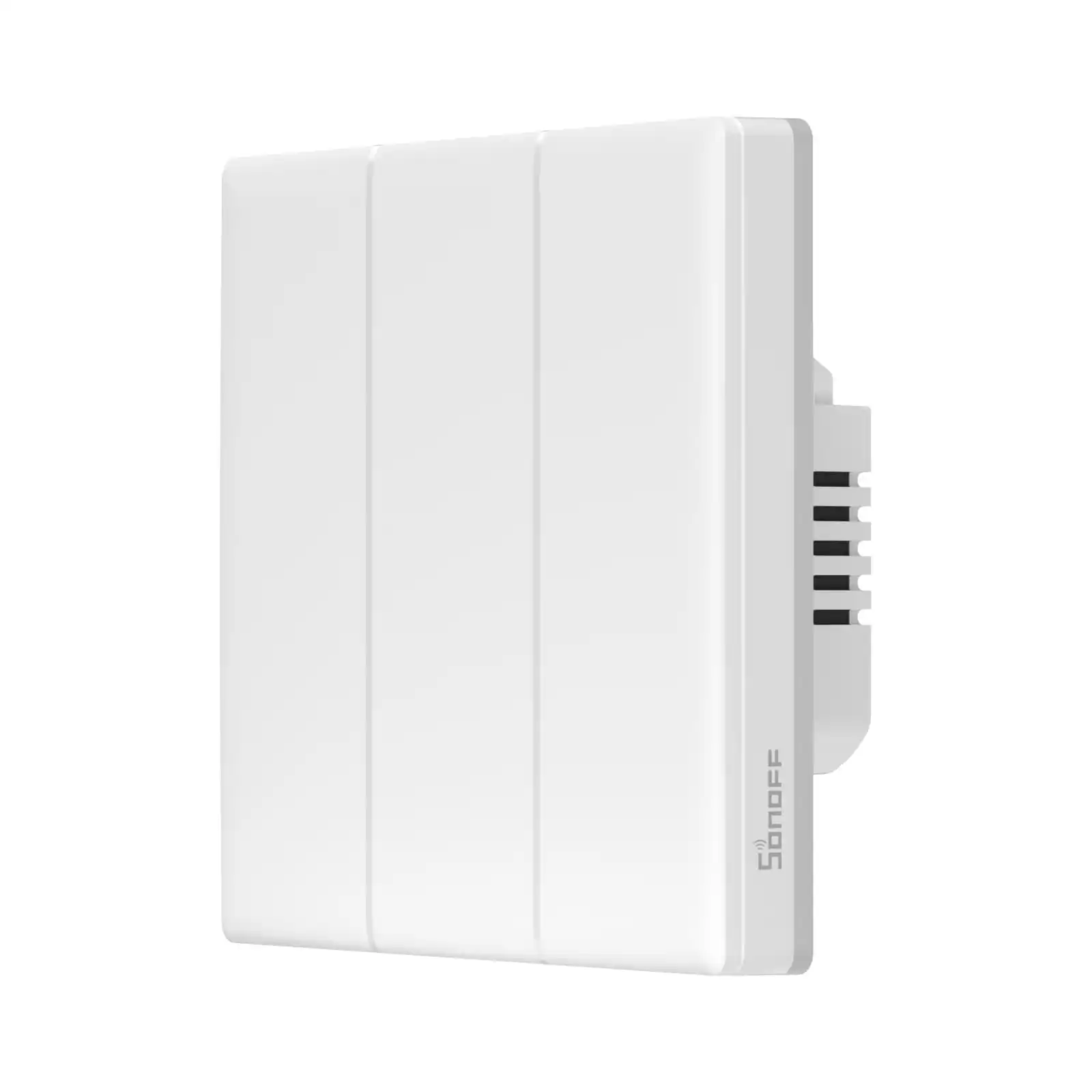

The SONOFF TX Ultimate (T5) is a full-touch access wall switch. Compared to a regular touch switch, TX Ultimate has a much larger touchable area, almost occupying the entire panel. So you can easy to turn it on/off with a light press.
One of the key features of the TX Ultimate is the circle of LED side lights that surround the switch, it has 8 different ambient light modes. You can even take it as a night light, used with smart sensors (such as DW2-WiFi, SNZB-03), when you get up at the night, the aisle will be automatically illuminated.
Another great feature of the TX Ultimate integrates LED light, speaker, and built-in motor. Pressing it can trigger the light transition, sound transition, and panel vibration at the same time, bringing a more futuristic trigger feedback.
TX Ultimate can be used as eWeLink-Remote gateway. You can create a smart scene that enables both TX Ultimate and scene controller R5 to control the same light. Even you can modify the S-mate into a doorbell button, and add it to the T5, set the doorbell scene, and you can have a local smart doorbell!

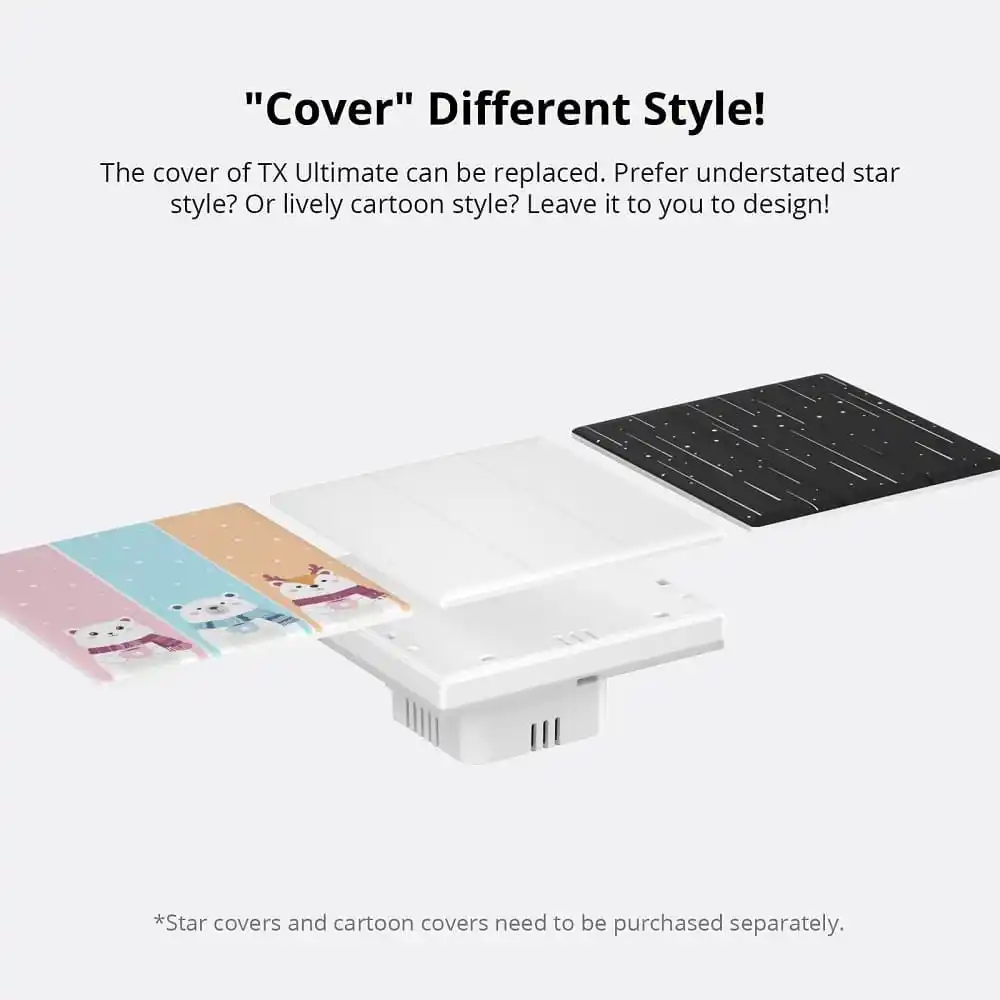

Finally, the cover of TX Ultimate can be replaced. Other panels can be purchased to replace different styles. This means you can easily change the look of the switch to suit your home’s decor. The basic white color is more versatile, the star style is suitable for rooms with darker tones, and the cartoon style is suitable for children’s rooms.
