Description

Overview:

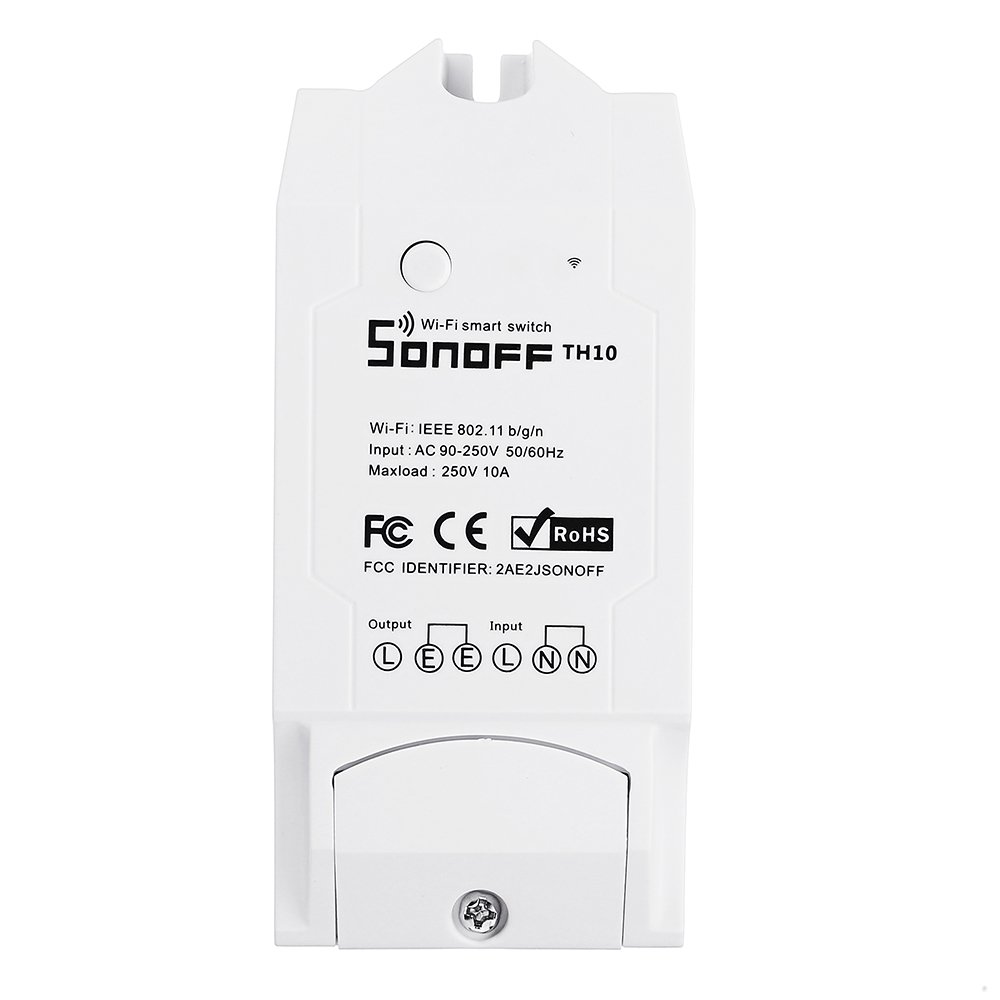

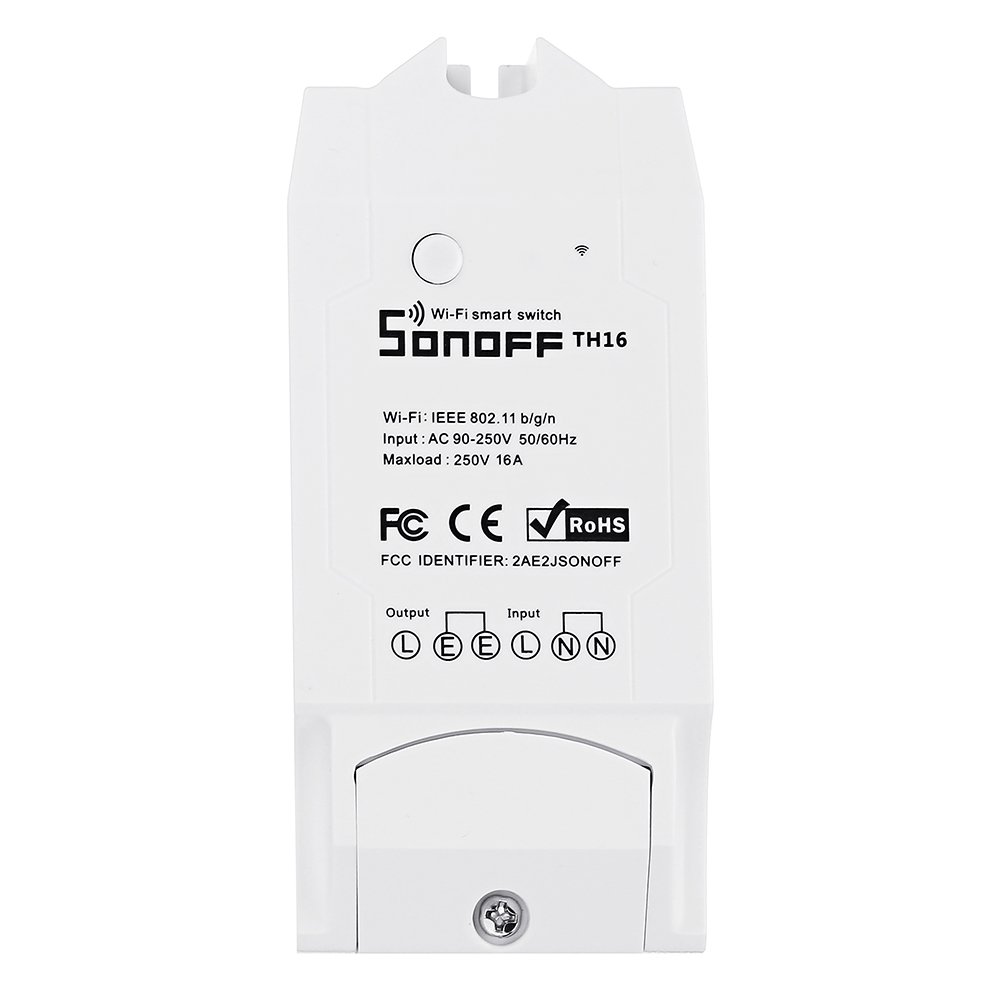

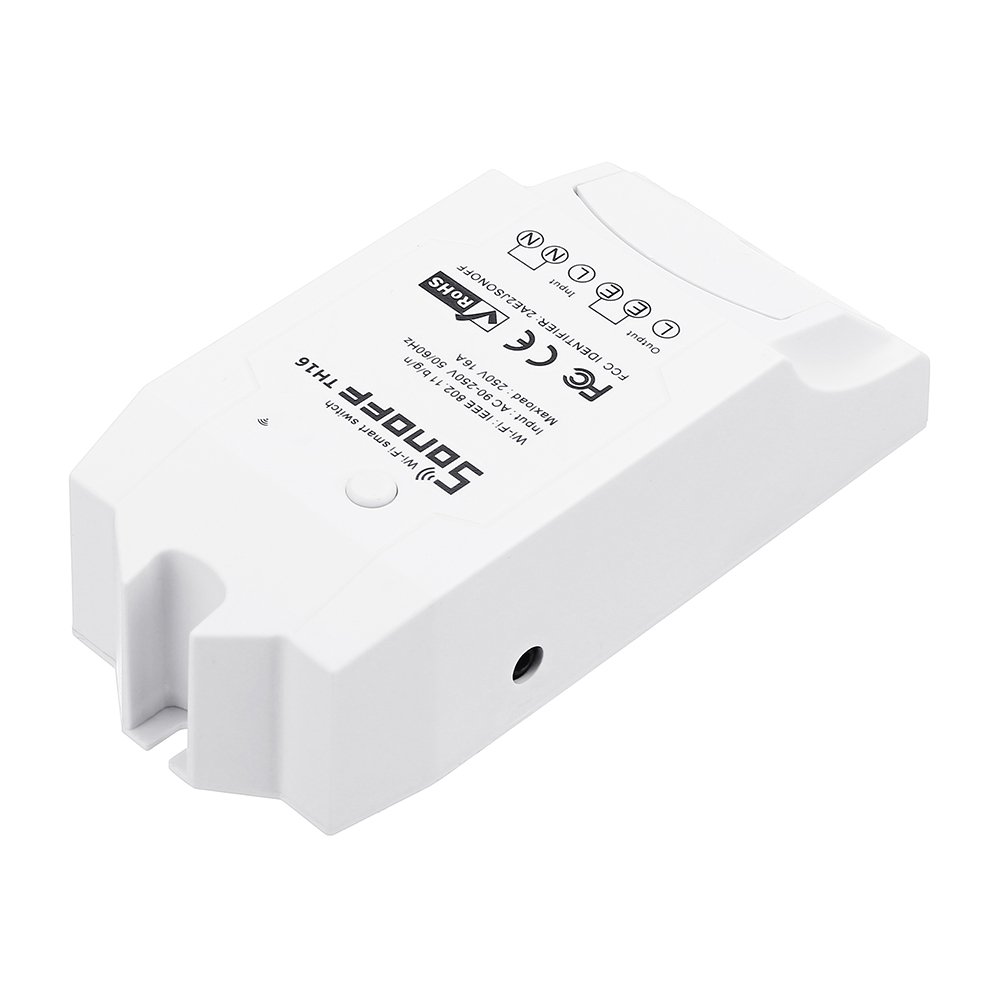

Sonoff TH10/TH16 is a wireless temperature and humidity monitoring switch which can remotely monitor and set temperature and humidity range to turn on/off connected appliances through the iOS/Android APP eWeLink. Just as the name indicates, the Sonoff TH temperature and humidity monitor device supports two maximum current supply specifications: 10A or 15A.

Sonoff TH10/ TH16 remote temperature monitor and wireless humidity monitor WiFi switch supports presetting the range for temperature or humidity. When the temperature or humidity of your home environment falls within the range, it will automatically turn on or off the connected devices.
Sonoff TH10/ TH16 supports four kinds of temperature monitor and humidity monitor sensors, mentioned below:
Si7021, AM2301, DS18B20, DHT11
Si7021 Highly Recommended!
The sensor should be plugged into the smart switch before power-on. It is not advised to plug or unplug the sensor after power-on. DS18B20 is waterproof, which can only measure temperature. Other sensors can measure both temperature and humdity.

With the eWeLink app, users can create simple conditional statement (Smart Scene) to trigger on/off other smart devices.  This means users can use Sonoff TH10 or Sonoff TH16 with Si7021, AM2301, DS18B20 or DHT11 sensor to detect temperature/humidity, and then set specified temp. or hum. ranges as conditions to trigger on/off other smart devices in the same account, such as Sonoff Basic, Sonoff RF, Sonoff SV, S20. This device works perfectly with electric fan, air conditioner, humidifier, smart fish tank, watering system, etc.

The sensor extension cable can connect the SONOFF temperature and humidity sensors to extend your devices to distance of 60m, suitable for SONOFF DS18B20, Si7021 and AM2301 temperature & humidity sensor.

Type 1: Sonoff TH10, Type 2: Sonoff TH16, Type 3: DS18B20 Sensor, Type 4: Si7021 Sensor, Type 5: 5M Sensor Extension Cable, Type 6: AM2301 sensor.

Feature:

Real-time monitor–Monitor real-time temperature and humidity
Auto Mode–Set Auto mode to turn on/off at a specified temp. or hum. range
Manual Mode–Set manual mode to turn on/off immediately
Trigger Smart Scene–The temp. or hum. values work as smart scene trigger conditions to trigger on/off other Sonoff devices
Remote ON/OFF–Turn electrical devices on/off from anywhere, can work without TH sensor
App Support –Free iOS and Android mobile App eWeLink
Sync Status–Real-time device status provided to App
Share Control– Control your smart home together with your family
Timing–Set scheduled/countdown timers to turn on/off at specified time
Scene–Turn on/off a gang of devices with one tap
Compatibility –Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nest

Specifications:

Input voltage: 90~ 250V AC
Input current: Max 10A /15A
Max. Power: 2200W(10A) /3500W(15A)
Humidity: 5%-90%RH, Non-condensing
Operating Temperature: 0ºC-40ºC(32°F-104°F)
Wireless Standard: 802.11 b/g/n
Security Mechanism: WPA-PSK/WPA2-PSK
Enclosure Material: Fire-retardant ABS V0
Dimension: 114*51*32 (mm)
Supported temperature, humidity sensors: Si7021, AM2301, DS18B20, DHT11
Gang: 1
Certification: CE, RoHS, FCC (Download)
UPC (for Sonoff TH10): 6920075700947
UPC (for Sonoff TH16): 6920075700954

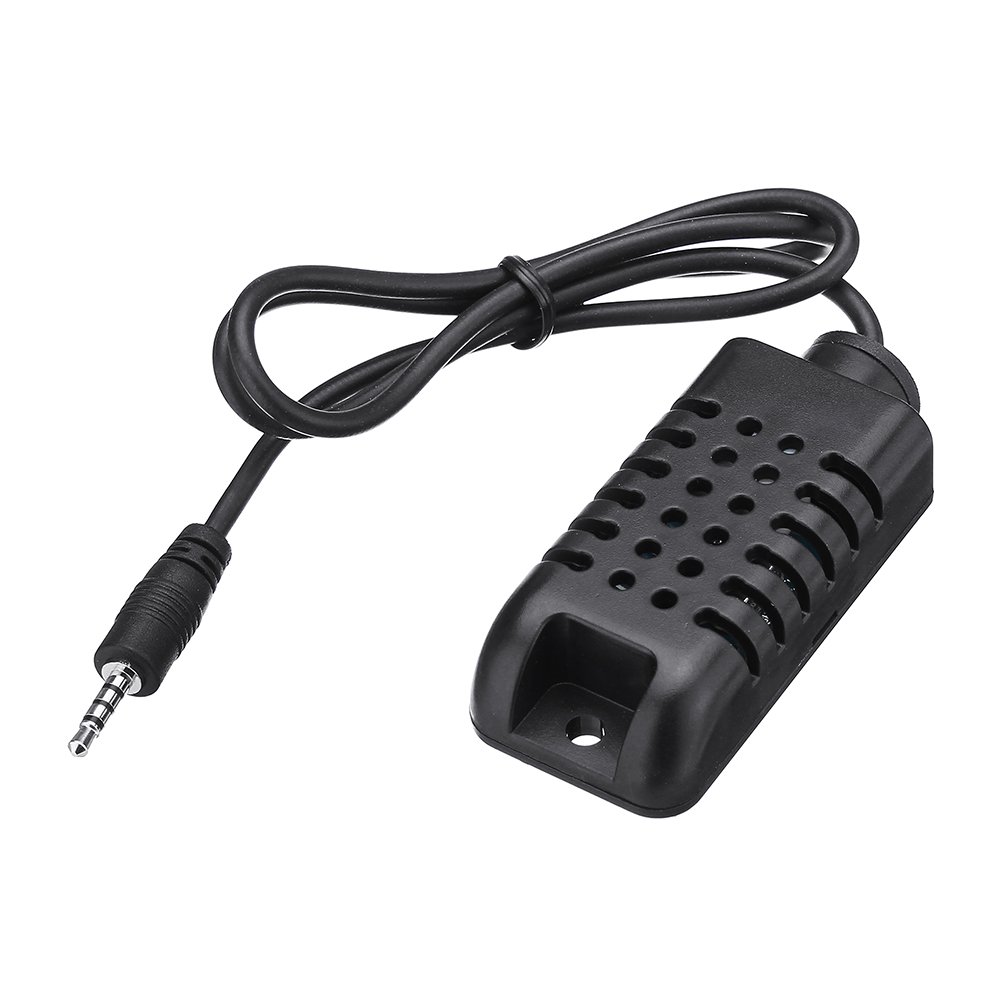

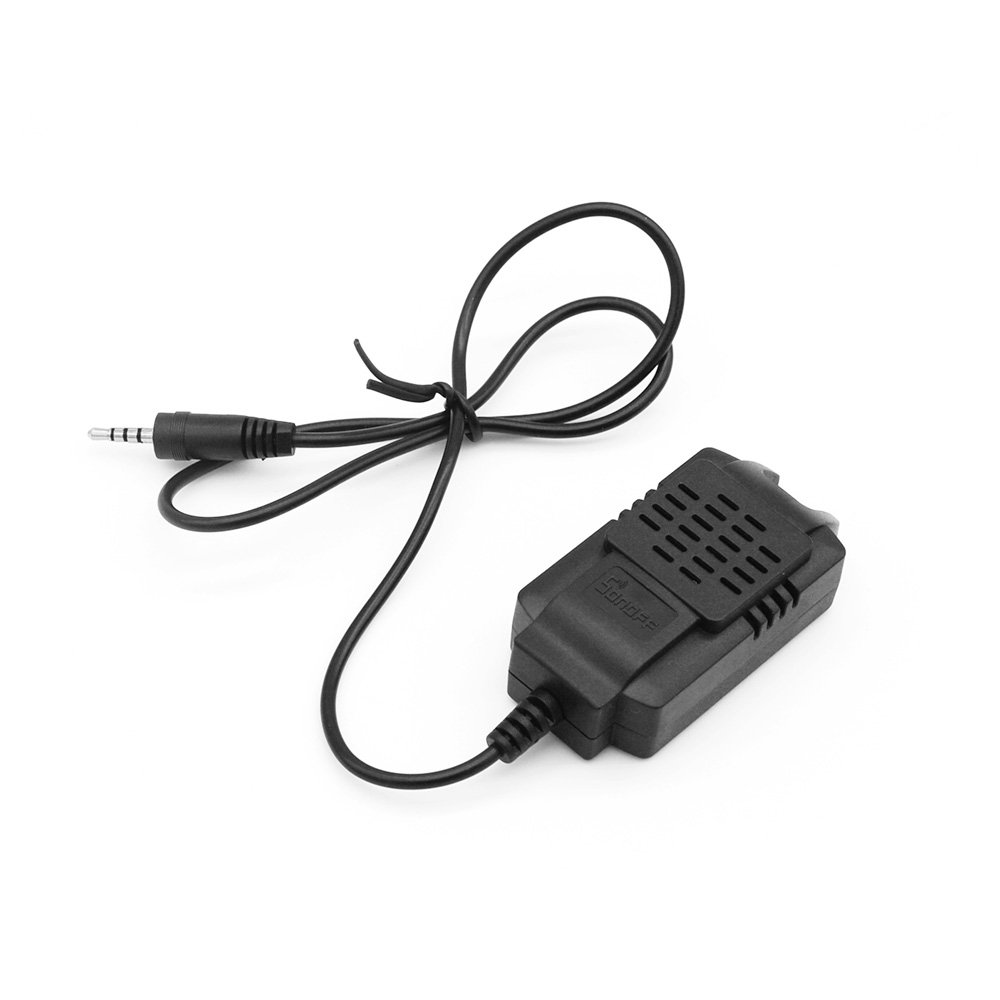

Si7021 Sensor:
Temperature Measuring Range: –40℃~+85°C
Humidity Measuring Range: 0~100%RH
Storage Temp.: –65℃~+150°C
Operating Voltage: 2.2-3.6V
Weight: 26g
Length: 0.5m

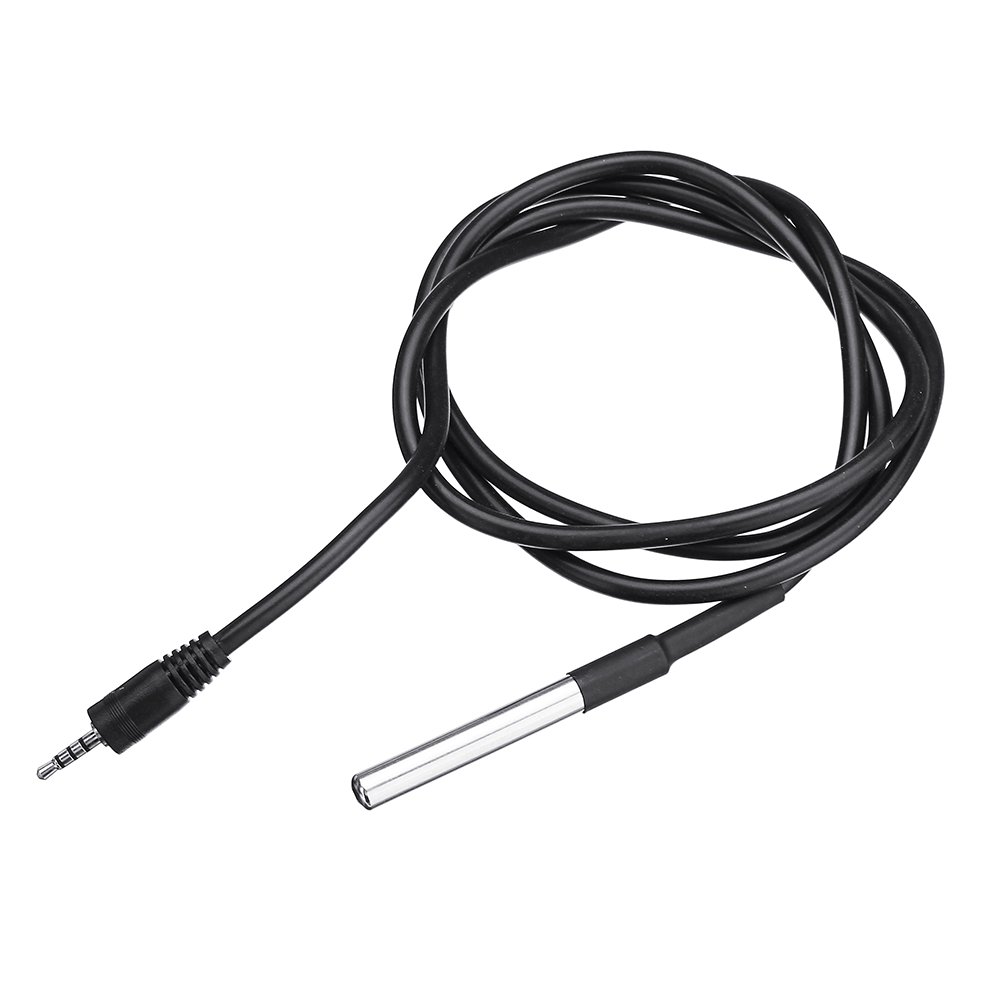

DS18B20 Sensor:
Type: Waterproof temperature sensor
Probe: Stainless steel temperature probe
Temperature Measuring Range: -55℃~+125℃
Power Supply: 3.0-5.5V
Weight: 26g
Length: 1m

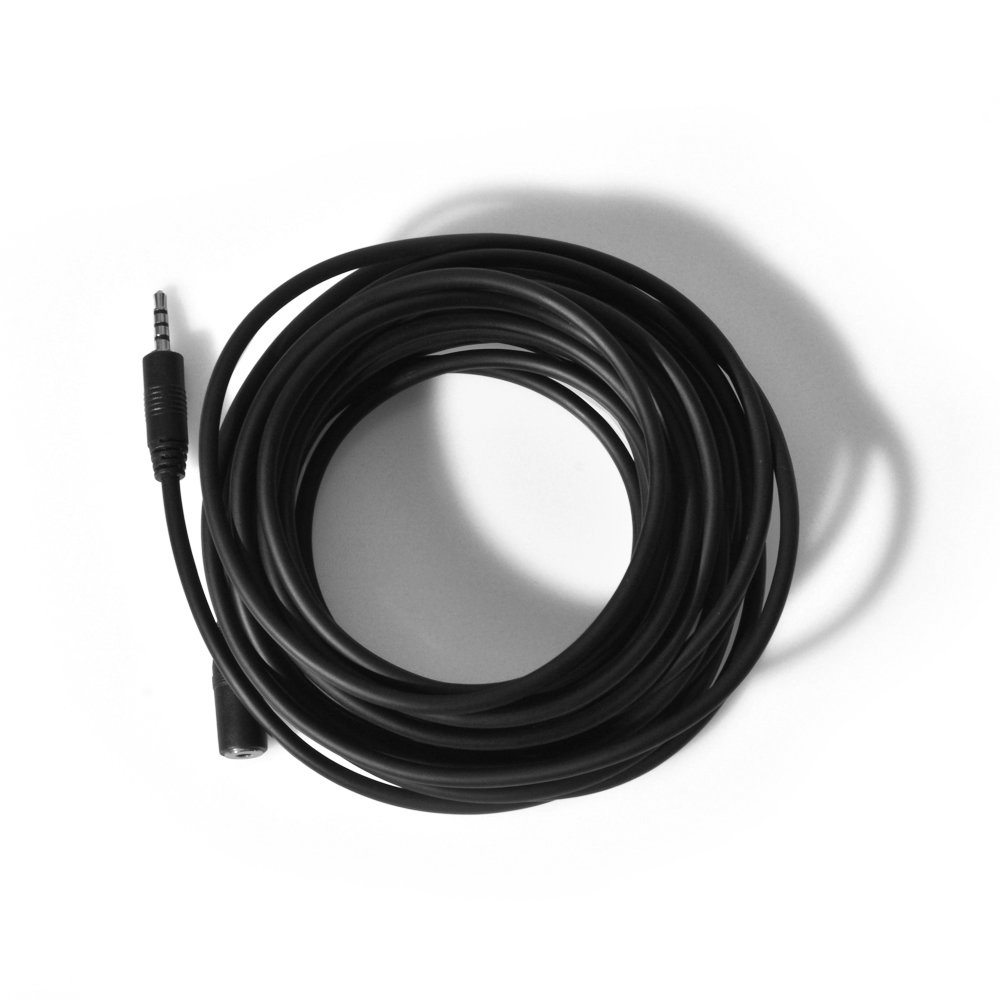

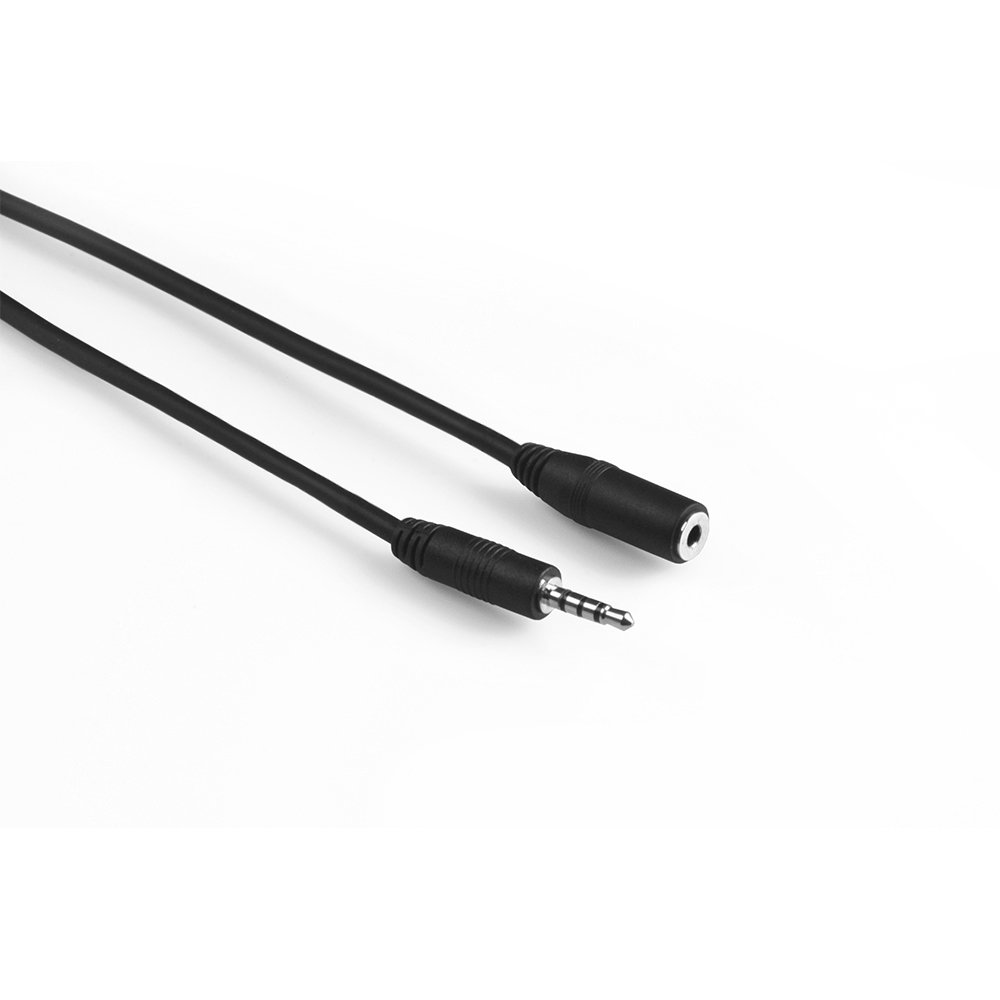

Sensor Extension Cable:
Insulation resistance: Min. 500mΩ
Conductor resistance: Max. 5Ω
Certification: RoHS
Length: 5m cable length & Max. 60m extendable length.
Application:Suitable for SONOFF DS18B20, Si7021 and AM2301 temperature & humidity sensor.

Package included:

1 x TH10 / TH16 / DS18B20 Sensor / Si7021 Sensor / AM2301 Sensor / Sensor Extension Cable(optional)
