SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version)

or 6 weekly interest-free payments from $9.35 with Laybuy

or 4 payments of $14.03 with Wizit learn more

$56.10$60.75 AUD

16A20A
Clear
Estimated delivery between Saturday 28. December - Saturday 4. January
Add to Wishlist
Add to Wishlist

Description

【20A Max Output】Support to connect 20A Max high load, compatible with more home appliances.
【6-Month Temp & Humi Historical Data by Hours】 Support to check the temp & hum history data by hour, day and month. Past 6-month history data can be exported in .xlsx format and accurate to hour.
【Local Automatic Control】Support LAN control, the device can turn on/off automatically according to the temp & humi thresholds at different time periods. You can set 8 automatic control programs for you to save electricity bills and create comfortable surroundings.
【Voice Control】Compatible with Alexa, Google Assistant. Just speak out your command, they can do on/off as you say, and check the temperature and humidity for you.
【Smart Scenes】TH Origin can trigger other smart devices when the temperature and humidity reach the threshold or the device switches on or off. The device on, off, and invert can also as execute action.

Note 1: THS01 and WTS01 are the sensors of the RJ9 jack, just plug into TH Origin to use. MS01 comes with a free RJ9 adapter to fit for TH Origin.
Note 2: The RL560 is the new sensor extension cable of RJ9, it can connect the SONOFF temperature and humidity sensors to extend your device’s distance. WTS01, THS01 can be extended to 60M, and MS01 soil moisture sensor can be extended to 10M.
Note 3: If you already have the 2.5mm Audio jack sensor (AM2301/DS18B20) and want to use it with the new TH Origin, you can click to buy the RJ9 adapter.



Additional information

TH Origin 16A, 20A
Model THR316/THR320
MCU ESP32
THR316 Input/Output 100-240V~ 50/60Hz 16A Max
THR320 Input/Output 100-240V -50/60Hz 20A Max
Wi-Fi IEEE 802.11 b/g/n 2.4GHz
TH Origin Working Humidity 5%-95%RH,non-condensing
TH Origin Working Temperature -10°C~40°C(14℉~104℉)
Certification TUV/CE/UKCA/WWA/FCC/RoHS/SRRC
Security Mode WPA/WPA2
Supported Sensor THS01, DS18B20, MS01
THS01 Working Temp –40℃~+85°C(-40℉~185℉)
THS01 Humi Measuring Range 0~100%RH
DS18B20 WorkigTemp -55℃~+125℃(-67℉~257℉)
MS01 Humi Measuring Range 0~100%RH
MS01 Operating Temp Range 0℃~60°C(32℉~140℉)
RL560 Conductor Resistance Max.10Ω
RL560 Insulation Resistance Min.5MΩ
Works with Amazon Alexa, Google Assistant
Casing Material PC V0
Color White
Product Size 98x54x27.5mm



SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 1SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 2SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 3SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 4SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 5SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 6SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 7SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 8SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 9SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 10SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 11SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 12SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 13

TH 10/16 Upgraded to TH Origin

  SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 14SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 15SONOFF TH Origin Smart Temperature and Humidity Monitoring Switch (TH10/16 Upgrade Version) 16

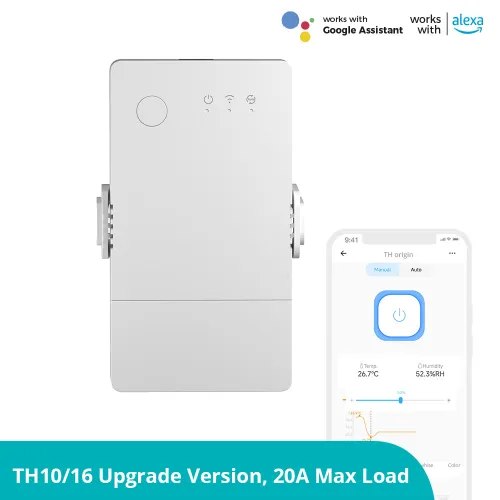

SONOFF TH Origin (the upgrade version of TH10/TH16) is a smart temperature and humidity monitoring switch with ESP32 chip, it keeps monitoring the temperature and humidity in real time, once they reach your preset threshold or the device’s on/off state changes, you will receive the push notification on the phone. SONOFF TH Origin supports 20A/16A max loads, compatible with more home appliances. TH Origin support to check 6-Month Temp & Humi historical data accurate to the hour. In the smart scene, temperature, humidity, on, off support setting as the trigger, on, off, invert as execute actions. Support adding SONOFF devices to Home Assistant for control and automation through eWeLink add-on.

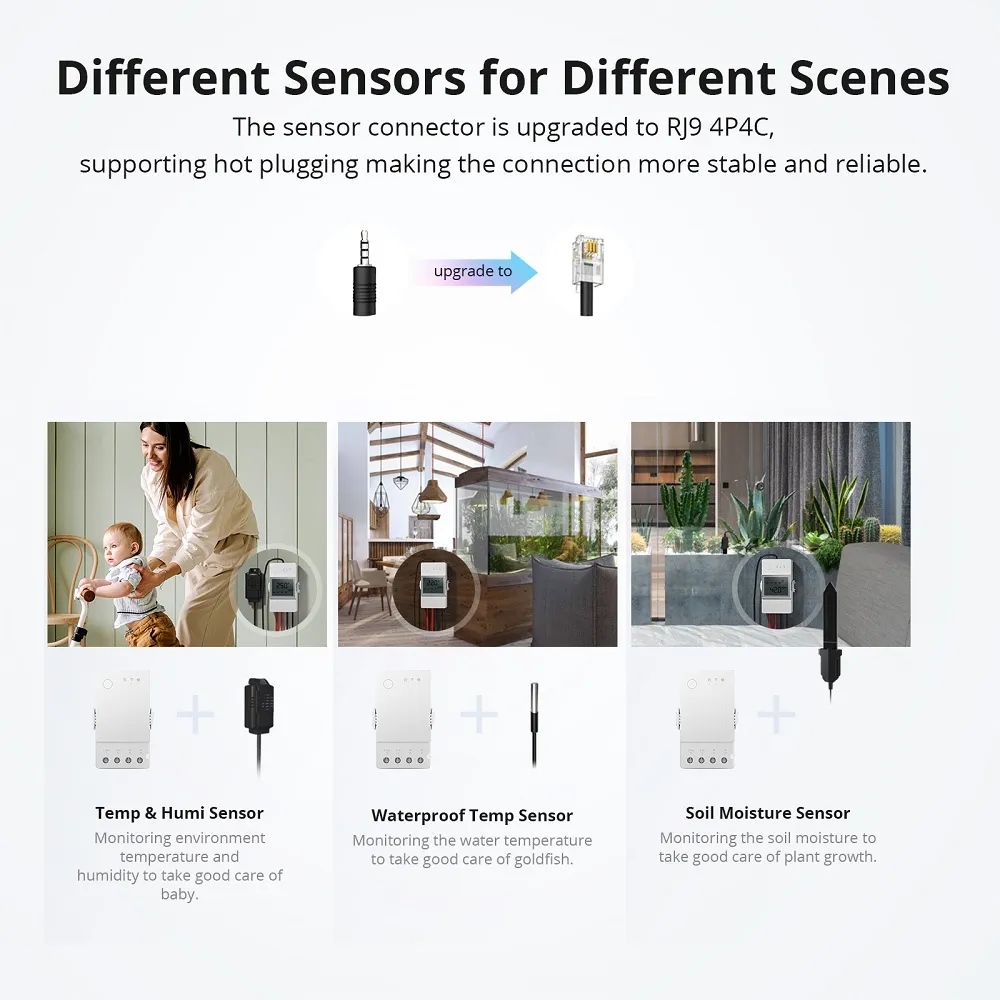

SONOFF TH Origin supports three kinds of temperature monitor and humidity monitor sensors—THS01Temp & Humi Sensor, WTS01waterproof Temp sensor, and MS01 Soil Moisture Sensor. The sensor connector is upgraded to RJ9, supporting hot-plugging making the connection more stable and reliable. So TH Origin has wide application scenes, like heated swimming pool, irrigation system, fermentation room, reptile terrarium, greenhouse grown, etc.

The RL560 sensor extension cable can connect the SONOFF temperature and humidity sensors to extend your device’s distance. THS01, WTS01 can be extended to 60M, and MS01 Soil Moisture Sensor can be extended to 10M.

THS01 Sensor

  • Sensor Type: Temperature & Humidity sensor
  • Connector type: RJ9 4P4C
  • Temperature Measuring Range: –40℃~+85°C
  • Humidity Measuring Range: 0~100%RH
  • Cable Length: 50cm

WTS01 Sensor

  • Sensor Type: Waterproof temperature sensor
  • Connector type: RJ9 4P4C
  • Working Temperature: -40℃~+115℃
  • Length: 150cm

MS01 Sensor

  • Sensor Type: Soil Moisture Sensor
  • Humidity Measuring Range: 0~100%RH
  • Operating Temperature Range: 0℃~60°C
  • Cable Length: 50cm

RL560 Sensor Extension Cable

  • Conductor resistance: max.10Ω
  • Insulation resistance: min.5MΩ
  • Length: 5m cable length & Max. 60m extendable length.

Additional information

TH Origin

16A, 20A
