or 4 payments of Description
【Open Device REST API】Connect and control the BASICR3 with your existing home automation system like Home Assistant via LAN.
【Easily DIY Your Smart Home Appliances】Connect BASICR3 directly to the middle of the power supply and the appliance to quickly make your ordinary appliances smart without buying a new smart one.
【Fully Functional】BASICR3 has all the most basic functions, like remote APP control, LAN control, timing schedule, share control, etc. Your best choice for the DIY switch.
【Smart Scenes】Trigger other smart devices, make actions auto-on/-off. The appliances understand you, and your life becomes simpler.
【Voice Control】Compatible with Amazon Alexa, Google Assistant, SmartThings, and Alice. Just speak out your command, the smart device can do on/off as you say.
If you want to buy a switch with DIY Mode, you can click to buy RFR2, D1, MINIR2. If you don’t need DIY Mode, you can click to buy BASICR2.
Additional information
| Brand | SONOFF |
|---|---|
| Product Type | Wi-Fi Smart Switch with DIY Mode |
| Max Current | 10A |
| Max Power | 2200W |
| Power Supply | AC 100-240V |
| Switch Channel | Single |
| Wireless Standard | IEEE 802.11 b/g/n 2.4GHz |
| Enclosure Material | PC V0 |
| DIY Mode | Yes |
| Works With | Amazon Alexa, Google Assistant, Samsung Smarthings, Yandex Alice |
| Product Dimensions | 91*43*25(mm) |
| Certified Compliance: | CE, FCC |

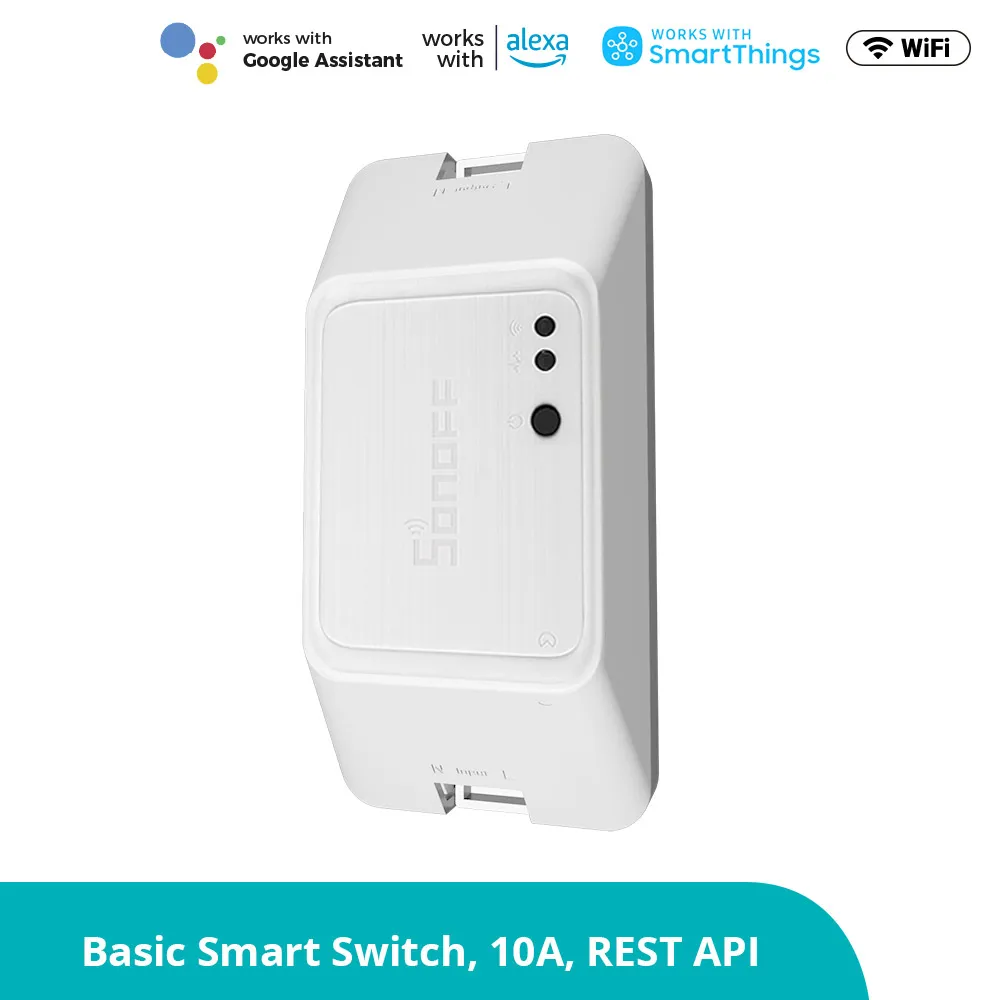

This is a WiFi Smart Switch with the DIY capability that makes it possible to control connected devices via the eWeLink directly from your phone, or ask it to turn on/off devices with Amazon Alexa and Google Assistant. Amazingly, it has a DIY mode that is the firmware can be user-defined. Built-in a web server that exposes the REST API, which allows you to connect the switch with your existing home automation system. Compatible with HomeSeer, Home Assistant, etc, for the protocol document and the code for the DIY Mode tool (updating), please go to Github on http://developers.sonoff.tech/sonoff-diy-mode-api-protocol.html
Simply set a timer to let your devices switch on/off automatically at a pre-set time through a day. For example, prepare your coffee maker in the evening, and a cup of coffee is ready for you in the next morning. Compatible with the IFTTT function, and you can make more actions happen to trigger other devices, or receive a notification on your phone once the action was triggered.
Along with support for smart scenes, just set a device to turn on/off to make another or a boatload of devices turn on/off. The LAN control is designed for situations which no available Wi-Fi connection, or an unsteady Wi-Fi network environment. A convenient option that is share control is capable of allowing you to manage the same device with your family or friends together, simply share it on the eWeLink app to try.
Note: SONOFF BASICR3 does NOT have 433Mhz RF receiver module.
