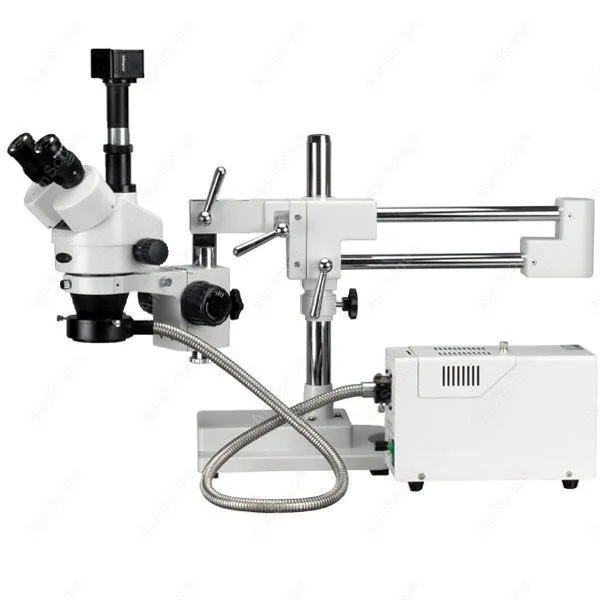

Simul-Focal Trinocular Microscope System 3.5X-90X | Trinocular Boom Stand with USB Camera

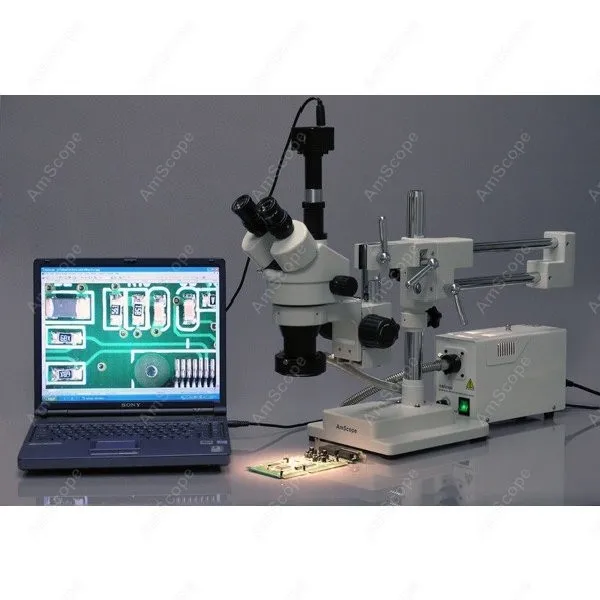

The Simul-Focal Trinocular Boom Microscope System offers a broad magnification range of 3.5X-90X, perfect for professional applications requiring high precision, such as electronics repair, industrial inspections, and biological studies. This advanced microscopy system includes a trinocular viewing head, allowing simultaneous viewing and recording through the attached USB camera.

Features:

• Simul-Focal Optical System Allows Simultaneous Observation Through Both the Eyepieces and the Trinocular Port
• Have well-focused, clear images on your computer or video Screen AND through the microscope eyepieces at the same time
• No need to switch between the trinocular port and the eyepieces
• No need to re-focus the microscope after each “switch”
• 30mm Super Widefield 10X Eyepieces
• Sharp stereo images over a super widefield view
• High resolution with great flatness and contrast
• Crystal clear original true-color images
• Versatile heavy-Duty Double-Arm Boom Stand
• Covers large working area
• 3-Degree Freedom design allowing the microscope head to be pointed in any direction
• Rugged Solid Cast Steel Base Finished with Stain Resistant Enamel
• 3.5X-90X (26:1) Continuous Zoom Magnification Range
• 45-Degree Inclined Microscope Head
• 8″ (200mm) Large Working Distance
• Upright Trinocular Tube for Attaching Digital Cameras, Video Camcorders or CCD Videos
• Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
• Both Ocular Tubes with Adjustable Diopters
• Adjustable Interpupillary Distance
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• All Metal Mechanical Components
• Rubber Eye-guards Included

Specifications:

• Head: 45-degree inclined, 360-degree swiveling trinocular
• Eyepieces: 30mm super widefield high-eyepoint (WF10X/20)
• Barlow Lens: 0.5X and 2.0X super widefield
• Objective: 0.7-4.5X
• Zoom Range: 26:1
• Working Distance: 8″ (200mm)
• Field of View: 2-1/2″ (65mm) super widefield view
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16″ – 2-15/16″ (55-75mm)
• Boom Stand: 20″ double-arm (overall length: 30″), 17″ high pillar, 10-1/4″x8-1/4″x2-0″ solid cast steel base
• Accessories: eye-guards

Camera Specs:

• Sensor: Aptina MT9V001 CMOS (color)
• Sensor Size: 1/4″
• Resolution: 640X480 (approx. 350,000 pixels)
• Reduction Lens: 0.37X
• Pixel Size: 5.6µm x 5.6µm
• Frame Rate: 30fps @640×480
• Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux
• PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port

Advanced software for Windows:

• offers Stitching, EDF, video recording and measurement functions
• conducts measurements for lengths, angles, arcs, areas and etc.
• gives your computer screens the same field of view as your microscope’s eyepiece
• saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
• edit and process microscopy images in a manner similar to PhotoShop
• live video and still image capture can be set in different resolutions simultaneously
• Life-time free software upgrades

Packing List :

• One Simul-Focal Trinocular Stereo Zoom Head
• One pair of Super Widefield High-Eyepoint Eyepieces: 10X
• One 0.5X Super Widefield Barlow Lens
• One 2.0X Super Widefield Barlow Lens
• One Double-Arm Boom Stand with Focusing Rack

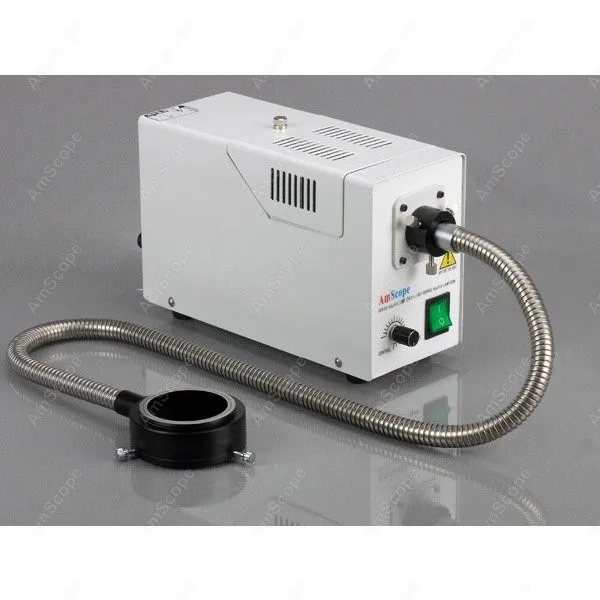

• One 150W Fiber Optic Halogen Light Source
• One Fiber Optic Ring Light
• One Ring Adapter
• One 640×480 pixel USB2.0 Microscope Digital Camera with Reduction Lens
• One CD with Software, Driver and Step-by-Step Instructions
• One 6′ USB Cable
• Two Adapters
• One Pair of Eye-Guards
• User’s Manual Included
• Shipping Weight: 75 lbs
• Packages: 2 (50 lbs + 25 lbs)
