Description

Compatibility list:

• Seasonic M SERIES: M12 500/600/700, M12II 520/620/650/750/850
• Seasonic G SERIES: G450/550/650/750
• Seasonic X SERIES: X400/X 460/X560/650/660/750/760/850/1000/1050/1250
• Seasonic P SERIES: P400/P460/P520/P660/P760/P860/P1050/SNP1050/P1200

Warning:

Original Seasonic cables only work on Seasonic power supply, please DO NOT apply the cables cross other brand of power supply; even the same model in different hardware version, to connecting wrong or incompatible cables in contacting with the power supply may cause of property damage.

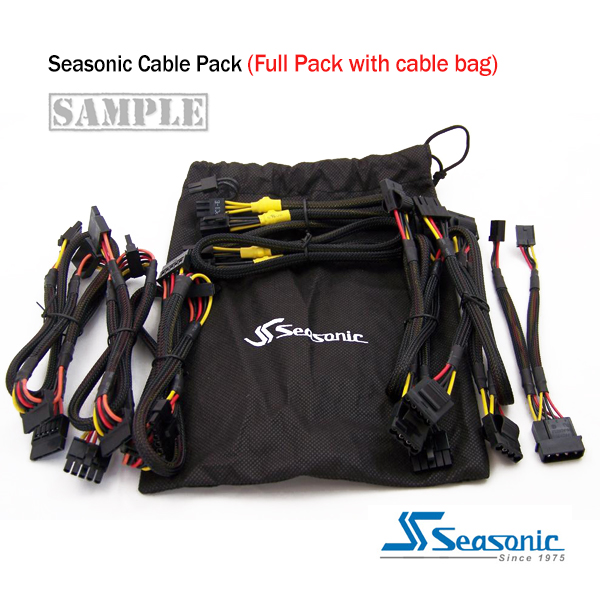

The 16 different cables are listed blow with its individual Code Number (please quote the code number within your PO), not all of the 16 cables are working at the same time together on one model of power supply, for P Series Power Supply it may come with different cables, Therefore, please contact us if you’re not sure before your purchasing.

Specifications for selected cable samples:

• No.1: CPU: 4pin to 4pin – 24 inch in length
• No.2: CPU: 8pin to 8pin – 24 inch in length
• No.3: PCI-e: split PCI-e 8pin x 2 – 24 inch in length
• No.4: PCI-e: two 6pin+2pin connector – 24 inch in length
• No.5: Floppy: split Molex IDE power cable to two floppy (small 4pin x 2) – 7 inch in length
• No.6:
  • SATA power connector x 2- 21 inch in length
  • |———14.5 inch———|———6.5 inch———|
  • 6pin SATA1| SATA2
• No.7:
  • SATA power connector x 3- 35 inch in length
  • |———22 inch———|———6 inch———|———6.5 inch———|
  • 6pin SATA1 |SATA2 |SATA3
• No.8:
  • Molex power for IDE connector x 2- 21 inch in length
  • |———14.5 inch———|———6.5 inch———|
  • 6pin Molex1| Molex2
• No.9:
  • Molex power for IDE connector x 3- 35 inch in length
  • |———22 inch———|———6 inch———|———6.5 inch———|
  • 6pin Molex1 |Molex2 |Molex3
• No.10:
  • SATA power connector x 3- 32 inch in length
  • |———19 inch———|———6 inch———|———6.5 inch———|
  • 5pin SATA1| SATA2 |SATA3
• No.11:
  • SATA power connector x 2 – 29 inch in length
  • |———22 inch———|———7 inch———|
  • 5pin SATA1| SATA2
• No.12:
  • Molex power for IDE connector x 3- 32 inch in length
  • |———19 inch———|———6 inch———|———6.5 inch———|
  • 5pin Molex1| Molex2 |Molex3
• No.13: 6pin to 6pin PCI-e cable – 22 inch in length
• No.14: 6pin to 6+2pin PCI-e cable – 22 inch in length
• No.15: 8pin to two 6+2pin PCI-e cable – 22 inch in length
• No.16: 8pin to 4pin+4pin CPU – 27 inch in length

When you decide to order:

• Please enquiry the model compatibility before you go proceed your purchase, should you need any help to verify the cable compatibility with your existing Seasonic power supply, please contact Seasonic distributor at service@powerhousepc.com.au to confirm the model compatibility.
