Description:

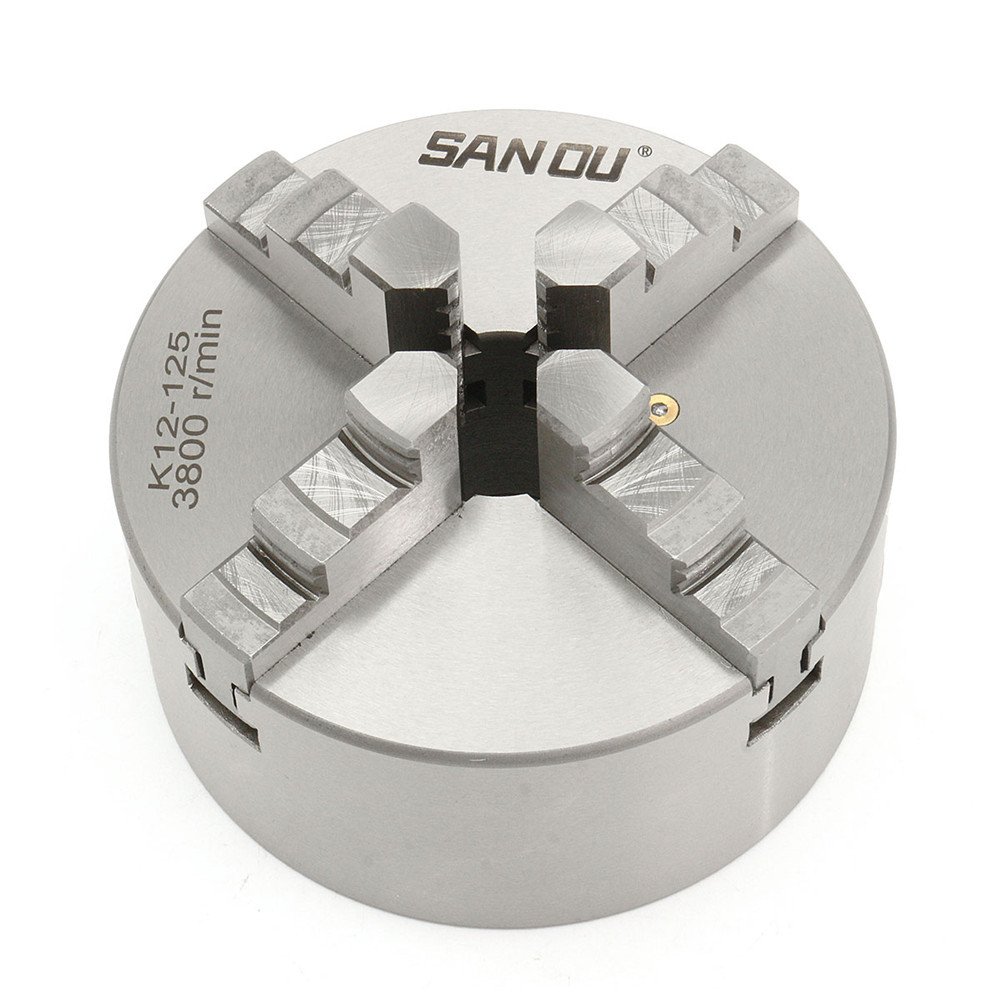

SANOU K12-125 125mm 4 Jaw Self Centering Lathe Chuck with Key
Specification:
Material |
Hardened Steel |
Model |
K12-125 |
Max RPM |
3800 r/min |
Jaw |
4 Jaw |
High precision |
≤0.05mm |
Application |
For CNC Drilling Milling Machine |
Lathe Chuck |
|
Diameter |
125mm(4.921″) |
Thickness |
58mm(2.283″) |
Center Hole |
30mm(1.181″) |
Bolt Circle Diameter |
108mm(4.252″) |
Runout |
0.003″ |
Internal Jaw |
|
Clamping Range A-A1 |
2.5- 40mm(0.098″- 1.575″) |
Jamming Range B-B1 |
38- 125mm(1.496″- 4.921″) |
External Jaw |
|
Clamping Range C-C1 |
38- 110mm(1.496″- 4.331″) |
Features:

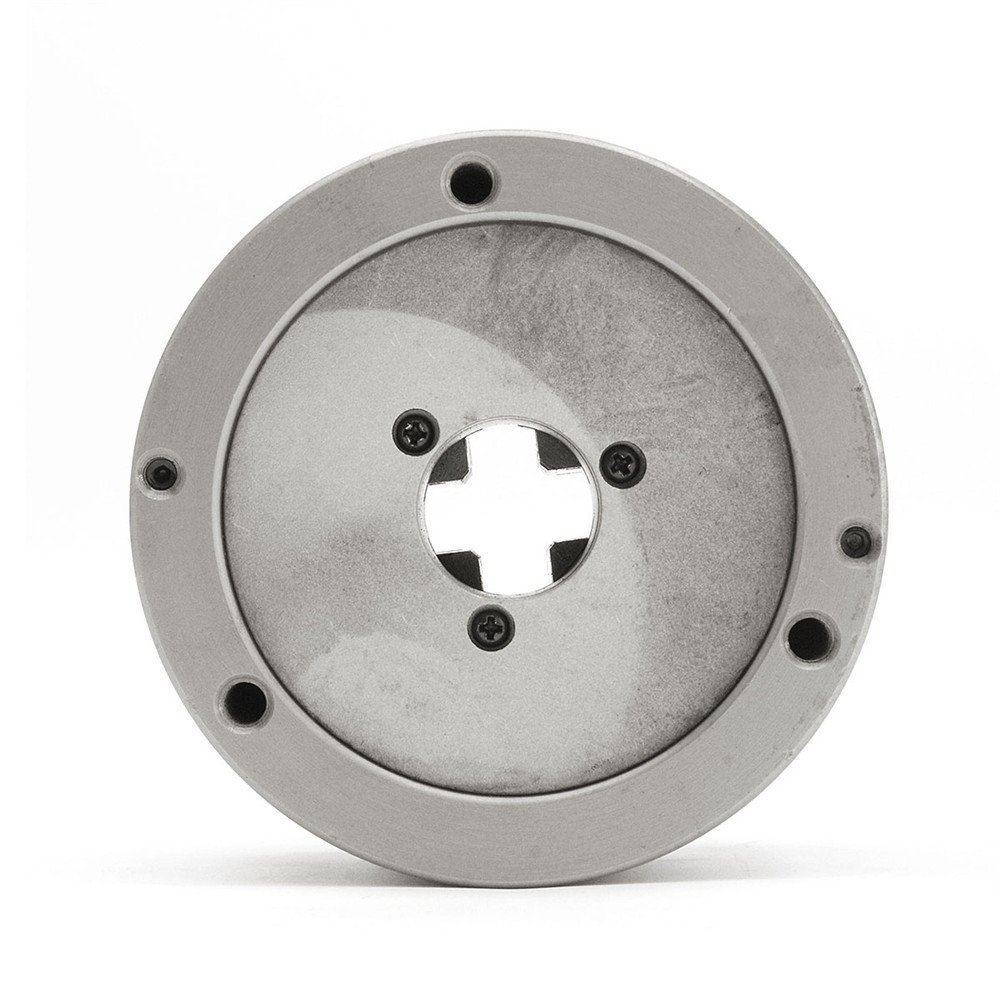

1. Short cylindrical center mounting.

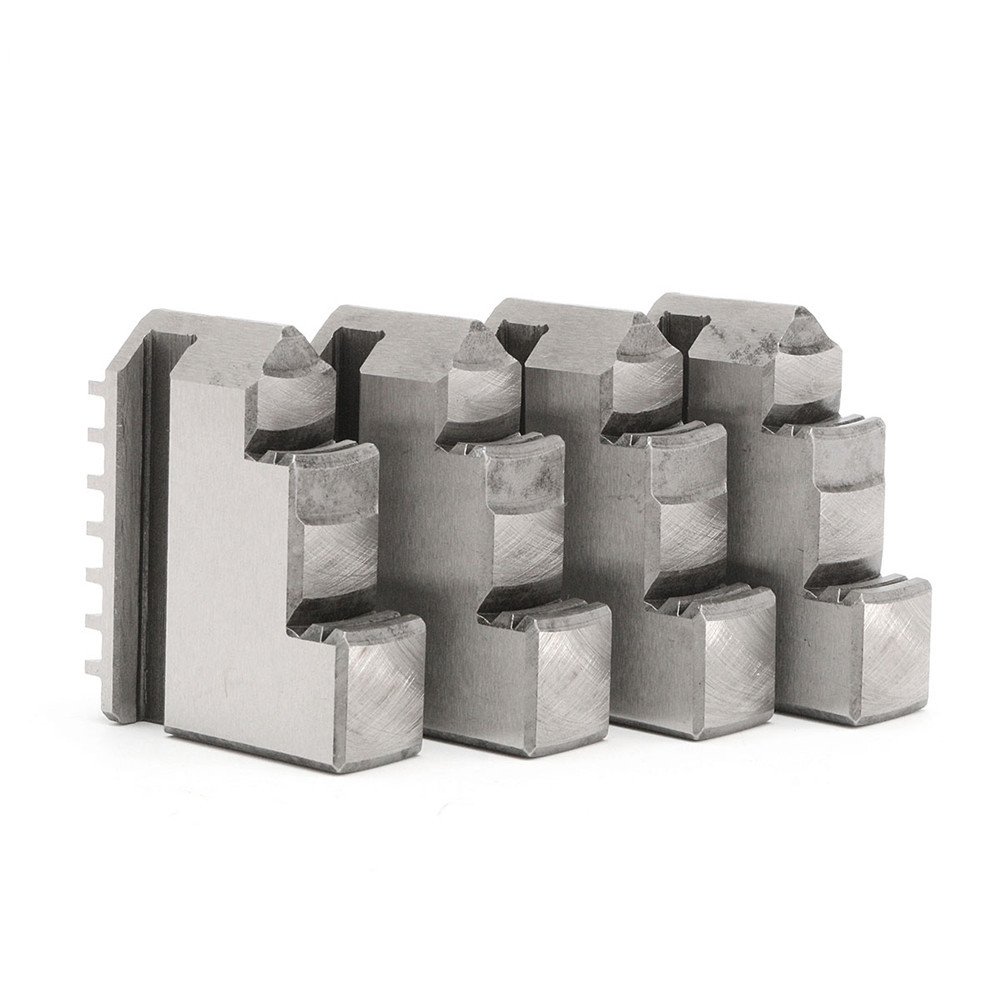

2. Model K12 chucks are provided with one-piece jaws(which include a set of internal jaws and a set of external ones ).
3. the jaws for K12A, K12C and K12D chucks are composed of two-piece jaws. They can perfrom as either internal jaws through adjustment.
4. The jaws for K12A and K12D chucks conform to is 03442 standard.
5 .Model K12 chucks are supplied with traditional two-piece jaws.
Function:
Four-jaw synchronous movement for clamping four square, square parts, also applies to shaft type, disk parts.
Applicable machine tools and accessories:
General lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories etc..
Package Included:
1 x SANOU Self-Centering Jaw
3 x Inside jaws
3 x outside jawslarge
1 x safety chuck key
3 x mounting bolts
