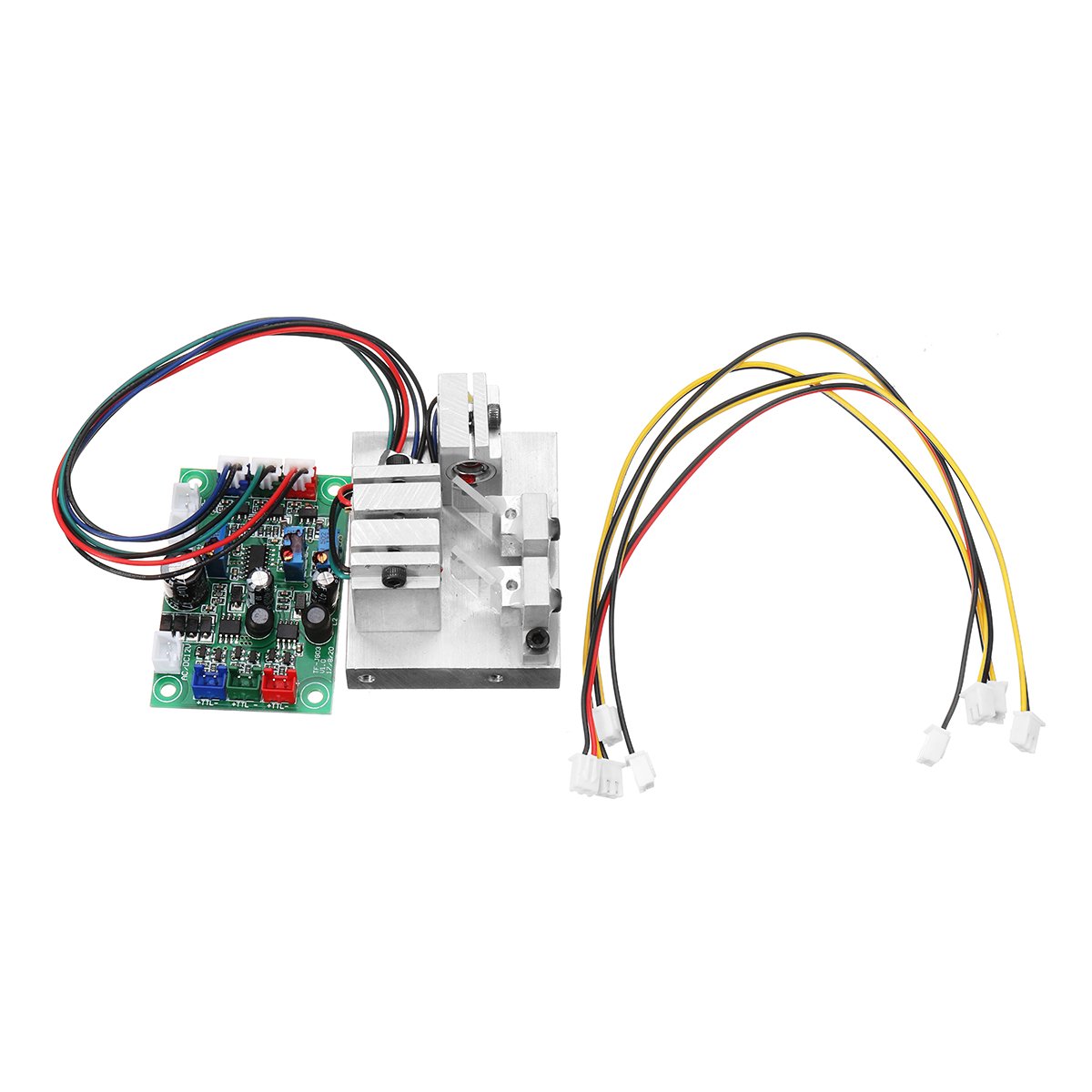

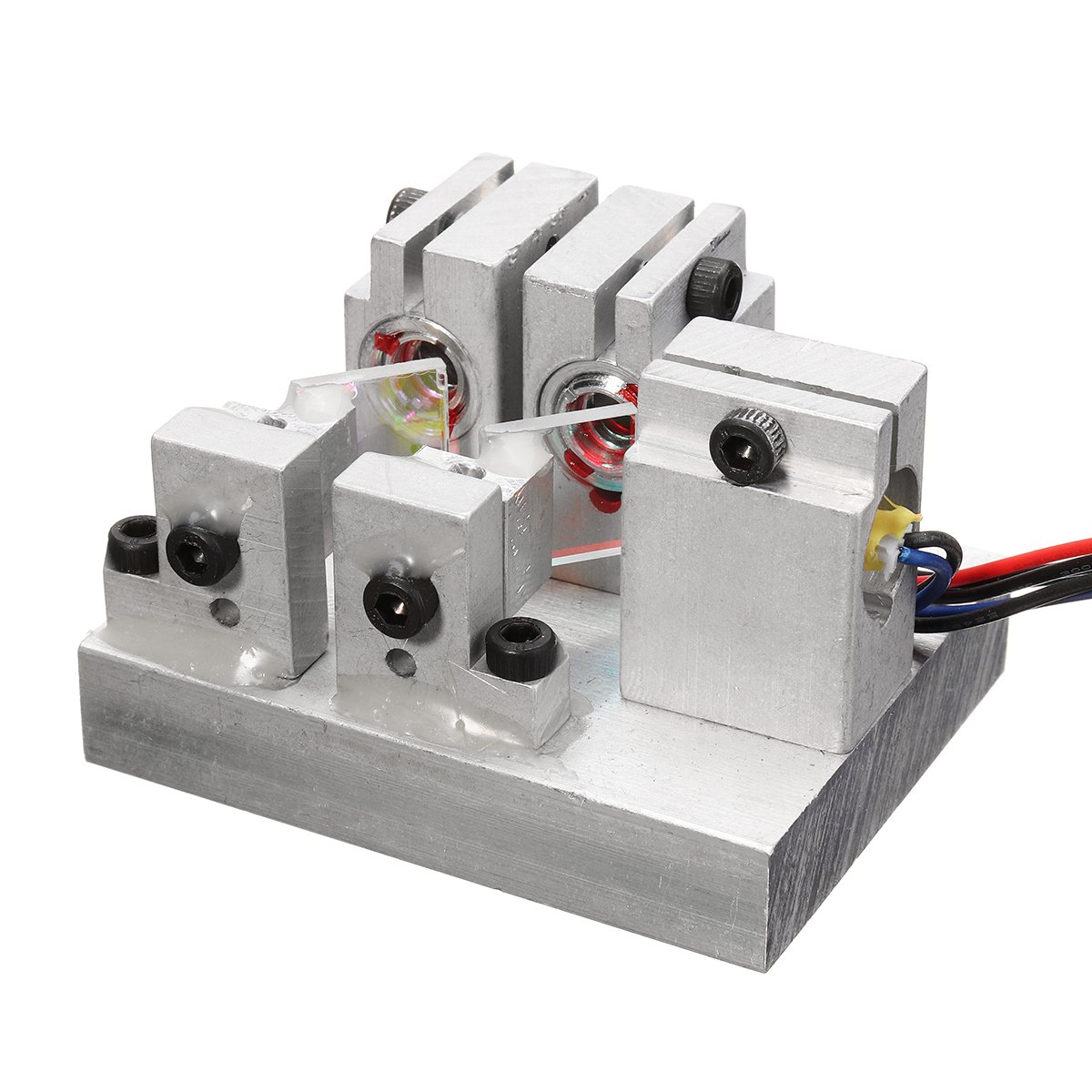

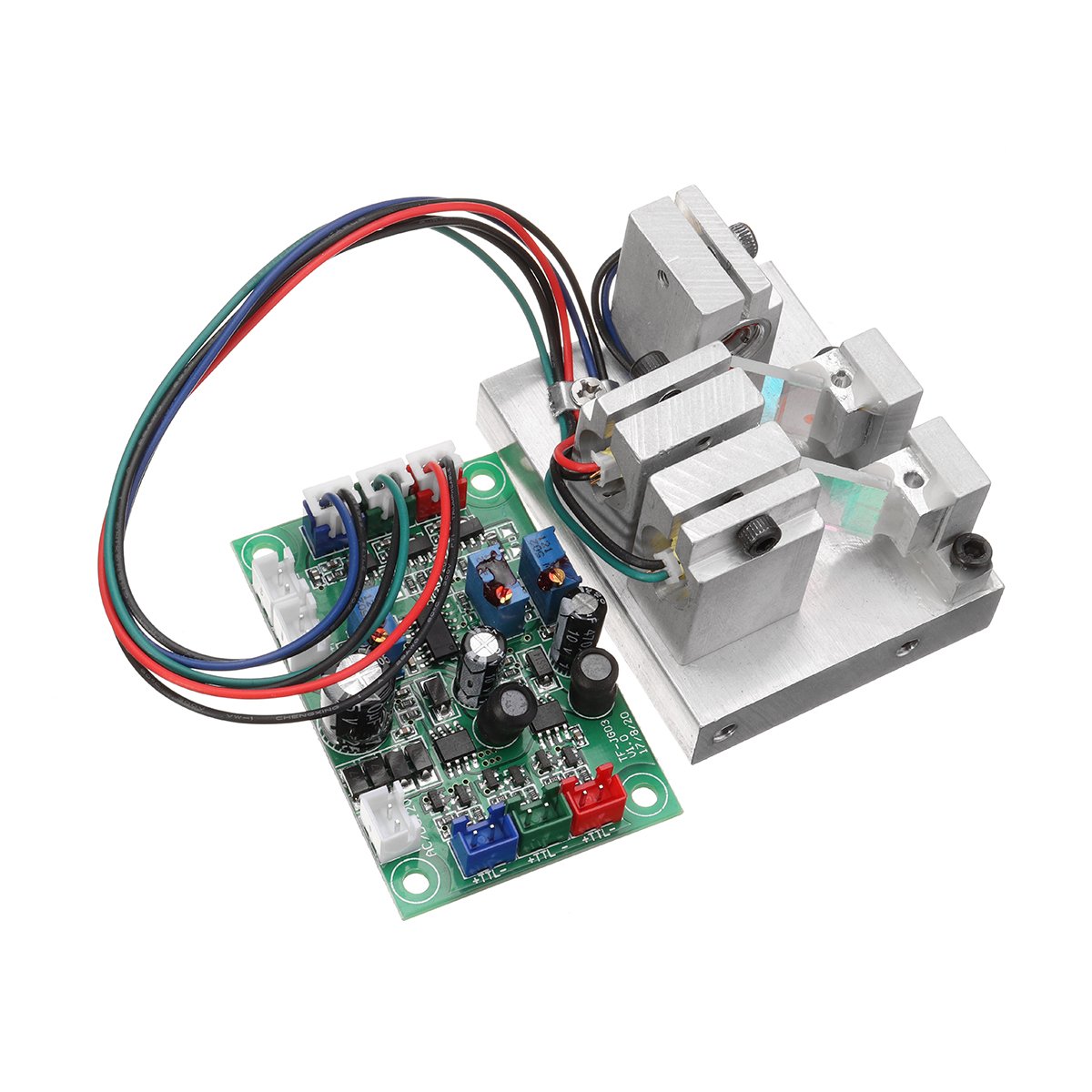

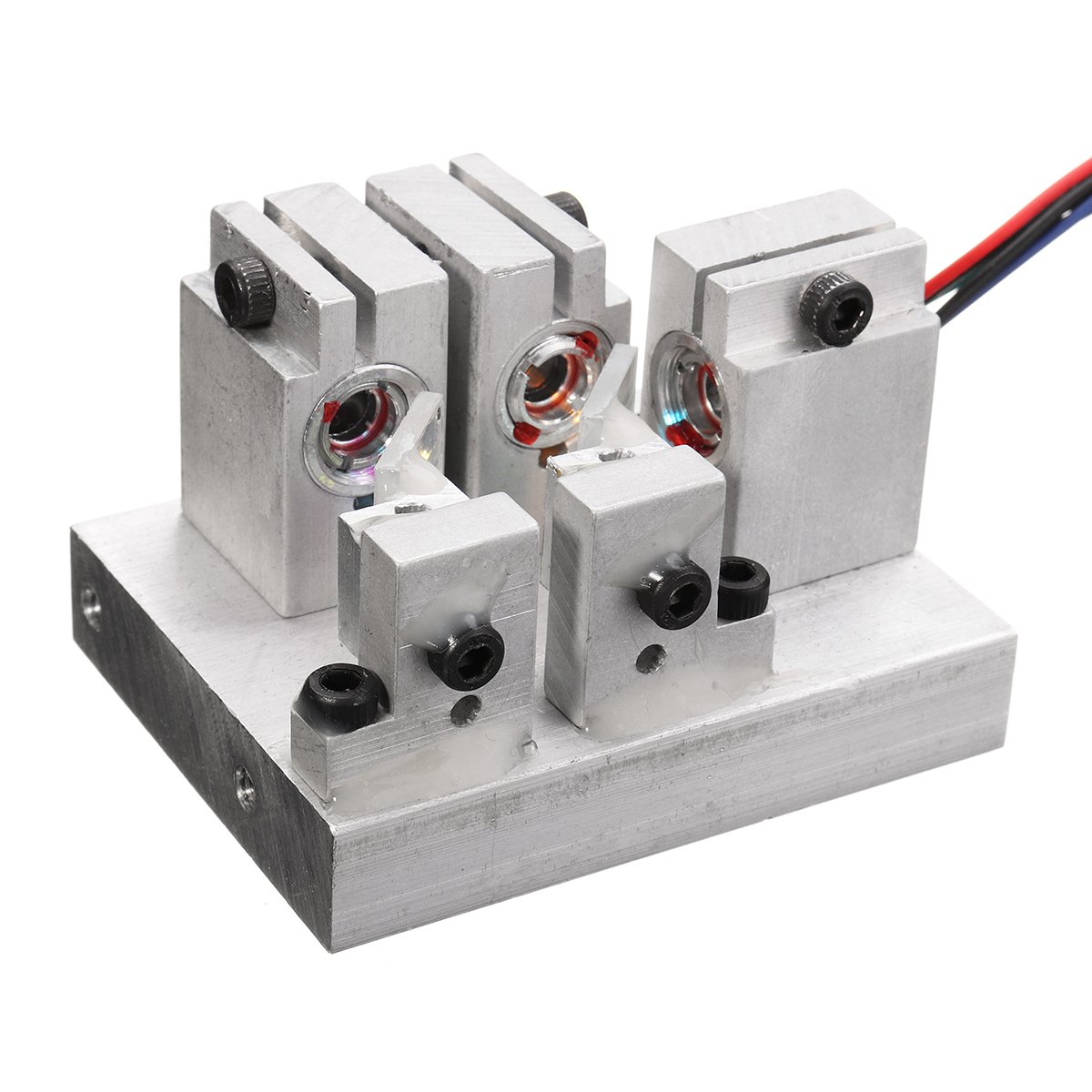

RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation
RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation - Image 2
RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation - Image 3
RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation - Image 4
RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation - Image 5
RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation - Image 6
RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation - Image 7
RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation - Image 8
RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation - Image 9
RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation - Image 10

RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation

or 6 weekly interest-free payments from $25.53 with Laybuy

or 4 payments of $34.83 with Wizit learn more

$139.30 AUD

In stock

Refund and Returns Policy
Estimated delivery between Thursday 26. December - Thursday 2. January
Add to Wishlist
Add to Wishlist
SKU: 18423 Category: Tags: , , , , , , , , , , , , , , , ,

Description



Specifications
Modulation Mode TTL modulation / Analog modulation
Wavelength R: 638nm, G: 520nm, B: 450nm
Output Power R: 100mW, G: 80mW, B: 120mW
Combined Optical Power Output 300mW
Laser Grade Class 3
Divergence ≤1mrad
Enter Stability ±5%
Input Voltage DC 12V
Rated Power Consumption 10W
Operating Temperature -10~40℃
External Heat Dissipation None
Operating Lifetime 10000h

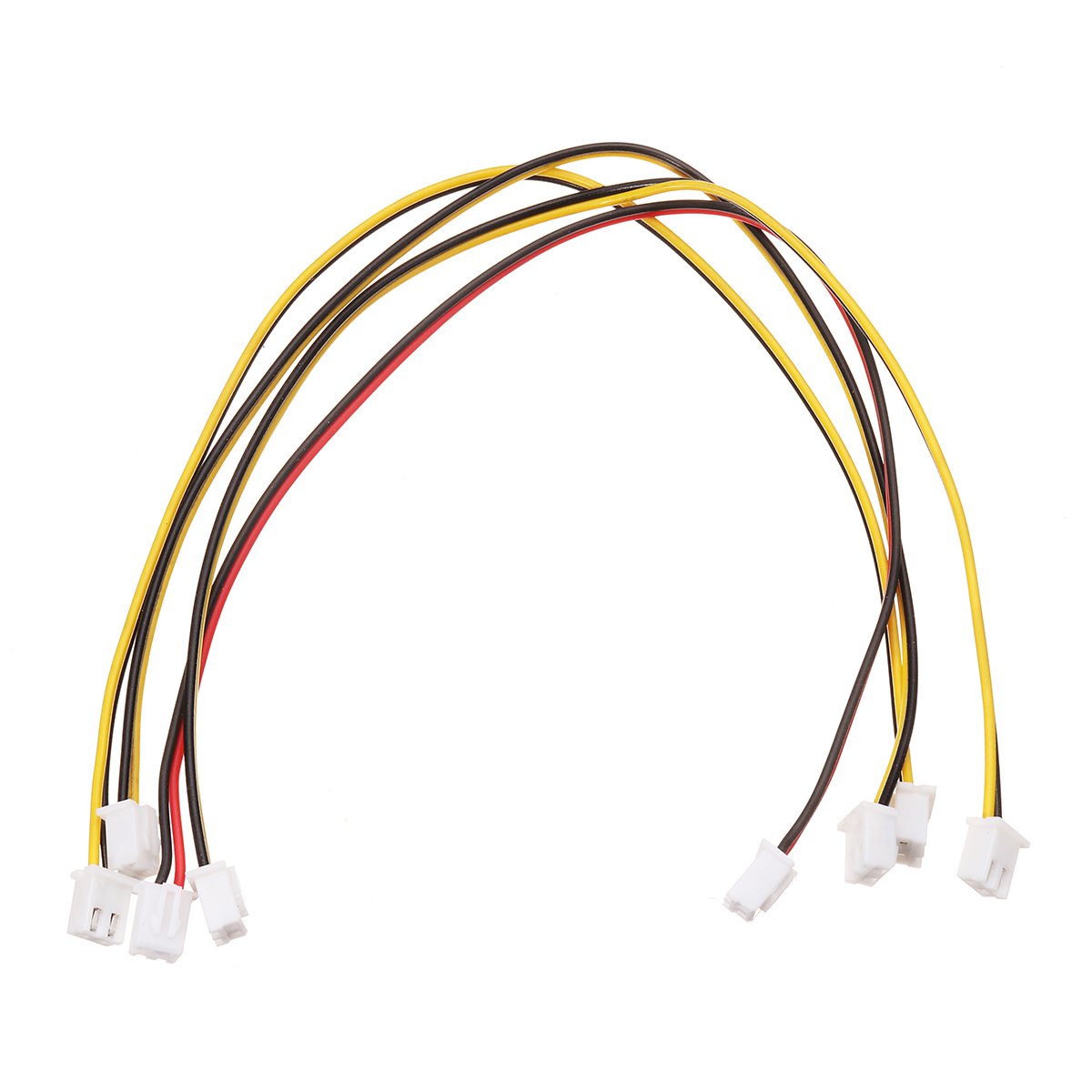

Wire Length 250mm
Spot Mode Round Spot
Product Size Approx. 63x50x40mm/2.48×1.97×1.57″

Features:

– RGB 300mW white laser module

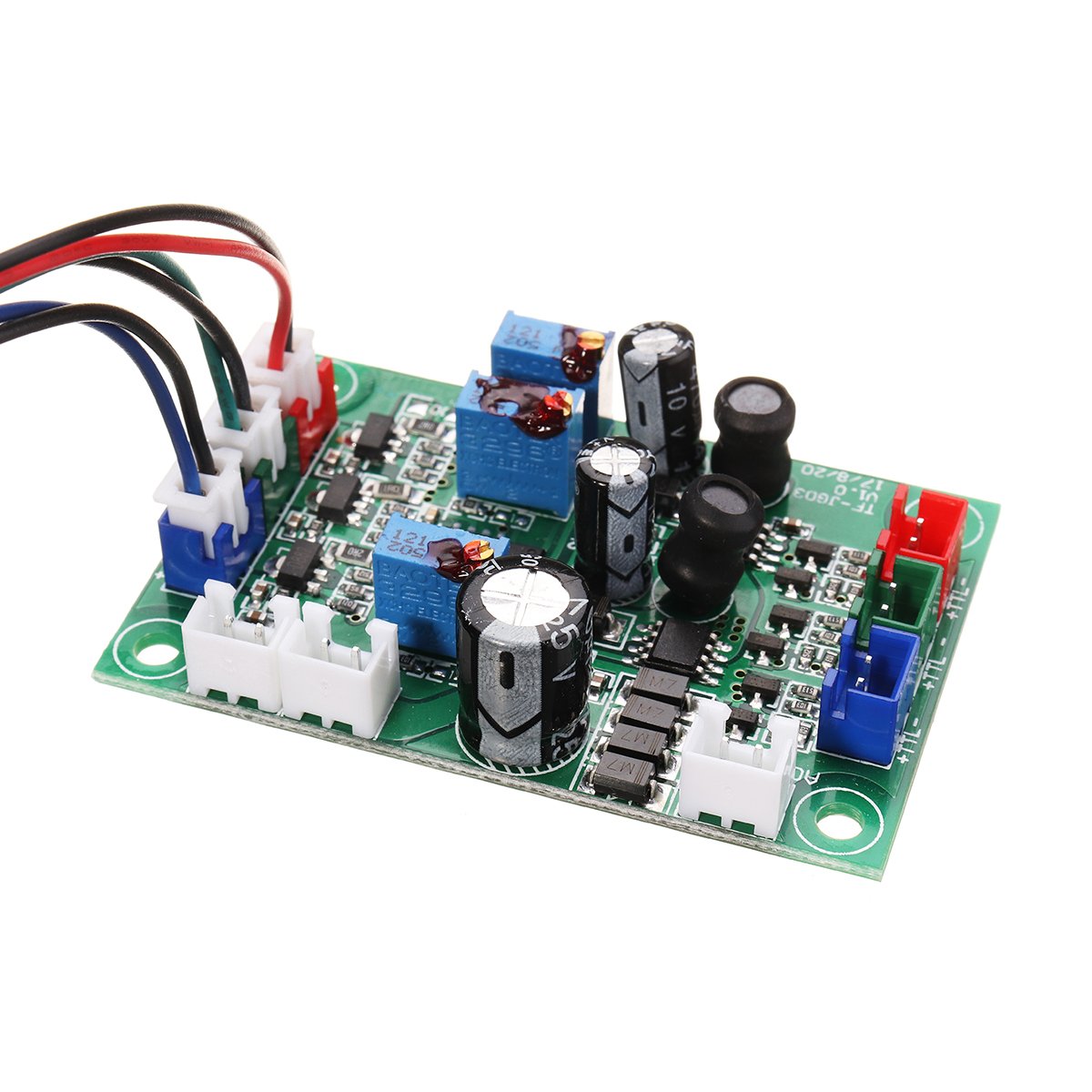

– With TTL modulation control driver board
– Precision science and thermal design, two-way temperature control and improve the temperature protection, you can extend the life of the laser

Package Included:
1 x RGB 300mW White Laser Module

RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation 1

RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation 2

RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation 3

RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation 4

RGB 300mW White Laser Dot Module Red Green Blue 638nm 520nm 450nm TTL Driver Modulation 5
