Description

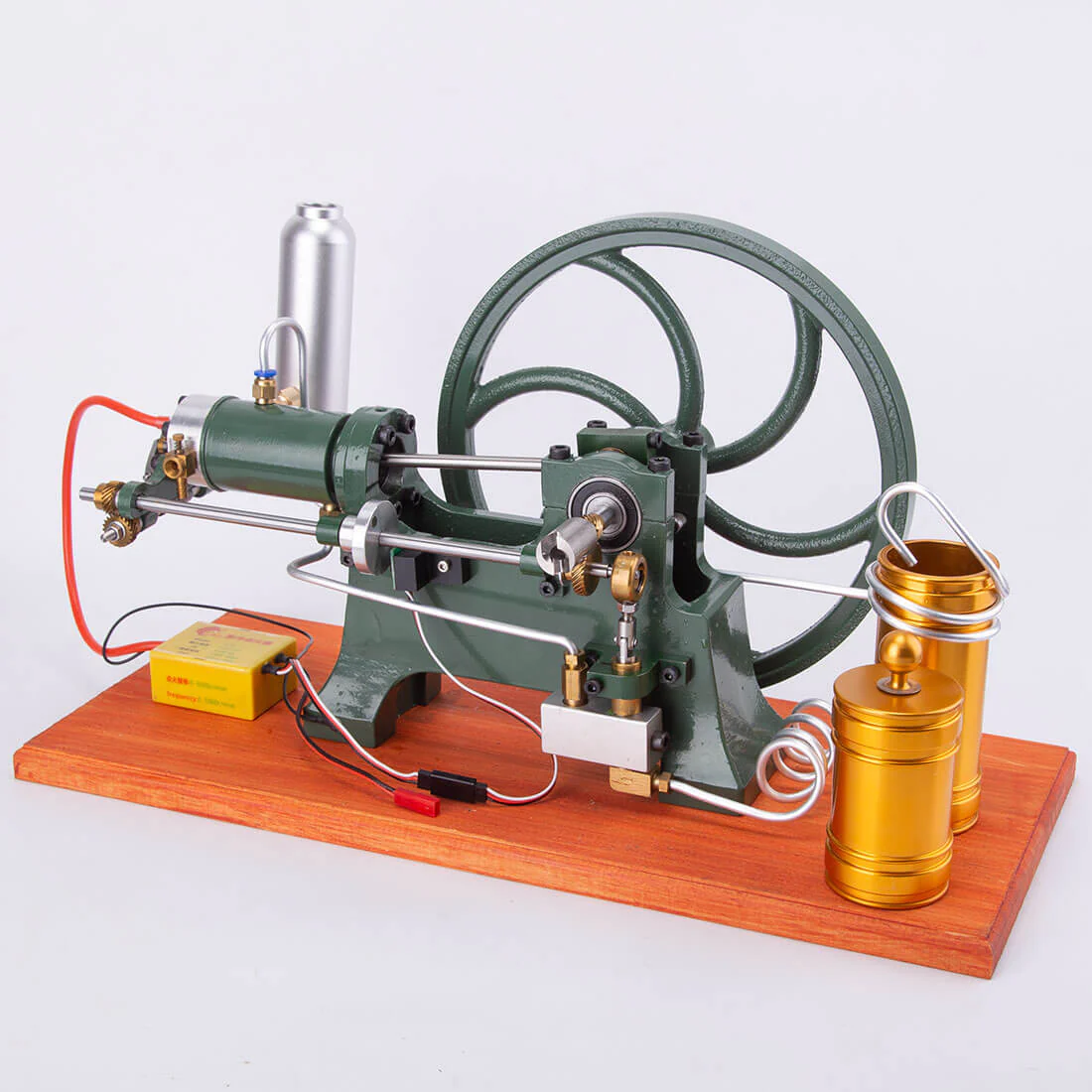

Retro Horizontal Four-stroke Water-cooling Gasoline Engine Internal Combustion Engine Model

Features:

• Numerous engines appeared in Europe in the early twentieth century. The reliability of hot bulb engines, the ability to use multiple fuels, and the operation for hours or days at a time made them popular among agricultural, forestry, and marine users, where they were used for pumping and powering milling, sawing and threshing machinery. Hot-ball engines are also used in road rollers and tractors.
• Inspired by the engines that appeared in Europe in the early 1900s, the horizontal four-stroke gas engine, with an extremely distinctive large cast iron flywheel, is made of a large number of cast iron castings and dark green paint treatment on the surface for more retro texture.
• Adopting CDI high-pressure ignition, benzine as the fuel and piston pump for water cooling, the engine features adjustable compression ratio&stroke and a simulated crank hand to start the engine for the restoration of the original flavor.
• Paired with a high-end wood base, the model is able to keep at a low speed and run steadily for superior performance widely praised by people, making an excellent desktop model and a prime choice for collectors of retro engines.
• The ready-to-run engine comes with a spark plug and igniter. And all you need to prepare is batteries and fuel.

Specifications:

• Material: Metal + Bamboo
• Color: Dark Green
• Rack: Cast Iron + Dark Green Baking Paint
• Flywheel: Cast Iron + Dark Green Baking Paint; 225mm (Diameter)*20mm (thickness)
• Base: Lotus Seed Wood + Red Paint
• Cyilinder Diameter: 22mm
• Stroke: 24mm
• Form: Ready to run
• Cooling Mode: Water Cooling

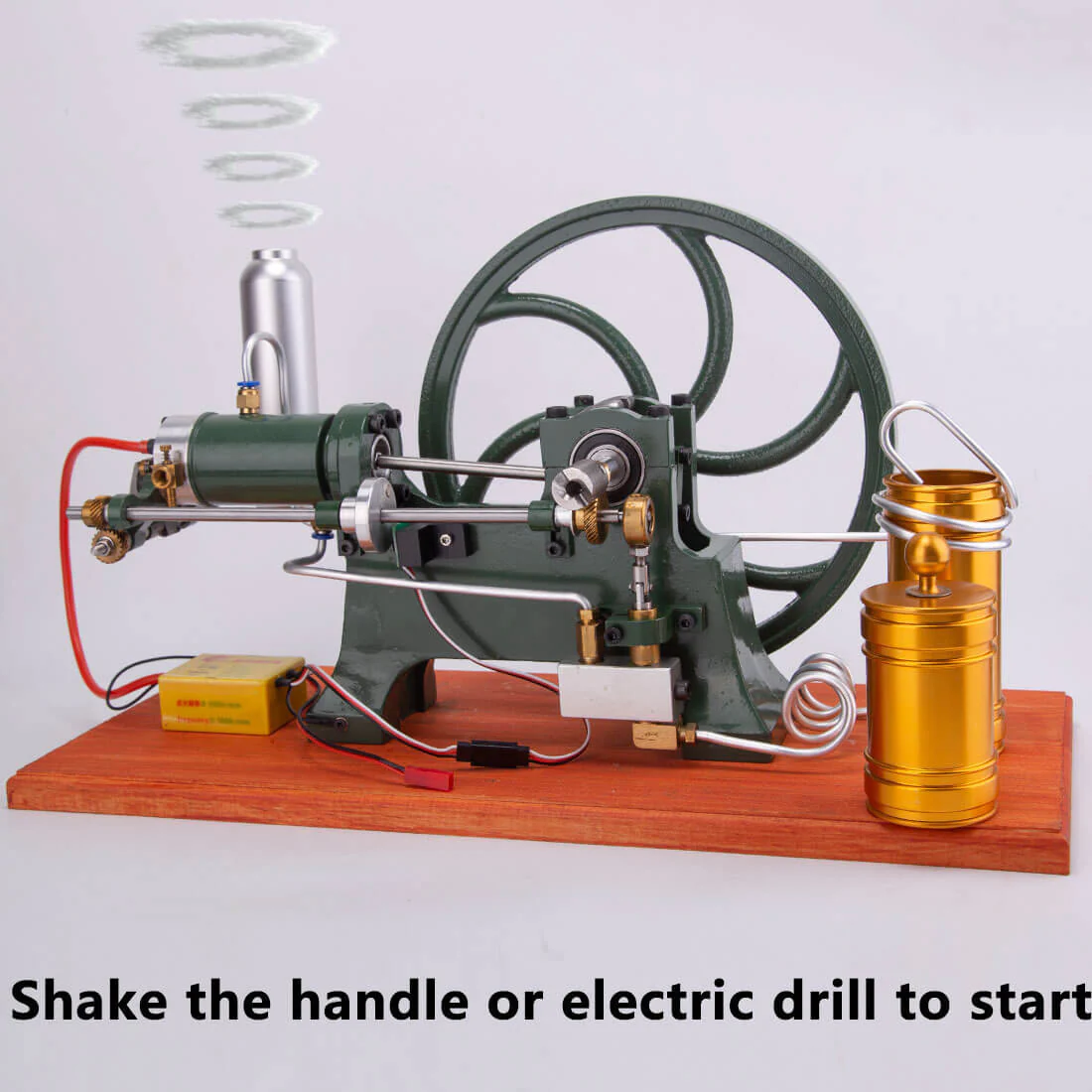

• Starting Mode: Manual/ Electric Drill Starting
• Ignition Method: CDI Ignitor
  Spark Plug Type: CM-6 spark plug with 10mm screw diameter and 8.6mm thread length (2022); 1/4-32 thread ME8 spark plug (2023).
• Lubrication Method: Mix/Splash Lubrication (Gasoline/Engine Oil =25/1)
• Fuel Type: 92# and Above Gasoline
• Engine Oil Type: 2T Engine Oil
• Starting Power: 6-10V
• Product Dimensions: 41 x 18 x 25cm
• Product Weight: 6500g
• Package Dimensions: 50 x 20 x 30cm
• Package Weight: 7200g
• Packing: Carton Box
• Ages: 14+

Packing List

• Engine * 1
• Fuel Tank * 1
• Fuel Pipe * 1
• CDI Igniter * 1
• Crank * 1
• Electric Drill Coupling * 1
• USB Cable Clip * 1
• Instructions * 1
