Description
Specification :
Microphone Specification |
|
Type |
ElectretCondenser micropohone |
Sensitivity |
-40 dB ± 3dB at 1000Hz (0dB=1V/Pa) |
Impedance |
2.2k ohm |
Speaker Specification |
|
Diameter |
¢15mm |
Impedance |
64 ohm ± 15% at 1000Hz |
SPL |
9dB±3dB at 1000Hz |
Rated power |
100Mw |
Maximun power |
200mW |
Cpmpatetion Model |
|
Type |
Model |
for RETEVIS |
H-777,R888s Plus,RT-5R,RT-B6,RT-5RV,RT1,RT2,RT5 |
for Kenwood KPG |
KPG27D,KPG29D,KPG48D,KPG49,KPG55D,KPG56D,KPG62D,KPG66D, |
for Kenwood TH |
TH-D7,TH-D7A,TH-D7AG,TH-D7E,TH-F6,TH-F6A,TH-F7,TH-F7E,TH-G71,TH-G71A,TH-G71E,TH-K2,TH-K2A,TH-K2E,TH-K2ET,TH-21,TH-21AT,TH-21BT,TH-22,Th-22A,TH-22At,TH-22E,TH-25,TH-26,TH-27,TH-28,TH31AT,TH41AT,TH41BT,TH-42,TH-42A,TH-42AT,TH-42E,TH-45,TH-46,TH-47,TH-48,TH-55,TH-75,TH-77,TH-G71,TH-205,TH-215,TH-225,TH-235,TH-235A,TH-235E,TH-315,TH-415 |
for Kenwood TK |
TK-208/308,TK-220/320,TK-240/340,TK-240D/340D,TK-248/348,TK-250/350/353,TK-260/360,TK-260G/360G,TK-270/370,TK-270G/370G,TK-272G/372G/373G,TK-278G/378G/388GPro-Talk,TK-430/431,TK-2100/3100Pro-Talk,TK-2102/3102 |
for BAOFENG |
Almost All:UV5R,UV8,UV8D,UVB5,UVB6,A52 ,UV5RA,UV5RC,UV5RD,UV5RE,UV5RE+,F8,F8+ |
for POFUNG |
UV-A52,UV-82,UV-8,UV-6,UV-5R,888s,5RA |
for HYT |
TC286/386/2685/3865/6685/278/378/388/2100/2088 |
for PUXING |
for PUXING PX-777,PX-888,PX-888K,PX-325,PX-358 |
for QUSHENG/for LINTON/for TYT etc |

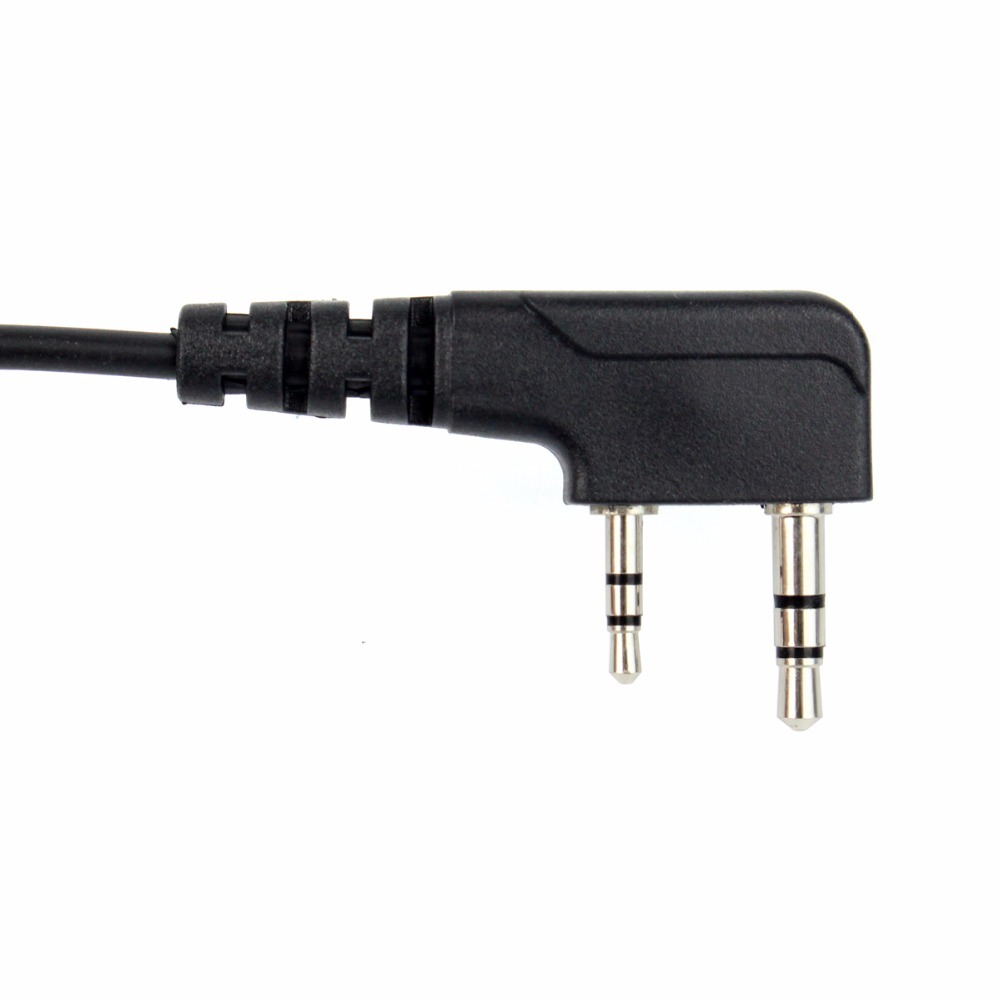

Almost all with a two pin plug, Former pin diameter of 3.5mm and 2 |
Details Pictures :
