Description

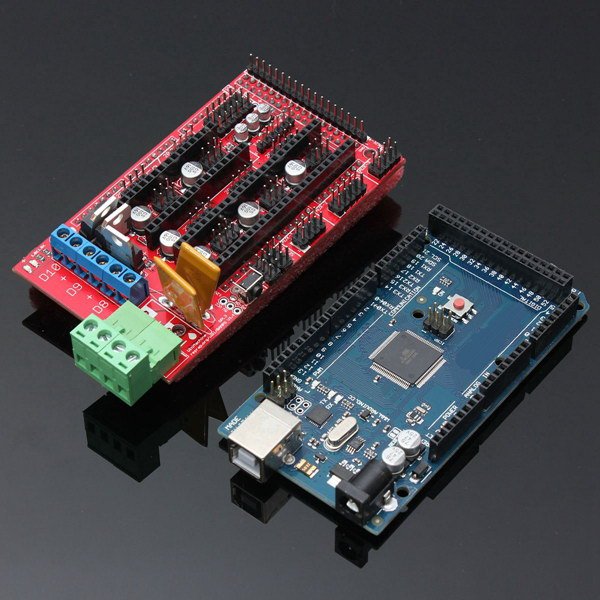

RAMPS 1.4 + Mega2560 R3+ A4988 Optical Endstop 3D Printer Kit

Feature:

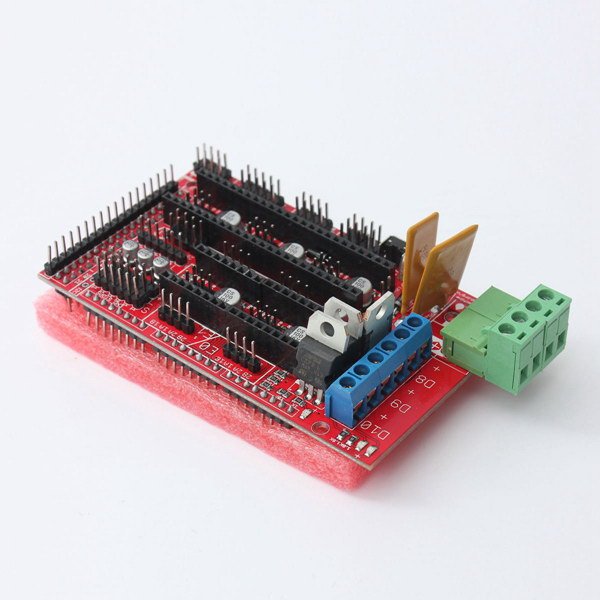

RAMPS 1.4:

It is a Mega Pololu Shield, or RAMPS for short, designed to fit the entire electronics needed for a RepRap in one small package for low cost.

RAMPS interfaces an Mega with the powerful MEGA platform and has plenty room for expansion.

The modular design includes plug in stepper drivers and extruder control electronics on an MEGA shield for easy service, part replacement, upgrade-ability and expansion.

Additionally, a number of expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.

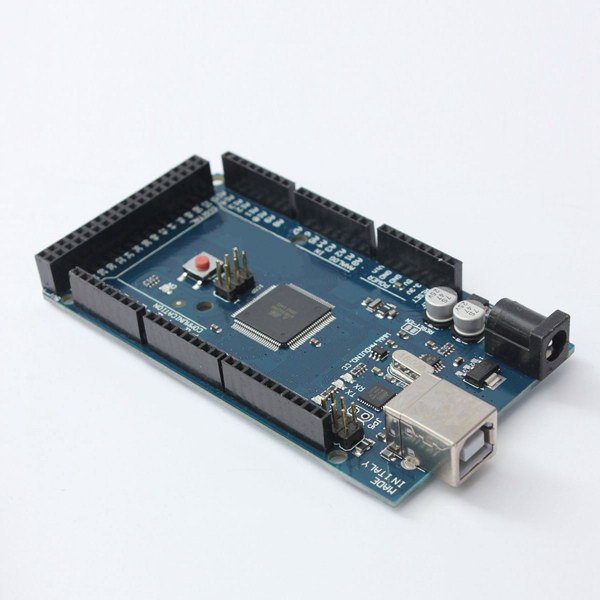

Mega 2560 board:

Mega2560 is an ATmega2560 as core microcontroller development board itself has 54 groups digital I / O input / output terminal (14 groups do PWM outputs), 16 sets of simulation than the input side, group 4 UARTs

(hardware serial ports), using the 16 MHz crystal oscillator.

With the bootloader, download the program directly via USB without having to go through other external writer.

Supply part of the optional USB power, or as an external power using the AC-to-DC adapter and battery.

This development IDE interface is based on open-source principles, allows you to free download for use in project work, school teaching, motor control, interactive works.

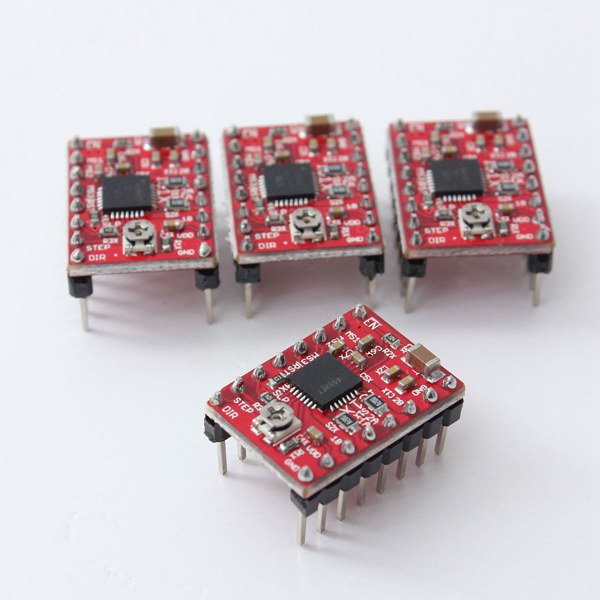

A4988 driver:

This product is a carrier board or breakout board for Allegro’s A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection by Pololu;

We therefore recommend careful reading of the A4988 datasheet before using this product.

This stepper motor driver lets you control one bipolar stepper motor at up to 2 A output current per coil.

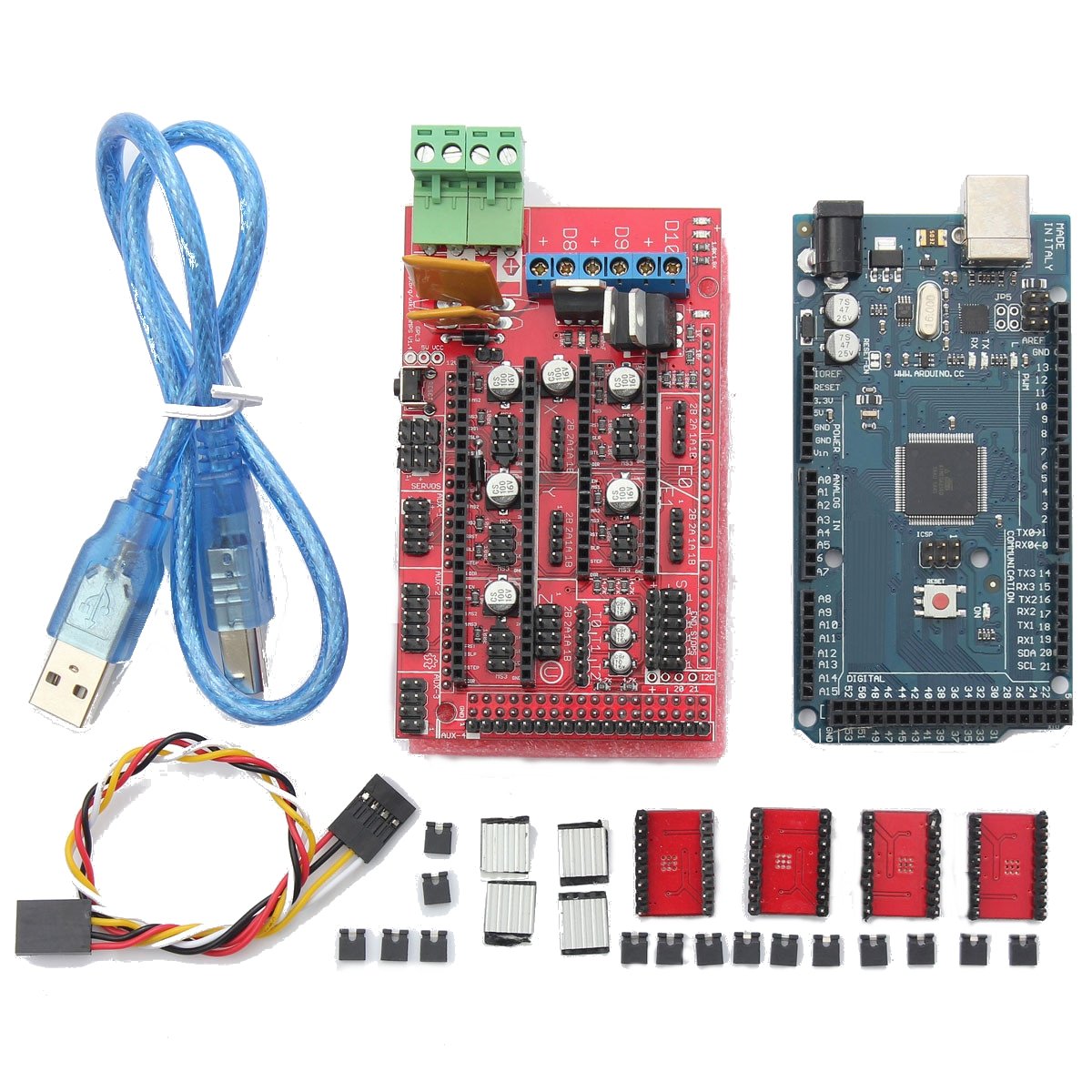

Package includes:

1 x RAMPS 1.4

1 x Mega 2560 R3

4 x A4988 driver

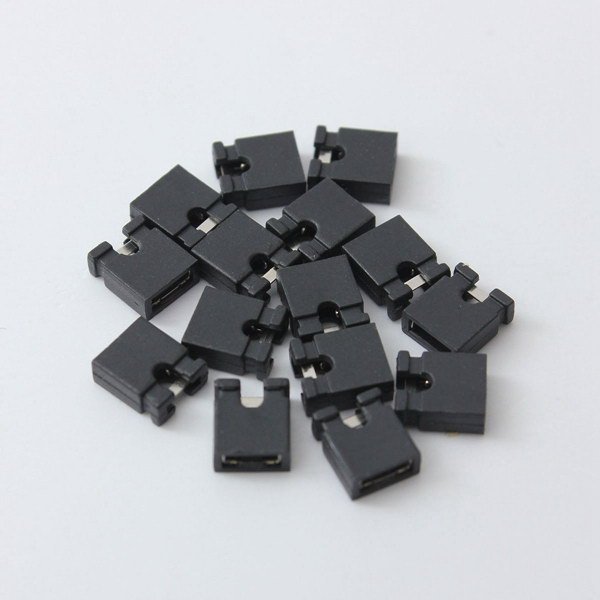

15 x Jumper Cap

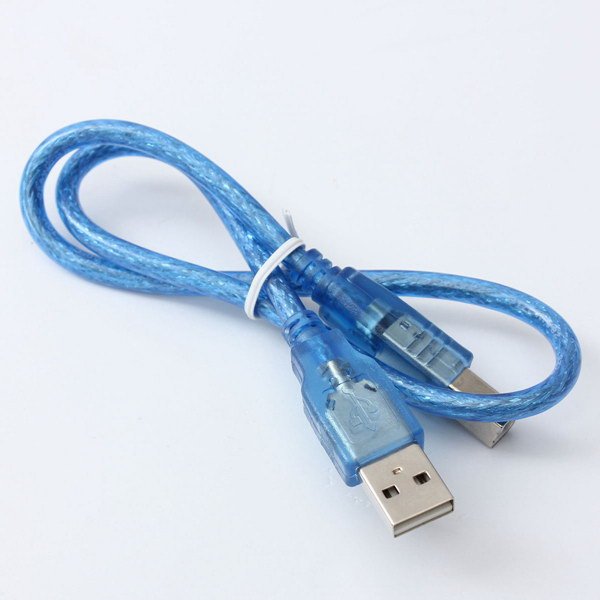

1 x USB Cable

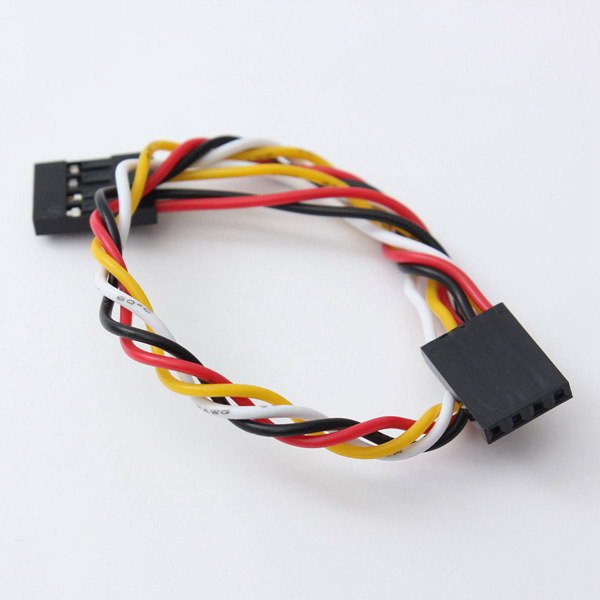

1 x RAMPS 1.4 wiring cable
