Description

Features:

-Specially designed for RC car with excellent start-up,acceleration and linearity features.
-Compatible with sensorless brushless motor.
-The strong resistant current capability,excellent heat dissipation.
-Multiple protection features:Low voltage cut-off protection for lithium or nickel battery/Over-heat protection/Throttle signal loss protection/Motor blocked protection.
-Easily programmed and compatible with pocket-sized program card.

Instructions:

-Connect BEC wires with the receiver.
-Connect motor wires with ESC.
-Turn on the transmitter.
-Connect battery pack with ESC then switch on the ESC.
-When the connection of motor and battery is finished,the motor emits “Beep-Beep” tone.
-When the throttle stick is in the neutral position,the motor re-emits “Beep-Beep” tone.
-The ESC is workable.

Specifications:

Fit For:1/10 1/12 RC Car
Cont.Current/Burst Current:60A/320A
Motor Type:sensorless brushless motor
Suitable Car:1/10 car
Suitable Brushless Motor:
≥9T
Resistance:0.0007ohm
Battery:2~3 cells Lipo/4~9 cells NiMH
BEC Output:5.8V/3A(switch mode)

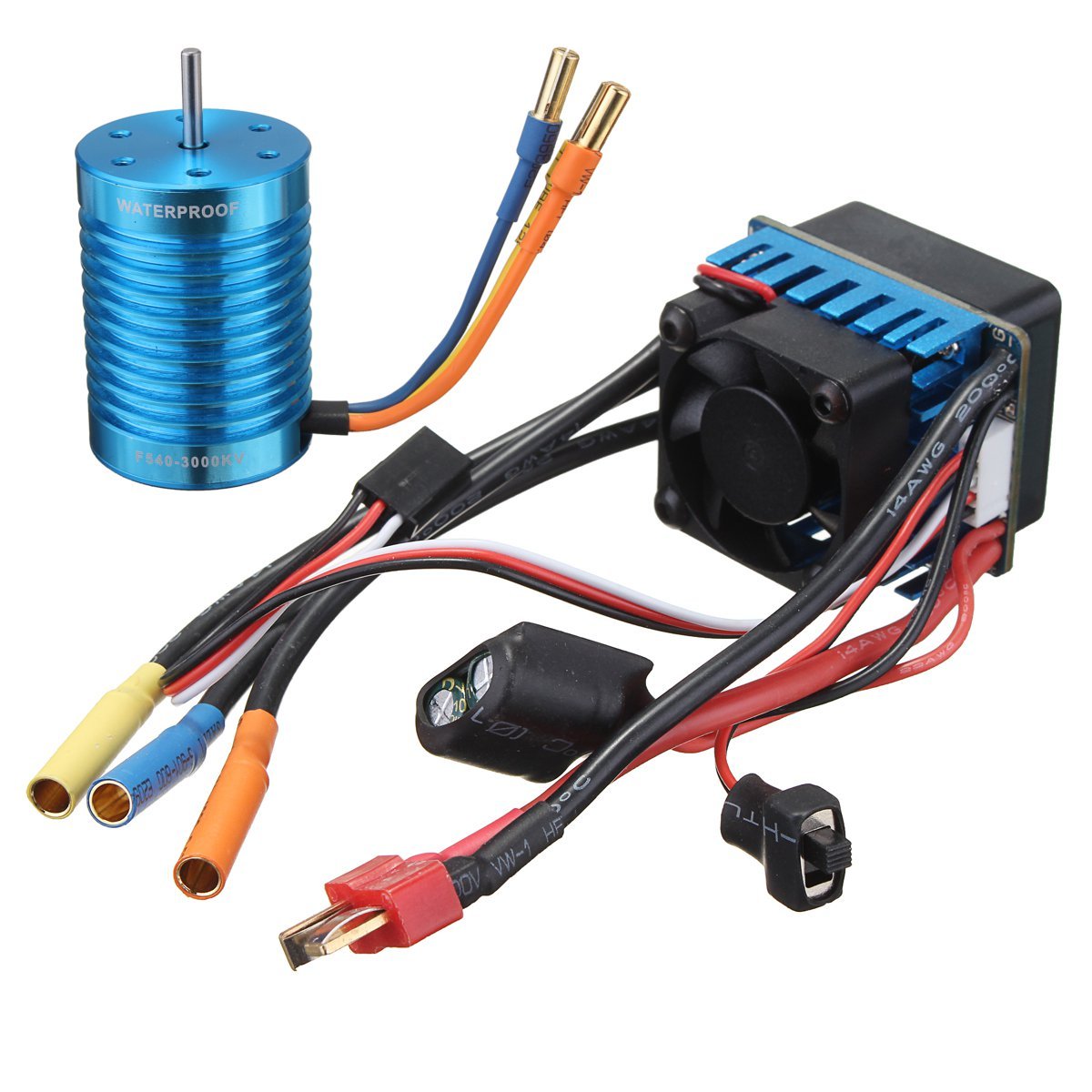

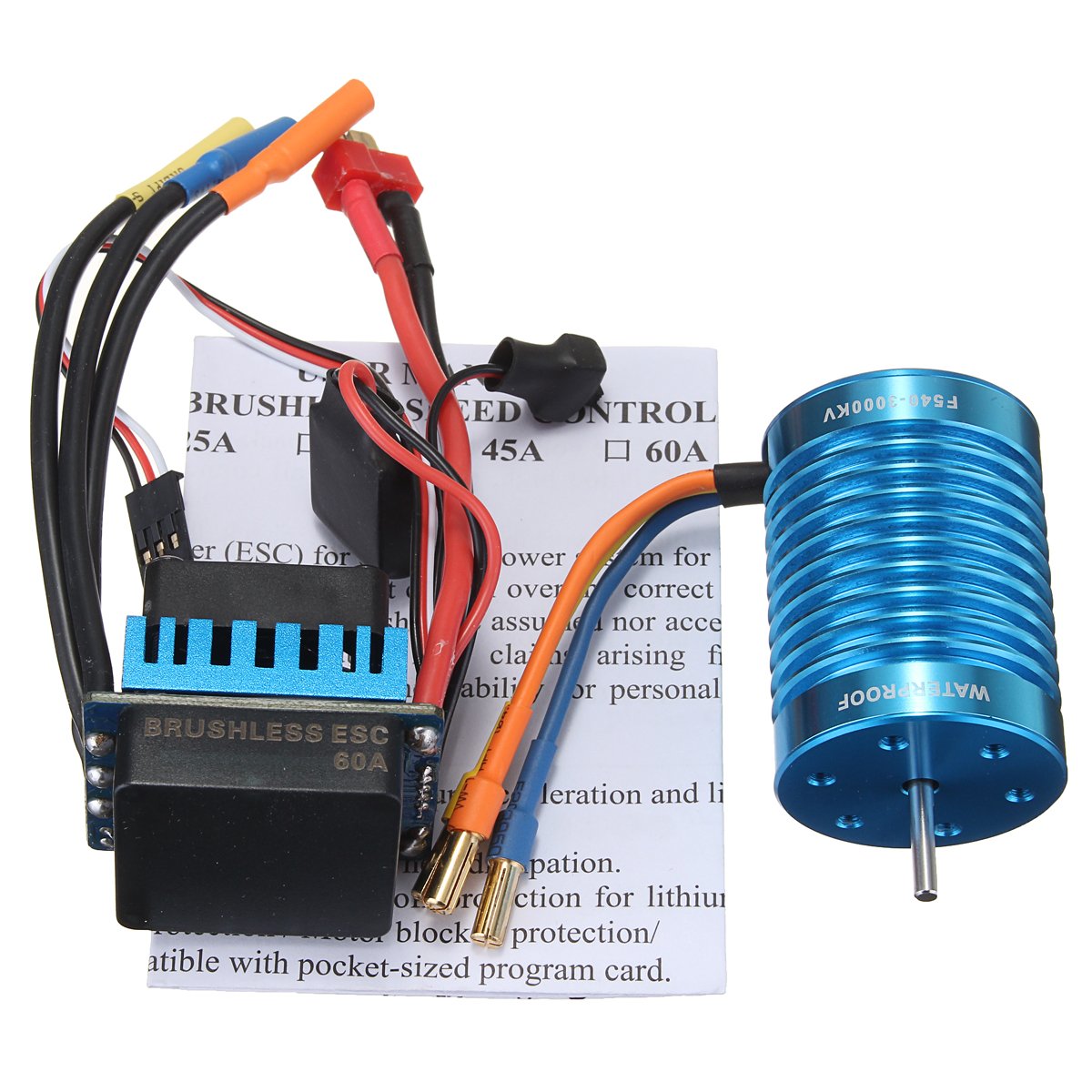

Package Included:

1 x F540-3000KV Brushless Motor

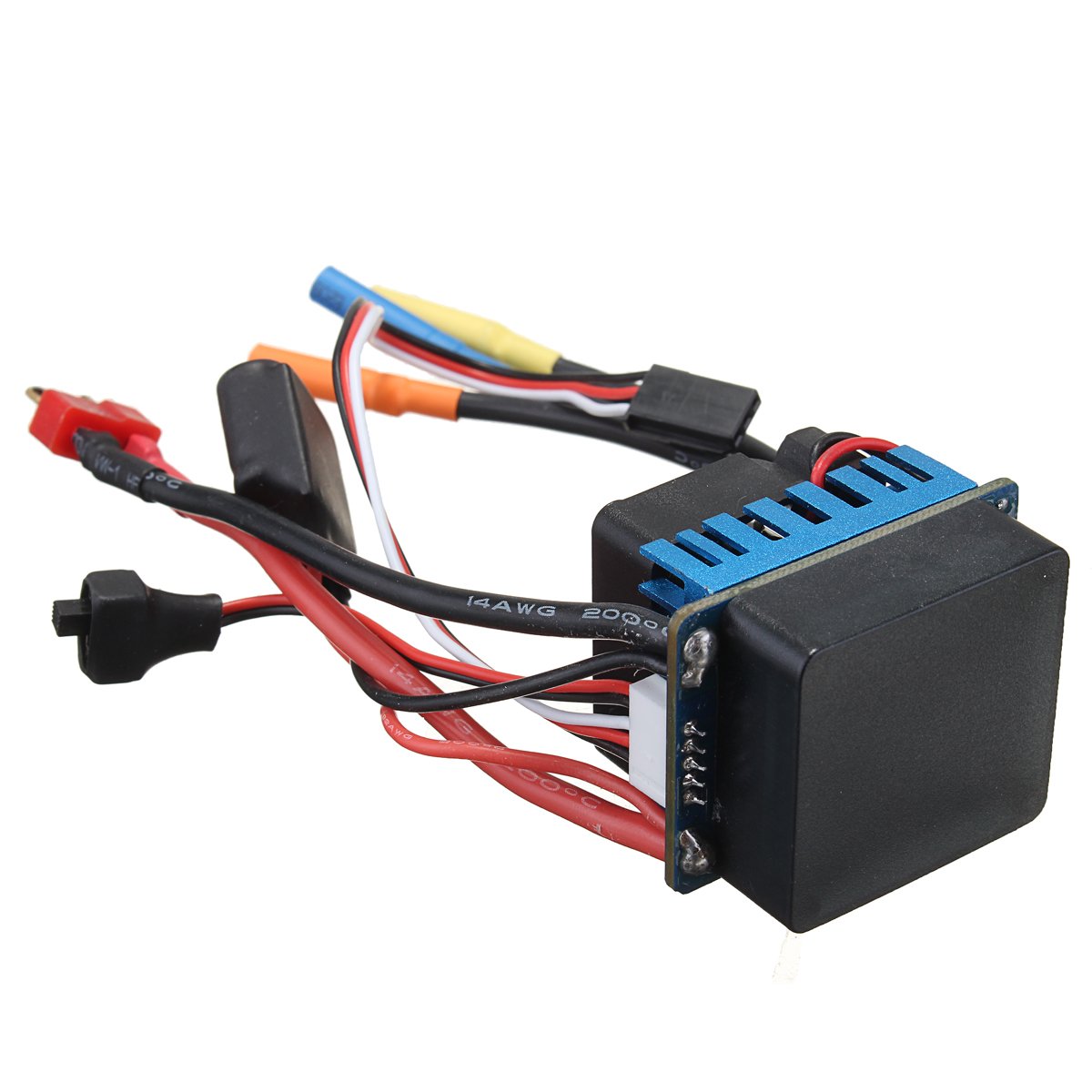

1 x Racing 60A -SL ESC
1 x User Manual
