Description
Fully-wired optional Power over Ethernet dock, designed exclusively for Joan 6 Pro, provides constant power and ethernet communication instead of WiFi. It additionally displays room occupancy status – green for free, red for booked, and orange for the upcoming meeting.
Using the PoE wall mount with Joan 6 Pro provides many benefits simultaneously.
Ideal for companies with extra stringent security protocols.
Safe and stable
The PoE wall mount guarantees a secure data transmission and a continuous connection to the network.
Always charged
The fully wired optional PoE wall mount provides constant power to Joan 6 Pro.
Room occupancy status

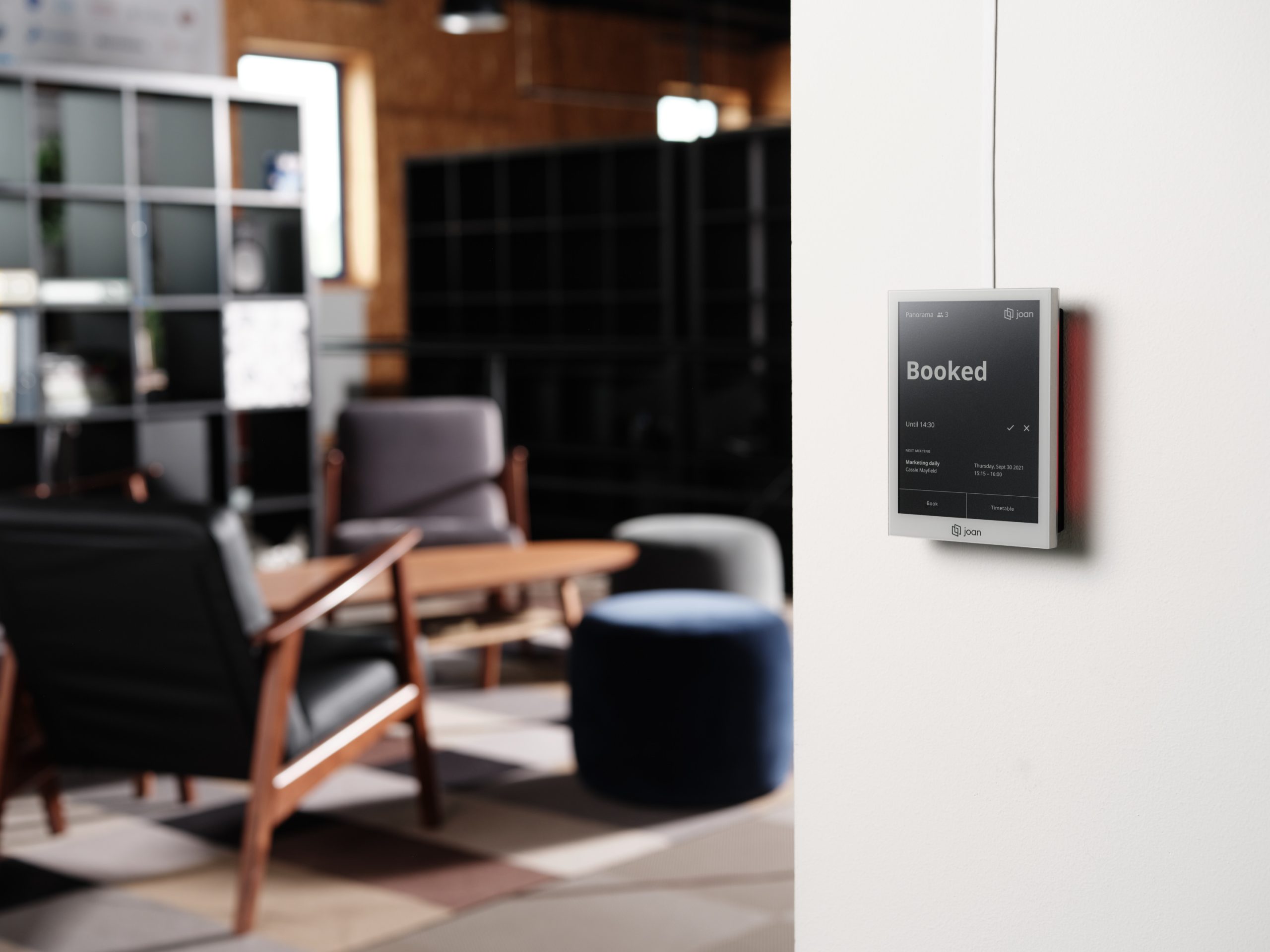

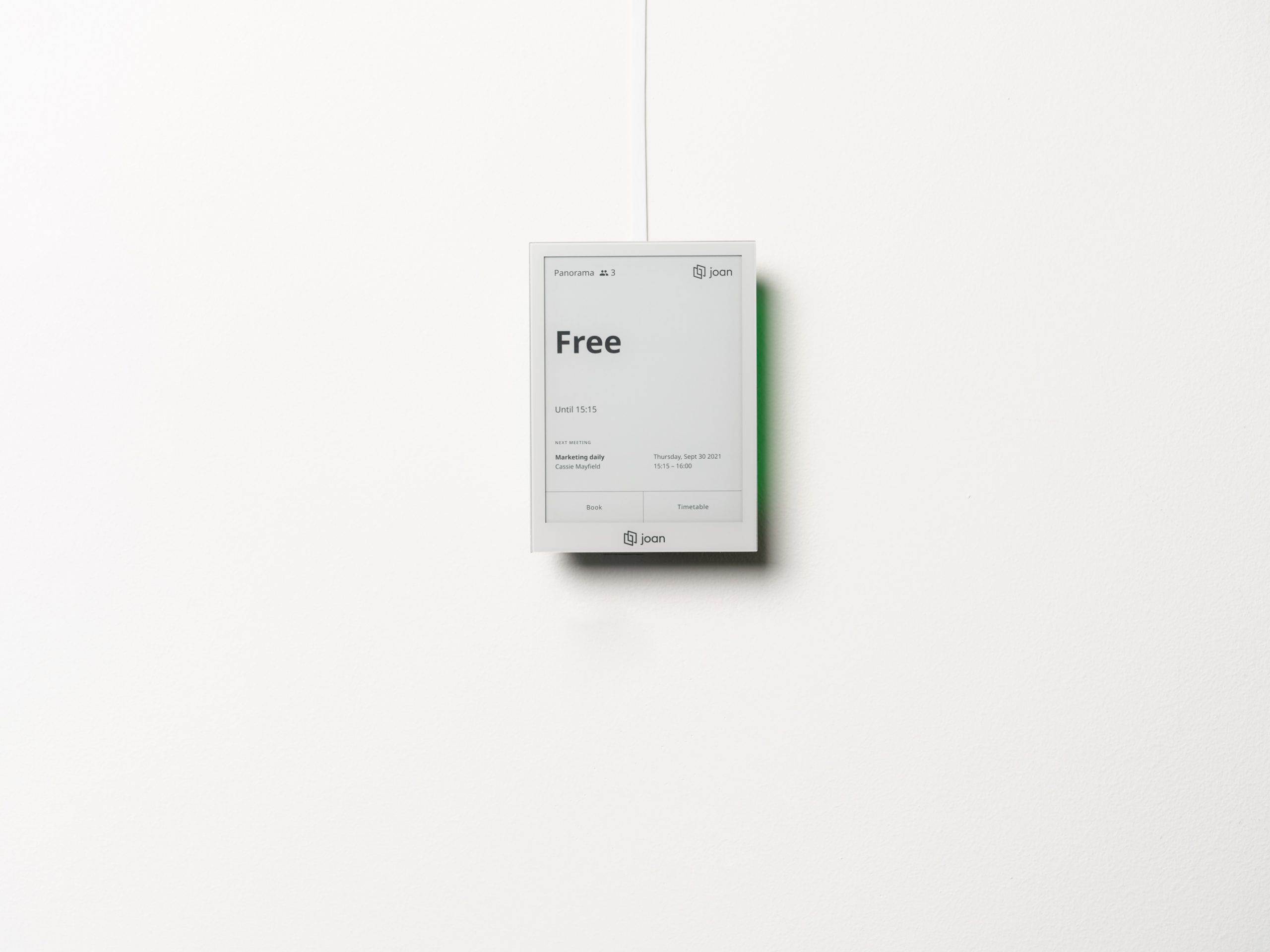

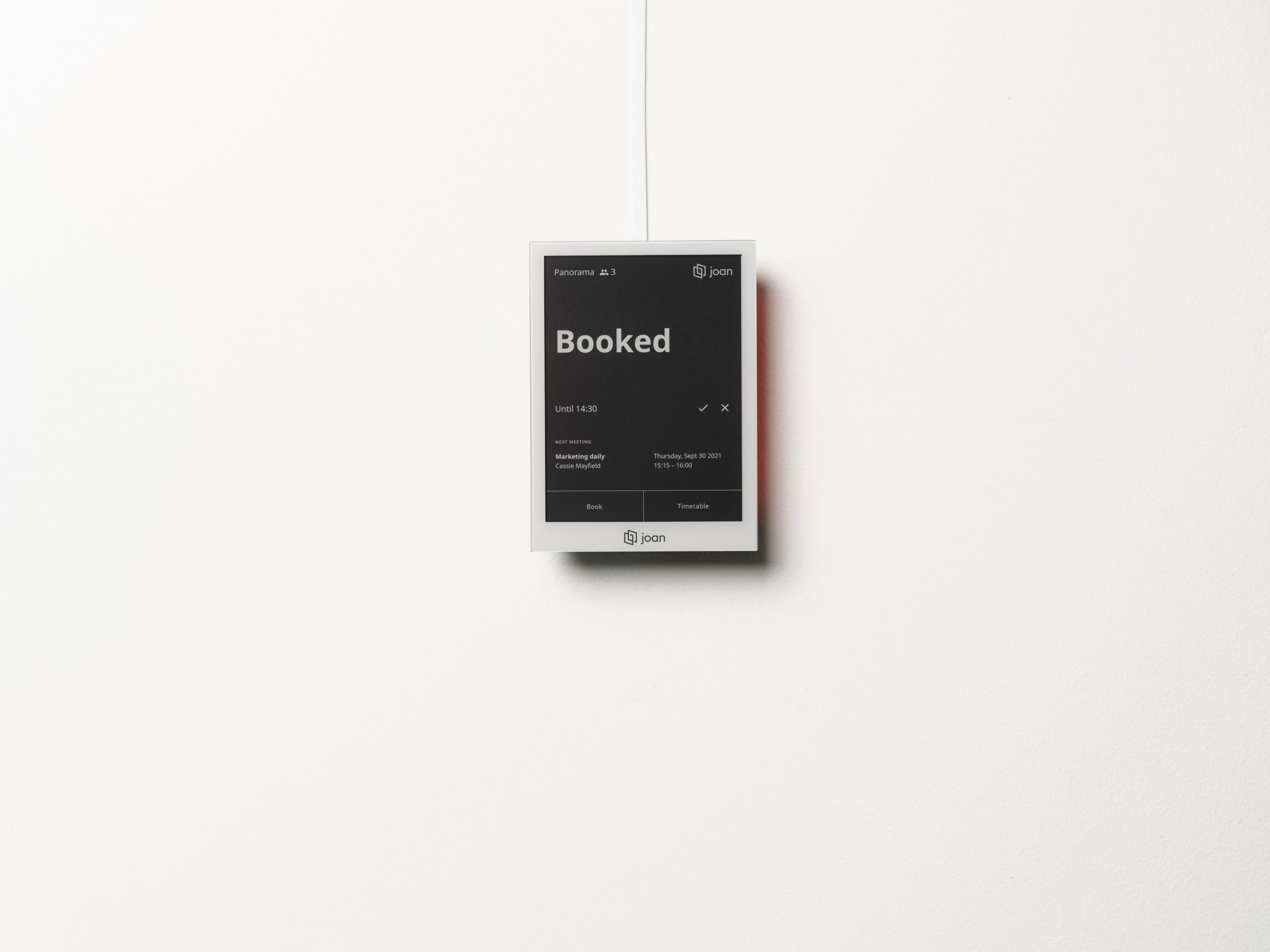

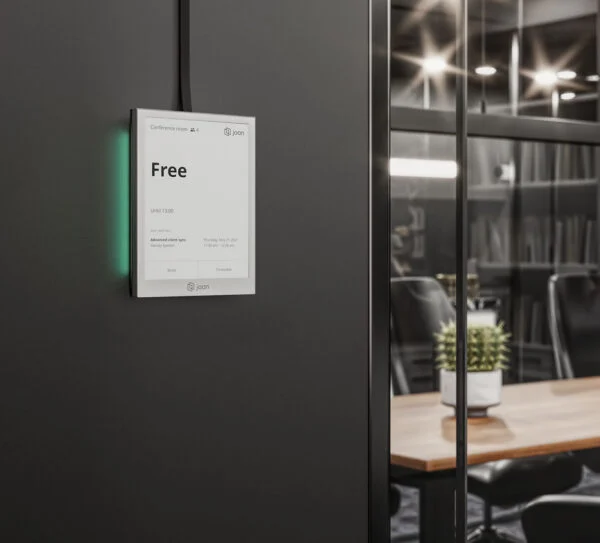

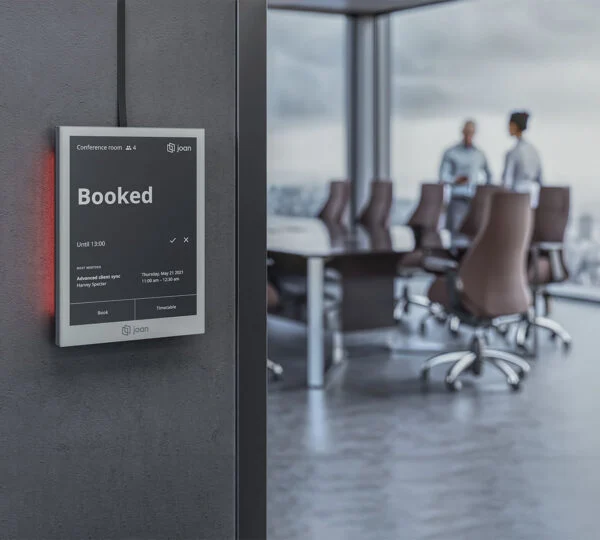

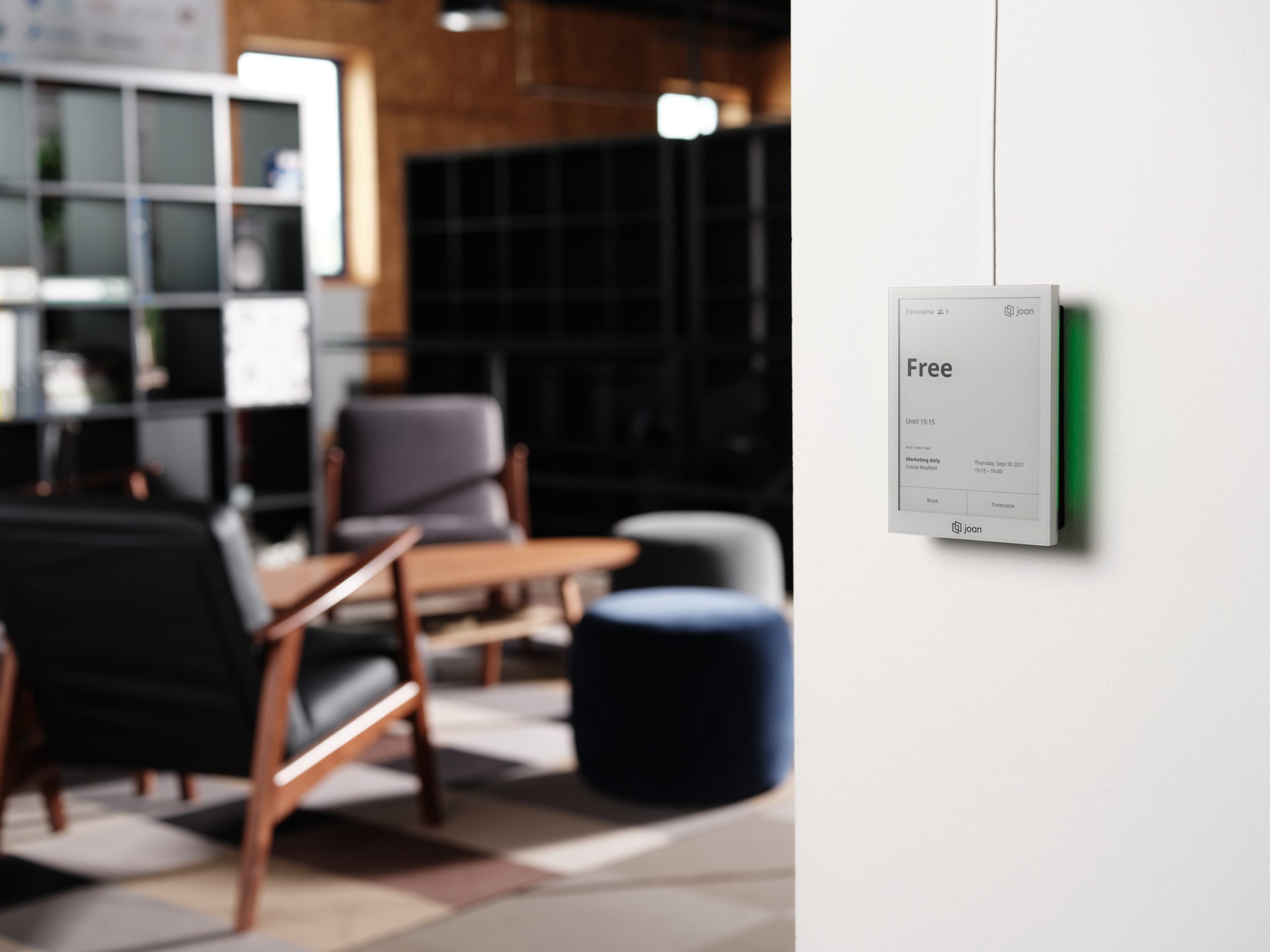

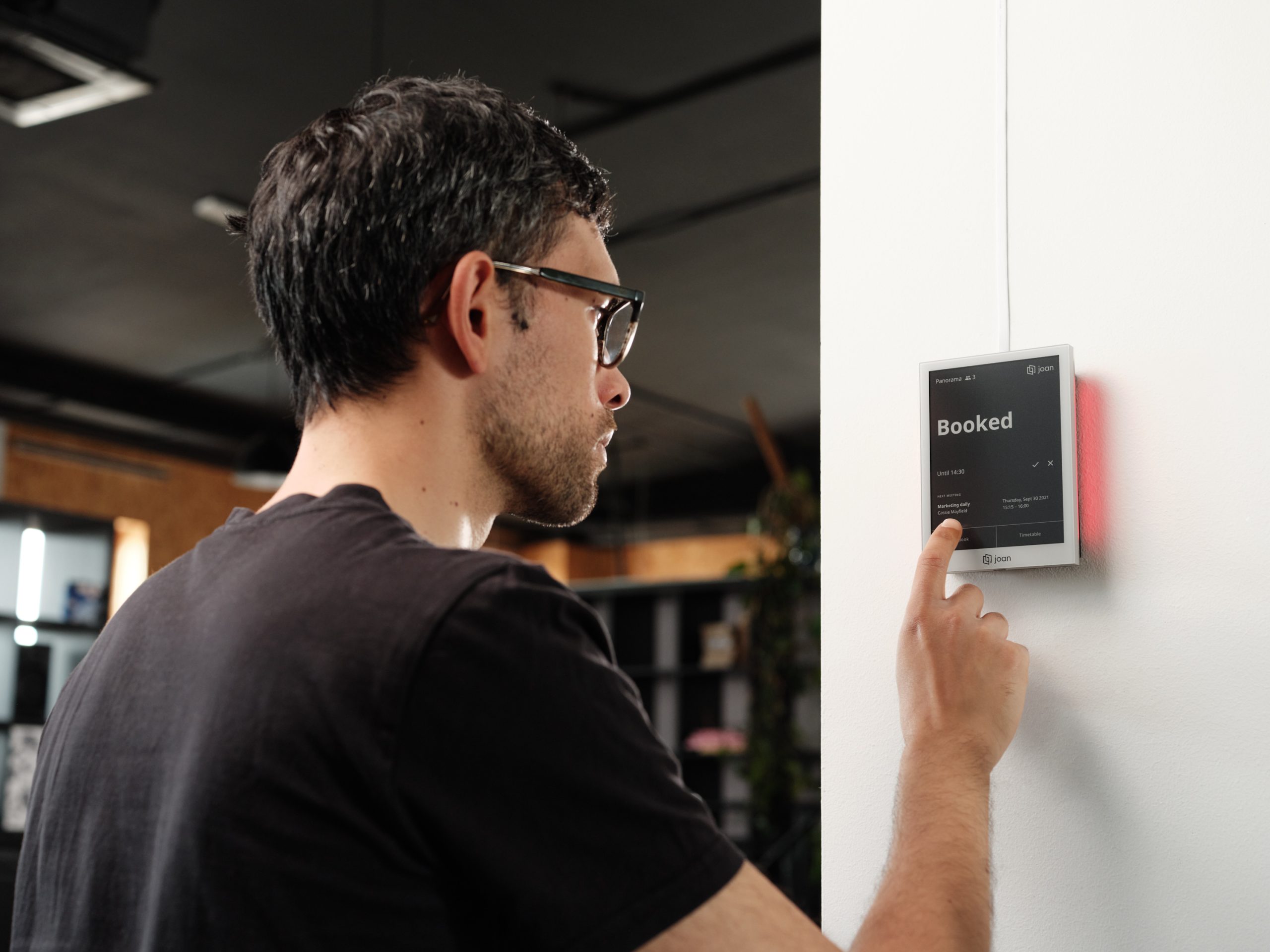

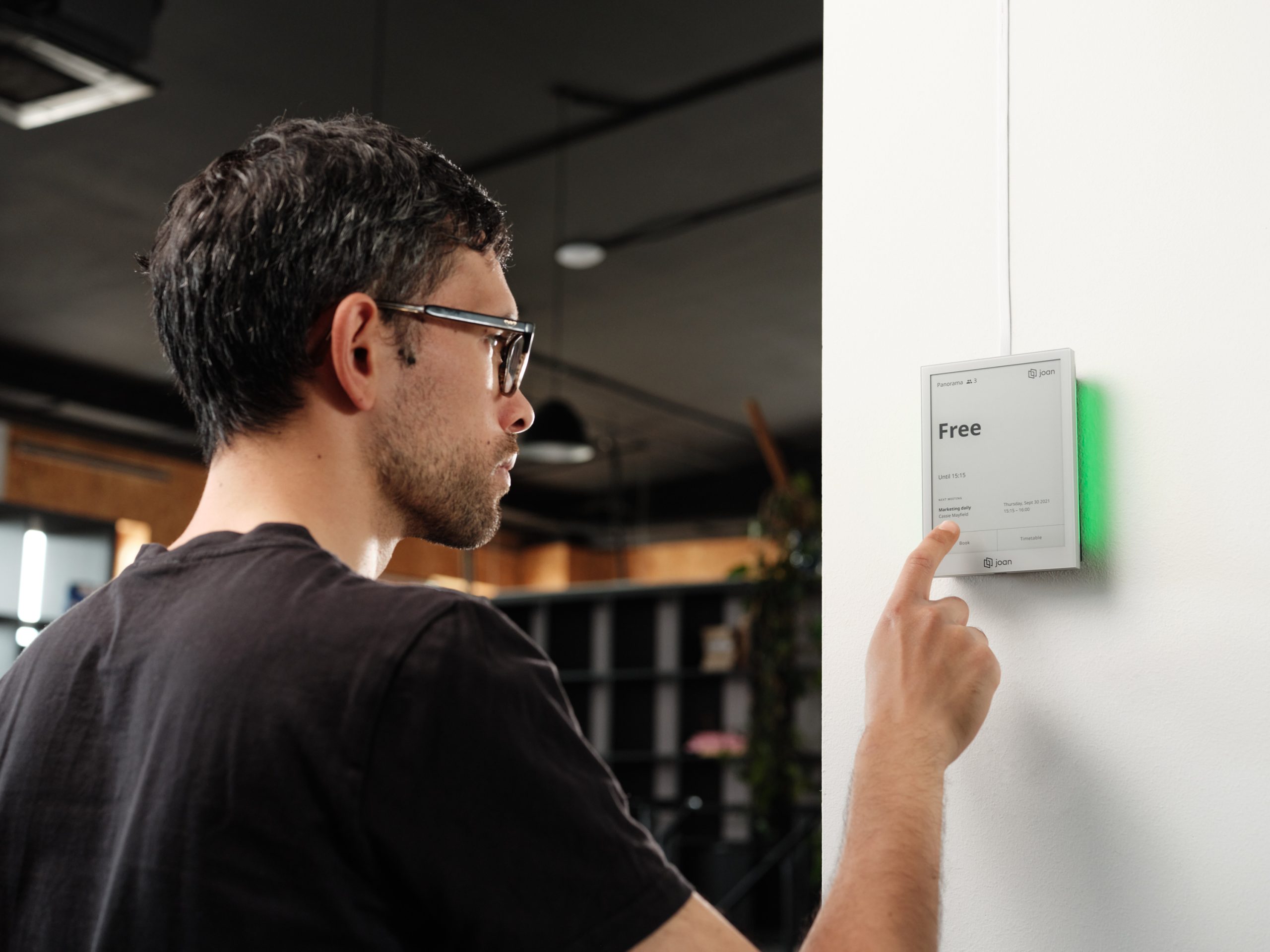

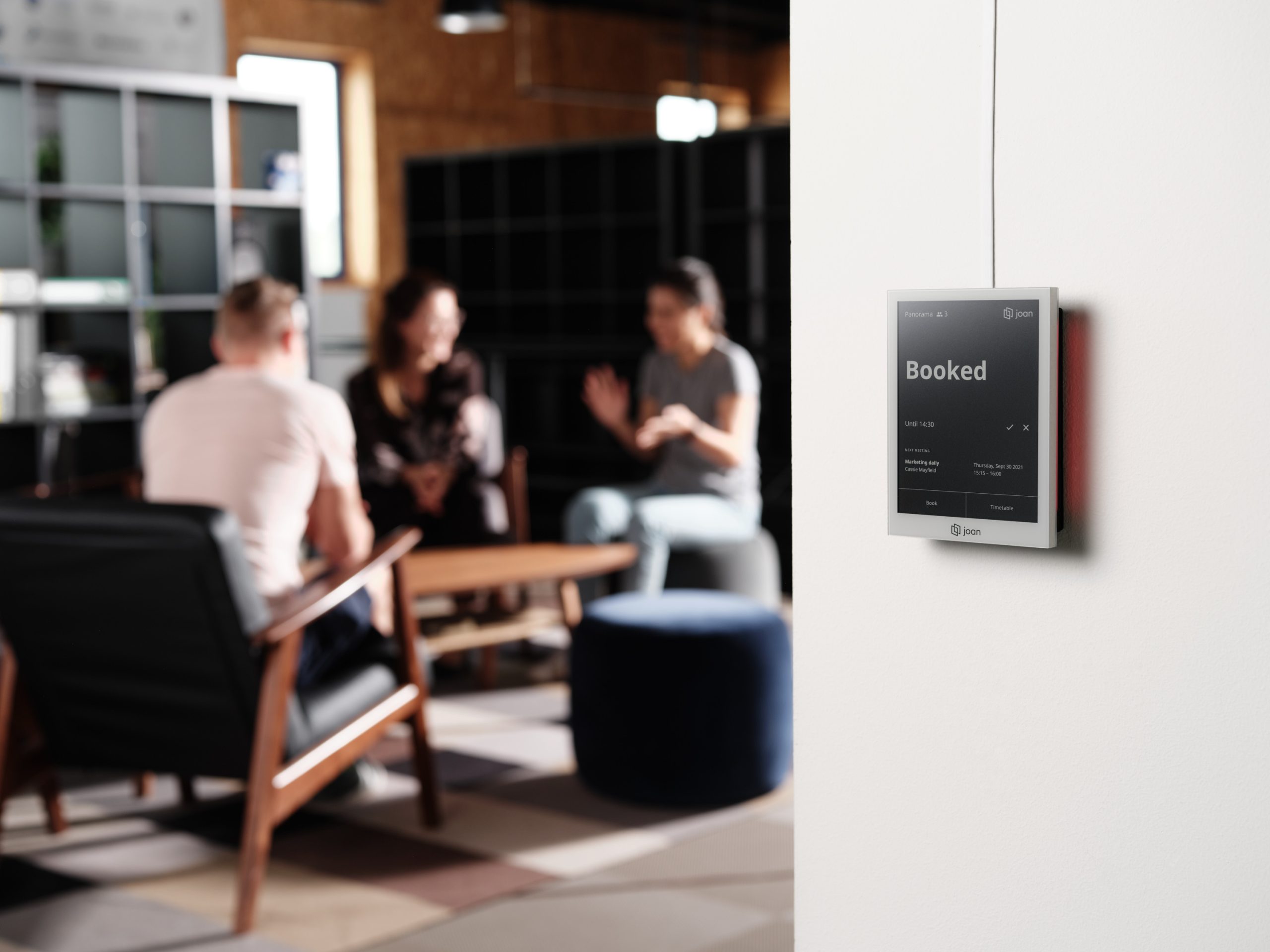

The side of the wall mount is equipped with LED lights, which provide occupancy information – green for free and red for booked.
Learn more about the PoE Wall Mount
From technical specifications to product details. Here’s everything you need to know about PoE Wall Mount created exclusively for Joan 6 Pro.
Product details
Dimensions & Weight
- Height: 130.2 mm (5.13 in)
- Width: 92 mm (3.62 in)
- Depth: 14 mm (0.55 in)
- Weight: 310 g (10.9 oz)
Technical specifications
- High quality anodized aluminum casing
- Low power ethernet 10/100 Mbps, IEEE 802.3u compliant: 100BASE-FX, 100BASE-TX, 10BASE-Te
- PoE (Power over Ethernet), IEEE 802.3at (compatible with various PoE injectors)
- RGB LED light
- Output rating of 5 V, 1 A.
- Only cat5/5e cable should be used with the device due to bend radius and cable thickness of cat6.
Environmental conditions
- Operating and storage temperature range: 32°F to 113°F (0°C to +45°C)

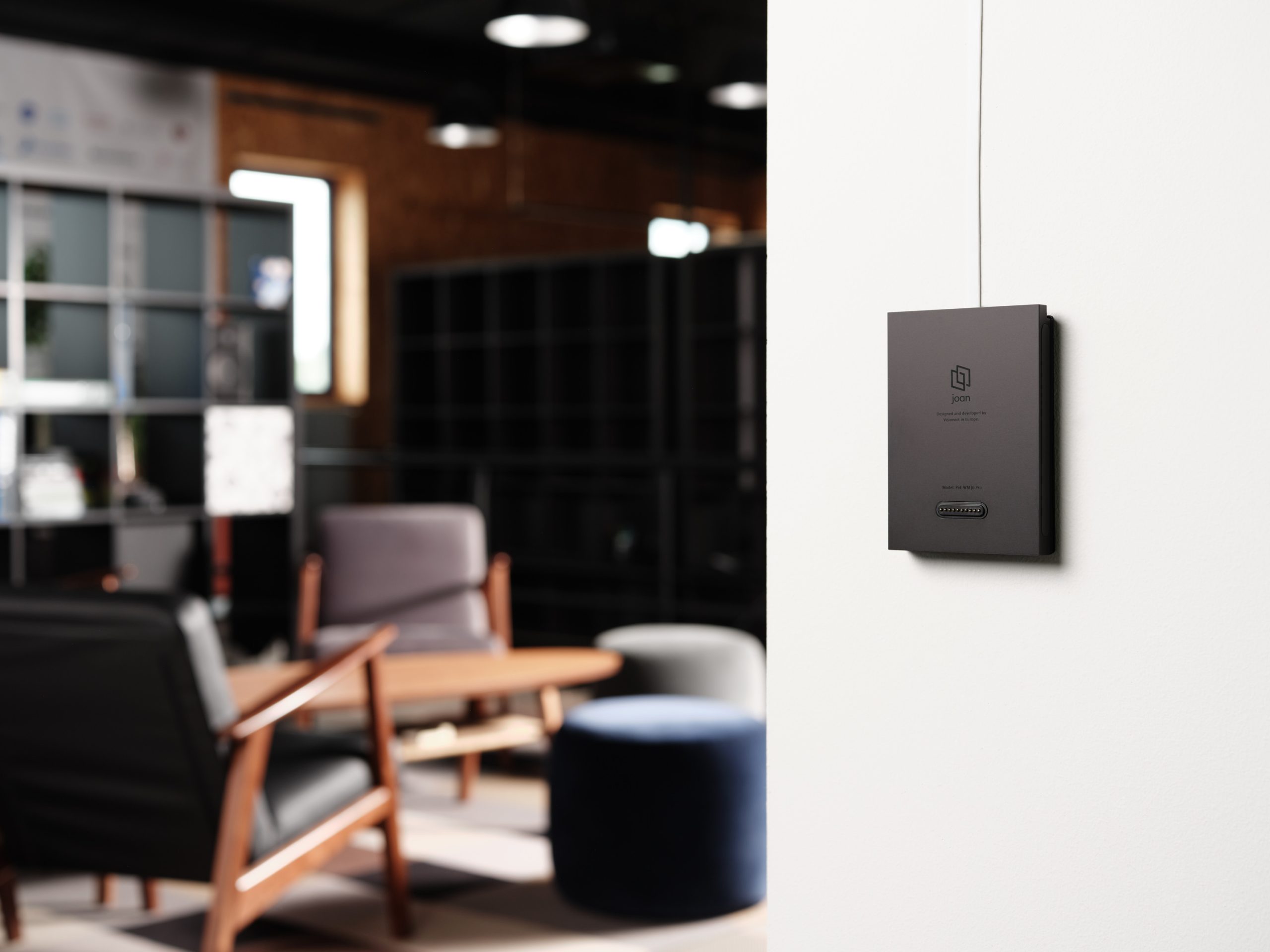

Mounting instructions
- The POE Wall Mount can be mounted at a maximum height of 2 meters.
- Remove the top cover of the wall mount
- Drill holes into the wall and attach the back cover of the wall mount to the wall
- Plugin ethernet cable to the wall mount from the top. The cable can also slide in from the top right or left.
- Put the top cover of the wall mount back on

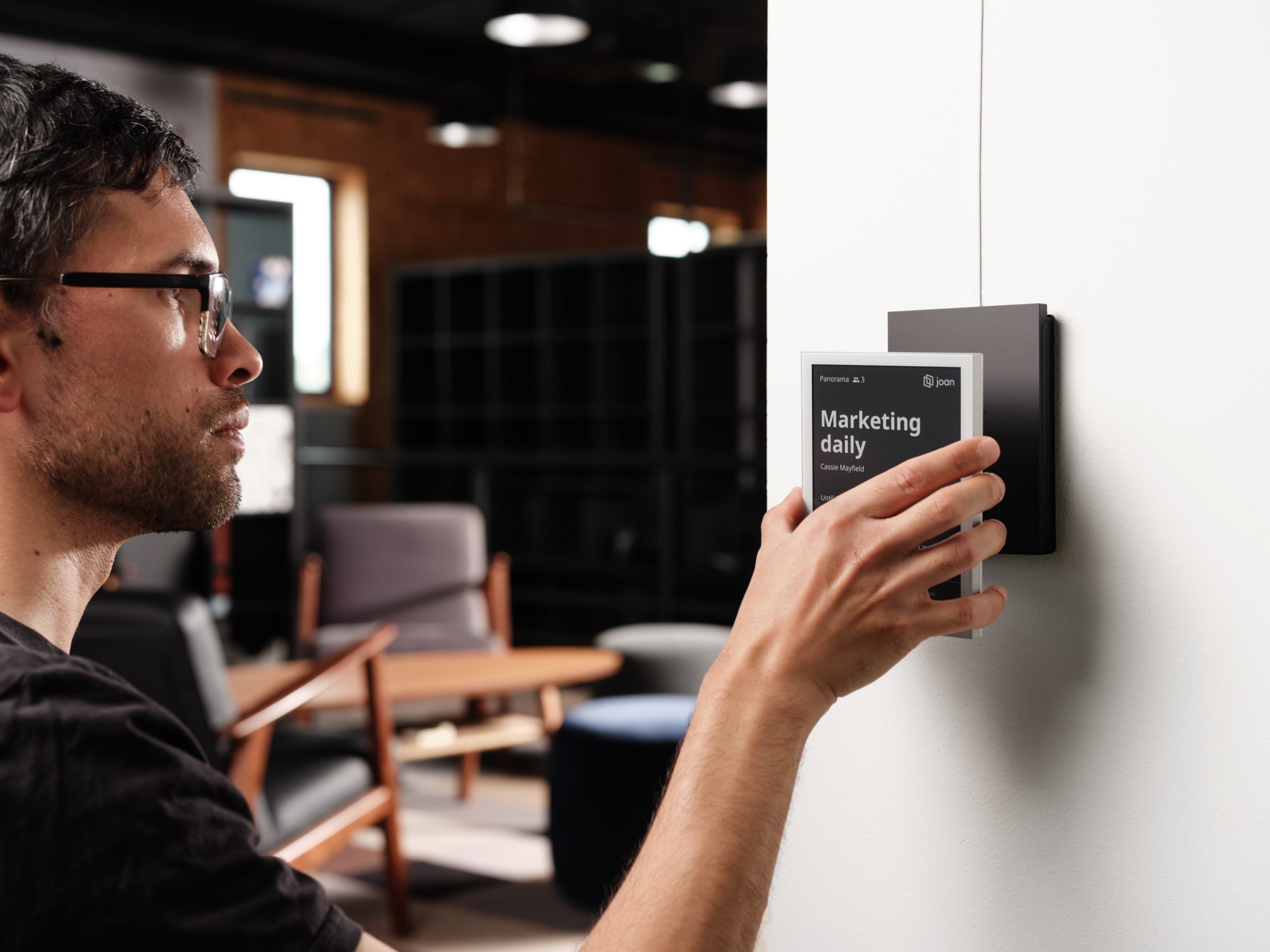

- Put Joan 6 Pro on it – the magnet on the device will hold it in place.
In the box
- 1x POE Wall Mount for Joan 6 Pro.
