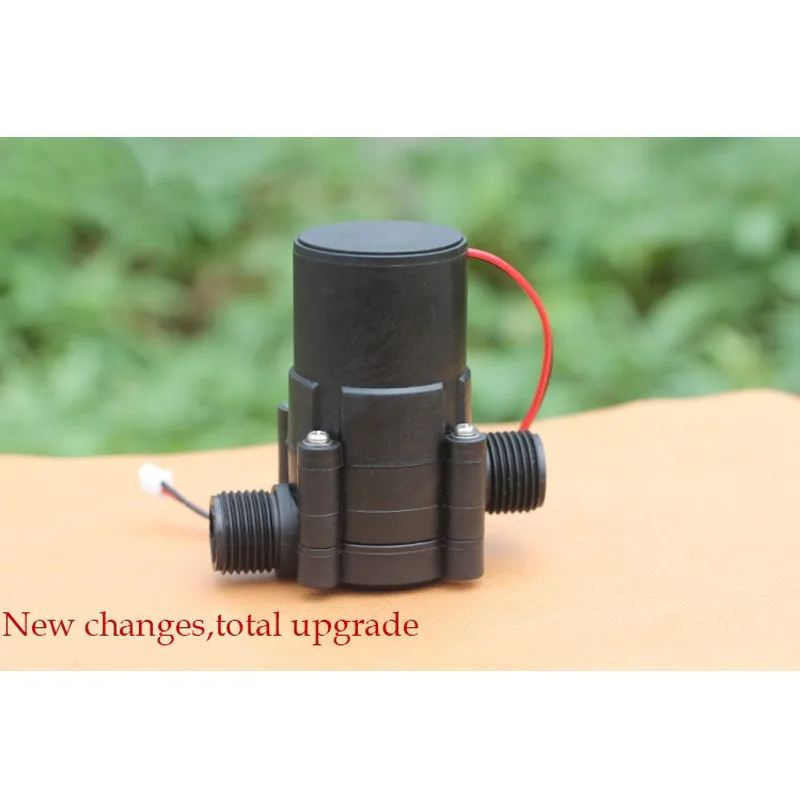

New Hydroelectric power Micro-hydro generator
(Piped, DC output)
Suitable for a variety of smart faucet, sensor faucet, shower room lighting and sound system ,gas water heater, solar controller for automatic water- going- up and other electrical and electronic products with power supply through the water power generation
Product features:

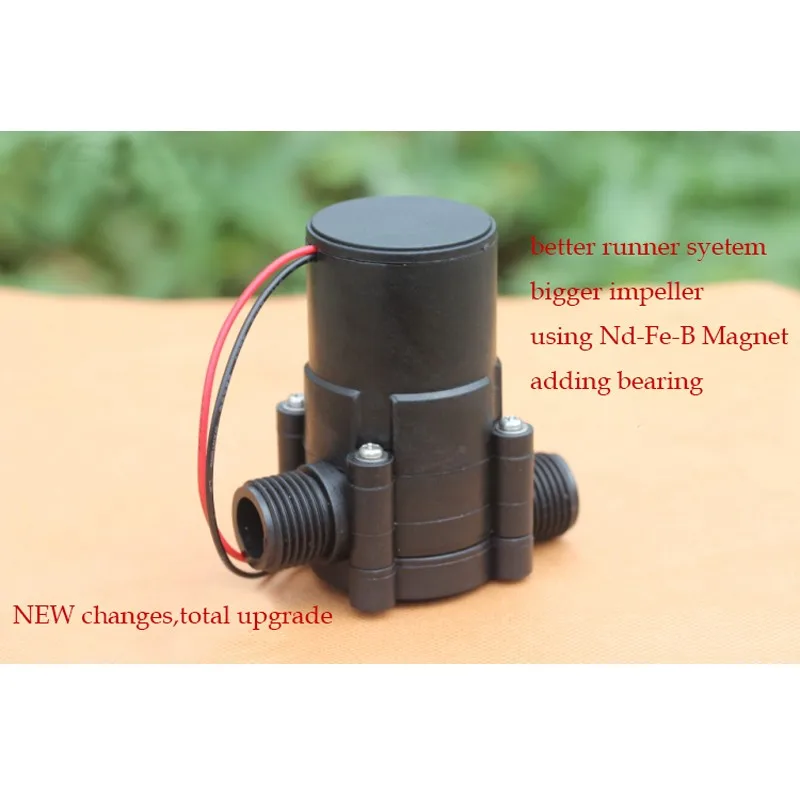

1 unique hydroelectric separation technology
unique double magnetic coupling clutch
the size is only 4/5 of ordinary micro-hydro but the output power is 2 to 3 times
2 sophisticated structure arrangement
inlet, outlet pipe are available to match a straight line or L-type right angle mounting
efficient long-life waterway design
ultra low flow loss
ultra low water pressure (0.5KG) start
3 After the isolation of the diode this product can supplly power directly to the rechargeable battery below 3000MAH or supply power to 5F farad capacitor .It is the best best partner for smart faucet and sensor faucet
4 this product has been in the application of a large area for many years and has been improved in many aspects
Technical parameters:
Pressure: ≤1.75 MPa
Running water pressure: 0.08 to 0.45 MP
Running water temperature: 0 ~ 80degrees
Ambient temperature: -25 ~ 110degrees
Flow range: 1.5 ~ 20 l/min (pressure: 0.05-0.2mpa)
Output current: 128~260 MA/0.1 K load
Output voltage: 3.5 + 0.2V (flow: 2 l/min)
Maximum output: 4.5 + 0.2V (flow: 10 l/min)
Starting flow rate: 1 l/min (1±0.2V)
Traffic loss: 3.6%(0.25 MP )

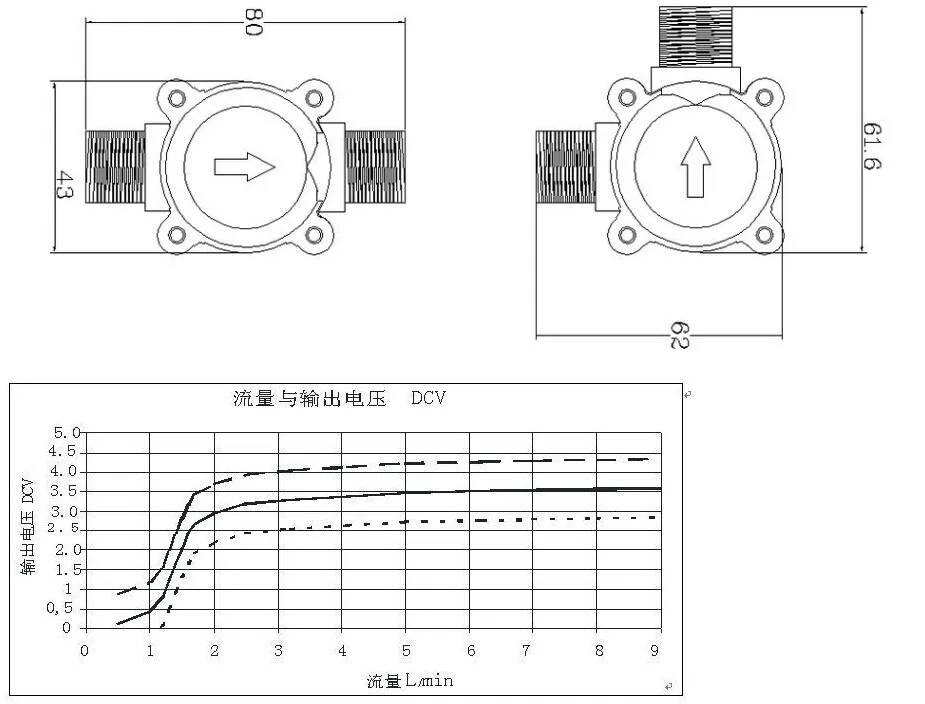

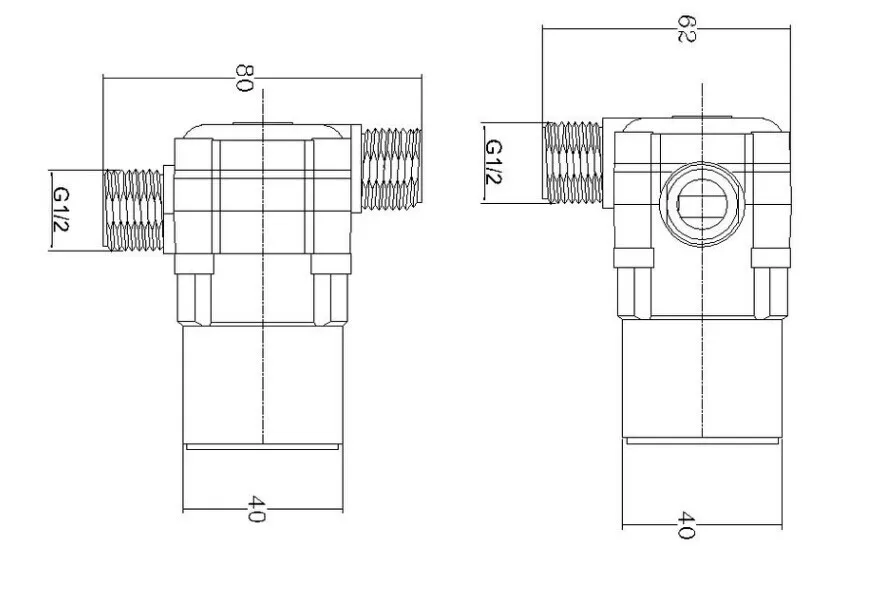

Size: 85.4×42.5×81.4 mm
Shell material: Nylon glass fiber, polyformaldehyde
Inlet and outlet diameter: 1/2 inches pipe(about 21.3mm)
Inlet and outlet angle: 90 degrees, 180 degrees, 270 degrees,these can be adjusted
Installation: according to the direction of the arrowhead, standard home water pipe
Inside diameter: 13mm
Outside diameter: 20mm
This high power generator can drives 60 diode bulbs

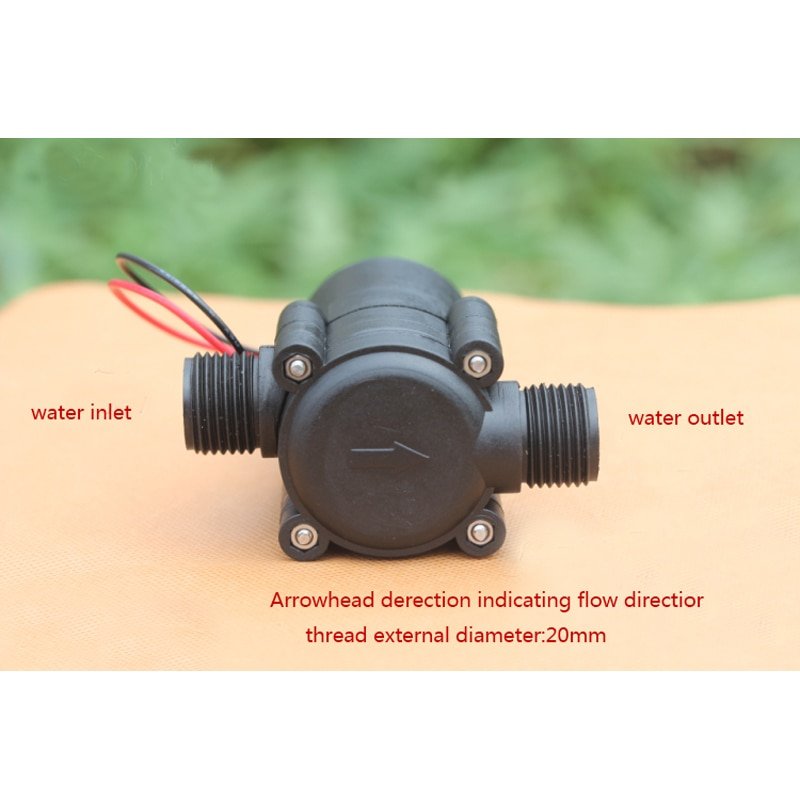

Water flow Installation way:install it according to the direction of the arrow
