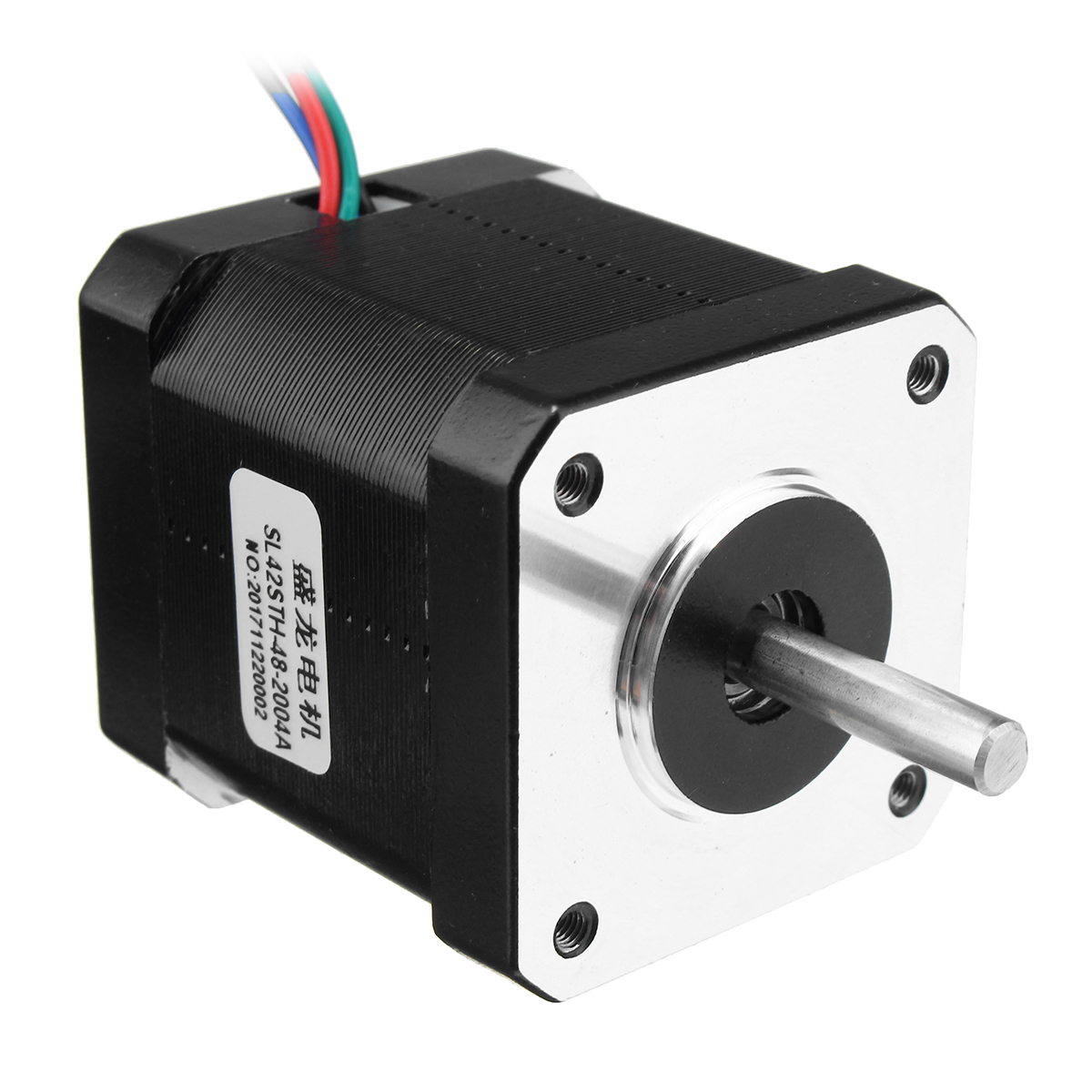

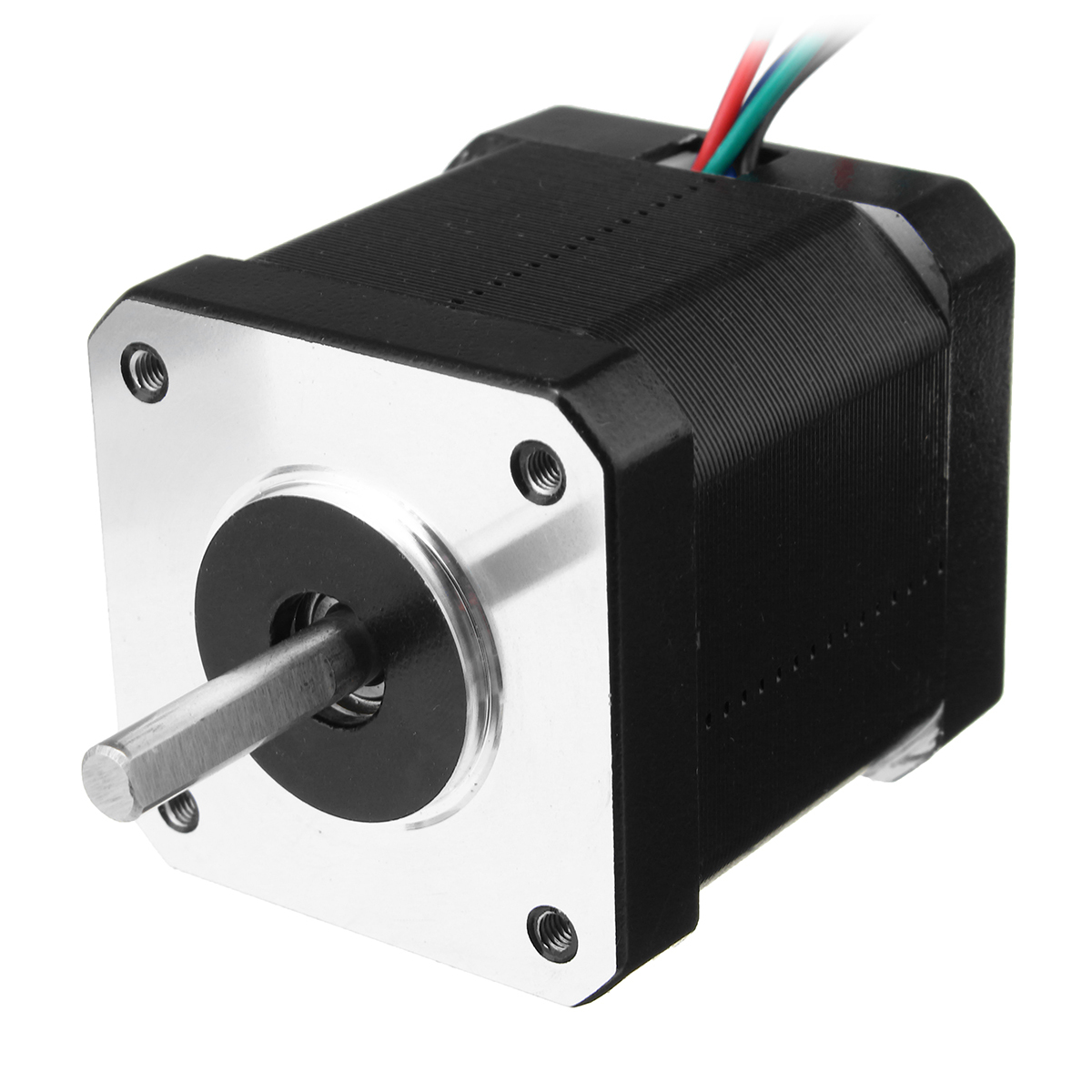

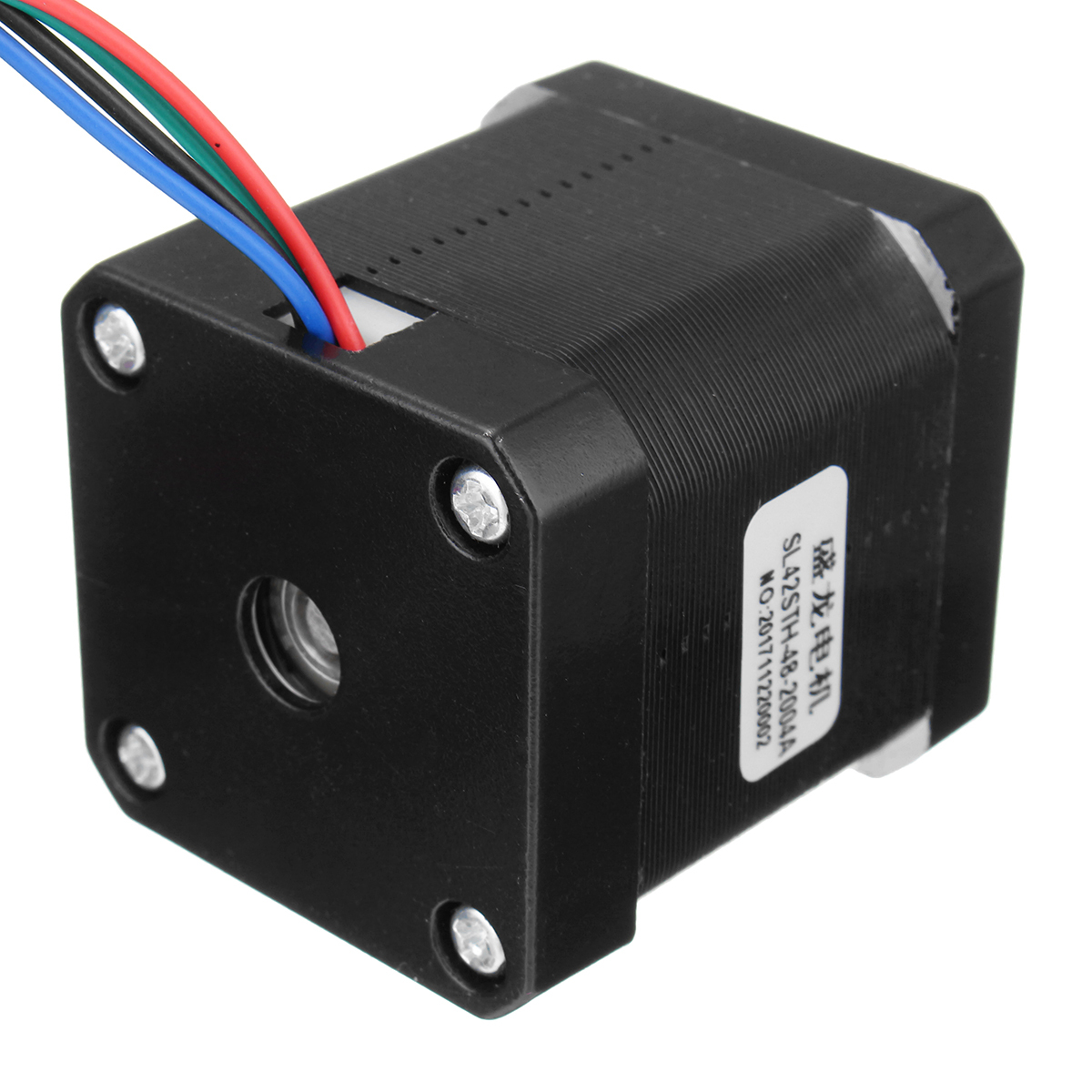

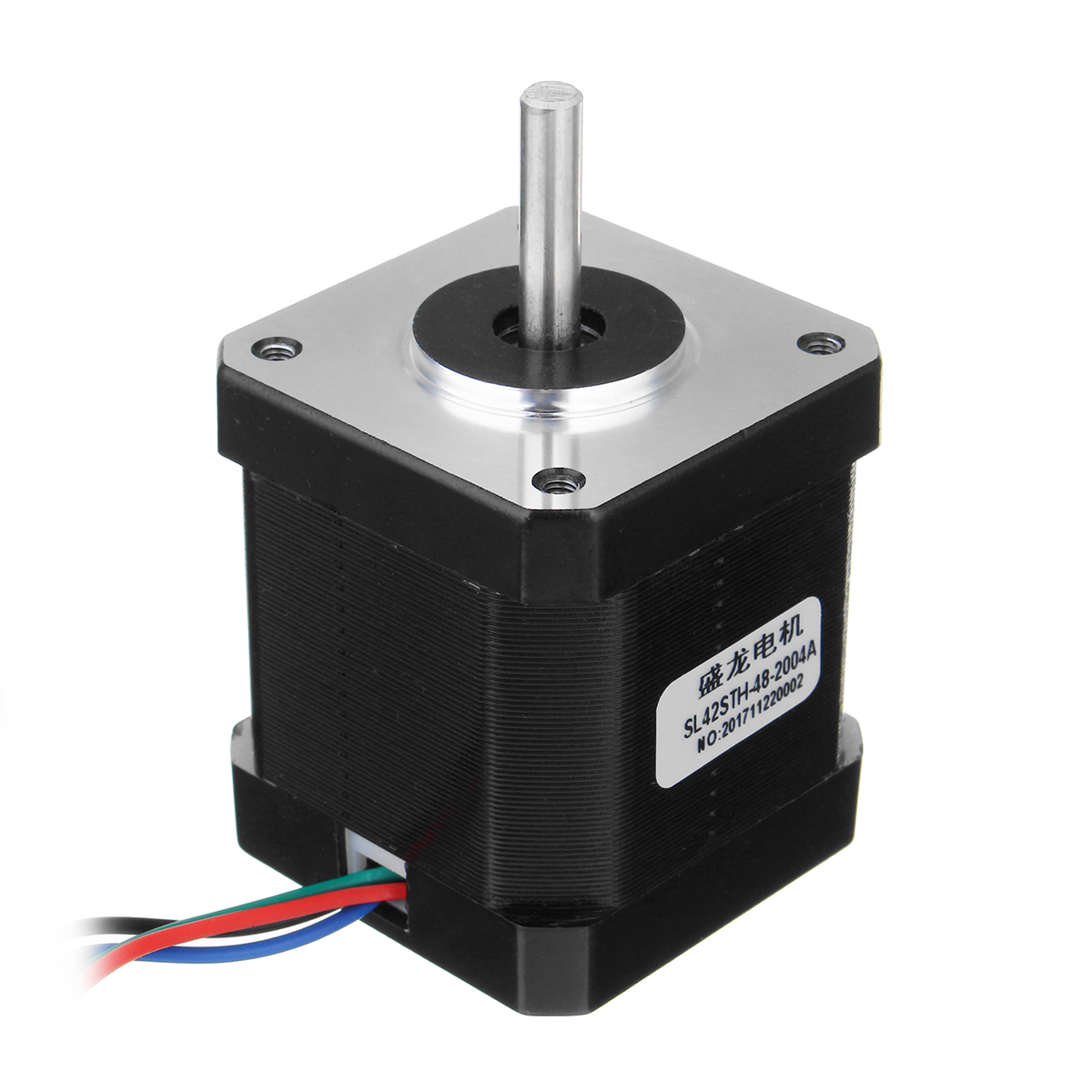

Nema17 59Ncm 2A 1.8?°4-lead 48mm Stepper Motor For 3D Printer CNC
Nema17 59Ncm 2A 1.8?°4-lead 48mm Stepper Motor For 3D Printer CNC - Image 2
Nema17 59Ncm 2A 1.8?°4-lead 48mm Stepper Motor For 3D Printer CNC - Image 3
Nema17 59Ncm 2A 1.8?°4-lead 48mm Stepper Motor For 3D Printer CNC - Image 4
Nema17 59Ncm 2A 1.8?°4-lead 48mm Stepper Motor For 3D Printer CNC - Image 5
Nema17 59Ncm 2A 1.8?°4-lead 48mm Stepper Motor For 3D Printer CNC - Image 6

Nema17 59Ncm 2A 1.8?°4-lead 48mm Stepper Motor For 3D Printer CNC

or 6 weekly interest-free payments from $4.09 with Laybuy

or 4 payments of $5.59 with Wizit learn more

$22.34 AUD

In stock

Refund and Returns Policy
Estimated delivery between Thursday 26. December - Thursday 2. January
Add to Wishlist
Add to Wishlist
SKU: C122-1252415 Category:

Description

Specifications:
– Material: Metal
– Dimensions: 42x42x48mm/1.65″x1.65″x1.88″
– Phase Number: 2
– Step Angle: 1.8°±5%
– Rated Voltage: 2.8V
– Holding Torque: ≧5 Kg-cm(70 Oz-in)
– Rated Current: 2.0A
– Resistance(20℃): 1.4±10%?/phase
– Max. Slewing PPS: 2500 PPS
– HI-POT: AC 600V/1mA/1S
– Rotor Inertia: 68g.cm2
– Inductance: 3.0±20%mH
– Detent Torque: 2.0Kg-cm
– Insulation Resistance: ≧100M?(DC 500V)

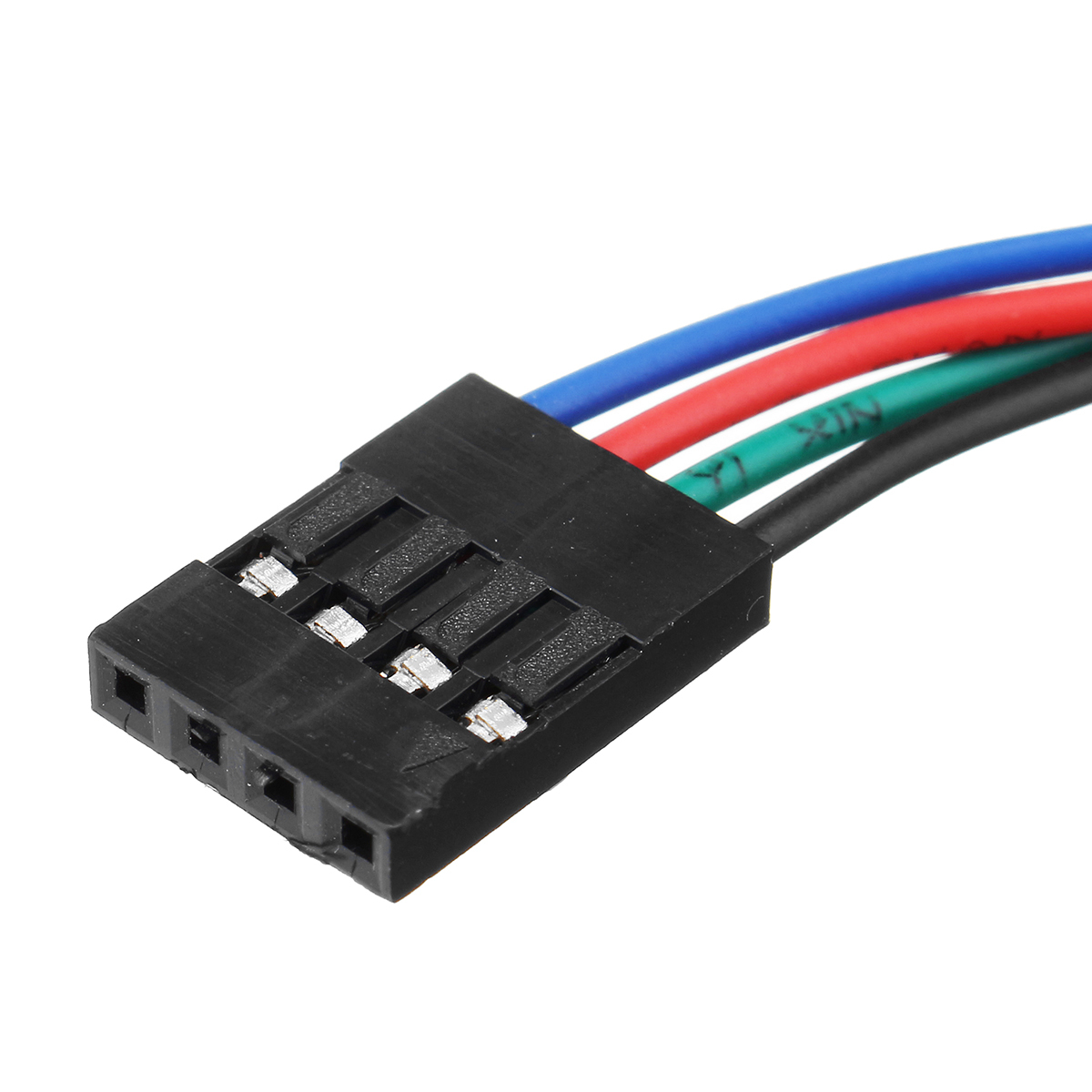

– Leads: 4
– Application: Use for3D printer, Linear actuators and CNC router for plastic&metal.

Note:*Please allow a little difference due to manual measurement.

Package Included:
1 x Stepper Motor
,,,,,

Additional information

Weight 0.36 kg
MPN

1252415
