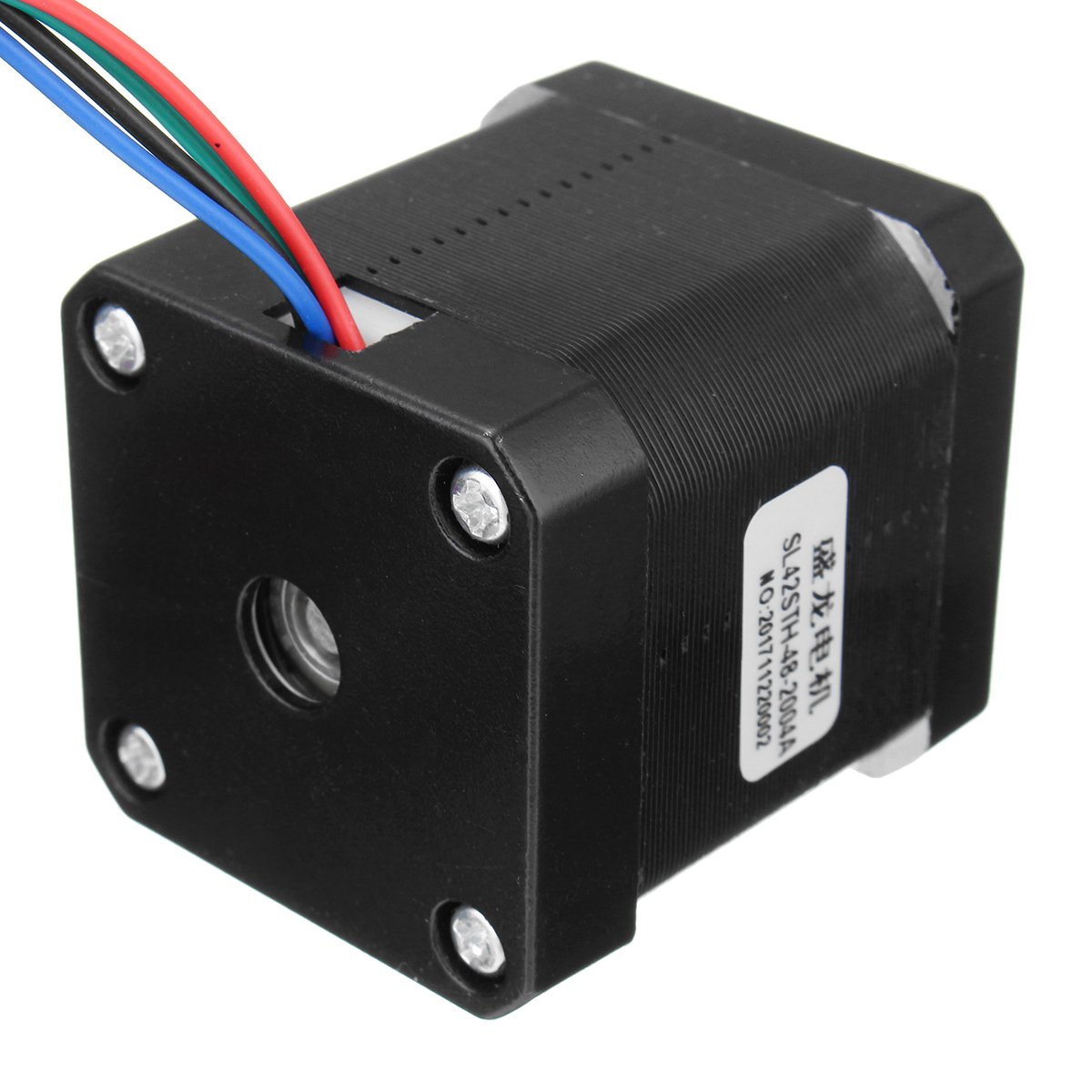

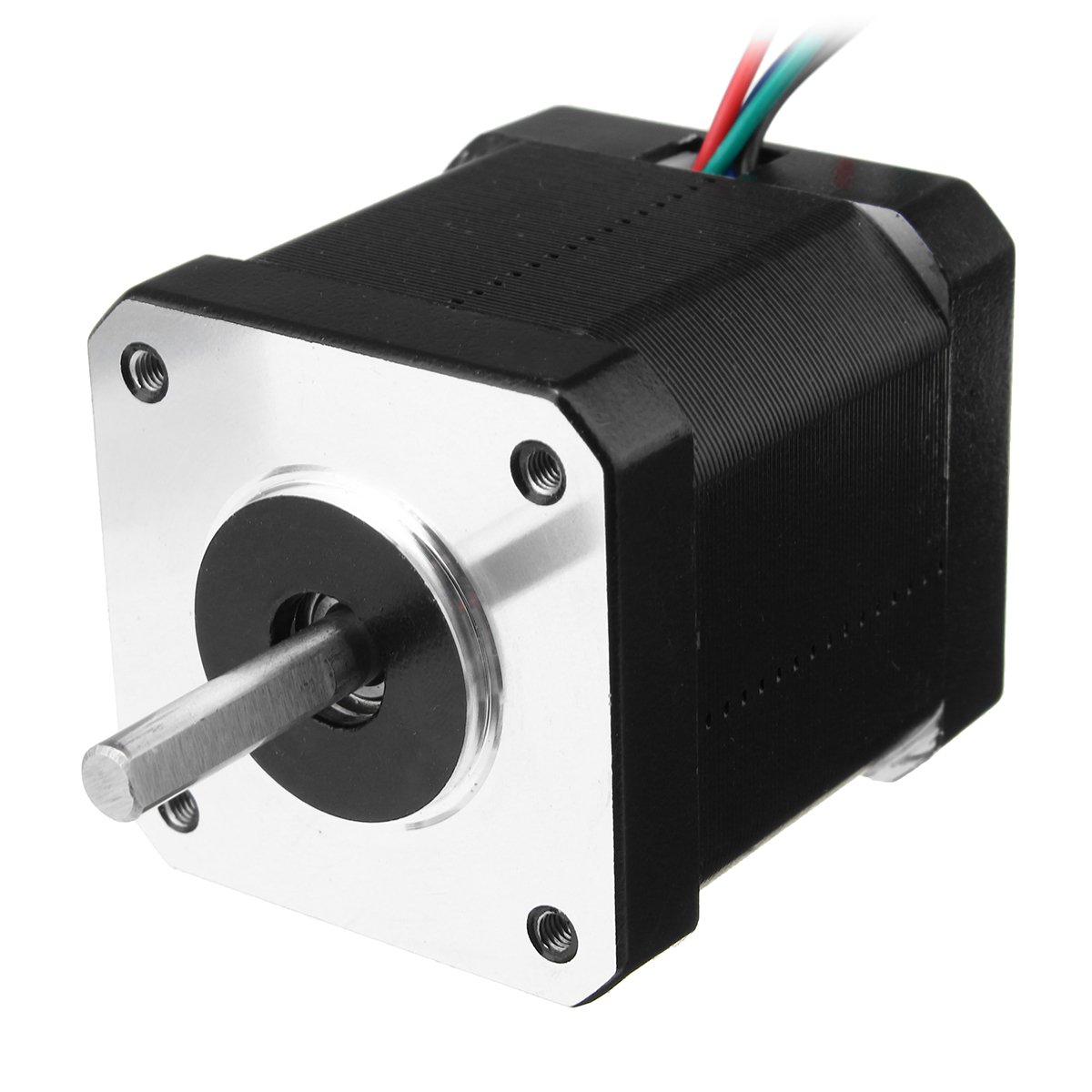

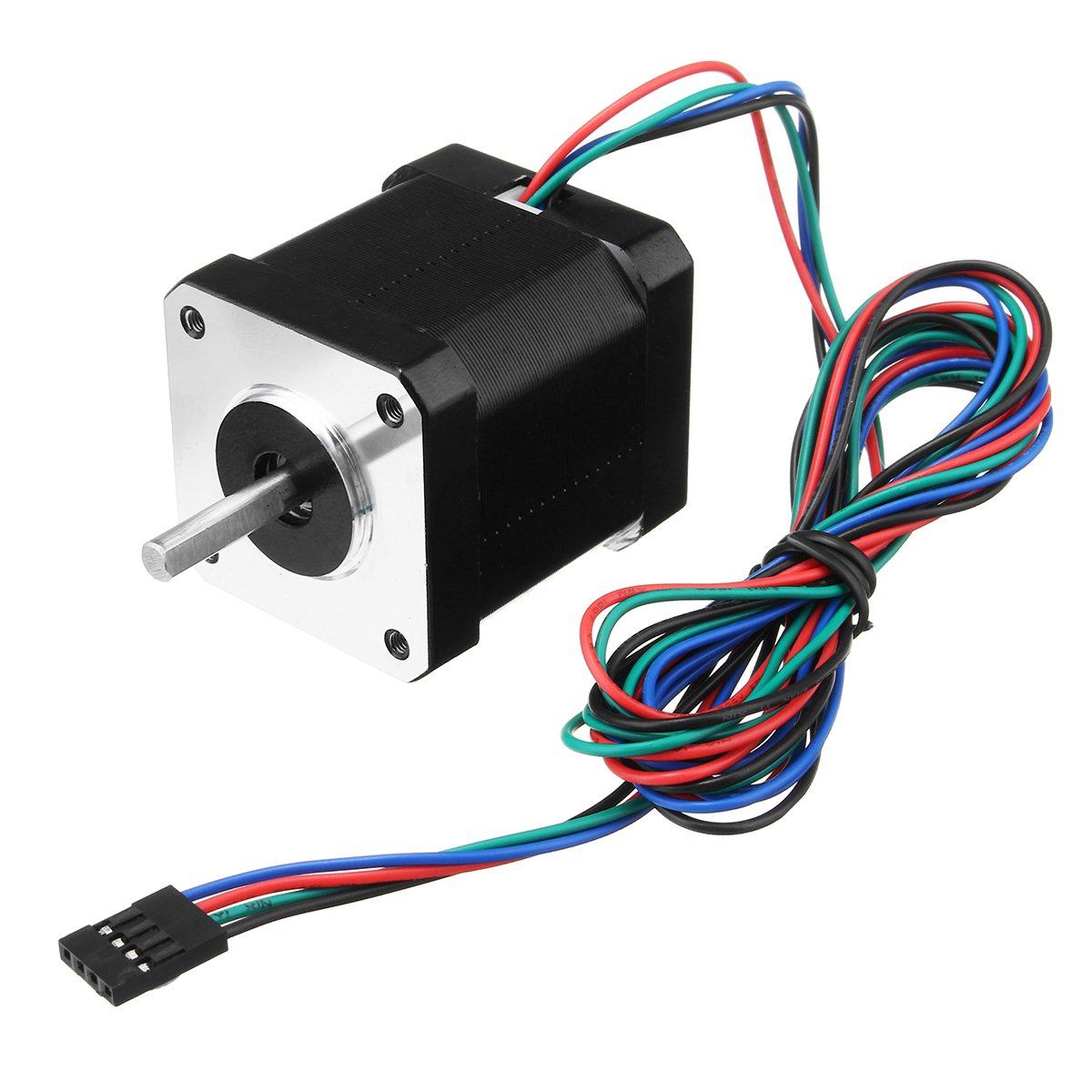

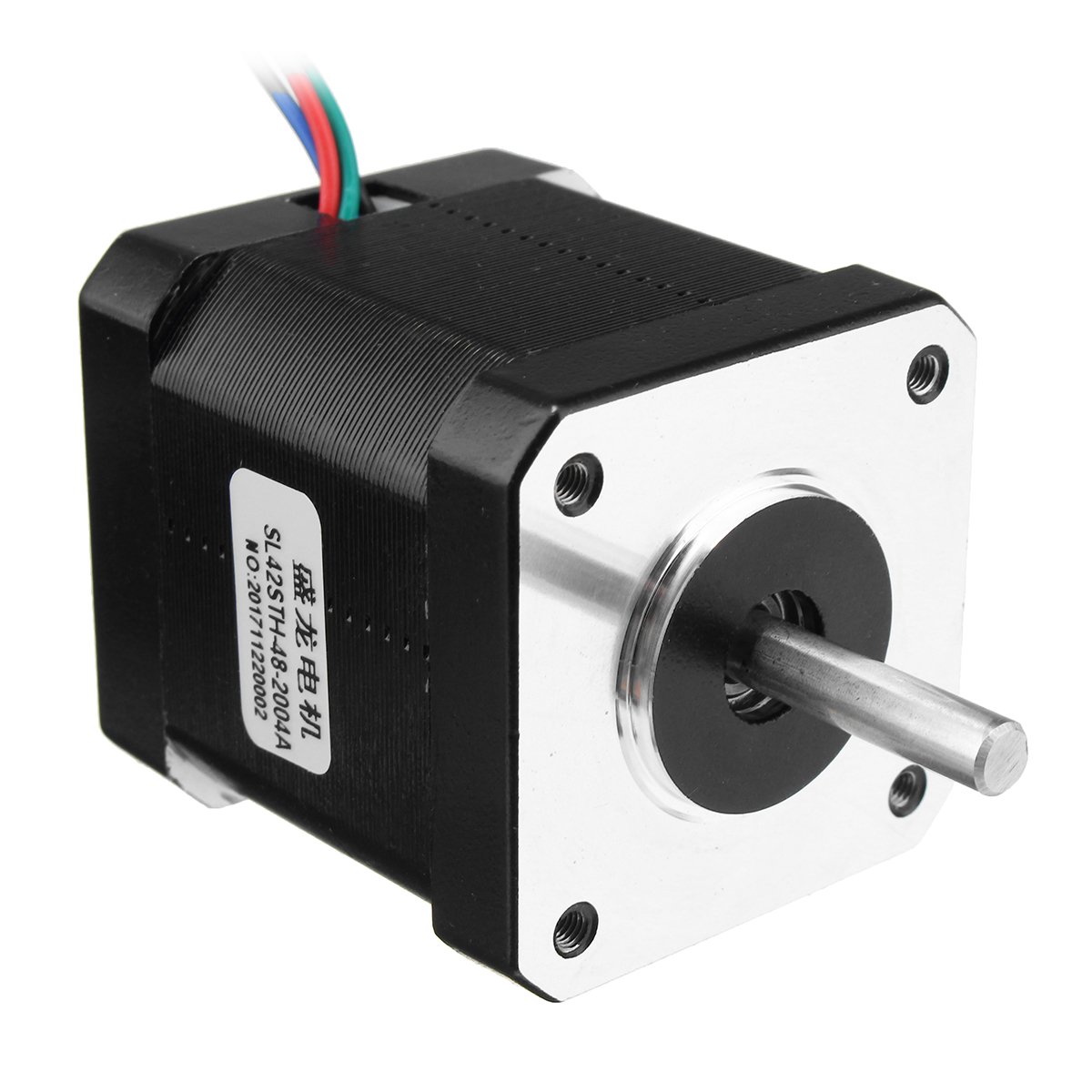

Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC
Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC - Image 2
Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC - Image 3
Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC - Image 4
Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC - Image 5
Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC - Image 6

Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC

or 6 weekly interest-free payments from $3.39 with Laybuy

or 4 payments of $4.63 with Wizit learn more

Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC

$18.50 AUD

In stock

Refund and Returns Policy
Estimated delivery between Thursday 26. December - Thursday 2. January
Add to Wishlist
Add to Wishlist
SKU: 11671 Category: Tags: , , , , , , , , , , , ,

Description

Specifications:


– Material: Metal
–
Dimensions: 42x42x48mm/1.65”x1.65”x1.88”
–
Phase Number: 2
–
Step Angle: 1.8°±5%
–
Rated Voltage: 2.8V
–
Holding Torque: ≧5 Kg-cm(70 Oz-in)
–
Rated Current: 2.0A
–
Resistance(20℃): 1.4±10%?/phase
–
Max. Slewing PPS: 2500 PPS
–
HI-POT: AC 600V/1mA/1S
–
Rotor Inertia: 68g.cm2
–
Inductance: 3.0±20%mH
–
Detent Torque: 2.0Kg-cm
–
Insulation Resistance: ≧100M?(DC 500V)
–

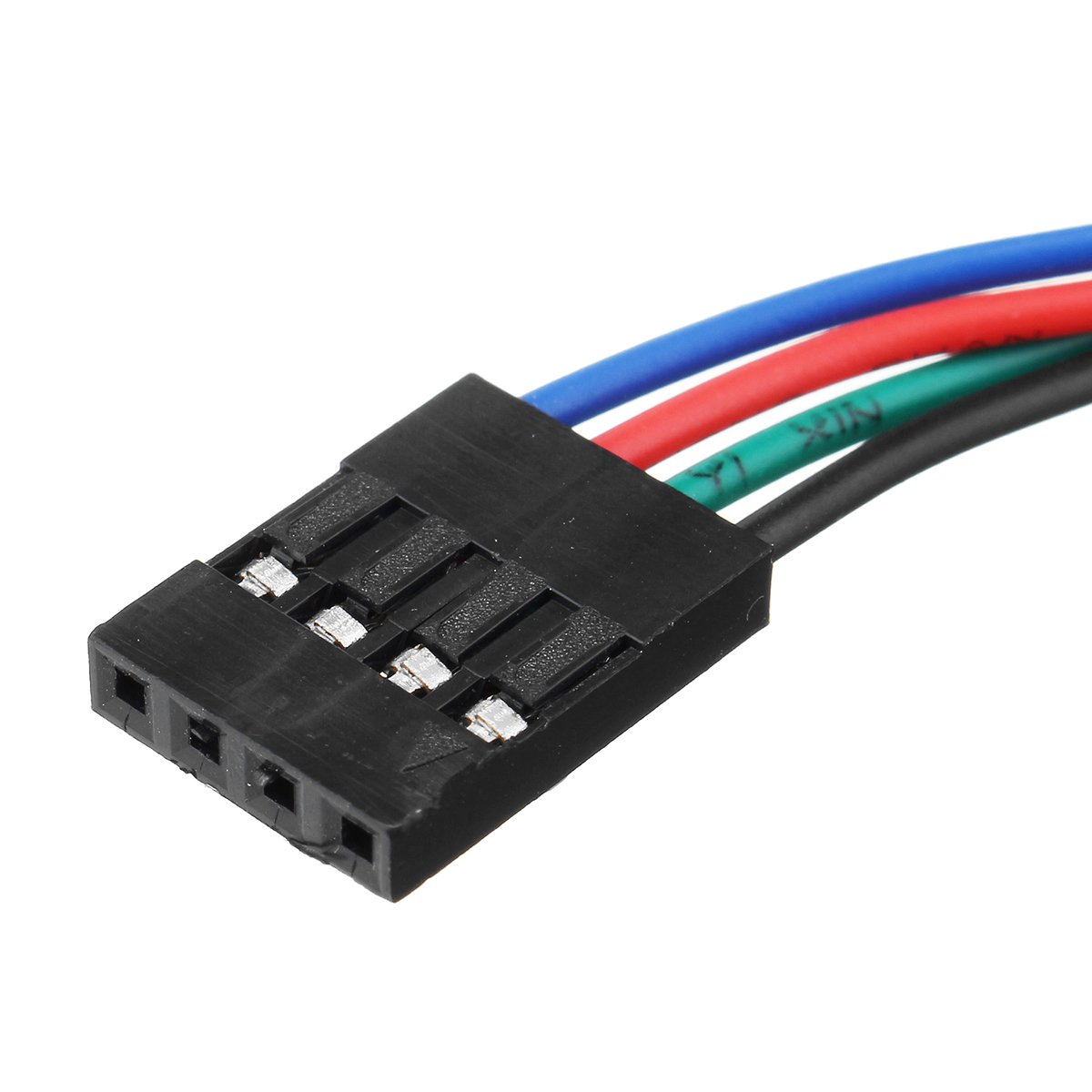

Leads: 4
–
Application: Use for3D printer, Linear actuators and CNC router for plastic&metal.

Note:
*Please allow a little difference due to manual measurement.

Package Included:


1 x Stepper Motor






Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC 1,
Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC 2,
Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC 3,
Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC 4,
Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC 5,
Nema17 59Ncm 2A 1.8°4-lead 48mm Stepper Motor For 3D Printer CNC 6
