Description

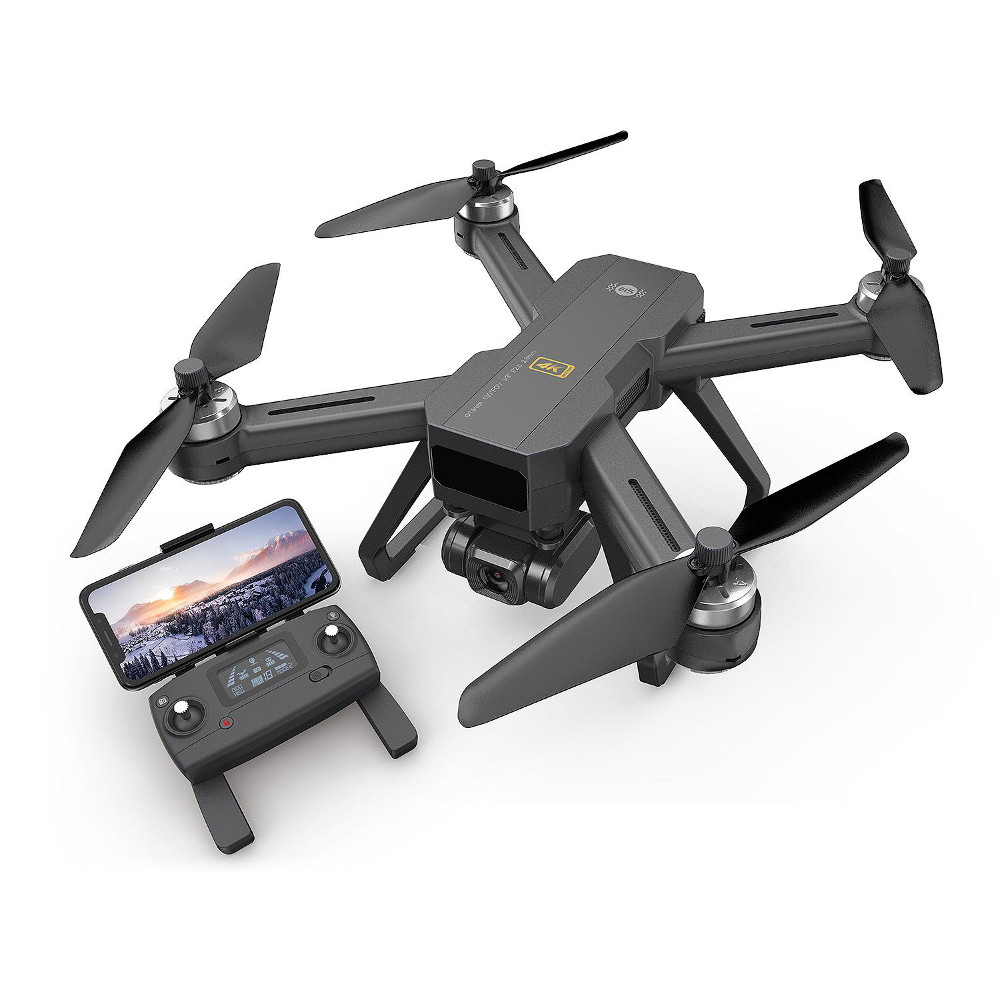

MJX B20 EIS With 4K 5G WIFI Ajustable Camera Optical Flow Positioning 22min Flight Time Brushless RC Quadcopter Drone RTF
Description:
| Item Name | Specification | |
| MJX B20 |
Brand: MJX
Item Name: B20
Mode: Mode 2 (Left Hand Mode)
Wheelbase: 280mm
Quadcopter Size: 380*380*125mm
Quadcopter Weight: 543g
Max. Ascent Speed: 3m/s
Max. Descent Speed: 2m/s
Max. Flying Speed: 40km/h
Max Flying Time: 22mins
Max. Limit Height: 120m
Max. Flying Distance: about 600m
Wind resistance level: <4 level
Hovering Accuracy Range:
Vertical ±0.3m,Horizontal ±0.3m (Indoor routine environment, within 3
meters height)
Vertical ±0.3m,Horizontal ±0.5m(Outdoor 3 meters above normal environment)
Motor: 2204 1620KV Brushless Motor
ESC: 6A Brushless
Built-in Positioning Sensor: GPS/Optical Flow/Barometer
EIRP: 20dbm
|
|
| Remote Controller |
Operating Frequency: 2.4G
Maximum Remote Control Distance: 600m
Transmitter Battery: 1.5V 2 X AA(Not Included)
Using Time: About 12h
|
|
| 4K HD Camera |
Item Name: 4K 5G Wifi Camera
APP: M RC PRO
Effective Pixels: 4K
Maximum Transmission Frame Rate: 720P@30FPS
Video Transmission System: 5G WiFi(802.11.ac)
Image Transmission Range: 450m
Lens Angle: 130°
Aperture: f/2.0
Focal Length: 2.8mm
Sensor: 1/3 inch CMOS
Local Video Frame Rate: 3840×2160@30fps 1080P@60fps
File system: FAT32
Shutter speed: 1/30s-1/10000s
ISO range:100 – 3200 for Video/Photo
Camera Adjustable Angle: 0° to -90°
Max Photo Resolution: 3840*2160
Max Video Resolution: 3840*2160
Gimbal: Servo Gimbal
Supported SD Cards: Micro SD Card Class 10 And Above (Not included)
Max. Expansion: 128GB
|
|
| Battery |
Item Name: 7.6V 3400mAh Lipo Battery
Capacity: 3400mAh
Voltage: 7.6V
Battery Weight: 152g
Operating temperature:5℃ to 40℃
Flying Time: About 22mins
Charging Time: About 5h
Input: 5V/2-2.1A
Charging Type: Type-c Charging Cable
|
|
| Weight & Dimensions |
Product weight: 543g
Package Size: 29*27.5*13.5cm
Package Weight：
One Battery Version: 1250g
Two Batteries Version: 1401g
Three Batteries Version:1552g |
|
Features:
– Electronic Image Stabilization：
EIS is a highly effective method of compensating for hand jitter manifests itself in distracting video
shake during playback.
– Ajustable Camera:
Camera angle can be controlled to pitch from -90°to 0°
– 4K Camera:
4K Camera records more details
-Optical Flow Positioning:
The built-in optical flow sensor that gets the real-time optical flow information and makes
integrating computations.
-Follow me:
The drone’s camera will lock on your mobile phone, when using this function, the drone will track you
automatically and capture your movement with paticular aerial view.
Functions:
Up/down, Forward/backward, Turn left/right, Sideward flight, Optical Flow Positioning, , One key return, Follow me
Package Included:
1 X RC Quadcopter
1 X Transmitter
1 X 7.6V 3400mAh Battery(the battery quantity can be chosen)
1 X Charger
1 X USB Cable
4 X Propeller
1 X Screwdriver
1 X Manual
