Description

Feature:

Model: NT68676 (UFG)
OSD Language: Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Portuguese, Japanese, Korean (optional)
Panel: LED / LCD Panel
Single / Dual LVDS Interface (8): 2048 × 1152 Max Resolution
Video input: pc rgb format, 2048 × 1152 @ 60hz
HD 480 i, 480 p, 576 i, 576 p, 720 p, 1080 i, 1080 p
PC Audio headphone output: 0.2 ~ 2.0 VRMS
Audio Output Frequency Response: 100 hz ± 3 ~ 15 kHz @ db (1 khz, 0 decibel reference signal)
Max Output Power: 2 × 1W (8Ω) + N <10% @ 1khz agreement (Power: 12V, audio input: 0.5 vrms)
Power: 3.3V / 5V / 12V
Standby power consumption: <0.5W (board only)
Key definitions, menus, Volume +, Volume -, adjustment / Exit

How to find the program?

Step 1: Find your LCD model’s resolution (you can check the resolution from this link: )
Step 2: According to the specification of the resolution to find corresponding resolution program in this link:
If you can find the program, it means this board is compatible with your screen.

If you need with keyboard and cable version, click this item:



Package included:

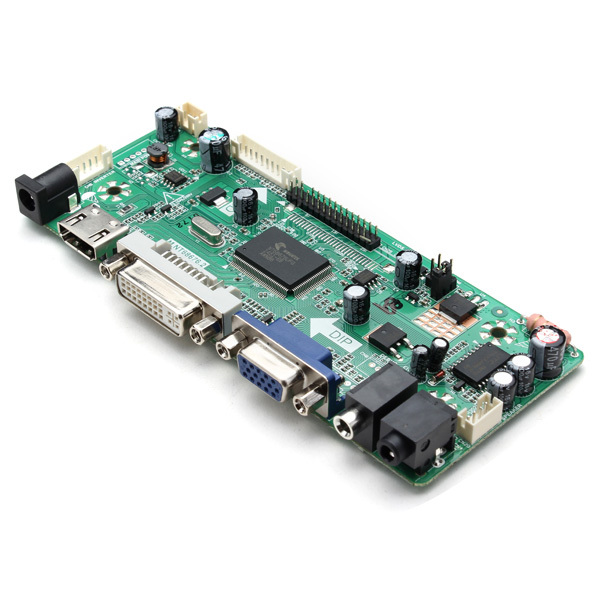

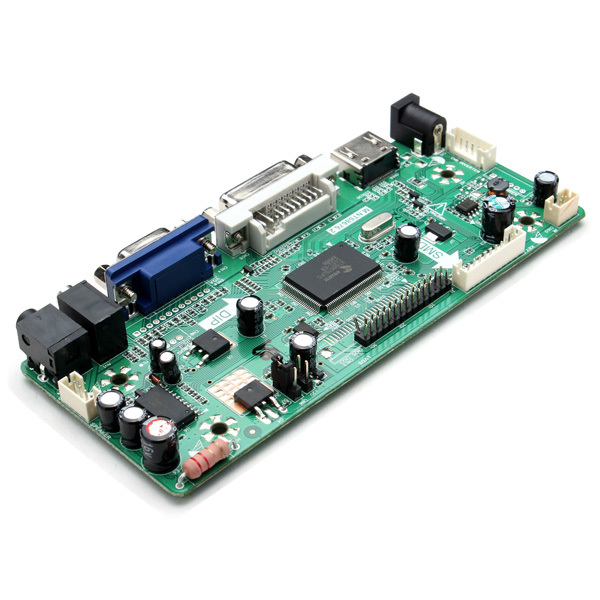

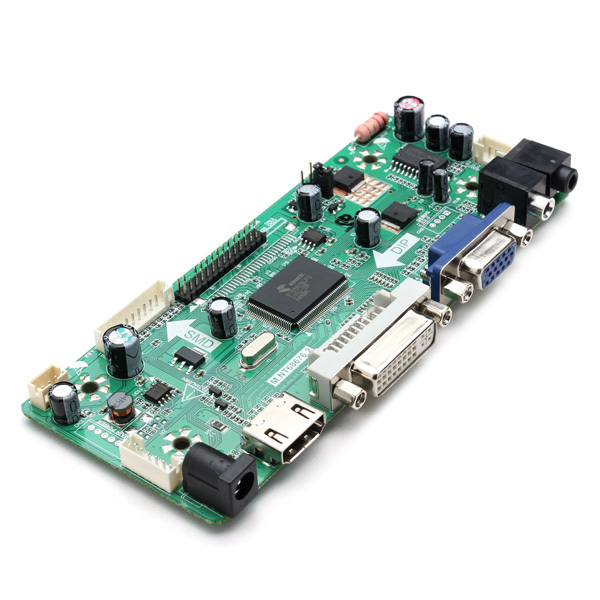

1 x LCD Driver Board
