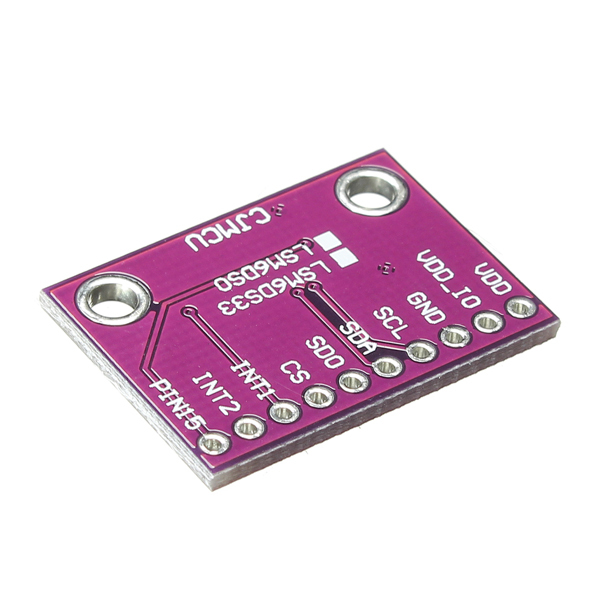

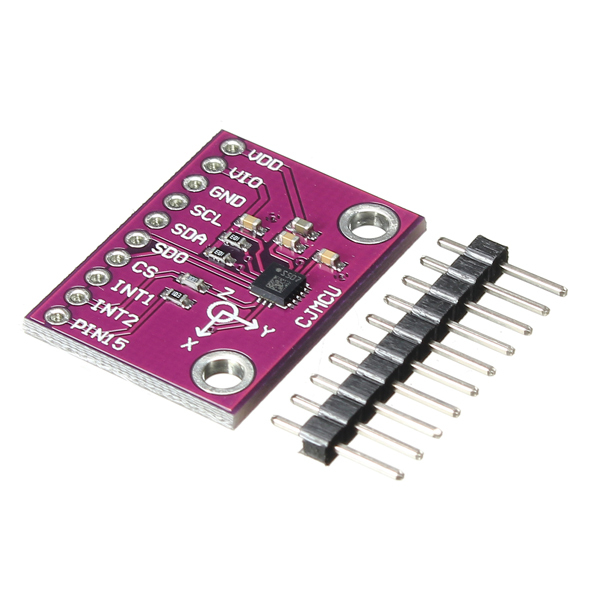

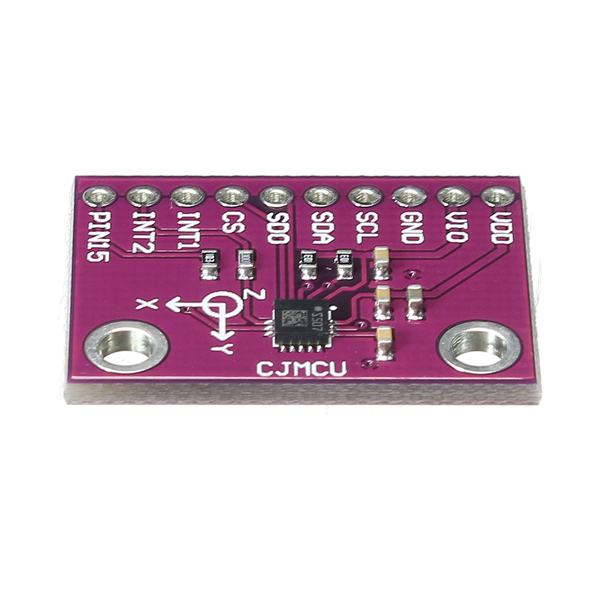

LSM6DS33TR 3-Axis Accelerometer + 3-Axis Gyroscope 6-Axis Inertial Angle Sensor 6DOF Module
LSM6DS33TR 3-Axis Accelerometer + 3-Axis Gyroscope 6-Axis Inertial Angle Sensor 6DOF Module - Image 2
LSM6DS33TR 3-Axis Accelerometer + 3-Axis Gyroscope 6-Axis Inertial Angle Sensor 6DOF Module - Image 3
LSM6DS33TR 3-Axis Accelerometer + 3-Axis Gyroscope 6-Axis Inertial Angle Sensor 6DOF Module - Image 4
LSM6DS33TR 3-Axis Accelerometer + 3-Axis Gyroscope 6-Axis Inertial Angle Sensor 6DOF Module - Image 5

LSM6DS33TR 3-Axis Accelerometer + 3-Axis Gyroscope 6-Axis Inertial Angle Sensor 6DOF Module

or 6 weekly interest-free payments from $3.32 with Laybuy

or 4 payments of $4.54 with Wizit learn more

$18.14 AUD

Only 2 left in stock

Refund and Returns Policy
Estimated delivery between Sunday 29. December - Sunday 5. January
Add to Wishlist
Add to Wishlist
SKU: C122-1101001 Category:

Description

Features:
– Power consumption: 0.9 mA in combo normal mode and 1.25 mA in combo high-performance mode up to 1.6 kHz.
– “Always on” experience with low power consumption for both accelerometer and gyroscope
– Smart FIFO up to 8 kbyte based on features set
– Compliant with Android K and L
– ±2/±4/±8/±16 g full scale
– ±125/±245/±500/±1000/±2000 dps full scale
– Analog supply voltage: 1.71 V to 3.6 V
– Independent IOs supply (1.62 V)
– Compact footprint, 3 mm x 3 mm x 0.86 mm
– SPI/I2C serial interface with main processor data synchronization feature
– Embedded temperature sensor
– ECOPACK®, RoHS and “Green” compliantPackage included:1 x  6-Axis Inertial Sensor 6DOF Module


,,

Additional information

MPN

1101001
