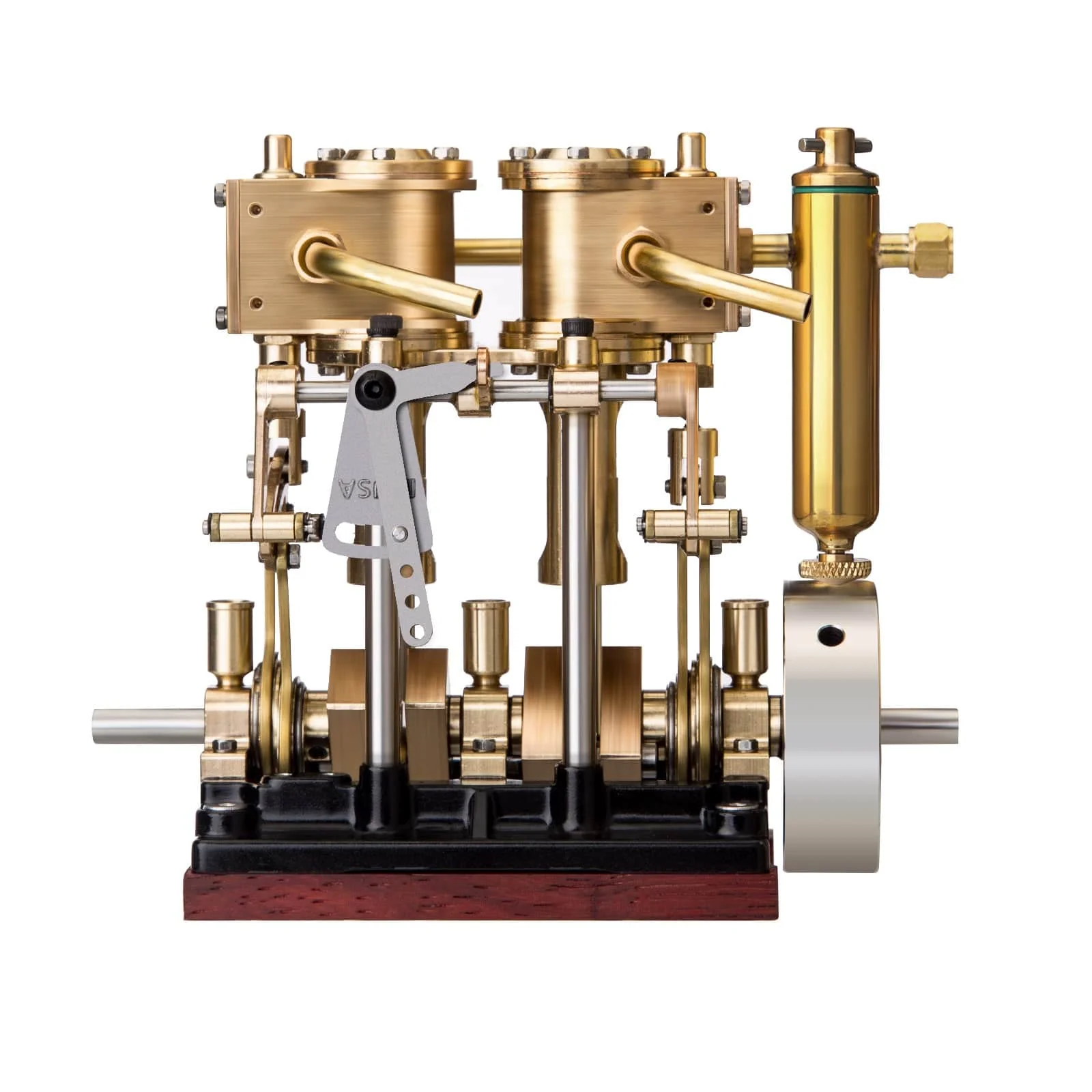

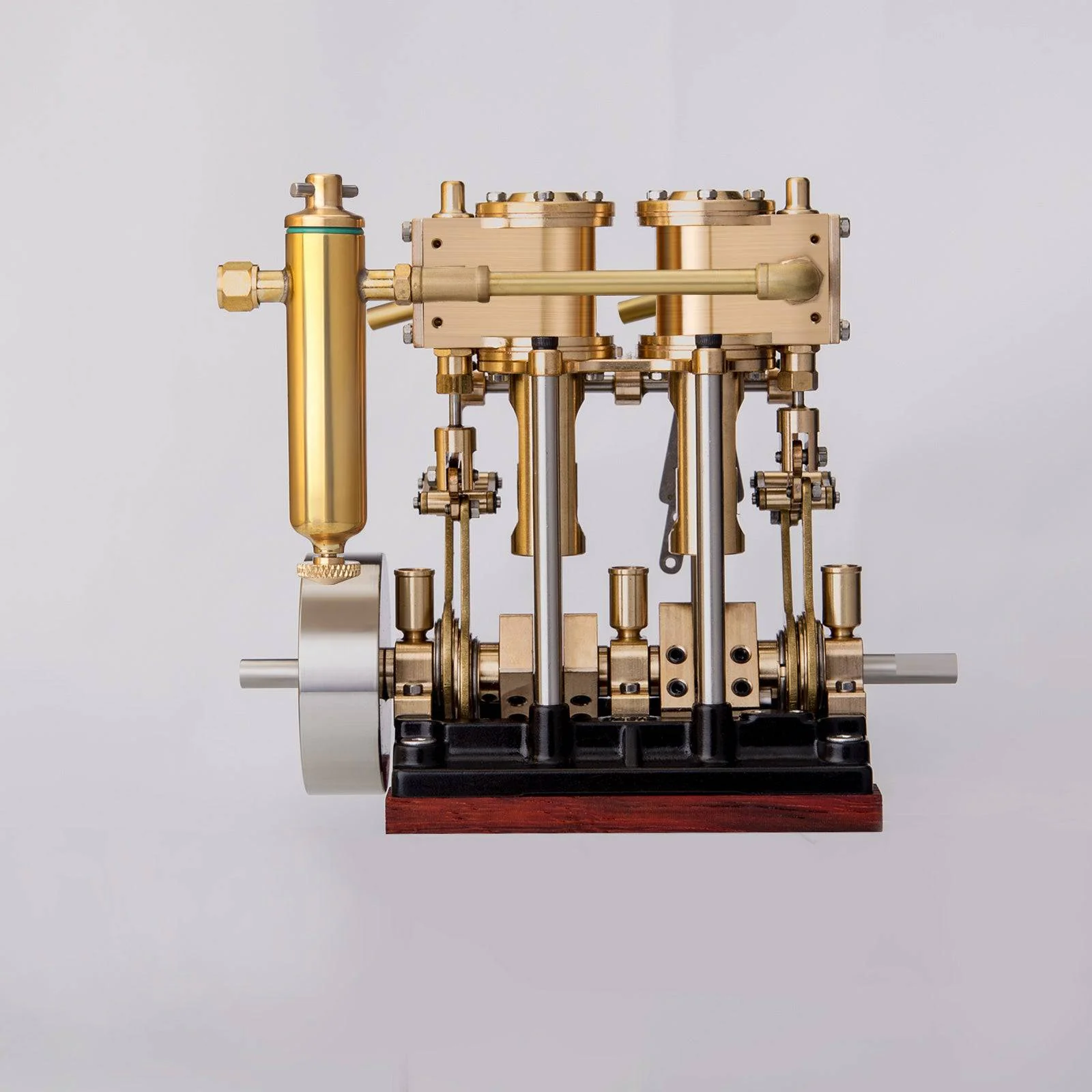

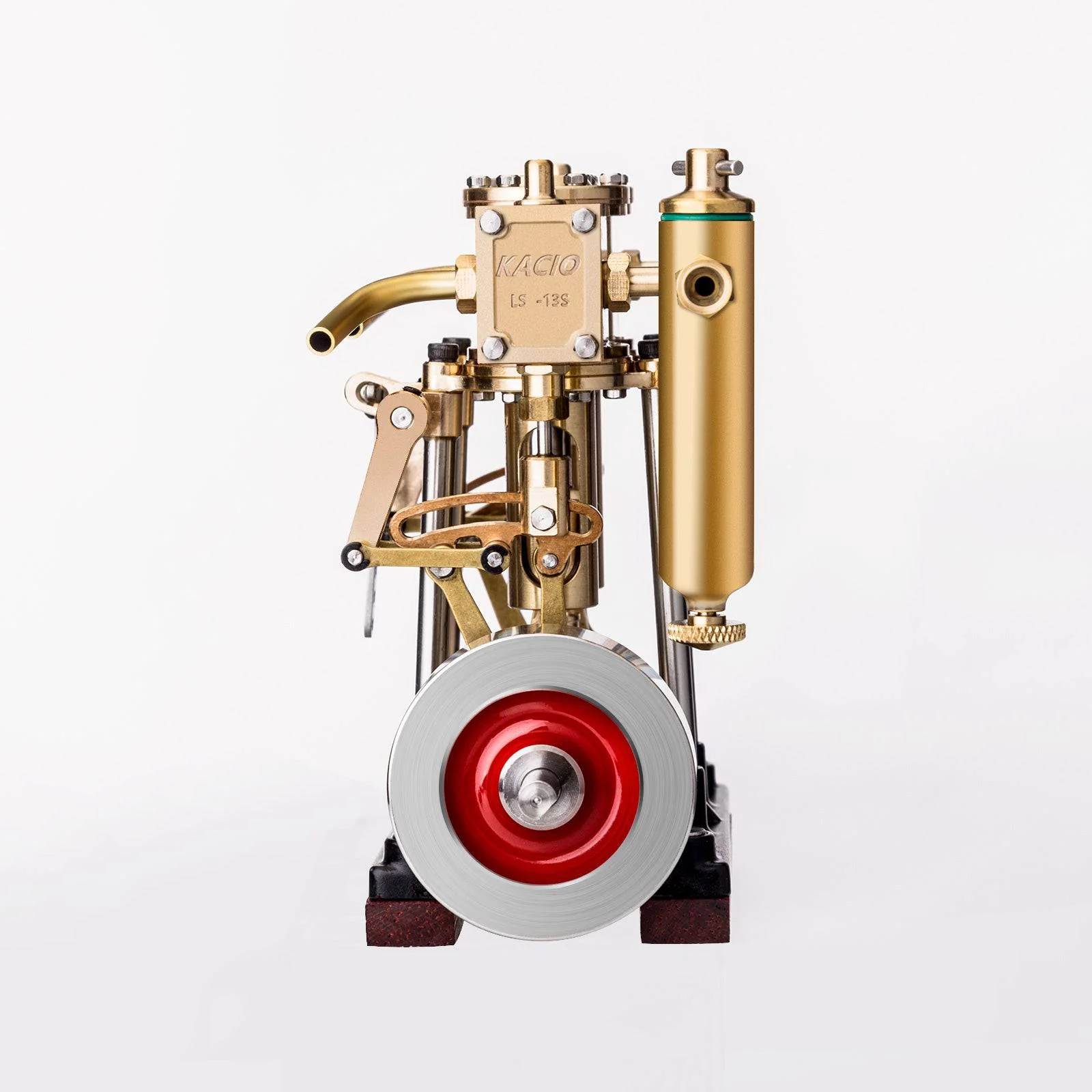

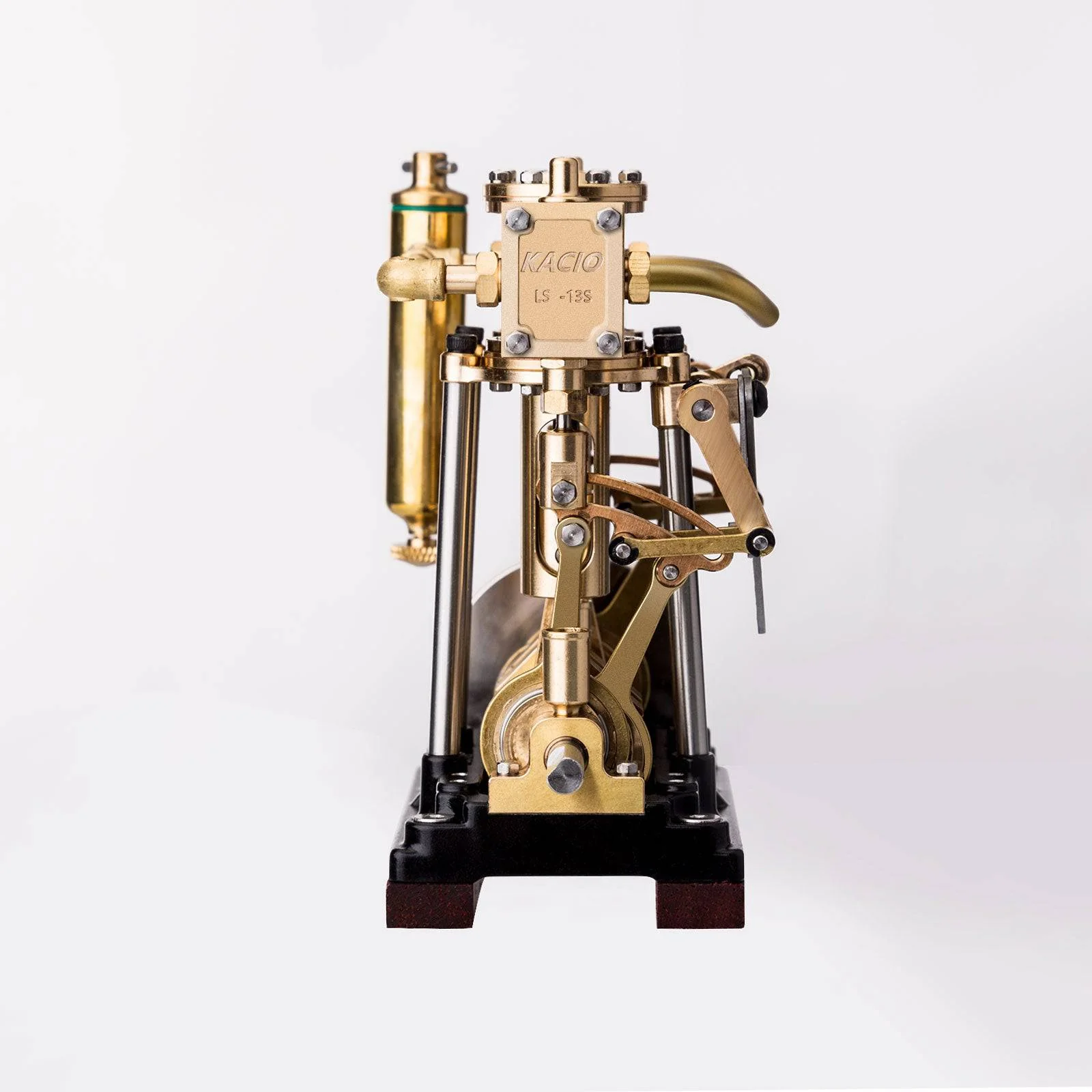

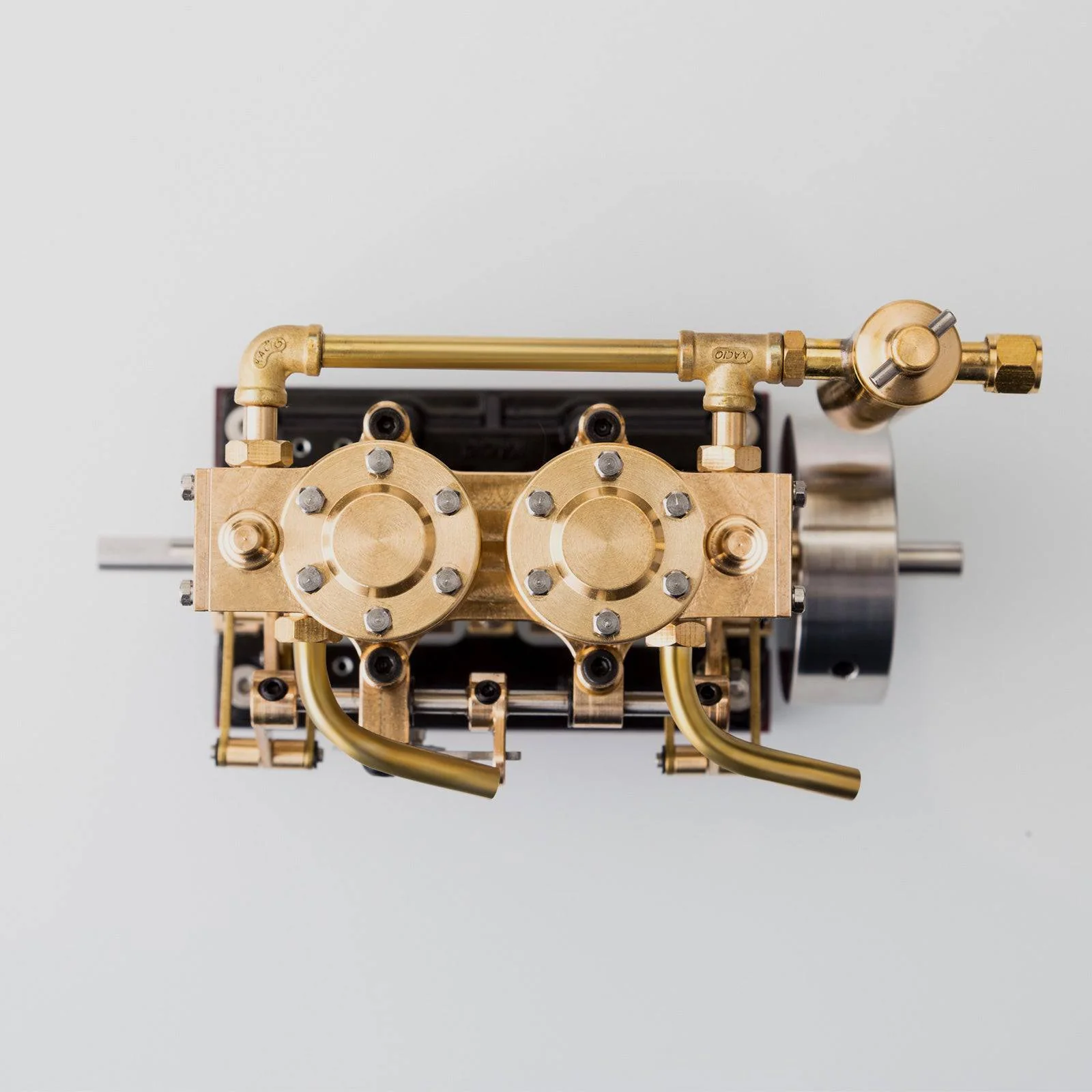

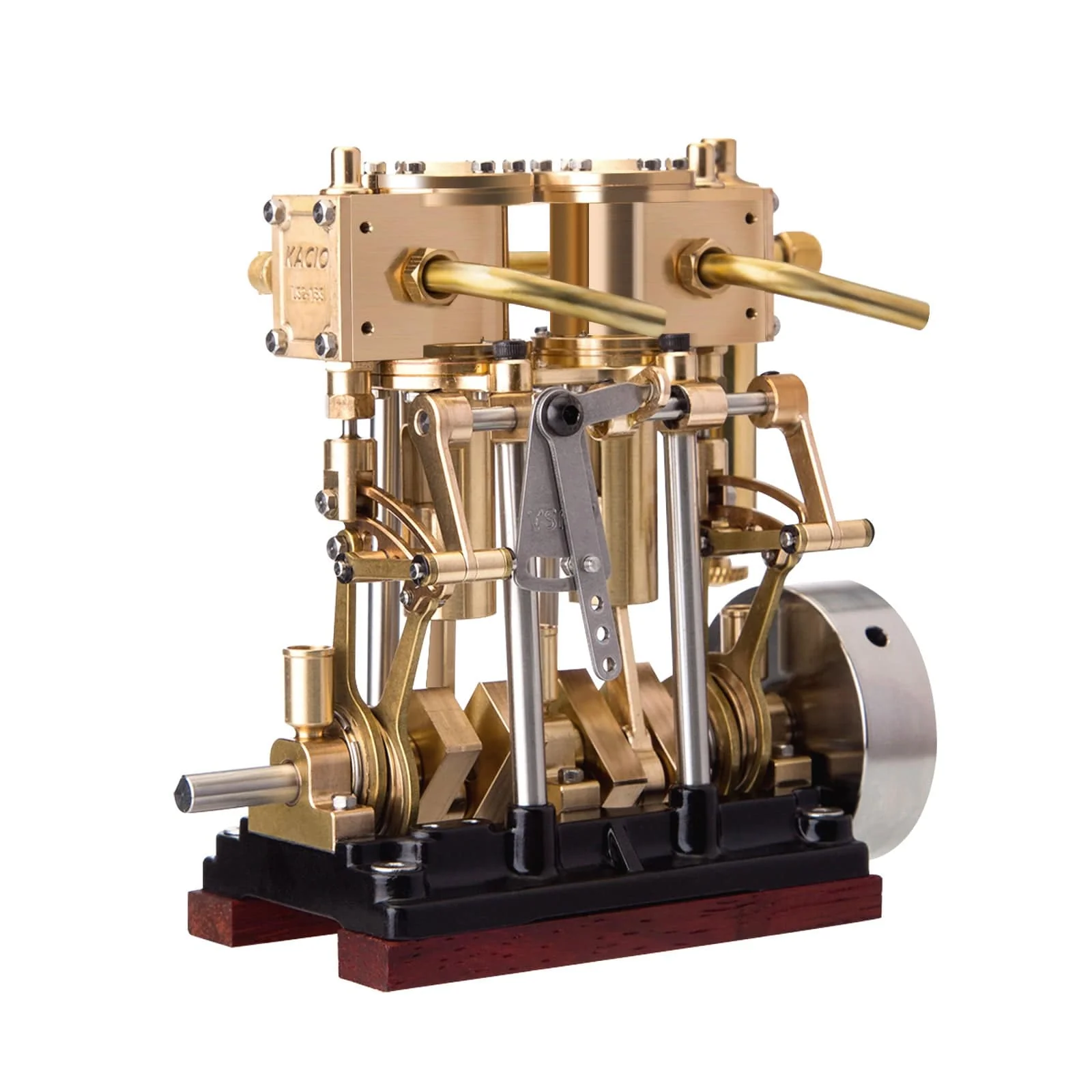

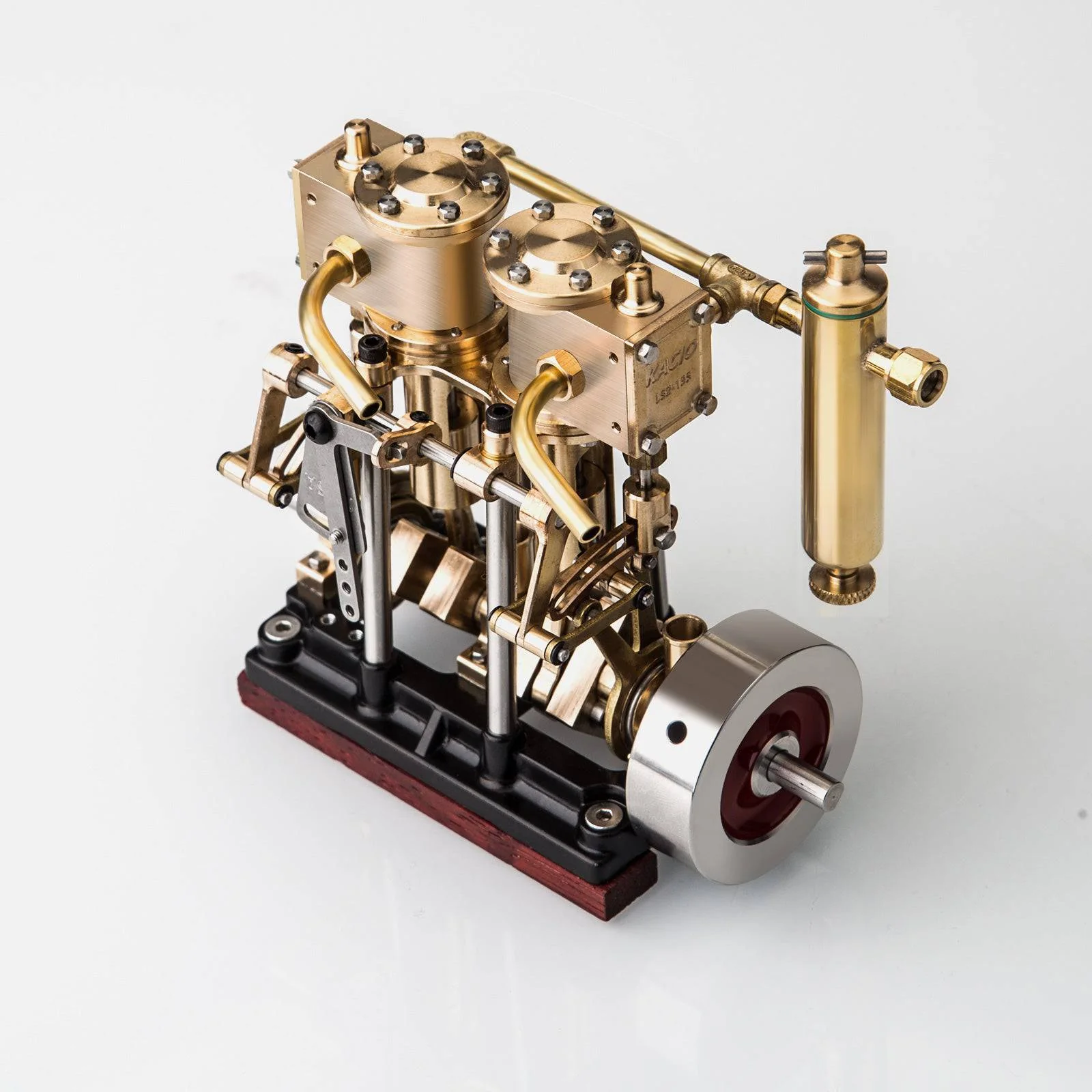

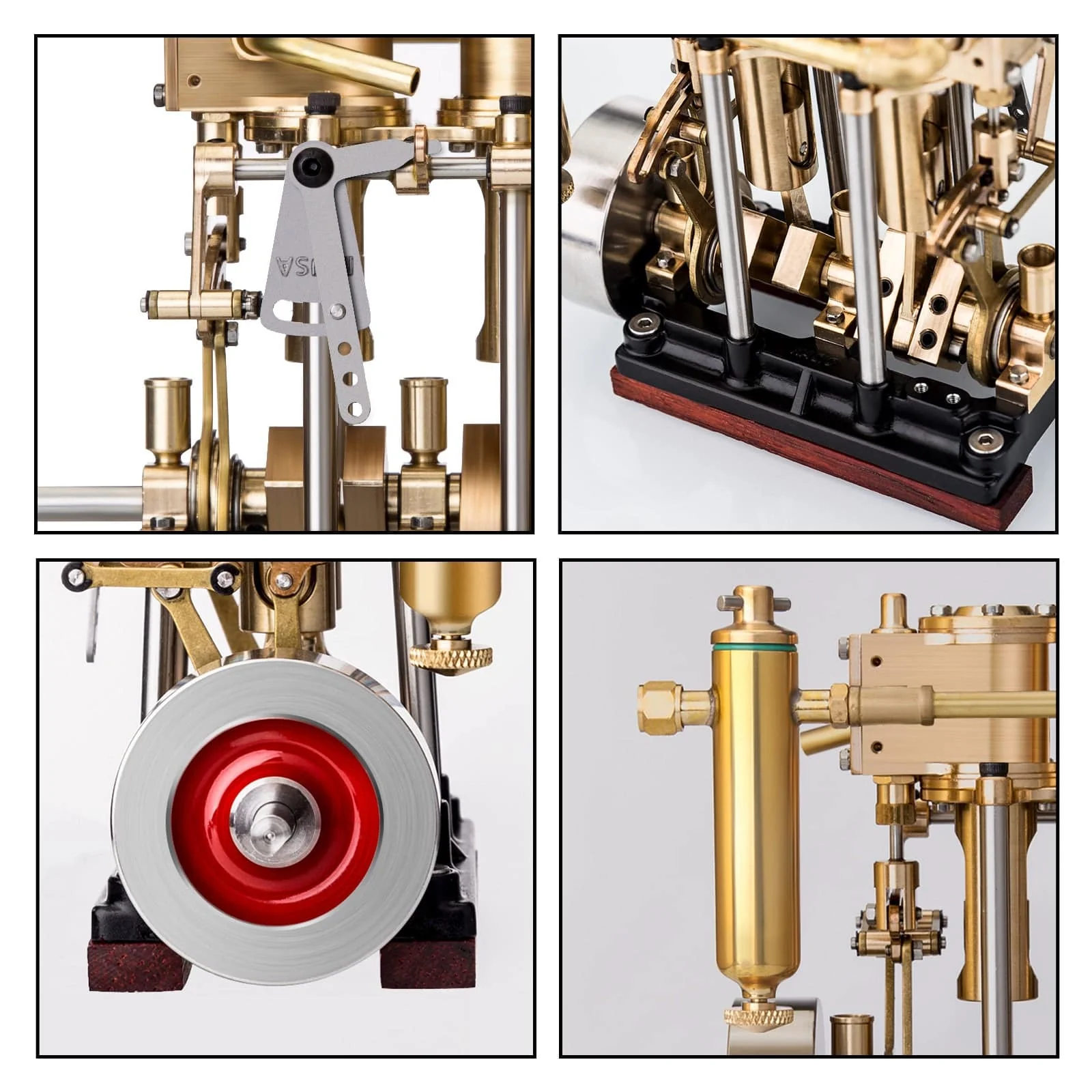

KACIO LS2-13S Two Cylinder Reciprocating Steam Engine Model for 80-120CM Steamship

Features:

  • This is a simple design, excellent performance and cost-effective model Marine two cylinder reciprocating steam engine. With the same cylinder diameter, this steam engine has a smaller and more refined appearance.
  • Precision casting base, surface electrophoresis treatment, long painting time for non-rust property. CNC finishing parts ensure the machine is more precise and reliable, and the unique ladder frame structure increases the torsional resistance of the machine.
  • The joint surface of the cylinder head is sealed with 0.08mm red copper sheet, which is resistant to high temperature and corrosion. Adopt high hardness beryllium copper as spindle bearing to ensure longer and more stable operation.
  • Oil cup with oil discharge function, side of piston connecting rod is equipped with lubricating oil filling port, each friction surface can get good lubrication, prolong service life.
  • The steam engine is specially designed for steam model ships between 80CM and 120CM in length. It supports forward and reverse rotation, and the large diameter cylinder provides strong torque for the propeller. In order to ensure power, it is recommended to equip with efficient boiler and various valve accessories (not included in the product, please provide or purchase separately). 6. Mini and delicate shape, as precious as let a person fondle admiringly, is an excellent mechanical handicraft, with collection value. It is also a great personal gift for steam model lovers. Age: 14+

Specifications:

  • Material: Copper
  • Model: LS3-13S
  • Size: base 44mm wide, 76mm long, 95mm high + 6mm thick sleepers
  • Cylinder diameter: 14.0mm
  • Stroke: 12.0mm
  • Spindle diameter: 5.0mm
  • Spindle center ground height: 17.0mm
  • Operating pressure: 0.05Mpa-0.8mpa
  • Recommended air pressure: 0.2Mpa-0.6mpa
  • Inlet interface thread: M6-0.5 1/4-40
  • Product Dimensions: 7.6 x 4.8 x 10.1cm
  • Product Weight: 660g
  • Package Dimensions: 21 x 16 x 16cm
  • Package Weight: 950g
  • Packing: Box
