Description

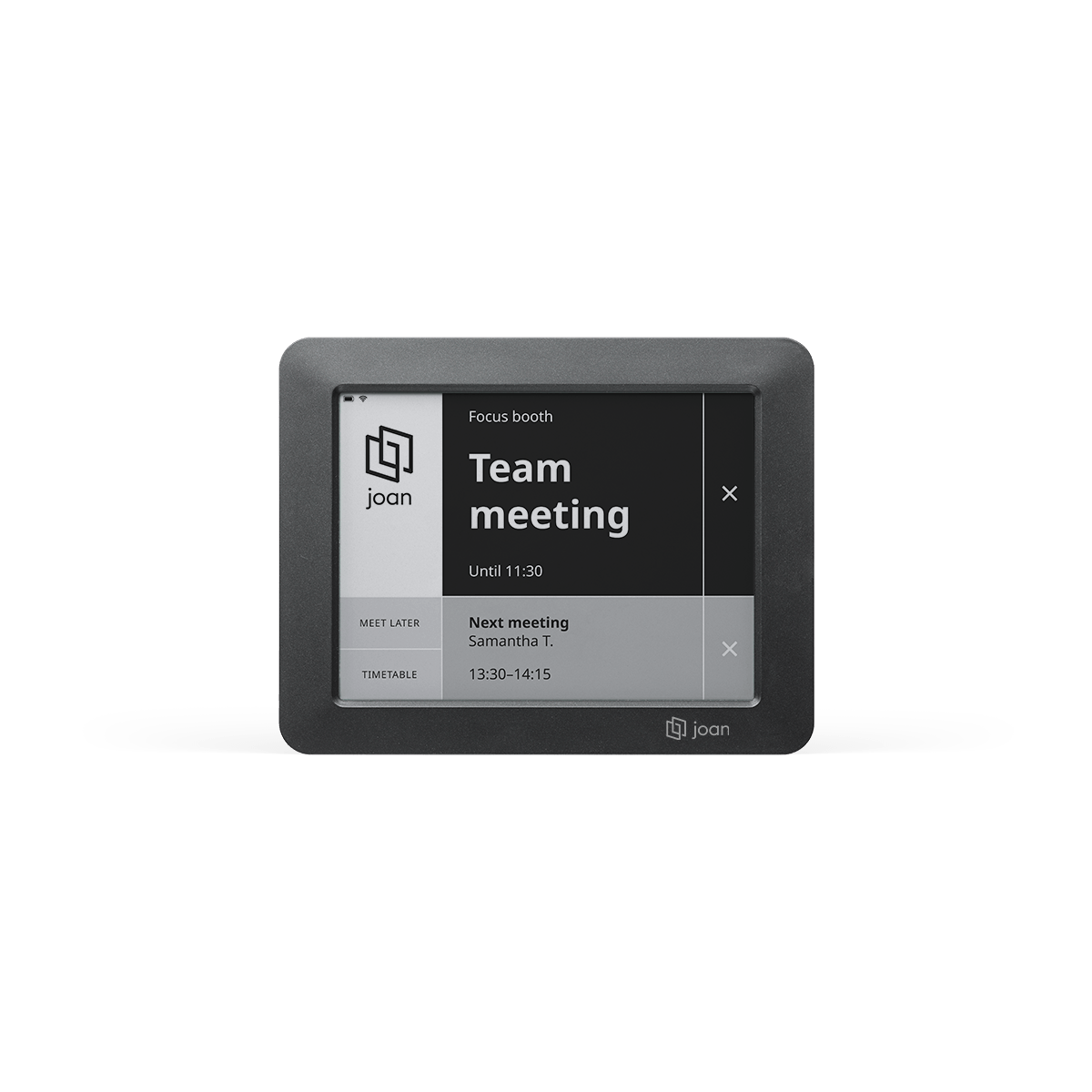

This wireless conference room scheduler is perfect for the management of large conference rooms, meeting rooms, and huddle spaces. Book rooms through the calendar, through the mobile app or on the spot.

– 6 inch 4:3
– Touchscreen
– Up to 3-months battery life on a single charge

Technical Specifications

Display

• 6-inch (4:3 diagonal) interactive touch E Ink® electronic paper screen
• Full capacitive touch screen interface
• High visibility and contrast (surface treatment: anti-glare hard-coated front-surface)
• 180° viewing angle
• Resolution: 1024 × 758 pixels
• Active Area (H/W): 3.57 × 4.82 in (90.581 × 122.368 mm)
• Pixel Pitch (H/W): 0.005 × 0.005 in (0.1195 × 0.1195 mm); equivalent to 212 ppi
• Pixel Configuration: Square
• 16 level grayscale
• Refresh rate: 750 ms (4 bit full screen) – 100 ms (1 bit partial)
• Front light

Connectivity

• 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n) standard, WPA2-PSK support, WPA2-EAP support, 2.4 GHz Bluetooth 5 support

Power

• Patented ultra low energy architecture, only 1% of the power used by LCD.
• High performance rechargeable Lithium-Polymer 5,400 mAh battery, 3.25 oz (92 g). Up to 12 weeks of autonomy on a single battery charge. 5–7 hours charging time with a Micro-USB charger (output rating of 5 V, 1 A).
• Enclosed Micro-USB charging cable
• Cordless functionality

Calendar compatibility

• Google Workspace (former G Suite)
  • OAuth2 authentication
• Office 365 (Exchange Online)
  • OAuth2 authentication (Global Admin)
  • Basic authentication (Delegated User)
• Microsoft Exchange (Outlook)
  • NTLM proprietary authentication protocol
  • Basic authentication
• iCalendar (.ics)

Casing

• ABS (acrylonitrile butadiene styrene) with PC (polycarbonate)
• Color: Black, Gray

Dimensions & weight

• Joan device dimensions: 6.10 × 4.88 × 0.47 in (158.8 × 123.8 × 12 mm)
• Weight of Joan with back magnet: 9.9 oz (281 g)
• Product package dimensions: 6.57 × 5.24 × 1.18 in (167 × 133 × 30 mm)
• Shipping package dimensions: 6.57 × 5.24 × 1.18 in (167 × 133 × 30 mm)
• Box total weight: 15.87 oz (450 g)

Mounting

• Attachable to any surface with a self-adhesive Magnetic Mount that requires no tools (one included with each device, Additional Magnetic Mount 5-Packs available for purchase).
• Compatible with a custom, anti-theft Secure Wall Mount 6-inch available for purchase.
• Device can be mounted at a maximum height of 2 meters.

Environmental conditions

• Operating and storage temperature range: 32°F to 122°F (0°C to +50°C)

Product details

What’s in the box

• All required hardware with proprietary operating system, unlimited updates, upgrades and free lifetime support are included, as well as a one-year Limited Warranty.
• The box includes:
  • 6-inch Joan device
  • Micro-USB cable
  • Quick Start Guide
  • 1 Magnetic Mount for easy installation
  • Access to the Joan Web Portal
