Description

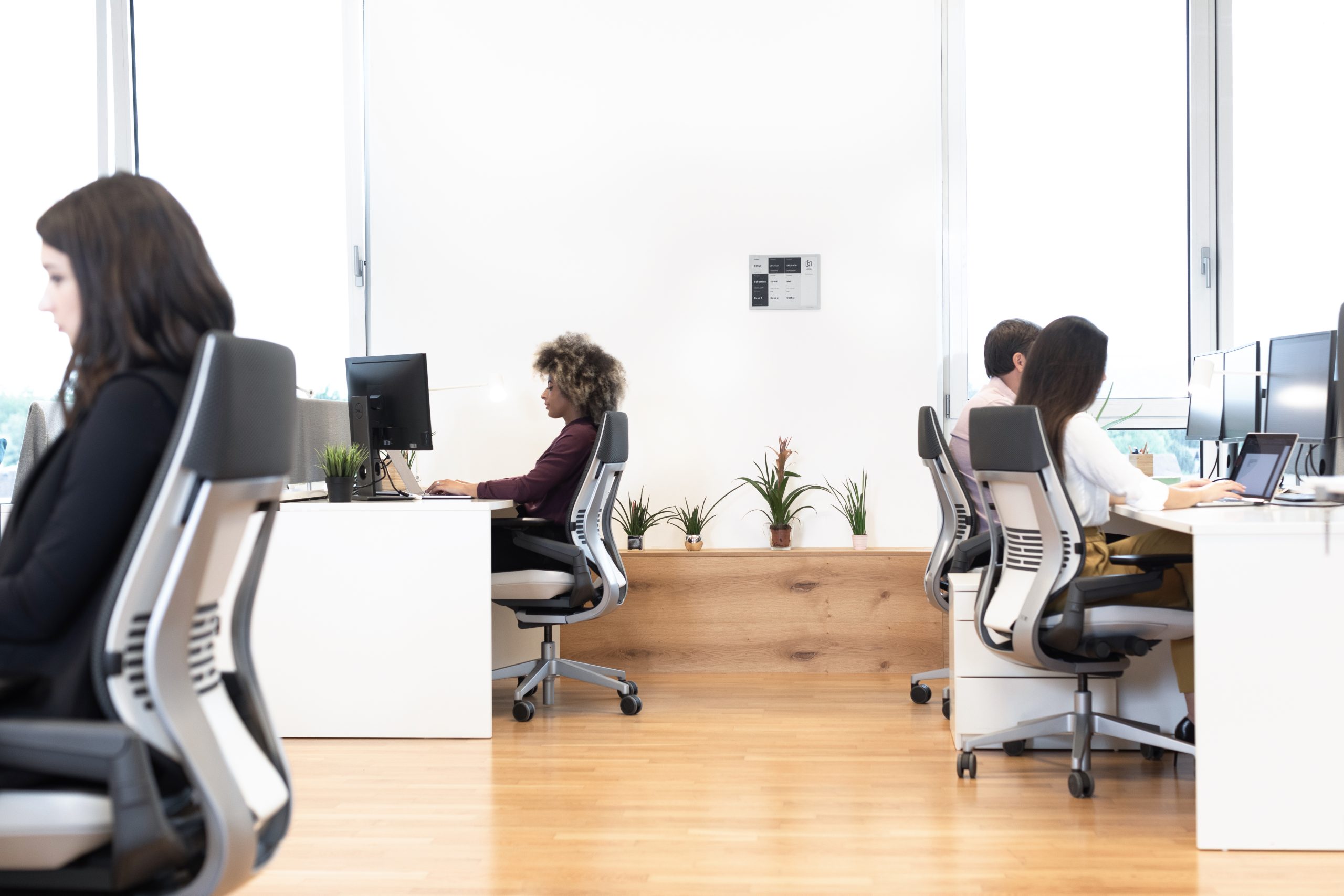

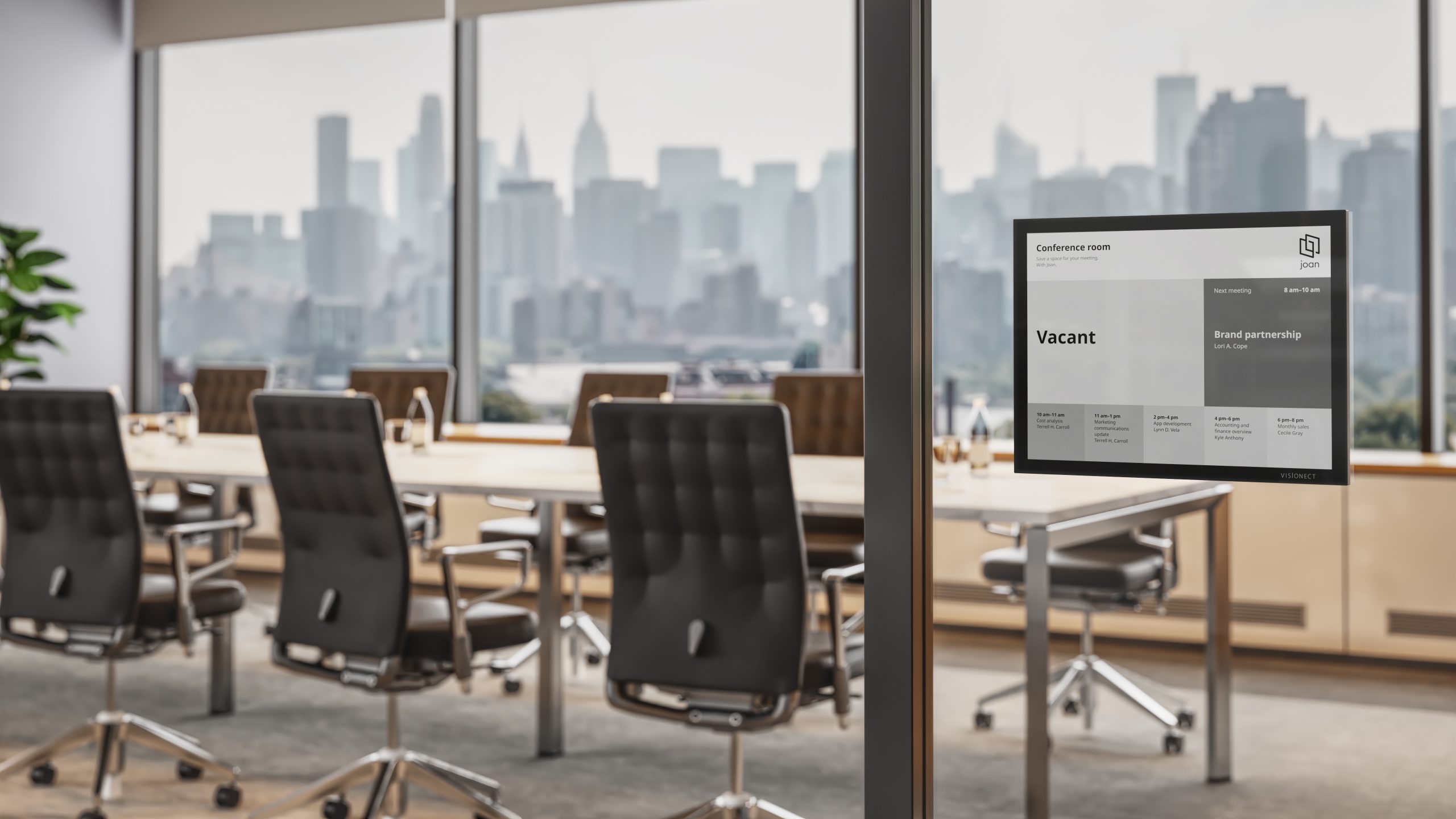

Perfect for large conference rooms, boardrooms, lobbies, and everywhere else an overview is needed. It offers a comprehensive overview of meetings, and current information for up to 9 rooms.

– 13-inch (16:9)
– Non-touch room scheduler
– Multiple-room overview
– Up to 1-year battery life on a single charge

Product details

• Integrates with your calendars: Google Workspace, Exchange, Office 365, iCalendar.

• Advanced E Ink® electronic paper: Full capacitive non-touch screen interface.

• Ultra low energy architecture: Only 1% of power used by the screen.
• Easily attachable to any surface without cables.: Securely connects to your WiFi network
• High visibility and contrast: Uses an anti glare hard-coated front-surface.
• High performance rechargeable battery: Up to 3 months of battery autonomy on a single charge.

In the box

• All required hardware with proprietary operating system, unlimited updates, upgrades and free lifetime support are included, as well as a one-year Limited Warranty.
• The box includes:
  • 13.3-inch wireless Joan device
  • 1 × Magnetic Mount for easy installation
  • 1 x Micro USB cable for configuration and charging
  • Quick Start Guide
  • Access to the Joan Web Portal

Technical specifications

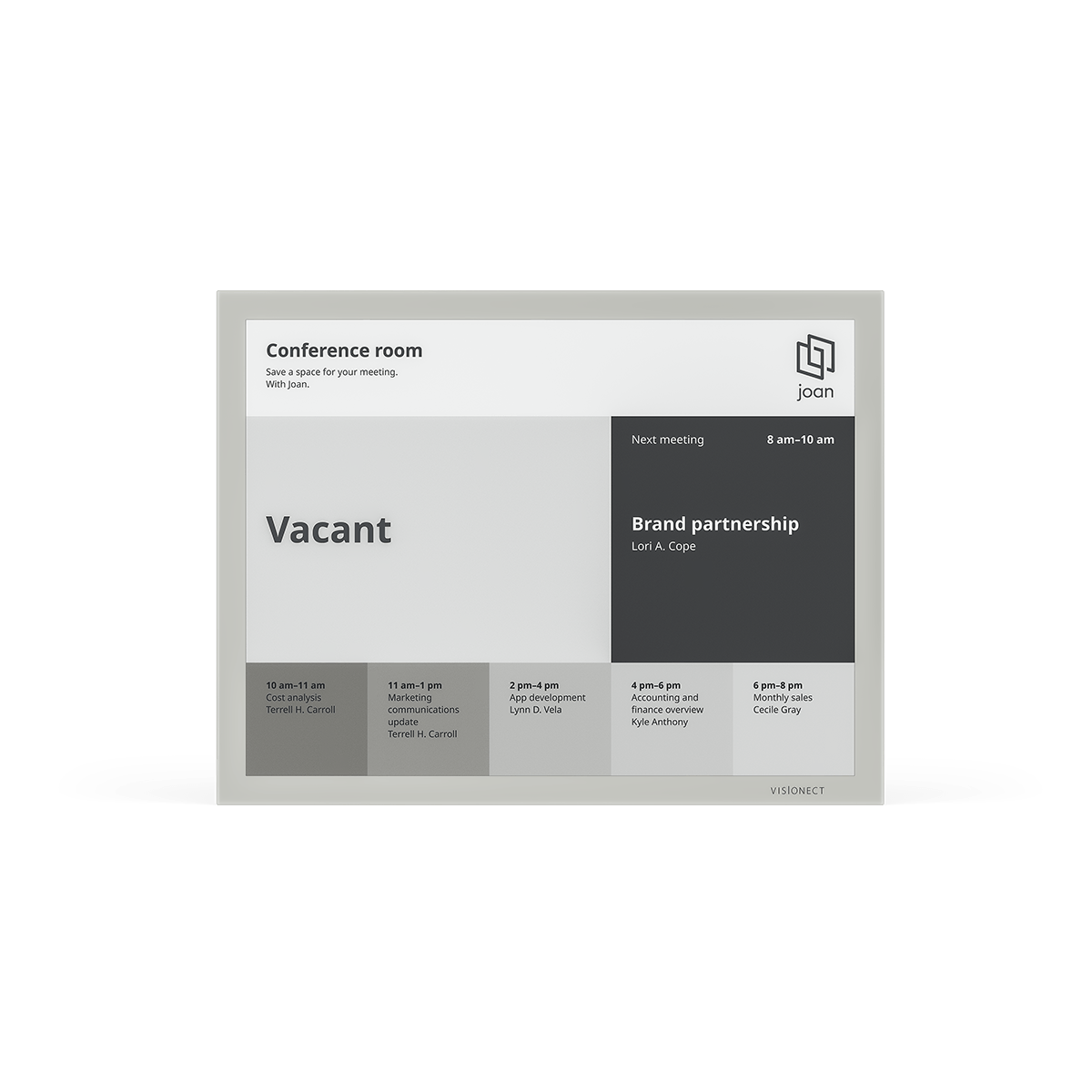

Display

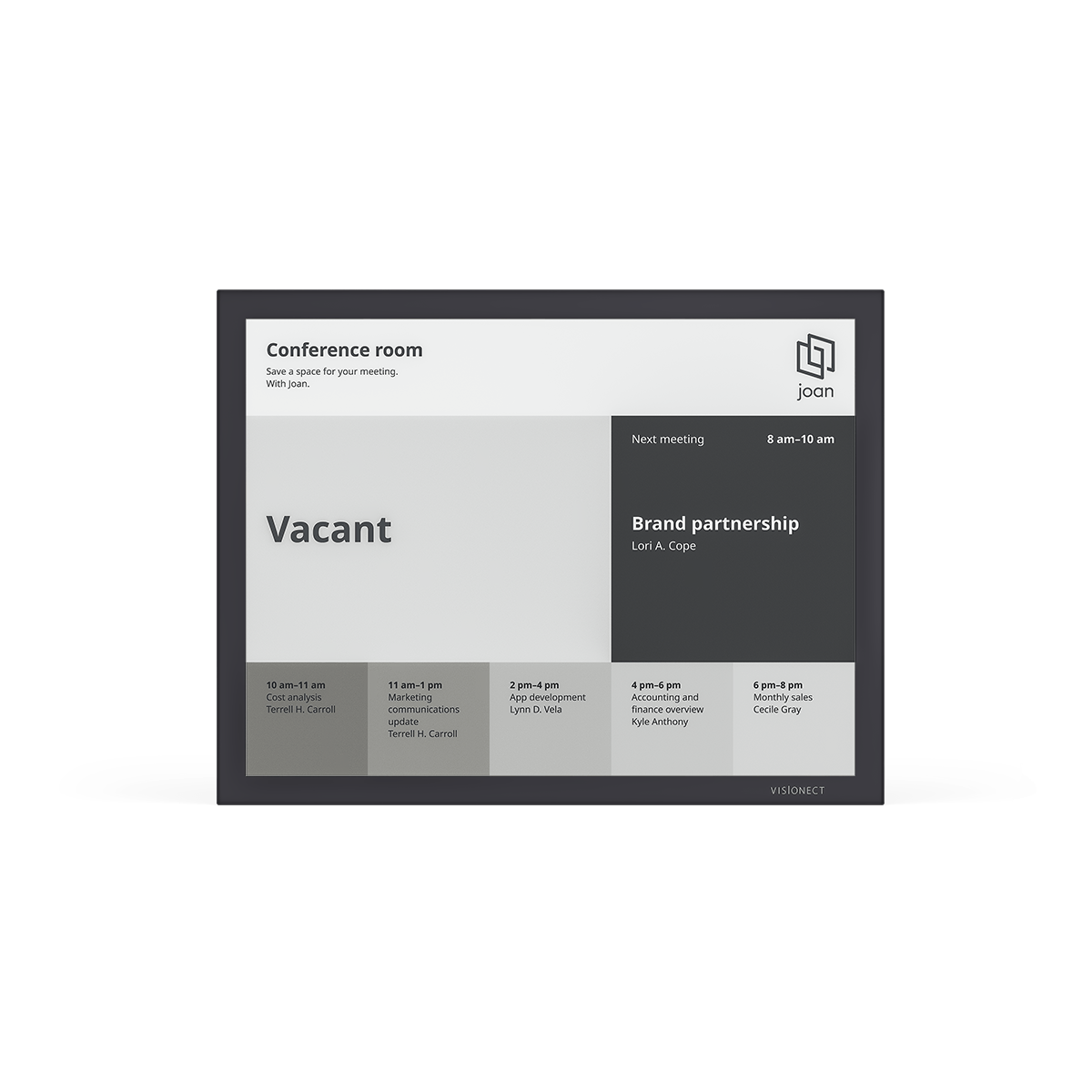

• 13.3-inch (4:3 diagonal) non-touch E Ink® Carta electronic paper screen
• High visibility and contrast
• 180° viewing angle
• Resolution: 1600 × 1200 pixels
• Active Area (H/W): 10.64 × 7.98 in (270.4 × 202.8 mm)
• Pixel Pitch (H/W): 0.006 × 0.006 in (0.169 × 0.169 mm); equivalent to 150 ppi
• Pixel Configuration: Rectangle
• 16 level grayscale
• Refresh rate: 750 ms (4 bit full screen) / 100 ms (1 bit partial)

Connectivity

• 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n) standard, WPA2-PSK, WPA2-EAP support, 2.4 GHz Bluetooth 5 support

Power

• Patented ultra low energy architecture, only 1% of the power used by LCD.
• High performance rechargeable Lithium-Polymer 10,000 mAh battery. Up to 12 months of autonomy on a single battery charge. 10 hours charging time with a Micro-USB charger (output rating of 5 V, 1 A).
• Enclosed Micro-USB charging cable
• Cordless functionality
• POE compatible

Calendar compatibility

• Google Workspace (former G Suite)
  • OAuth2 authentication
• Office 365 (Exchange Online)
  • OAuth2 authentication (Global Admin)
  • Basic authentication (Delegated User)
• Microsoft Exchange (Outlook)
  • NTLM proprietary authentication protocol
  • Basic authentication
• iCalendar (.ics)

Casing

• High quality anodized aluminum casing
• Anti-reflective, high transmissive glass
• Color: Gray, Black

Dimensions & weight

• Joan device dimensions: 11.40 × 9.05 × 0.39 in (297 × 230 × 10.5 mm)
• Weight of Joan with back magnet: 33.5 oz (950 g)
• Product package dimensions: 13.78 × 9.25 × 0.59 in (350 × 235 × 15 mm)
• Shipping package dimensions: 15.91 × 11.22 × 3.35 in (404 × 285 × 85 mm)
• Box total weight (Joan device, Micro-USB cable, product package, shipping package): 65.26 oz (1850 g)

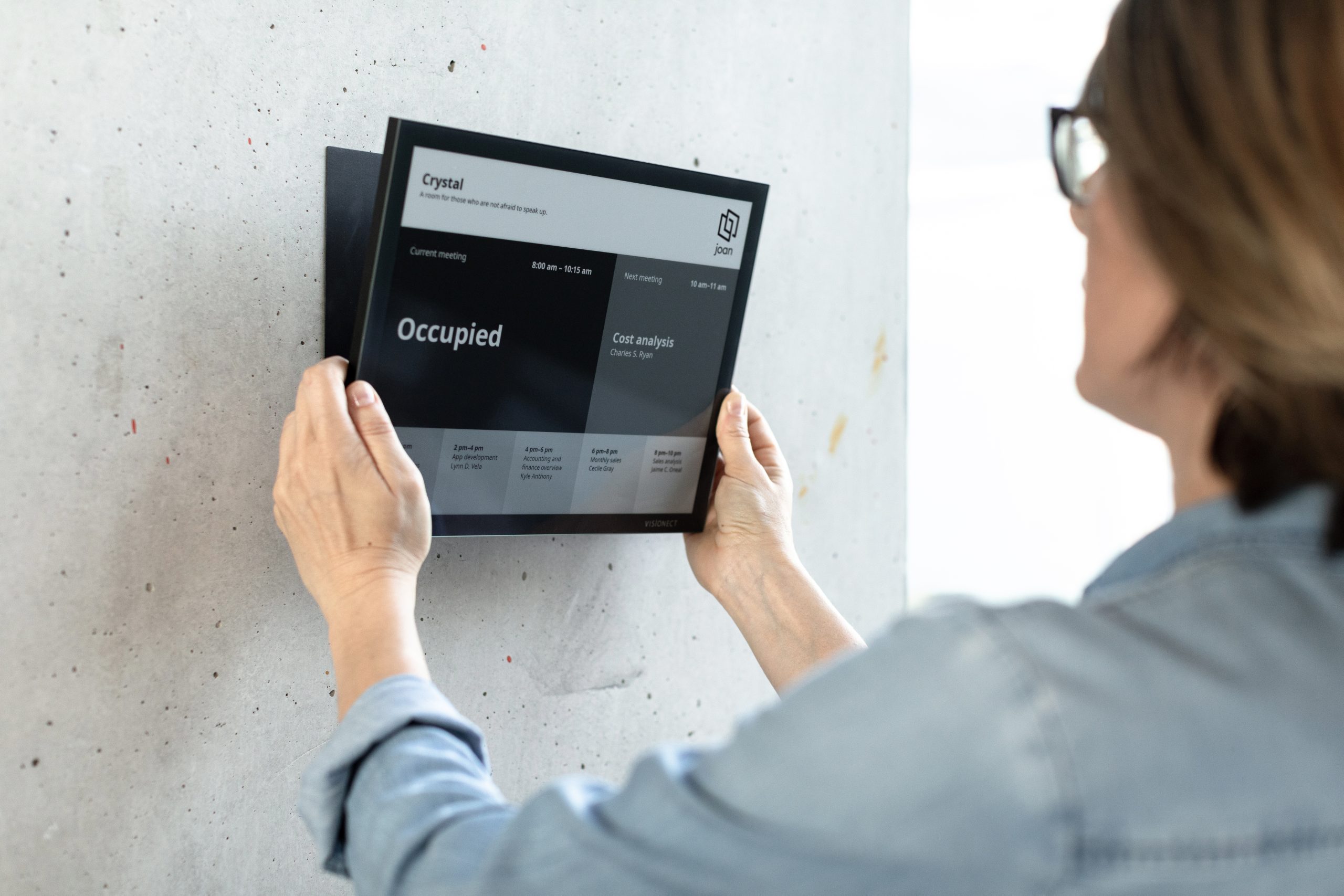

Mounting

• Attachable to any surface with a self-adhesive Magnetic Mount that requires no tools (one included with each device, Additional Magnetic Mount 1-Packs available for purchase).
• 3.94 × 3.94 in (100 × 100 mm) VESA mount compliant.
• Device can be mounted at a maximum height of 2 meters.

Environmental conditions

• Operational and storage temperature range: 32°F to 122°F (0°C to +50°C)
