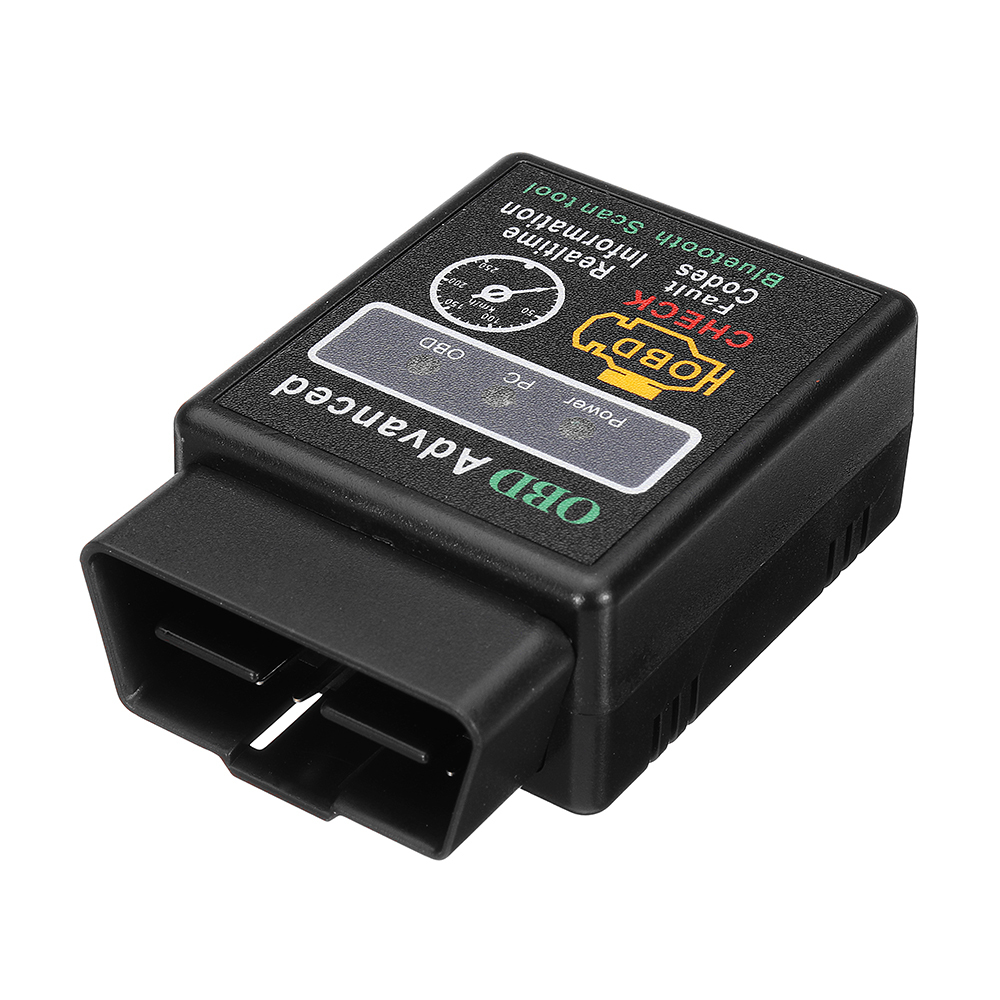

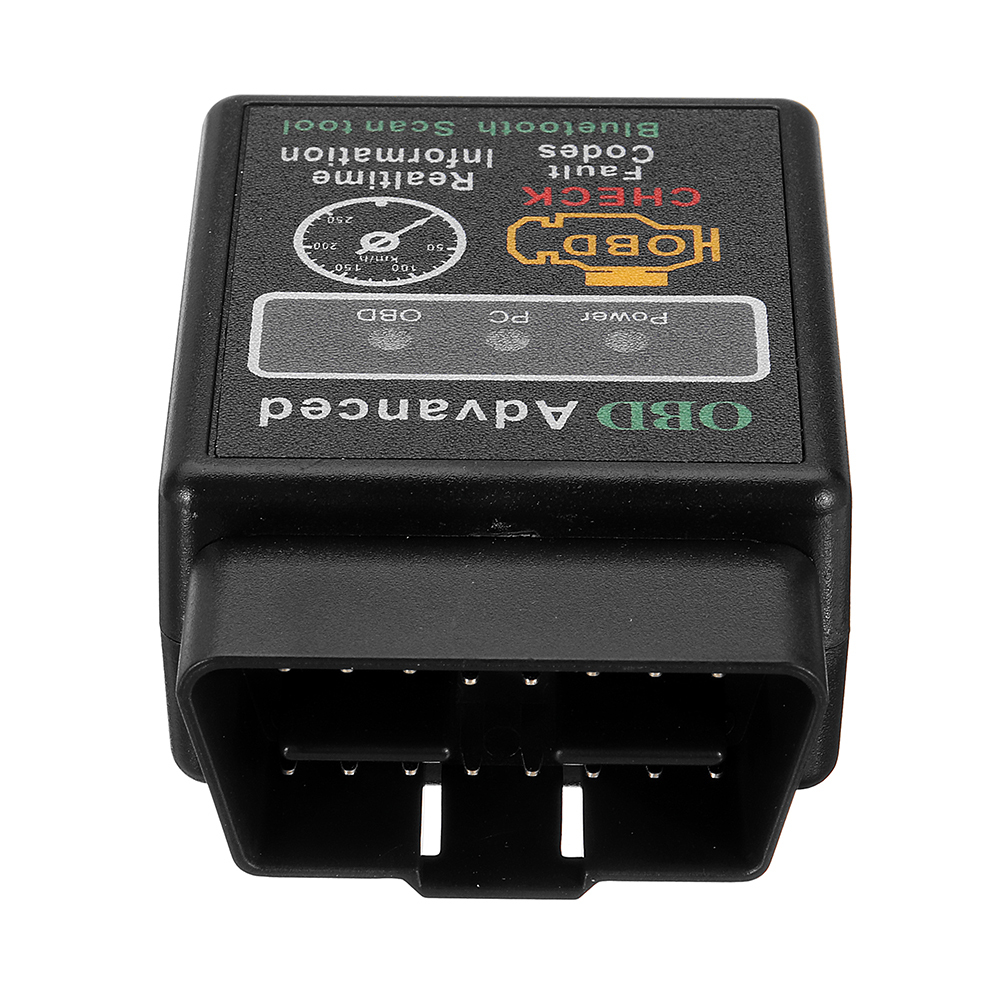

iMars ELM327 bluetooth Car OBD2 Scanner Diagnostic Tool Engine Code Reader

or 6 weekly interest-free payments from $4.09 with Laybuy

or 4 payments of $5.59 with Wizit learn more

$22.34 AUD

In stock

Estimated delivery between Saturday 16. November - Saturday 23. November
Add to Wishlist
Add to Wishlist
SKU: C122-913030 Category:

Description

iMars Car OBD2 CAN BUS Scanner Tool with bluetooth Function

Note:
1.Can not work for  iPhone or iPad.

2.If your car ECU connect with the J1850 protocol, then your car can’t use this item.

Description:
1.
Works with all 1996 to now OBD-II compliant vehicles in the world, and with some light trucks sold in the United States, some 1994 and 1995 models are also ok.
2. Wireless (bluetooth) 5~10meters.
3.OBD-II Software for 327 bluetooth is a free program that allows you to use your PC and a hardware interface to get the information
from your car’s computer.
3.The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer’s hard drive, and you’re ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.


Multi-Protocol Support:
ISO9141-2(5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)

Functions:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL (“Check Engine” light)
3. Display current sensor data, including:
4. Engine RPM
5. Calculated Load Value
6. Coolant Temperature
7. Fuel System Status
8. Vehicle Speed
9. Short Term Fuel Trim
10. Long Term Fuel Trim
11. Intake Manifold Pressure
12. Timing Advance
13. Intake Air Temperature
14. Air Flow Rate
15. Absolute Throttle Position
16. Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18. Fuel Pressure
AND Many others…

Compatible software(all can download from the Android market):
Window version: ScanMaster, ScanTool.net, PCMSCAN
Android version: Torque, DashCommand, EOBD
Symbian version: OBDScope
Support System: Windows XP, Windows 7/8, Android, Symbian


Package Included:
1 X bluetooth OBD-II Car Diagnostic Scanner

Additional information

Weight 0.12 kg
MPN

913030
