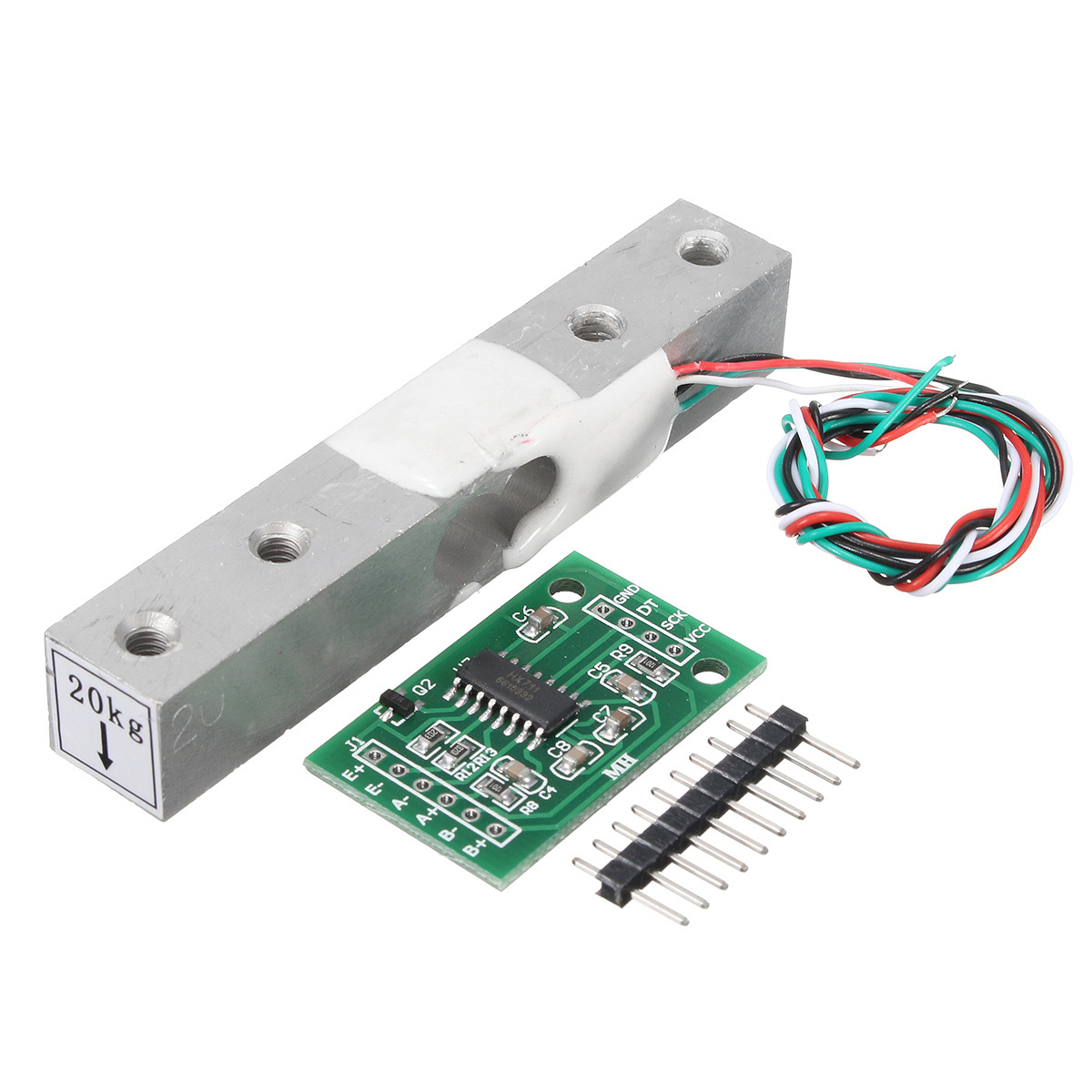

HX711 Module + 20kg Aluminum Alloy Scale Weighing Sensor Load Cell Kit

HX711 Module + 20kg Aluminum Alloy Scale Weighing Sensor Load Cell Kit - Image 2

HX711 Module + 20kg Aluminum Alloy Scale Weighing Sensor Load Cell Kit - Image 3

HX711 Module + 20kg Aluminum Alloy Scale Weighing Sensor Load Cell Kit - Image 4

HX711 Module + 20kg Aluminum Alloy Scale Weighing Sensor Load Cell Kit - Image 5

HX711 Module + 20kg Aluminum Alloy Scale Weighing Sensor Load Cell Kit

Name: HX711 Module + 20kg Aluminum Alloy Scale Weighing Sensor Load Cell Kit - Dr Techlove
Brand: Module Board
SKU: C122-1112121
Price: 9.74 AUD
Availability: InStock

is available on purchases between $10 and $2,000 learn more

$9.74 AUD

In stock

SKU: C122-1112121 Category: Module Board

Description

Parameter:Comprehensive error: 0.05% F.SRated output temperature drift: ≤ 0.15% F.S / 10 ℃Output Sensitivity: 1.0 ± 0.1 mV / VZero drift: 0.05% F.S (1 minute)Zero point temperature drift: 0.2% F.S / 10 ° CZero output: ± 0.1 mV / VInput impedance: 1000 ± 50ΩOutput impedance: 1000 ± 50ΩOverload capacity: 150% F.SRecommended excitation voltage: 5-10VOperating temperature range: -10 ~ +50 ℃Application: for high-precision small-scale weighing for micro-automatic testing equipment, micro-weighing equipment, pushing and pulling equipment, pull pressure testRed: E +Black: E-White: A-Green: A +Package included:1 x Weighing Sensor Load Cell1 x HX711 Module

,,,,
