Bullet camera suitable for indoor & outdoor.
HD 720P Image.
Adapt 4CH DVR.
You can easy upgrade the system to more channels in the future.
Easy Connection, Plug and play,no need special skills.
Remote View Anytime Anywhere.
Install mobile APP through scanning QR-code or download from APP store. Then you can remote access the security system anytime anywhere.
Support remote view via windows PC, iOs, Android mobile.
Remote view in steps.
Motion Detection&Email Alert.
Can set multi-zone for motion detection; When the system detect motion,alarm message will be sent to your email.
Smart Playback.
Can search the video footage via time or alarm event.
| DVR Specification | |
| (1) Supports 4 PCS 720P AHD (analog high definition) cameras, 4CH playback | |
| (2) Supports 4CH 720P IP Camera, 2CH playback | |
| (3) Supports 2CH 720P AHD + 2CH 720P IP Camera, 2CH playback | |
| Audio & Video | |
| Audio Compression | G.711A |
| Recording Mode | Manual>Alarm>Video Detection>Timing |
| Playback | 4 CH |
| Backup Mode | Network / USB Hard Disk |
| Special | |
| Title OSD | Channel name, Date |
| Privacy Mask | 4 Configurable regions |
| Motion Detection | Email Alarm or FTP Alarm |

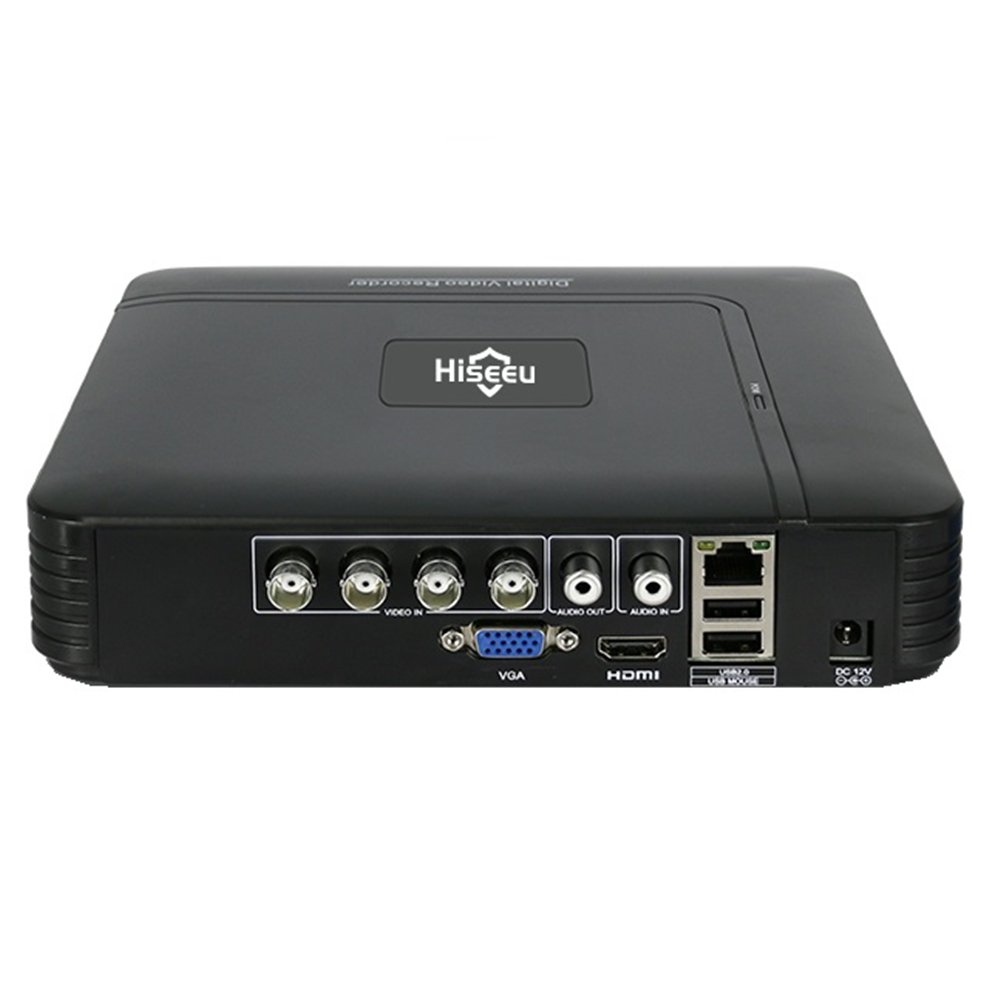

| Interface | |
| Video Input | 4CH BNC |
| Video Output | 1 * VGA, 1 * HDMI |
| Audio Input | 1CH RCA |
| Audio Output | 1CH RCA |
| Net Interface | 1 * RJ45 10M / 100M Ethernet Interface |
| USB Interface | 2 * USB2.0 Port |
| Hard Disk | 1 * SATA Port (Max 1 x 4T), HDD is not included |
| Camera Specification | |
| Resolution | AHD 720P |
| Lens | 3.6mm |
| IR Distance | About 15m |
| Camera type | Metal, Waterproof |
| Video Compression | H.264 |
| Others | |
| Operating Conditions | -10℃ to 55℃ |
| Humidity 95% or less | |
| Power Supply | 12V |
| Power Consumption | <10W |
Online Demo
Step1. Search and download“XMEye” on APP store/Google Play,Install “XMEye” APP and open it.
Step2. Register an account and login.
Step3. Click “+” on the right top of the APP, Click “Manual Add”,Input the Serial Number (Demo ID:941c741acbc2d058 password:159357), then submit.
Step4. Enjoy Live video.
1 x 4CH AHD DVR
2 x 720P Bullet camera
2 x 18M BNC Cable
2 x 12V/2A power adapter
1 x Mouse
1 x 1-to-2 power spitter
