Description
Specifications:
Color: black+blue
Power Supply: DC

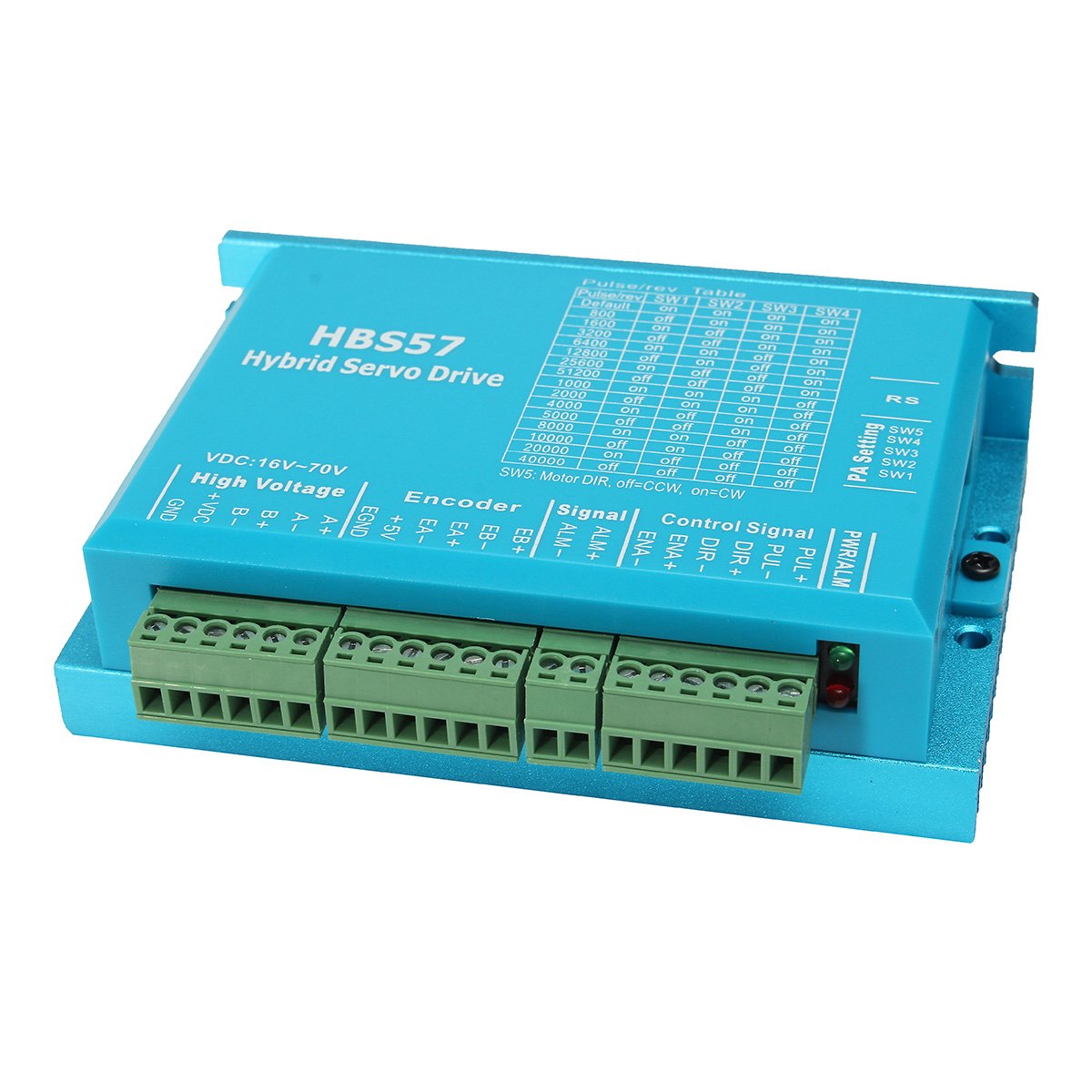

Drive: HBS57
Voltage: DC16-70V (with 57 motor recommended DC24V)
Breakdown: 256 subdivision
Current: 4A
Torque: 2.2N.m
Rated Speed: 1000rpm
Maximum Speed: 2000rpm
Features:
– 57 closed-loop stepper motor driver package includes 2.2N, drive HBS57, DC20-70V power supply (with 57 motor recommended DC24V), supporting
1000-wire encoder, high-speed response, torque, stepper motor fighter, widely used in Engraving machine, the need for high-speed high-torque
occasions.
– Low heat (static, the current is almost zero, no heat).
– Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping
motor troubled low-frequency resonance has a very good resistance).
– High-speed response (advanced servo control technology provides a large torque output, making the system has a very high dynamic response,
stepping servo speed to 600-2000RPM).
– Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine /
packaging machine / engraving machine / laser machine / LED / electronic equipment.
You could click to refer the encoder wiring instructions here.

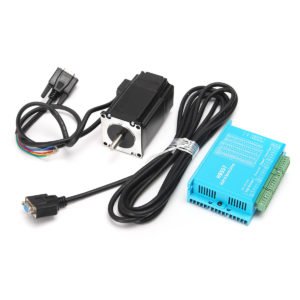

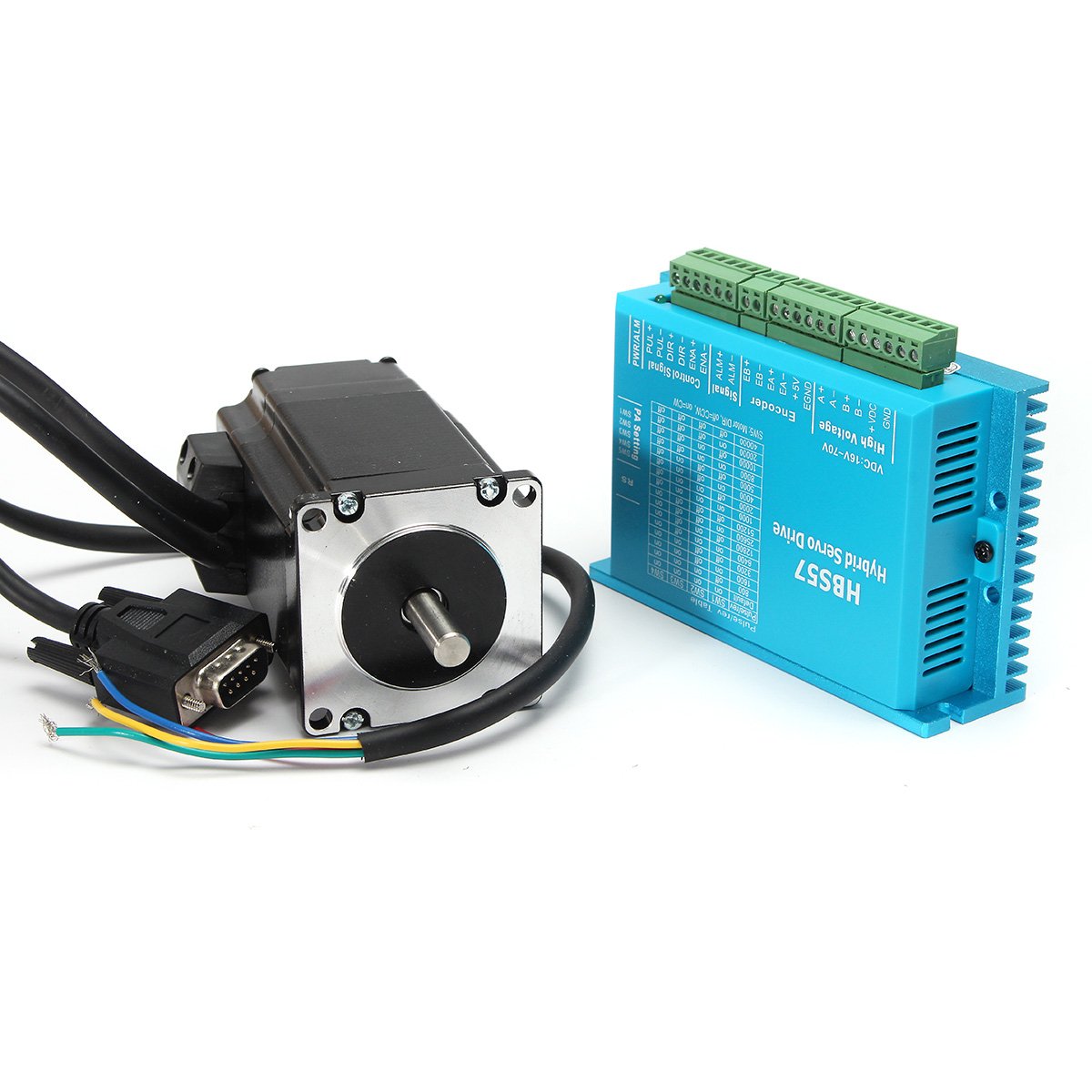

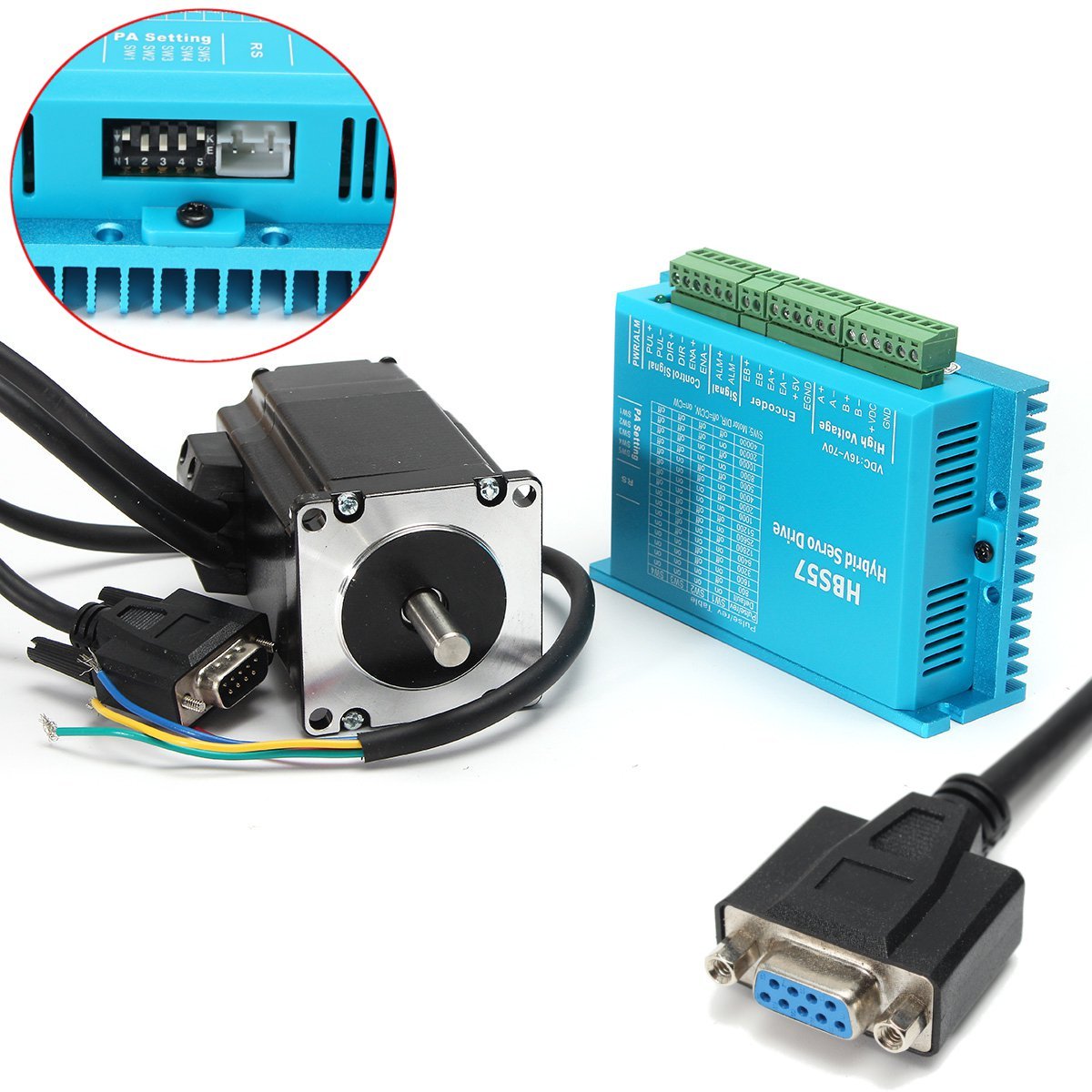

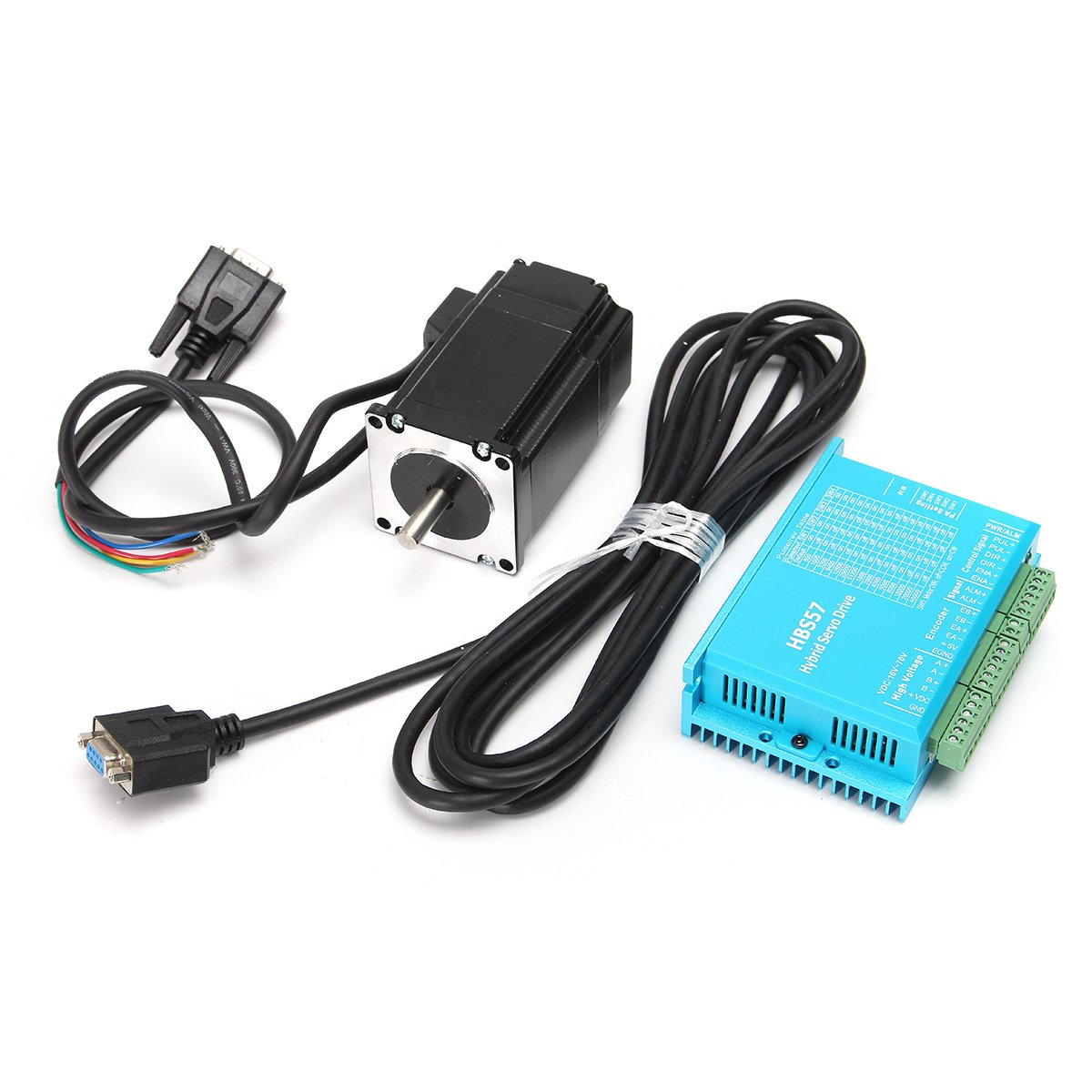

Package Included:
1 x HBS57 Driver

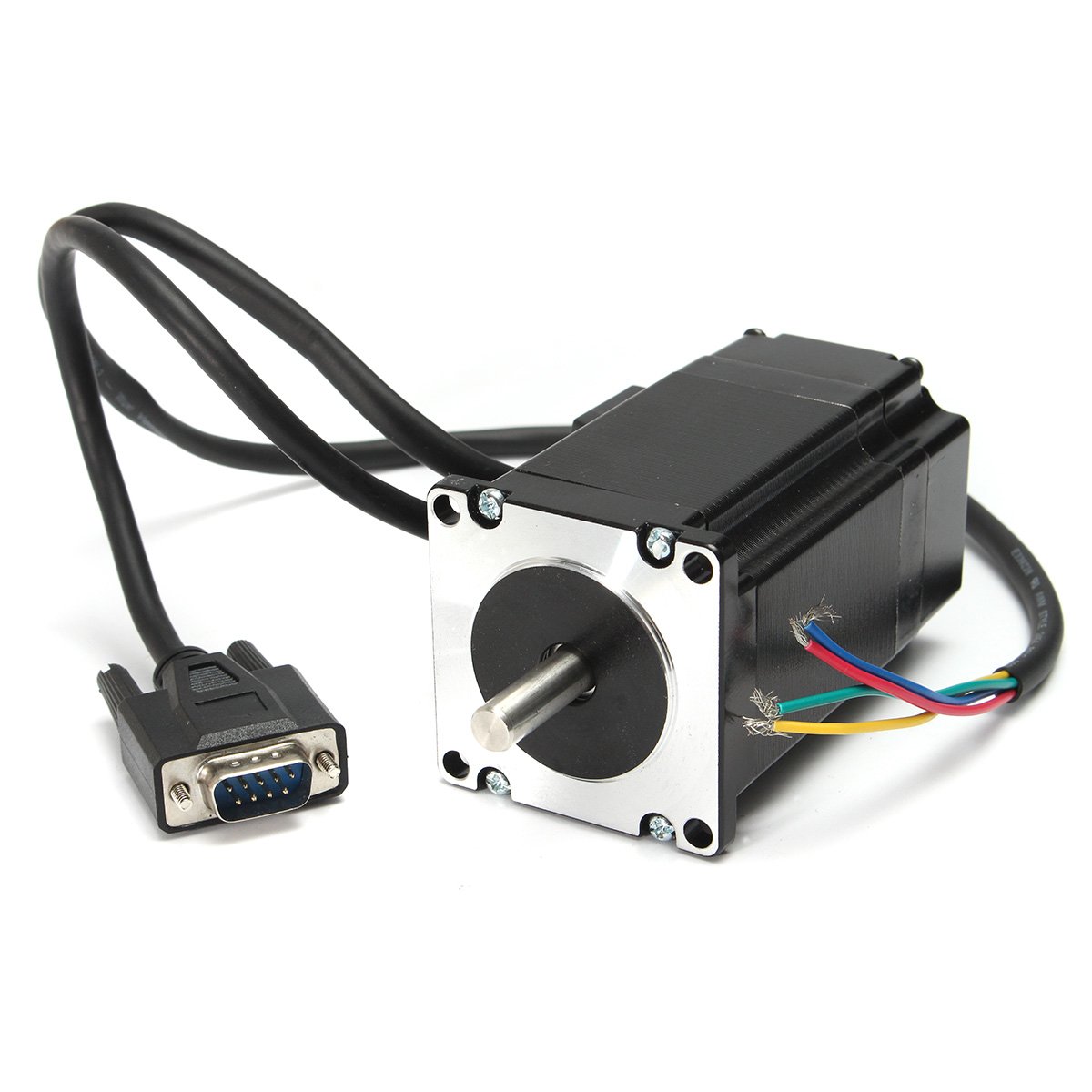

1 x Motor

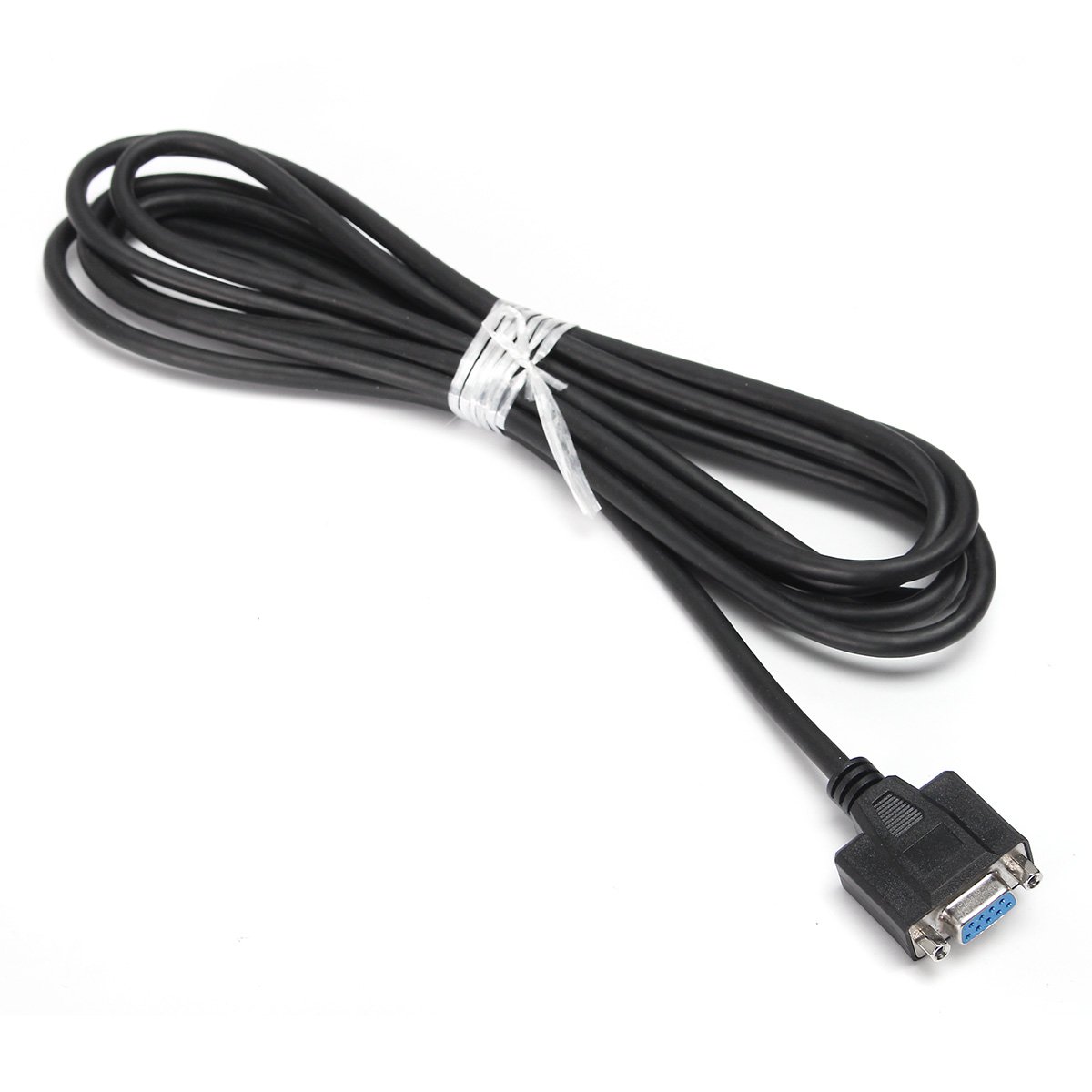

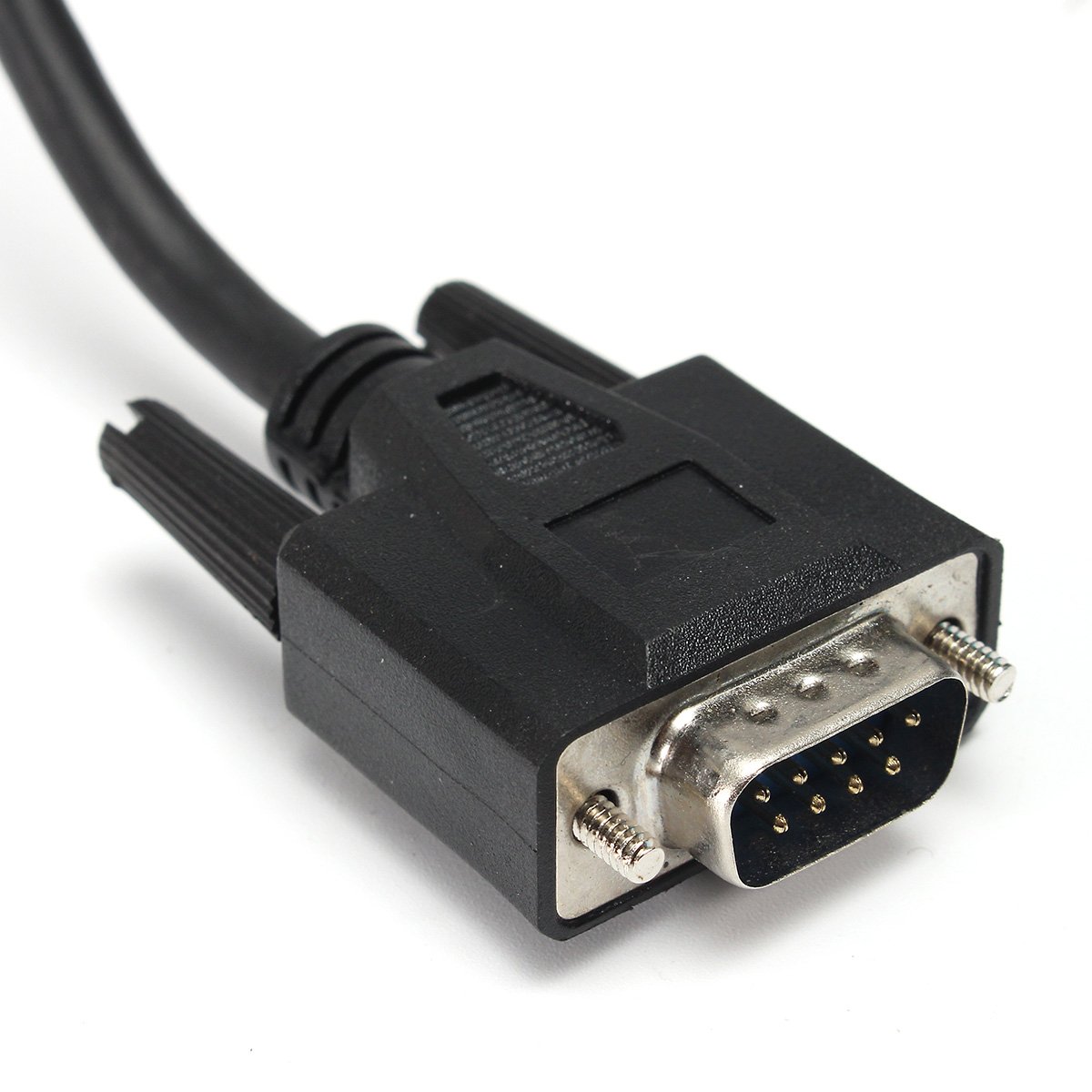

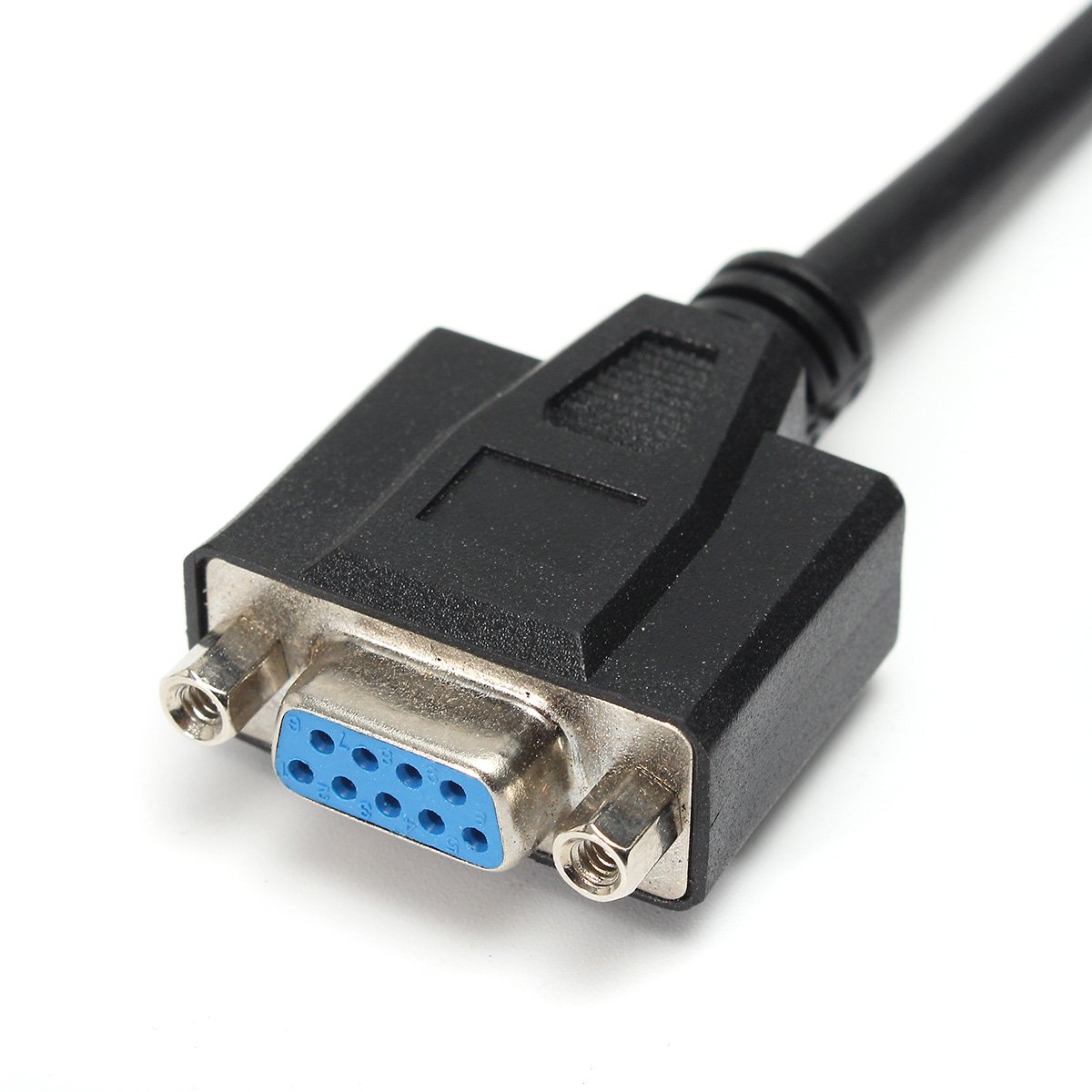

1 x Coding Cable
