High Quality Military 800×600 Resolution binocular night vision reconnaissance thermal imaging scope

or from $20,909.32 today & 5 weekly interest-free payments of $240.00 with Laybuy

is available on purchases between $10 and $2,000 learn more

Brand Name: deexu
Model Number: DXHIR516B
Spectral Range: 8~14um
Detector Resolution: 800×600 Asi Microbolometer
Detector type: Uncooled focal plane detector
LENS: 70mm
FOV: 11.1°x8.31°
NETD / MRTD: 100mk@25℃ / 500mk@25℃
View Finder: OLED 1280×1024, visual acuity
Build-in Storage: 16GB Micro SD
Waterproof Rating / Drop Resistance: IP67 / 2m
Battery: 3.7V,6000mAh
Operating Time: 5 Hours
Weight: 1.5kg
Size: 210mm x 170mm x 100mm
Used for: Night Vision Searching,Reconnaissance

$20,099.38 AUD

In stock

Estimated delivery between Wednesday 6. November - Wednesday 13. November
Add to Wishlist
Add to Wishlist

Description

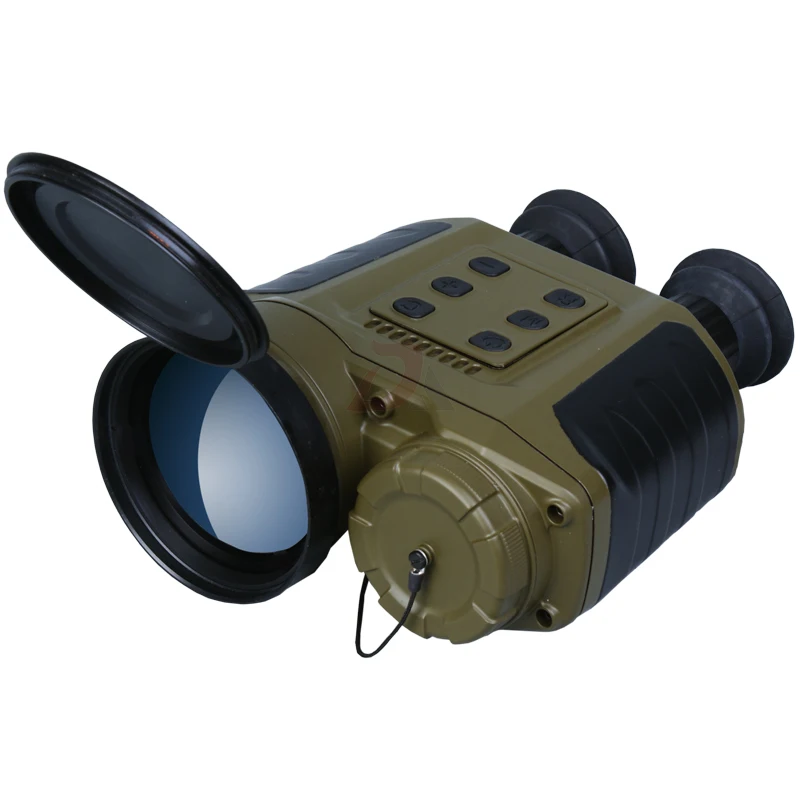

Long detection range binocular thermal imaging night vision reconnaissance scope

Specifications:



Item

Specification

Detector Resolution

800×600,17μm

Spectral Range

8μm~14μm

Detector type

uncooled focal plane detector

Lens

70mm

FOV

11.1°×8.31°(±5%)

Image Enhancement

Auto image filtering and sharp

Brightness/Contrast

Auto/Manual

Polarity

White-hot/black-hot,palette

Digital Zoom

Video Storage

Built-in 16GB SD card

View Finder

OLED 1280×1024, visual acuity

Power Input

12V power adapter/ built-in Li-ion battery

Working Time

≥4h(without changing battery)

Electrical Interface

power、video PAL(NTSC can customizable)、communication RS232

Mechanical Interface

1/4 inch standard interface

Working Temperature

-40℃~60℃(Except for display equipment)

Encapsulation

IP67

Electromagnetic Compatibility

GJB151A-97

Weight

≤1.5kg(including battery)

Size

≤210mm×170mm×100mm

Standard

AL18650x4(rechargeable)battery,Charger,Power adapter,External connection cable,Safety box,User Manual

Optional

Tripod,Carryingbag

Detection Range

3Km

































































Mobile-friendly APP for

Remote Control and Steaming

It supports image quality adjustment, color palettes switching, smooth zoom, photography, video recording, hot spot tracking, and other operation settings to meet the needs of different users.



Multiple scene modes to highlight the target

Five scene modes of “Forest/Desert/Snow/City/Default” can be quickly switched by one button, and the image can be adaptively adjusted for different scenes to highlight the target in the background.

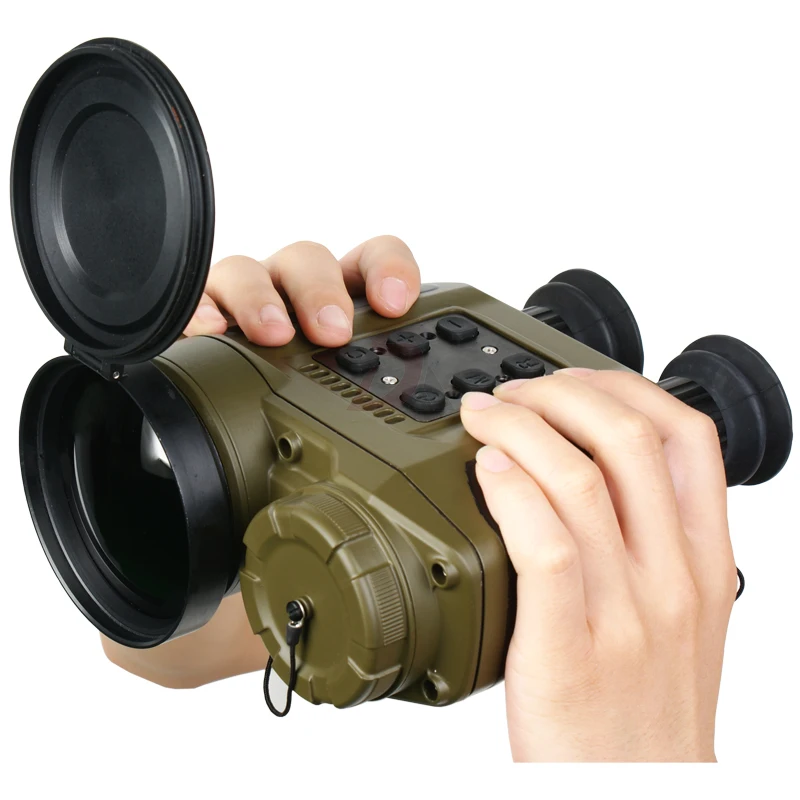

Excellent ergonomic design

With easy-distinguished button, the target button can be quickly recognized by touch even in the total darkness.



With modern streamlined appearance and ergonomic design, which allow you to observe the target for a long time without tired.



External connectable design

for more applications

Standard picatinny rail, support connect the external display, rangefinder and other accessories, which is suitable for camping security, night patrol, law enforcement, search and rescue, personal security and many other applications.

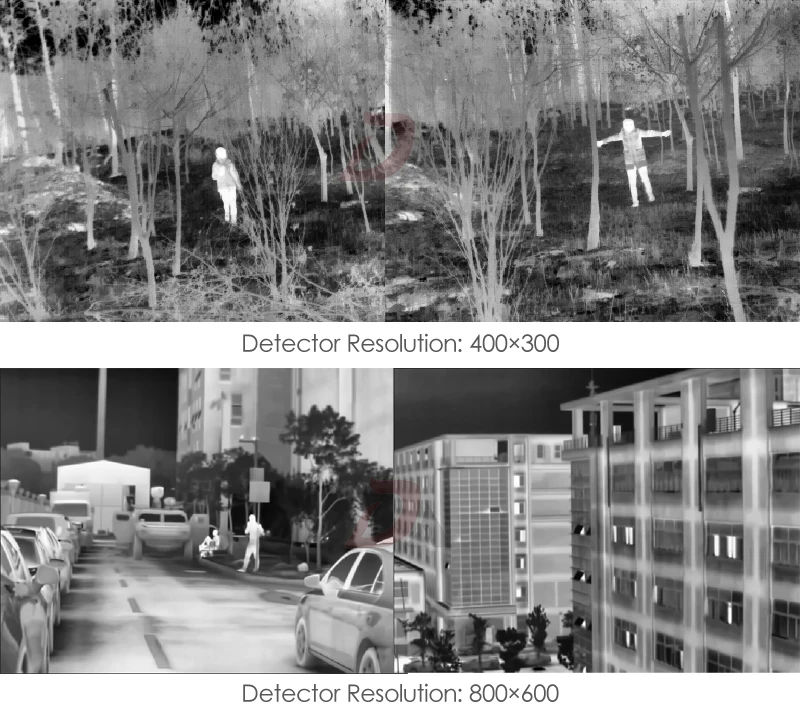

13-124568resolution







Additional information

Weight 3.0 kg
Dimensions 25.0 × 20.0 × 15.0 cm
Spectral Range

8~14um

Detector Resolution

800×600 Asi Microbolometer

Size

210mm x 170mm x 100mm

Detector type

Uncooled focal plane detector

Waterproof Rating / Drop Resistance

IP67 / 2m

Model Number

DXHIR516B

FOV

11.1°x8.31°

weight

1.5kg

Brand Name

deexu

Build-in Storage

16GB Micro SD

Operating Time

5 Hours

View Finder

OLED 1280×1024- visual acuity

Battery

3.7V-6000mAh

Lens

70mm

Used for

Night Vision Searching-Reconnaissance

NETD / MRTD

100mk@25℃ / 500mk@25℃
