or 4 payments of Description
Description :
1MP IP Camera = 720P HD Network IP Camera=IPCX-BC43272
2MP IP Camera = 1080P HD Network IP Camera=IPCX-BC28321080

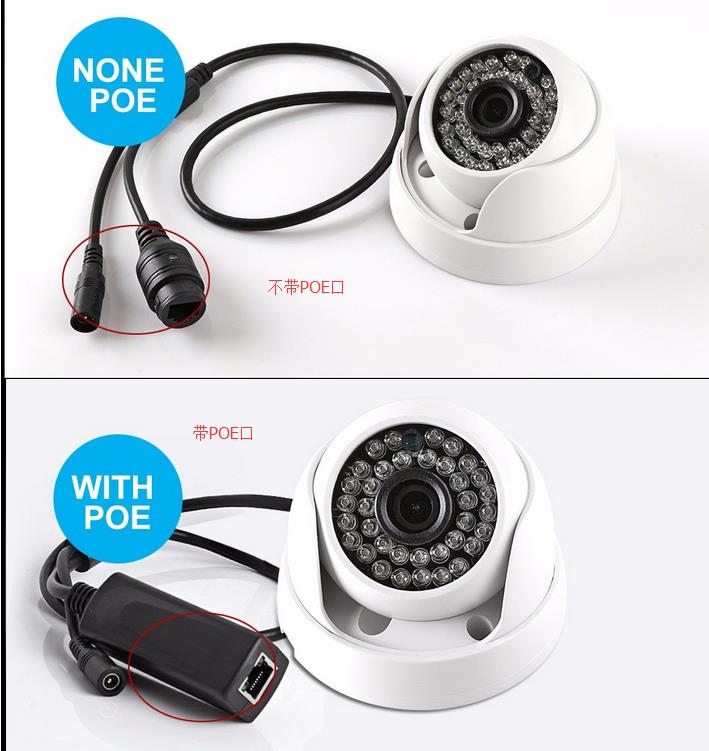

1MP POE IP Camera = 720P IP Camera Can Be POE Powered=IPCX-BC43272-P
2MP POE IP Camera = 1080P IP Camera Can be POE Powered=IPCX-BC28321080-P
Features :
1.High sensitivity CMOS Image sensor.
2.1.0 Megapixel 720P (1280*720) resolutions, or 2.0 Megapixel 1080P Full HD (1920*1080) resolutions.
3.H.264 video encoding,support dual stream.
4.Mobile surveillance: Android,iPhone OS.
5 Mobile APP(IOS,Android):XMEye
6 Support P2P Cloud:xmeye.net
7.Support TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on.
8.Support ONVIF 2.0
Specification :
| Camera | Model | IPCX-BC43272:1.0MP |
| IPCX-BC28321080:2.0MP | ||
| Image Sensor | 1/4″ CMOS for 1.0MP version | |
| 1/2.8” CMOS for 2.0MP version | ||
| Minimum Illumination | 0.001Lux; 0Lux(IR on) | |
| Electronic Shutter | Auto/Manual | |
| Lens | 3.6mm standard (6mm,8mm optional) | |
| Day& Night | IR cut filter with auto switch | |
| Digital noise reduction | 3D DNR | |
| Synchronization | Internal Synchronization | |
| Compression Standard | Video Compression | H.264 |
| Bit Rate | 0.1 Mbps ~ 6 Mbps | |
| Dual Stream | Yes | |
| Image | Max. Image Resolution | 1280×720 (720P) for 1.0MP vesion |
| 1920×1080 (1080P) for 2.0MP version | ||
| Frame Rate | 25/30fps | |
| Image Settings | Saturation, brightness, contrast,sharpness adjustment | |
| Backlight compensation | Auto | |
| White Balance | Auto | |
| Network | Remote operation | System settings,stream management, account management, network management |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, | |
| ICMP, FTP, 802.1X, HTTPS | ||
| Network Transmission | P2P penetrate automatic forwarding | |
| System Compatibility | ONVIF 2.0 | |
| Detection and alarm | Client alarm,E-mail alerm | |
| Privacy Masking | Supports four block area block | |
| Mobile Monitoring | Support Android,iPhone OS | |
| Interface | Communication Interface | 1 RJ45 10M / 100M ethernet interface |
| General | Operating Conditions | -30 °C ~ 55 °C (-22 °F ~ 131 °F) |
| Humidity 10%~90% | ||
| Power Supply | DC 12V 1A or 2A (Not included) | |
| Power Consumption | Max. 8 W | |
| Waterproof | No | |
| IR Range | 36 pcs LEDs, Up to 20 meters(65.6ft), Depends on the size of lens | |
| Connector | RJ45 & 5.5mm DC Plug | |

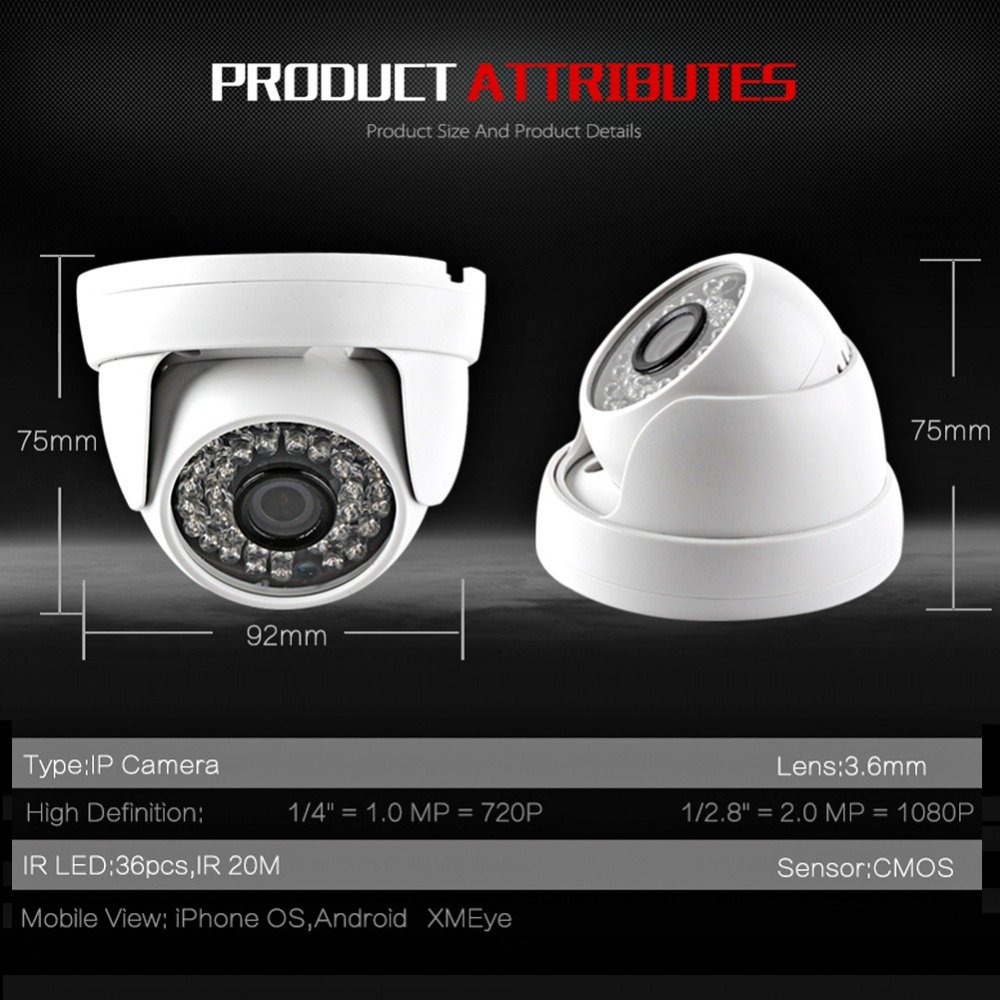

| Camera Weight / Size | 180g / 92*75mm(diameter*high) | |
| Packing Weight / Size | 300g / 100×100×92 mm |
Package Includes :
1 x Dome IP Camera
1 x CD(Include software and user manual)
1 x Screws
Details Pictures :
