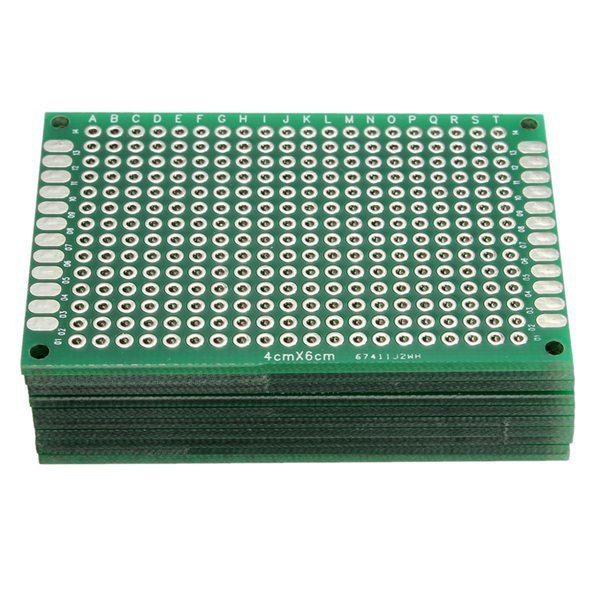

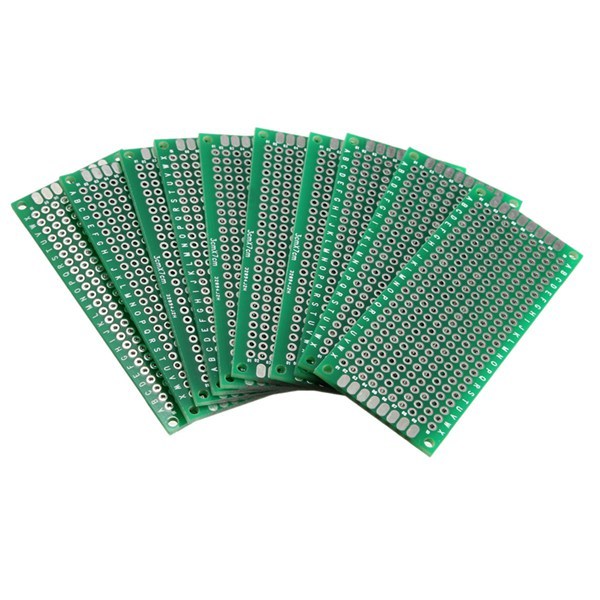

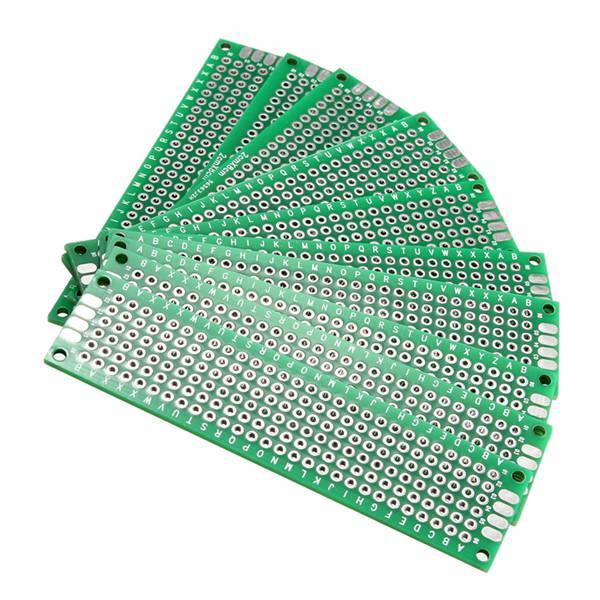

Geekcreit?® 40pcs FR-4 2.54mm Double Side Prototype PCB Printed Circuit Board
Geekcreit?® 40pcs FR-4 2.54mm Double Side Prototype PCB Printed Circuit Board - Image 2
Geekcreit?® 40pcs FR-4 2.54mm Double Side Prototype PCB Printed Circuit Board - Image 3
Geekcreit?® 40pcs FR-4 2.54mm Double Side Prototype PCB Printed Circuit Board - Image 4
Geekcreit?® 40pcs FR-4 2.54mm Double Side Prototype PCB Printed Circuit Board - Image 5
Geekcreit?® 40pcs FR-4 2.54mm Double Side Prototype PCB Printed Circuit Board - Image 6

Geekcreit?® 40pcs FR-4 2.54mm Double Side Prototype PCB Printed Circuit Board

or 6 weekly interest-free payments from $3.83 with Laybuy

or 4 payments of $5.24 with Wizit learn more

$20.94 AUD

In stock

Refund and Returns Policy
Estimated delivery between Saturday 11. January - Saturday 18. January
Add to Wishlist
Add to Wishlist
SKU: C122-995732 Category:

Description

Specification:Total 40pcs, each size 10pcs
Grid : 0.1″ (2.54mm)
Thickness : 1.6mm(5pcs)
Hole diameter : about 1mmThe diameter of 4 large positioning holes: 4mm
Material : FR-4 (glass fiber)
All holes are plated through
Both sides are identical

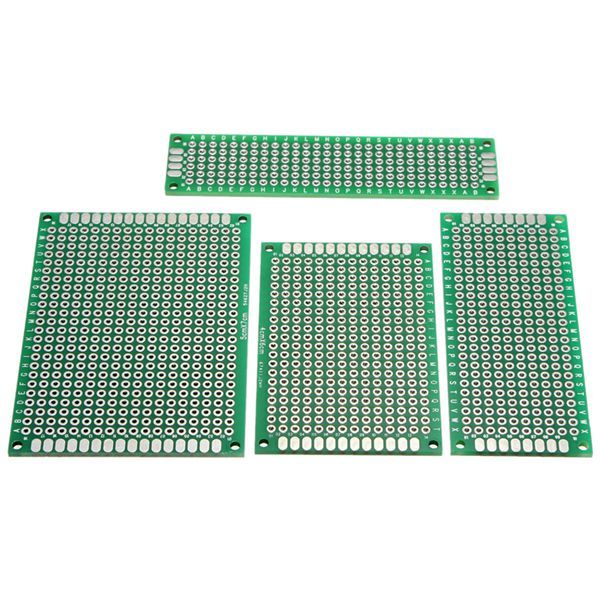

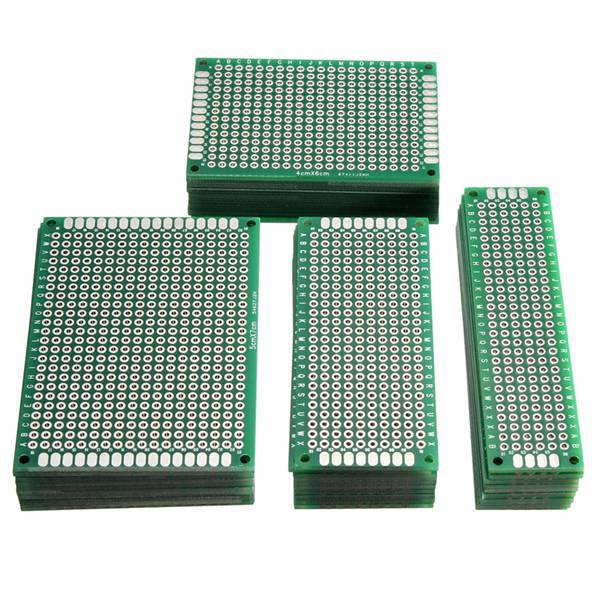

Dimension                            Hole(column x row)    Quantity
50 x 70mm, 1.97″ x 2.76″      24 x 18                           10
40 x 60mm, 1.57″ x 2.36″      20 x 14                           10
30 x 70mm, 1.18 x 2.76″        24 x 10                           10
20 x 80mm, 0.79″ x 3.15″      28 x 6                             10

Package included:

40 x FR-4 double side prototype PCB printed circuit board


Additional information

Weight 0.29 kg
MPN

995732
