Features :
H.264+ Compression.
Pan/Tilt Monitoring. Pan: 355°, Tilt 90°.
Night Vision. 6pcs IR LED light, max. up to 10m night vision.
720P High Definition. 3.6mm lens, 1280*720, 1.0Megapixel.
WiFi Connection.
Two Way Audio. Build in microphone and audio speaker.
Motion Detection. When motion odjects detected, it will trigger alarm email alert.
TF Card Video Storage. Support max. up to 64GB TF card.
Support Android/iOS mobile, tablets and computers.
APP name: ICsee
Specification :
| Model : ESCAM QF007 | ||
| System | OS | Embedded Linux OS |
| System security | Account, password authority management | |
| Len | CMOS | 1/4″ CMOS, support AWB, AGC, BLC |
| Lens/viewing angle | 3.6mm angel: 62° | |
| Minimum illumination | Color: 0. 1Lux, B/W: 0.01Lux | |
| IR | IR distance | 6pcs IR Led, IR distance 10m |
| IR Control | Auto | |
| Video | Video Compression | H.264/H.264+ |
| Resolution | 720P(1280*720), D1(704*576), CIF(352*288) | |
| Frame rate | NTSC: 30fps/PAL: 25fps | |
| Audio | Compression | G.711A |
| Input | Built in microphone | |
| Output | Built in speaker(8Ω1W) | |
| P/T | P/T function | Pan: 355°, Tilt: 90° |
| Network | Network Protocol | TCP/IP, HTTP, SMTP, FTP, DDNS, DHCP, NTP, P2P, RTSP |
| WIFI | WIFI 802.11 b/g/n (2.4G WIFI) | |
| IP address | Dynamic IP | |
| Online visitor | Support 4 online visitors simutaneoursly | |
| Mobile View | software for Iphone, Android(IOS4.3/Android OS 2.3 above) | |
| PC View | PC Client or Web browser | |
| Alarm | Alarm detection | Support motion detection |
| Alarm action | Support email alarm and APP push | |
| Storage | Local Storage | Support up to 64GB MicroSD card |
| Other | Rated Voltage | DC5±0.3V |
| Consumption | Rated power: 3.5W (IR opening )/maximum power: 7W(P/T working) | |
| Work environment | -10 to 50 °C 10%-90% | |
| Product Weight | 195g | |
| Gross Weight | 350g | |
| Product size | 130*115*95mm | |
| Package size | 150*140*100mm | |
Package includeds :
1 x ESCAM QF007 IP Camera
1 x Charger (EU/US/UK/AU Plug for Optional~)
1 x USB Cable
1 x User Manual
1 x Screw Package
1 x Mounting Bracket
>>> Download E-User Manual <<<
1 x USB Cable
1 x User Manual
1 x Screw Package
1 x Mounting Bracket
>>> Download E-User Manual <<<

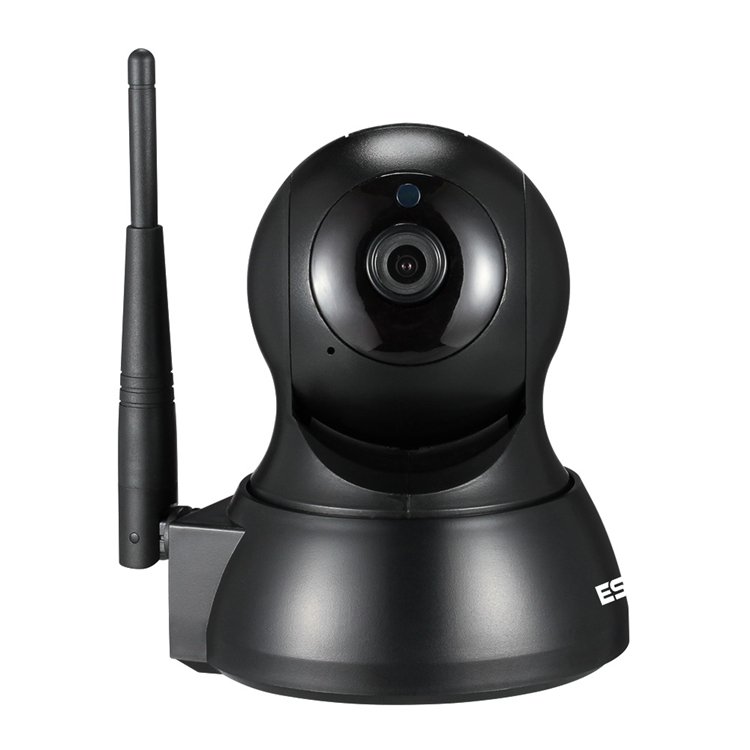

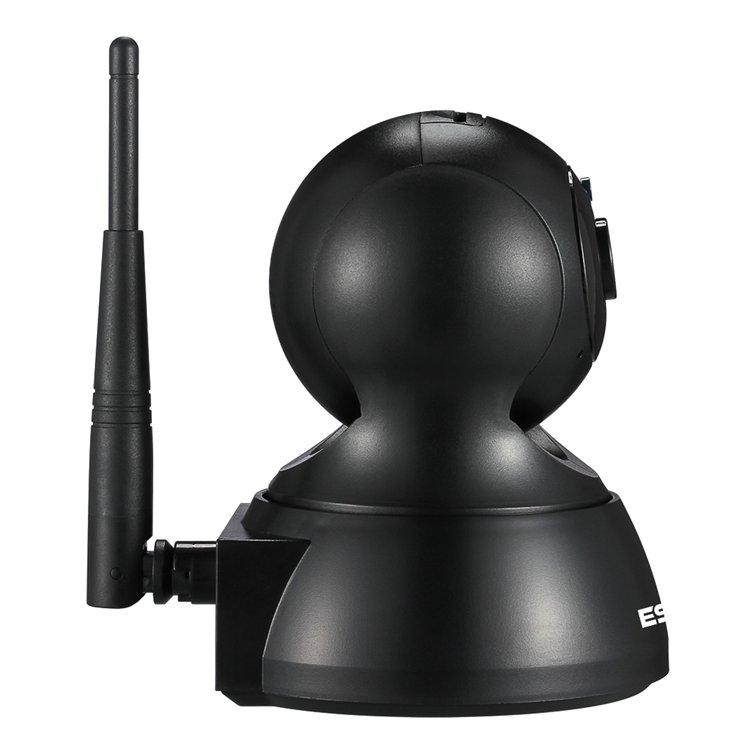

Details pictures :
,
,
,
,
,
,
,
,
,
