Description :

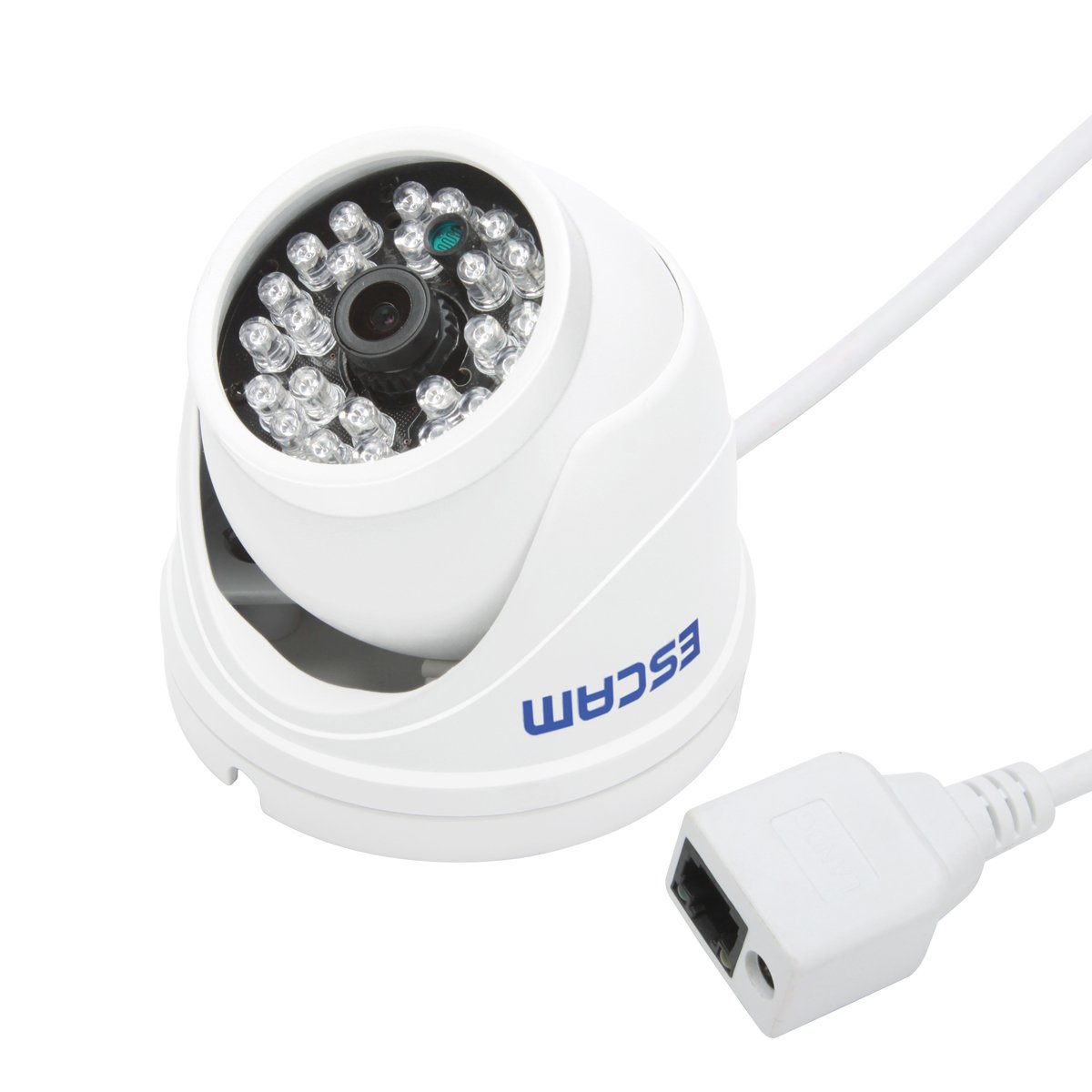

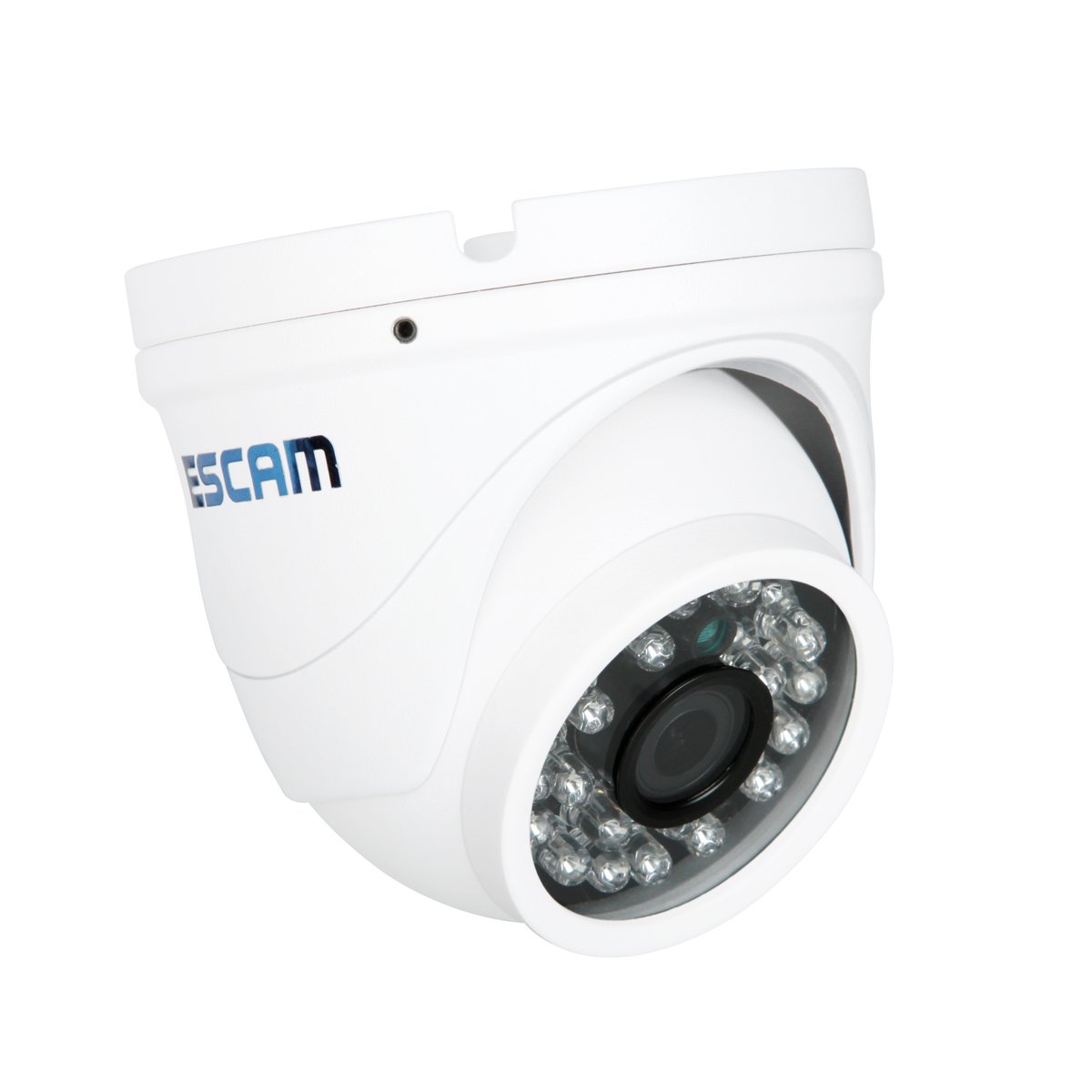

Escam QD520 Peashooter HD720P P2P Cloud IR IP Security Camera
Specification :
| Key Features | ||
| >1/4” 1Megapixel progressive scan CMOS | ||
| >H.264 & MJPEG dual-stream encoding | ||
| >Max 25/30fps@720P(1280×720) | ||
| >DWDR, Day/Night(ICR), 2DNR, AWB, AGC, BLC | ||
| >Multiple network monitoring: Web viewer, CMS | ||
| >3.6mm fixed lens | ||
| >Max. IR LEDs Length 15m | ||
| >DC12V 1A | ||
| Model | ||
| Camera | ||
| Image Sensor | 1/4” 1Megapixel progressive scan CMOS | |
| Effective Pixels | 1280(H)x720(V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual 1/3(4)~1/10000 | |
| Min. Illumination | Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on) | |
| S/N Ratio | More than 50dB | |
| Video Output | N/A | |
| Camera Features | ||
| Max. IR LEDs Length | 10m | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC/ HLC/ DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 3.6mm | |
| Max Aperture | F1.8(F2.0/F1.8) | |
| Focus Control | Manual | |
| Angle of View | H: 70°(114°/46°/) | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264 | |
| Resolution | 720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240) | |
| Frame Rate | Main Stream | 720P(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H.264: 16K ~ 8192Kbps | |
| Audio | ||
| Compression | N/A | |
| Interface | N/A | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
|
| ONVIF | ONVIF Profile S | |
| Max. User Access | 10 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| P2P | iPhone, Android Mobile App | |
| Auxiliary Interface | ||
| Memory Slot | N/A | |
| RS485 | N/A | |
| Alarm | N/A | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V 1A | |
| POE | N/A | |
| Power Consumption | <4W | |
| Working Environment | -30°C~+60°C, Less than 95%RH | |
| Ingress Protection | N/A | |
| Vandal Resistance | N/A | |
| Dimensions | Φ90mm x90mm | |
| Weight | 0.25Kg | |
| Package Dimensions | Φ120mm x 95mm | |
| Package Weight | 0.35Kg | |
| Approvals | CE FCC RoHS | |

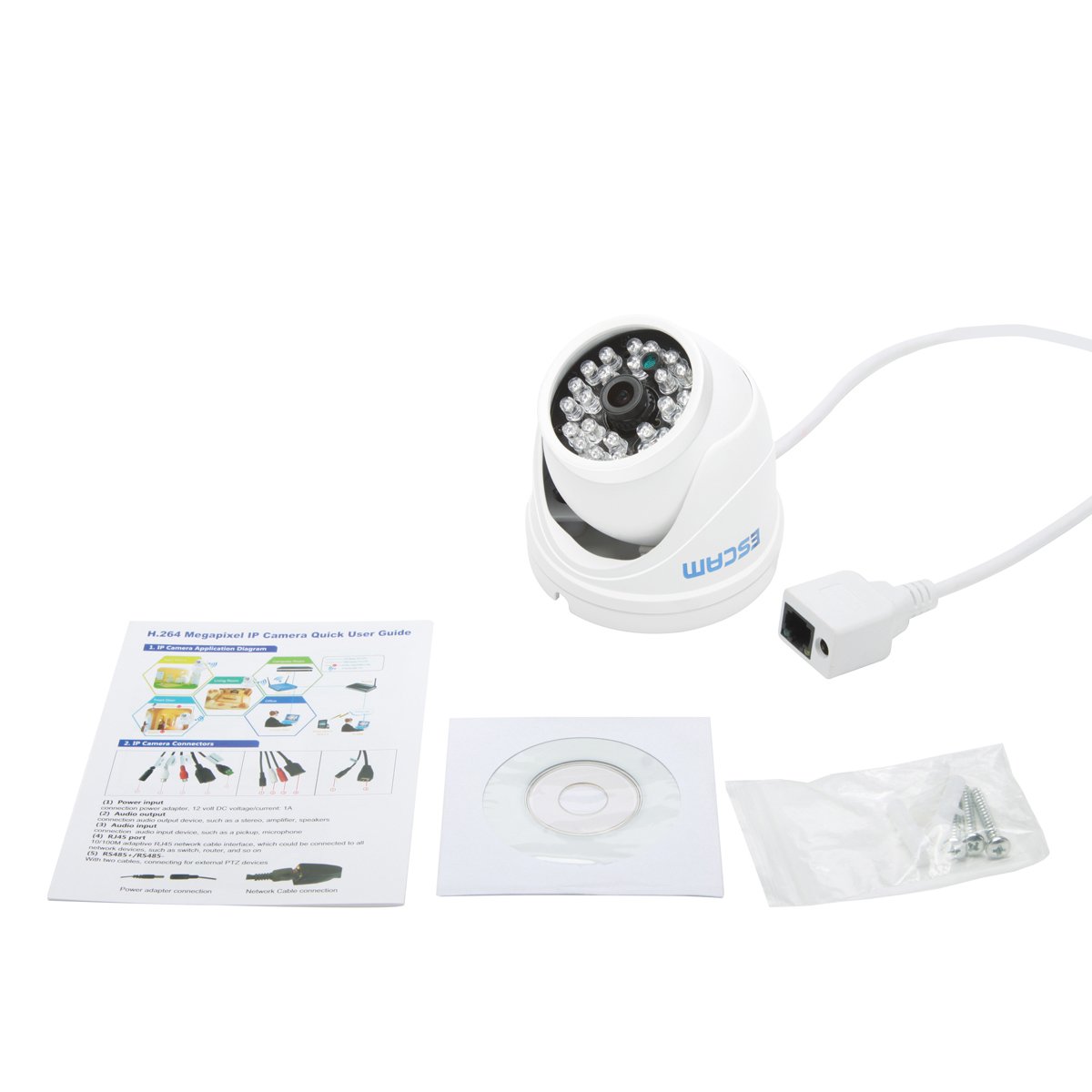

Package included :
1 x ESCAM Sea QD520 Security IP Camera
1 x CD
1 x English User manual
1 x Pack of screws
1 x Power supply (EU/US/AU/UK optional)
Details pictures :
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 10")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 11")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 12")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 13")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 14")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 15")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 16")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 17")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 18")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 19")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 20")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 21")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 22")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 23")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 24")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 25")
.jpg "Escam QD520 Peashooter HD720P P2P IR IP Security Camera 26")
