Features :
1. H.265 2MP HD 1080P.
2. Support private cloud protocol, it can be added to PVR204 or PVR208 remotely or locally.
3. Support PTZ, 4X Zoom, 2.8-12mm Lens.
4. Support Day/Night, IR distance 15m, make your night view as daytime.
5. Support motion detection/email alarm/app push.
6. Support PoE function.
7. Support 3D Digital Noise Reduction.
8. Supprt max to four private mark areas.
9. IP66 waterproof.
10. Support CMS viewing, APP viewing and Brower viewing.
11. Support ONVIF, compatible with other devices.
Specification :

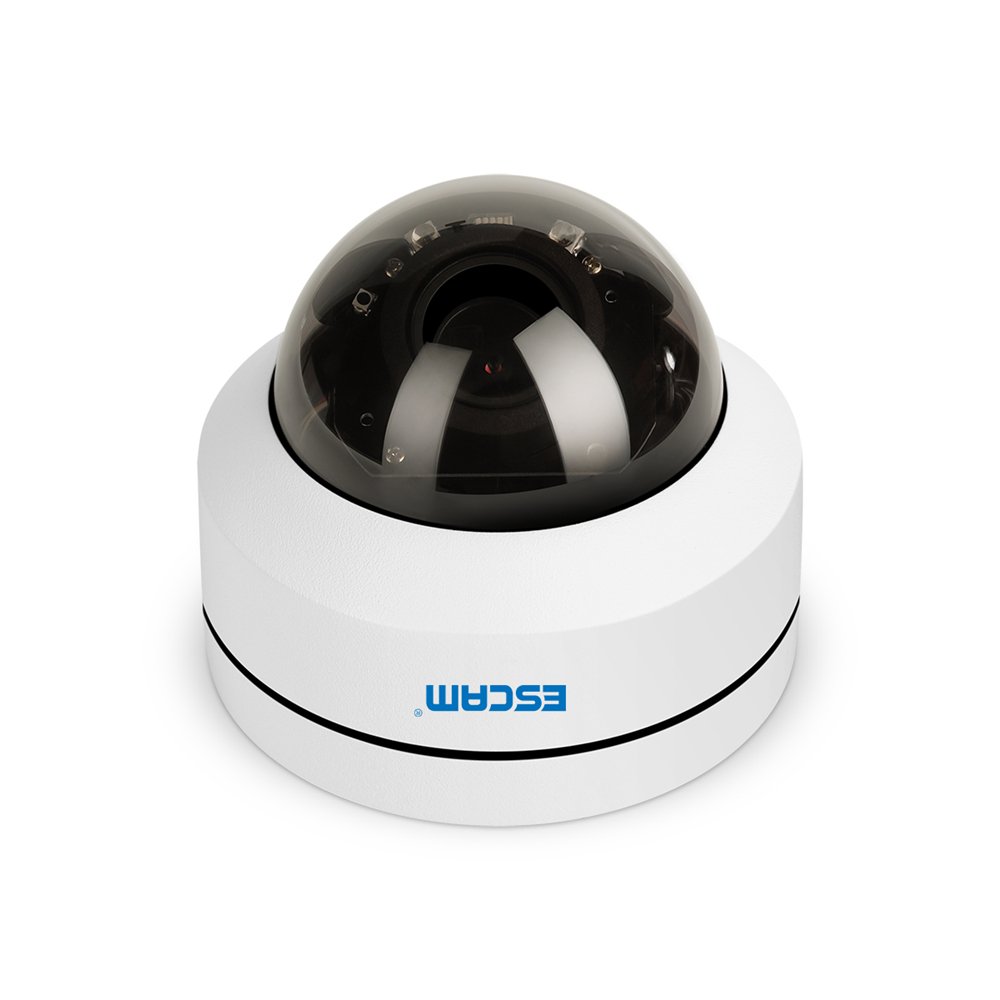

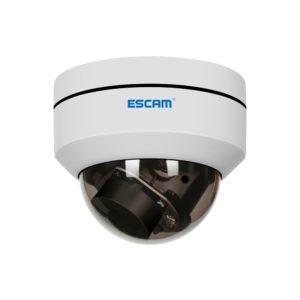

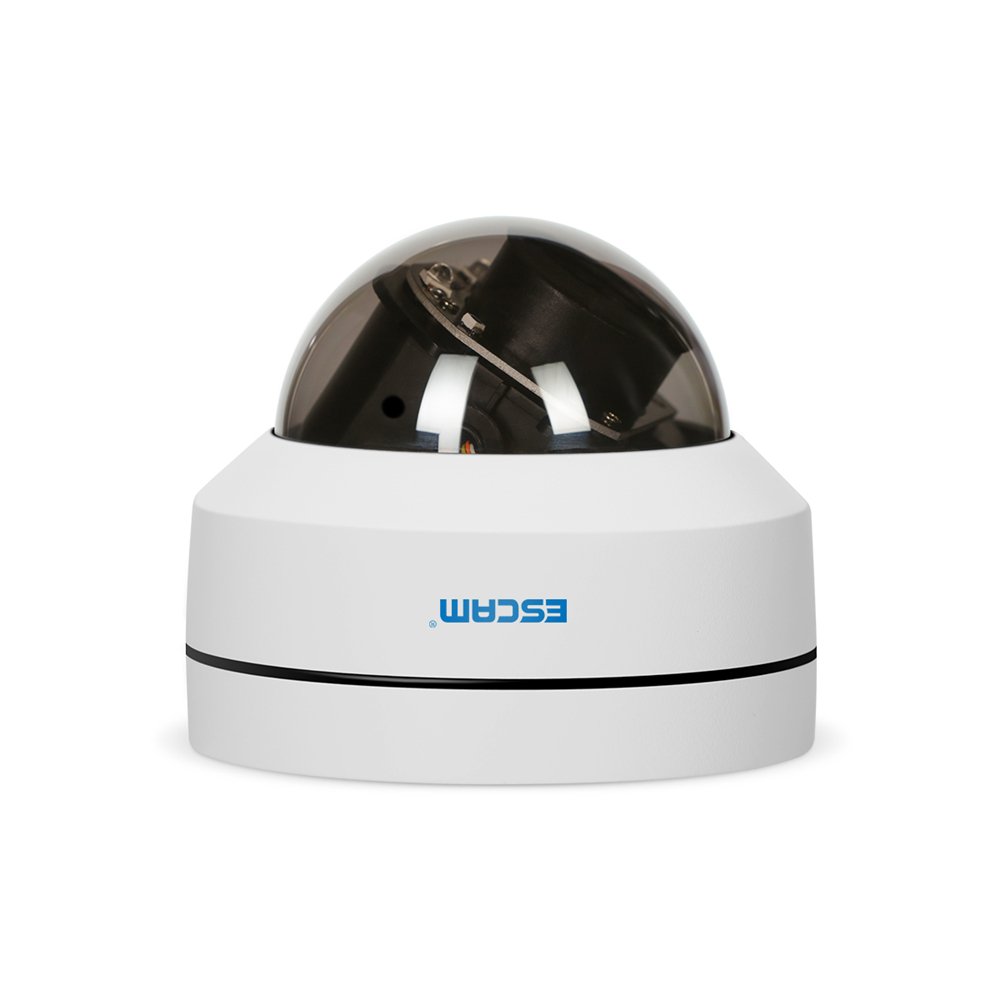

| Model | ESCAM PVR002 |
| Camera | |
| Sensor | 1/2.7” 2 Megapixel progressive can CMOS |
| Electronic shutter | Automatic/Hand movement, 1/25~1/10000s |
| Minimum illuminance | Color 0.1Lux@F1.2;Night vision0.01Lux@F1.2 |
| Focal Length | 2.8~12mm |
| PT | P 355° T 90° |
| Functions | |
| Day/night switch | IR distance 15m |
| White Balance | Auto white balance |
| BLC | Support BLC |
| Digital noice reduction | Support 3D noise reduction |
| WDR | Support D-WDR |
| Motion detection | Support motion detection |
| Private shelter | Support 4 zones |
| OSD | Support OSD setting |
| Sleeper | Support schedule reboot |
| Video | |
| Compression | H.264&H.265 |
| Resolution | Mainstream:1080P(1920*1080), 720P(1280×720) |
| Substream: D1 (704*576), 360P(640×360), CIF (352×288) | |
| Video frame rate | 25fps(50HZ), 25fps(60HZ) |
| Biterate | 64Kbps~12Mbps CBR/VBR adjustable |
| Video adjustment | brightness,saturability,chromacity adjustment |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| IP Type | Dynamic IP&Static IP |
| Network Protocol | HTTP,TCP/IP,IPv4,UPNP, RTSP,SMTP,NTP,DHCP,DNS,PPPOE, DDNS,FTP |
| Access Protocol | Support ONVIF |
| Max user | 6 |
| Client | iPhone, iPad, Android, Windows PC |
| Audio | |
| Audio | Not support |
| General | |
| Power Supply | DC12V1A |
| PoE Function | PoE (IEEE802.3af/at) |
| Power Consumption | 6W |
| Working Environment | -30°C to +60°C, 10%-90% |
| Waterproof | IP66 |

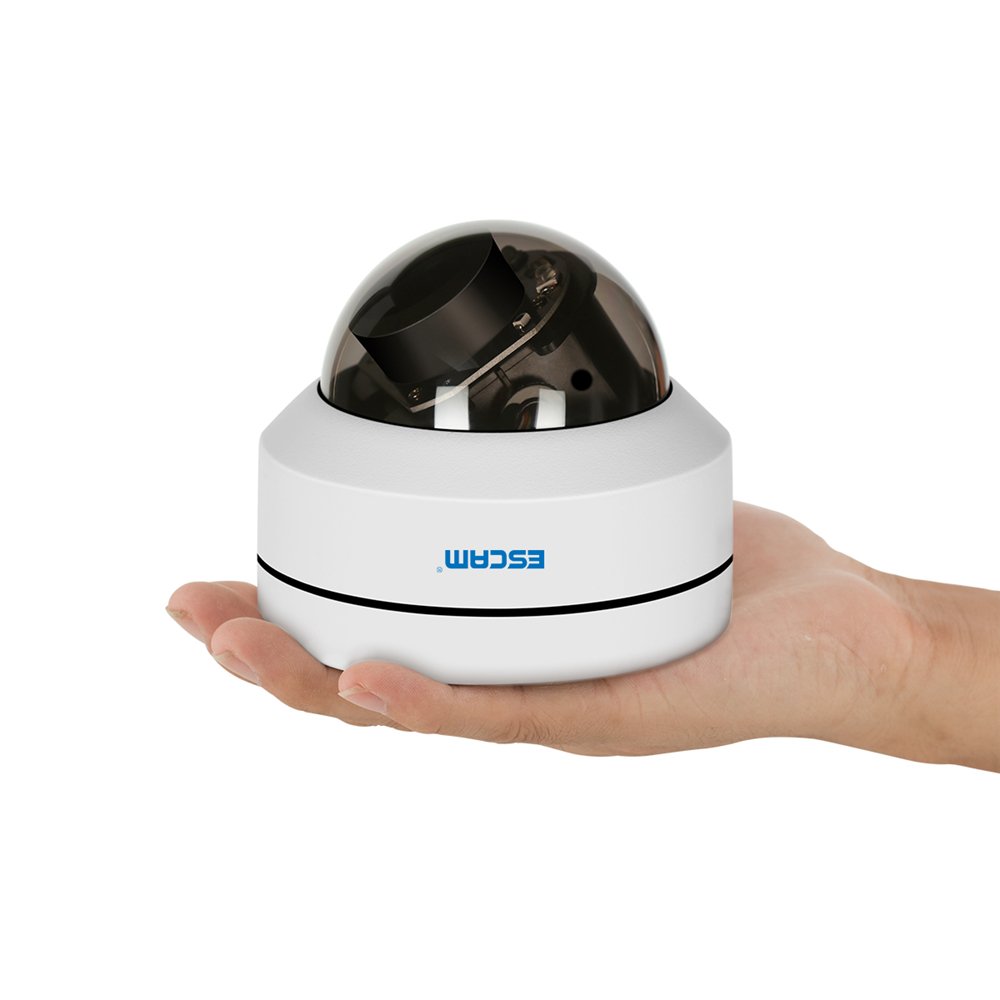

| Product Size | 110*110*100mm |
| Product Weight | 0.48kg |
| Package Dimension | 135* 135*130mm |
| Package Weight | 0.7kg |

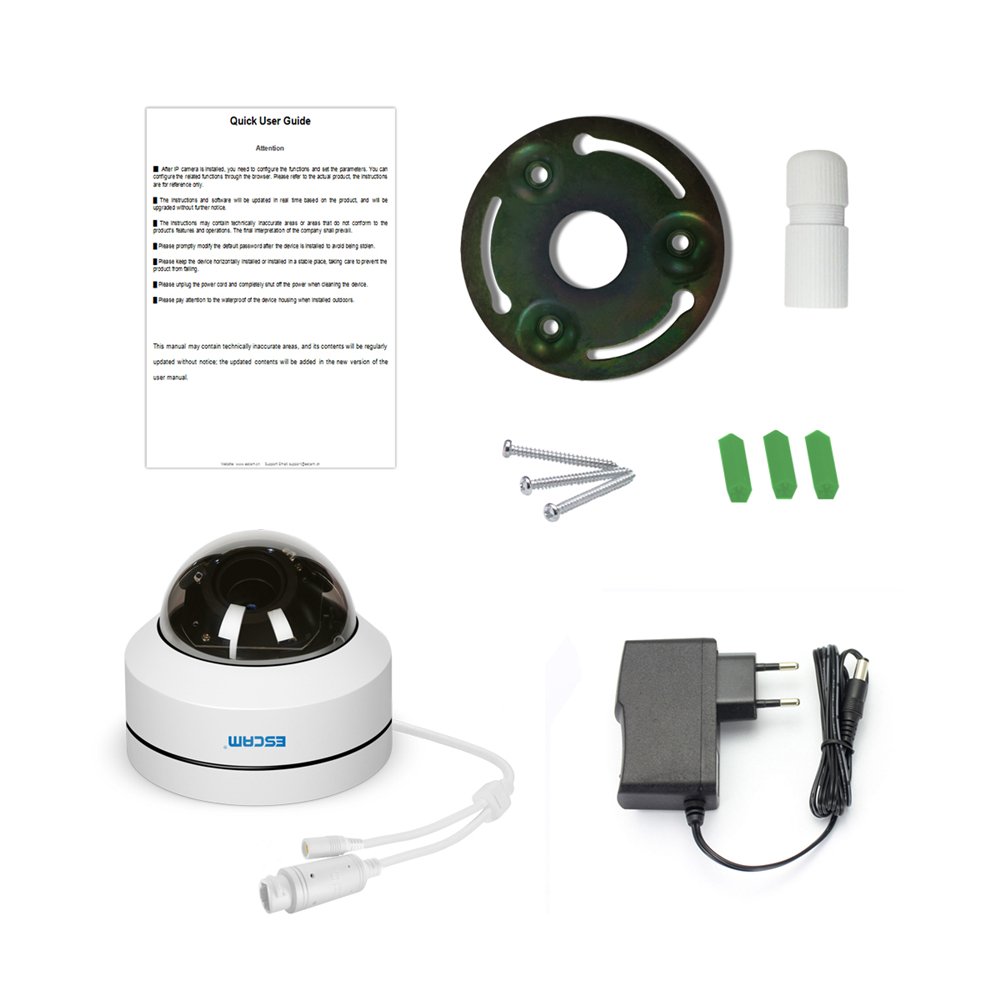

Package includeds :
1 x ESCAM PVR002 IP Camera
1 x Waterproof Hat
1 x Screw Bag
1 x Base
1 x Power Adapter
1 x User Manual
1 x Screw Bag
1 x Base
1 x Power Adapter
1 x User Manual
Details pictures :
