Features :

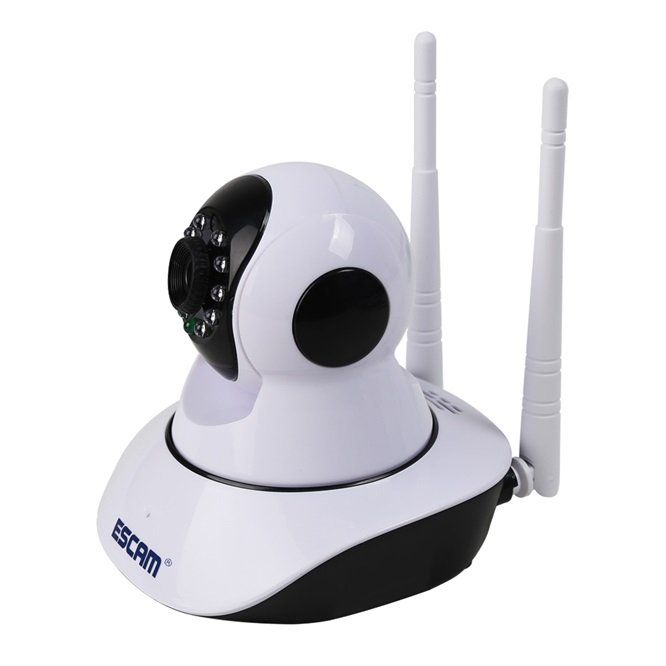

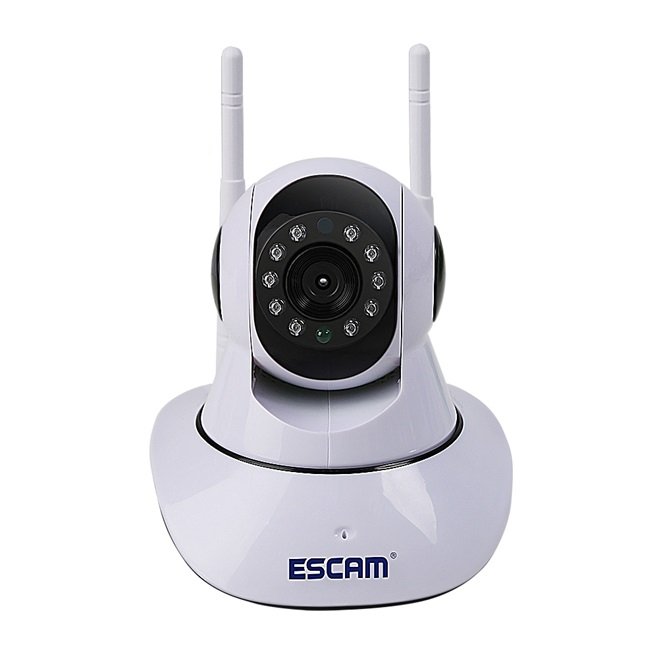

ESCAM G02
HD 720P Pan/Tilt WiFi IP IR Camera.
HD 720P
HD 720P
High definition image quality, resolution up to 1Megapixel, 1280*720.
Magapixel Lens
Magapixel Lens
3.6mm Megapixel lens.
Pan and Tilt monitoring
Pan and Tilt monitoring
Pan 355°+Tilt 120°, sliding screen manually enables remote control of the rotation of camera and real-time monitoring.
Two Way Talk
Build in microphone and high quality audio speaker, it can do two way talk online between camera and mobile phone.
Infrared monitoring&Motion Detection
When motion objects detected, it will trigger Email alert.
10pcs IR Leds design, it can capture ultra clear night time image, max up to 8m IR range.
Support Multi-Platform.
Support Android/iOS mobile tablets and computers.
TF card max up to 128G.
Build in TF card slot, support max up to 128GB no need computer and HDDs and get video recorded.
Dual Antenna
Dual antenna designed, WiFi connection is more stable and powerful.
WiFi Connection
Without cabling work, via WiFi, it can be easily connected with your mobile for remote surveillance.
Operating Video
Specification :
| Model : ESCAM G02 | ||
| System | OS | Embedded Linux OS |
| Processor | GK7102 | |
| Sensor | 1/4 720p Progressive CMOS sensor | |
| Video | Compression Format | H.264 |
| Video coding | Main stream:1280*720@25fps; Sub stream: 640*352@25fps,320*176@25fps | |
| Picture Adjustment | Contrast, Brightness, Saturation, Flip and Mirror are adjustable. | |
| Minimum illumination | 0.8Lux/F1.4 (colourful mode ),0.4Lux/F1.4 (B&W mode) | |
| Bit Rate | CBR/VBR, bit rate range: 32-6144kbps | |
| OSD | Support OSD | |
| Lens | 3.6mm | |
| Night Vision | Night vision | 10pcs IR LED, 8m IR distance |
| IR control | IR turned on: night vision view enabled, infrared Ray, ICR auto detect. | |
| IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. | ||
| Audio | Compression format | G.711A |
| Input | Built in microphone | |
| Output | Built in speaker | |
| P/T Function | P/T | Pan:355°,Tilt:120° |
| Preset Postion | support up to 8 preset postions | |
| Network | Network interface | 10Base-T/100Base-TX Ethernet interface |
| Network Protocol | TCP/IP, HTTP, SMTP, DHCP, DDNS, NTP, UPnP, RTSP, RTMP, etc. | |
| Online visitor | Support 5 online visitors simutaneoursly | |
| IP address | Dynamic IP and static IP address | |
| WIFI | WIFI 802.11 b/g/n | |
| Onvif | Support Onvif protocol | |
| Alarm | Motion Detection | Support 4 independent detection areas (sensitivity 1-100 ) |
| Audible alarm | Audible alarm(Sensitivity 1-100 ) | |
| Alarm linkage | Sending picture to Email; Saving picture or video to TF card | |
| Others | Storage | Support max to 128GB TF Card |
| Application environment | Indoor | |
| Rated Voltage | DC5±0.3V | |
| Temperature | -10 to 50 ℃ | |
| Humidity | 10 – 95%RH | |
| Power consumption | 3.5W | |
| Package size | 195x150x125mm (LxWxH) | |
| Weight | Gross Weight: 0.5kg (Note: in kind prevail) | |
| System Requirement | System configuration | Windows XP/7/8/10; IOS and Android |

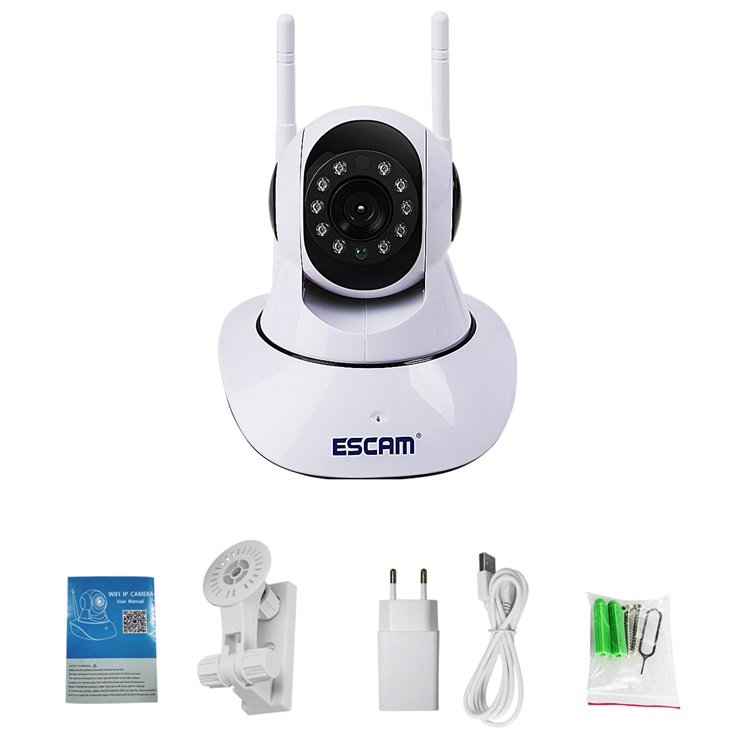

Package includeds :
1 x ESCAM G02 Dual Antenna IP Camera
1 x Power Adapter
1 x USB Cable
1 x User Manual
1 x Mounting Bracket
1 x Screw
Details pictures :
