Description

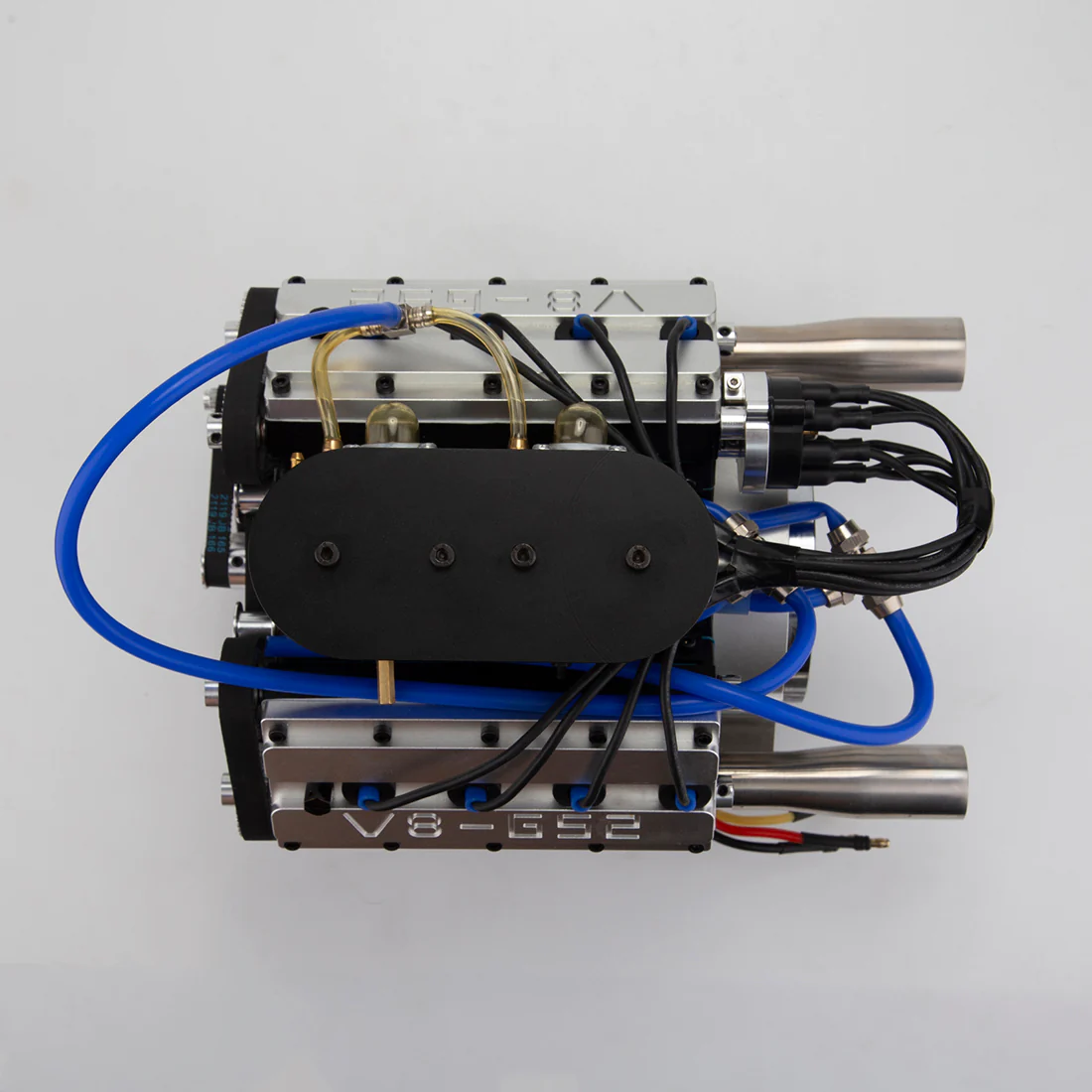

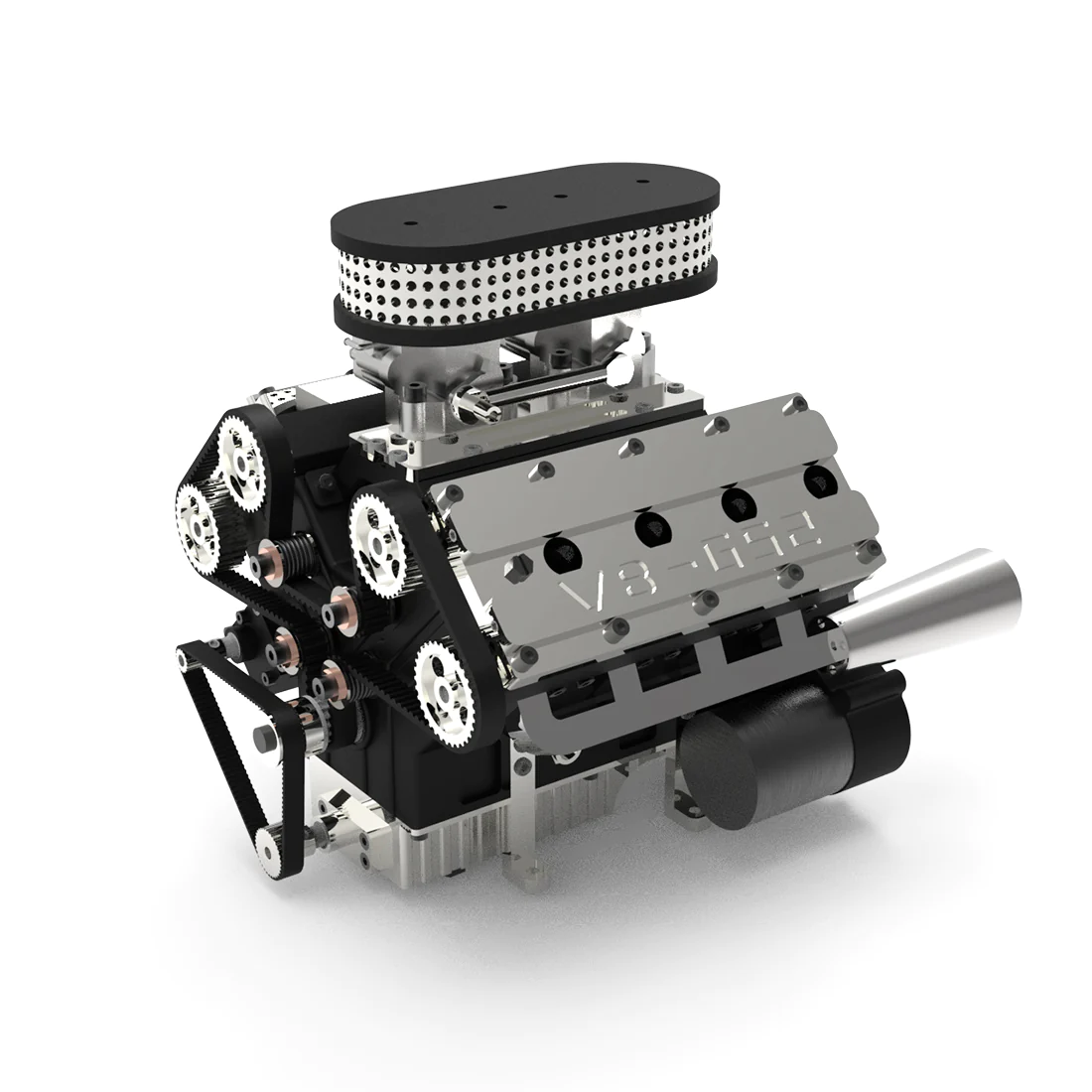

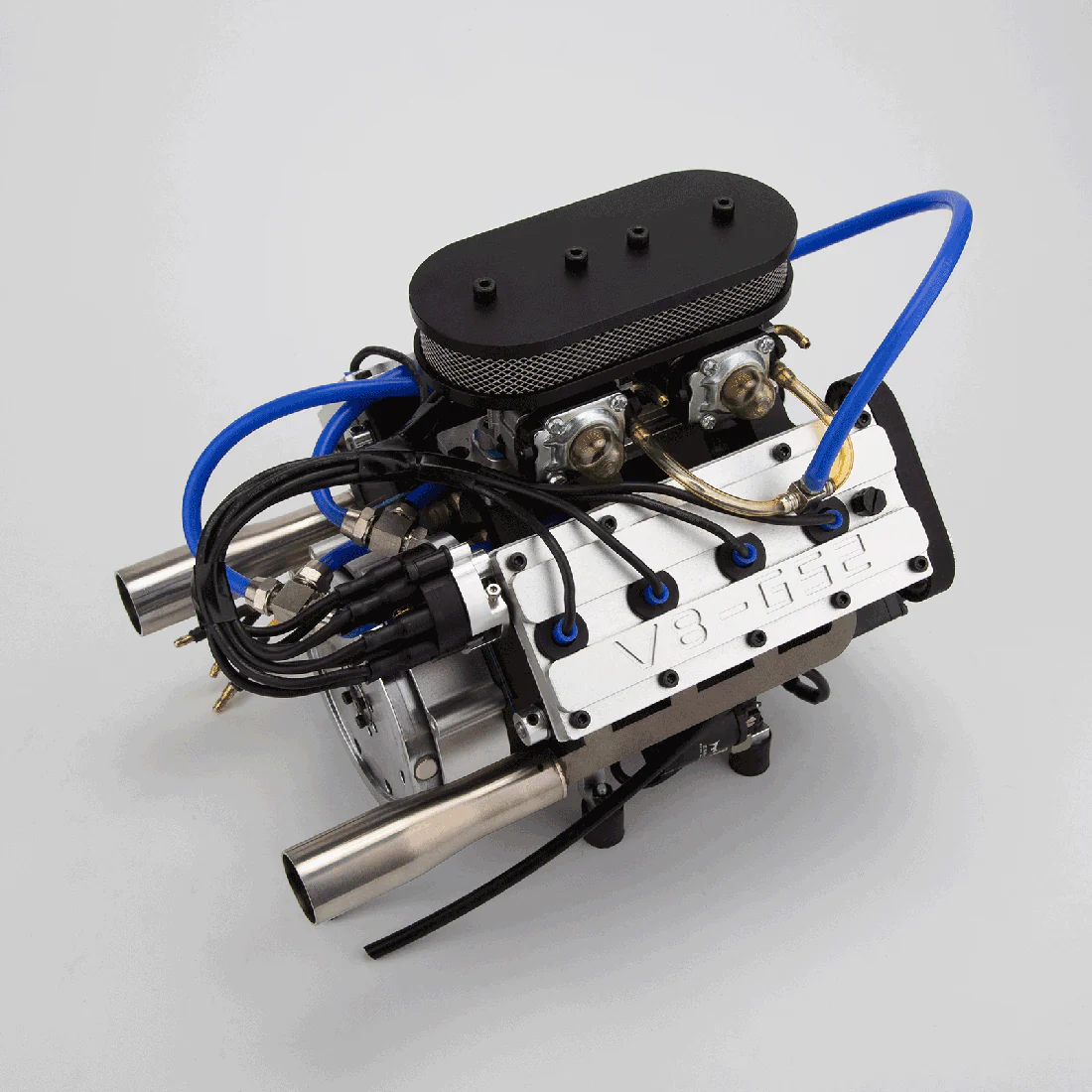

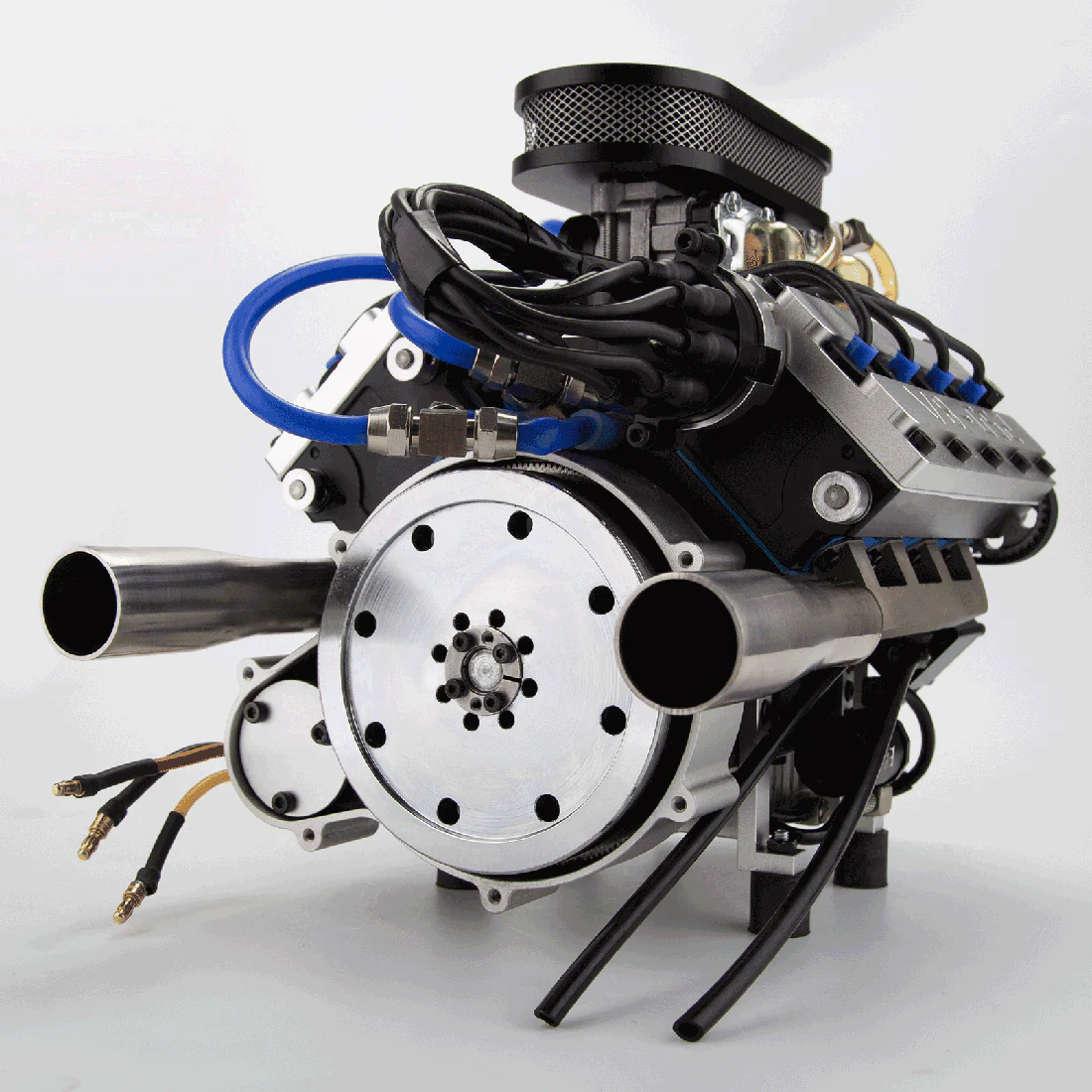

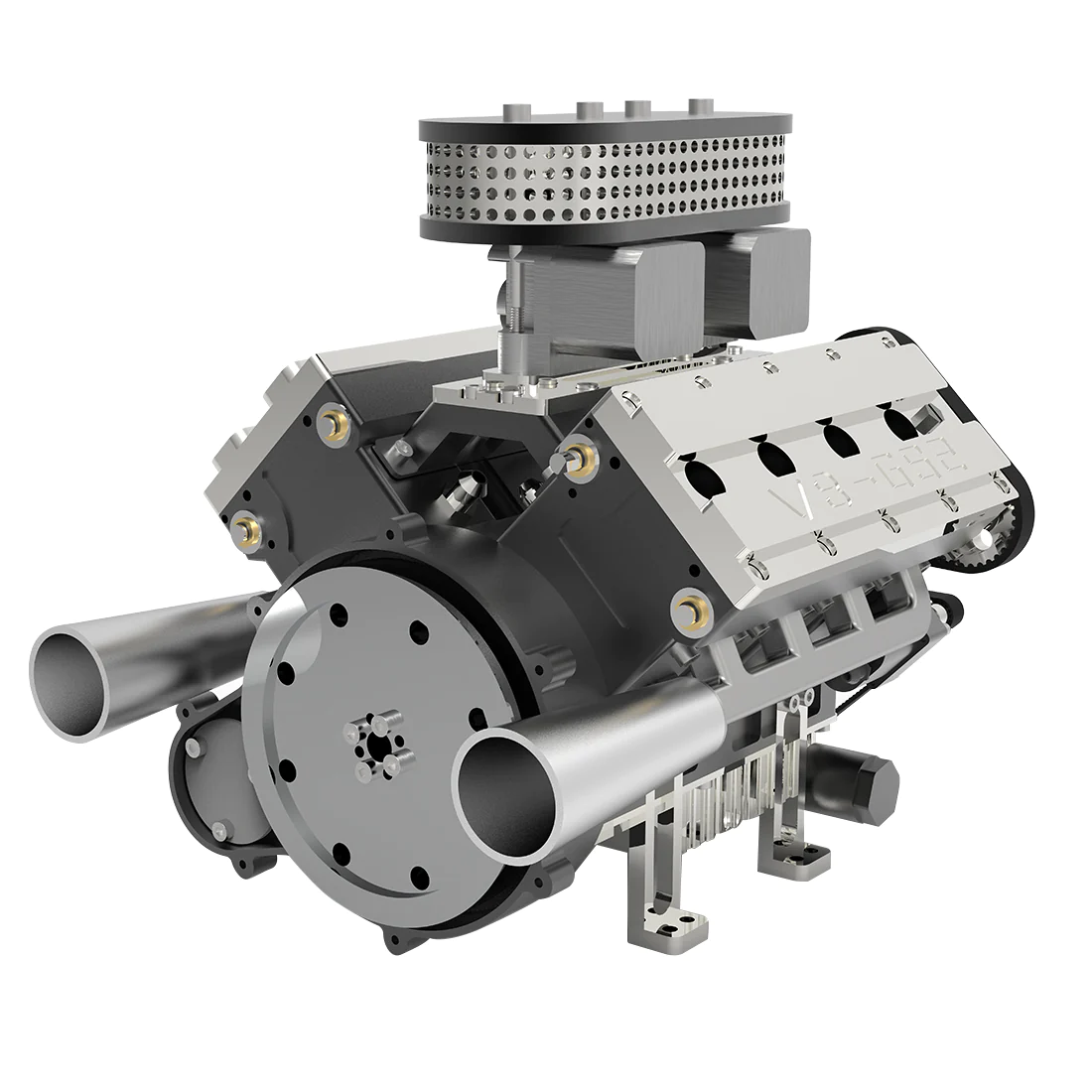

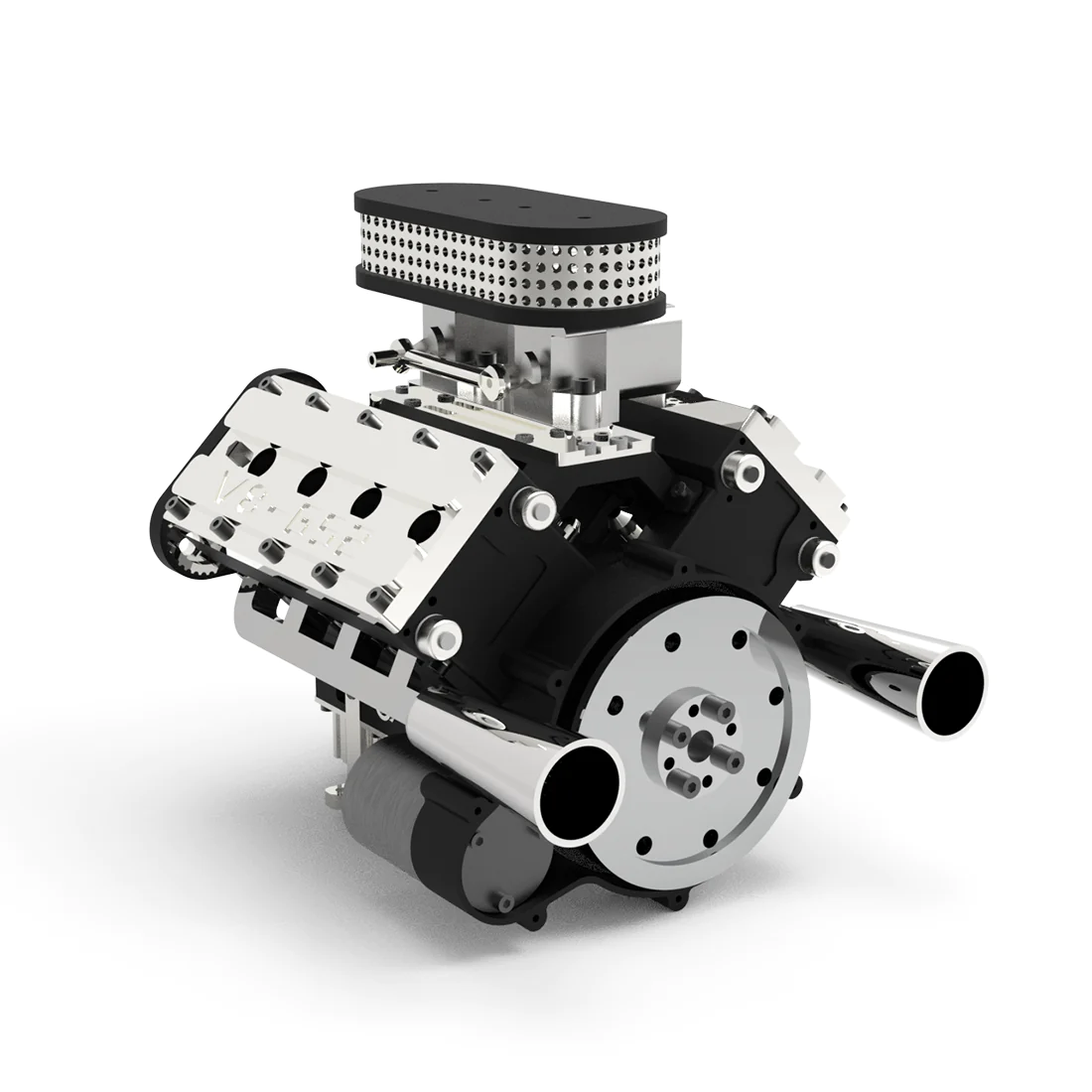

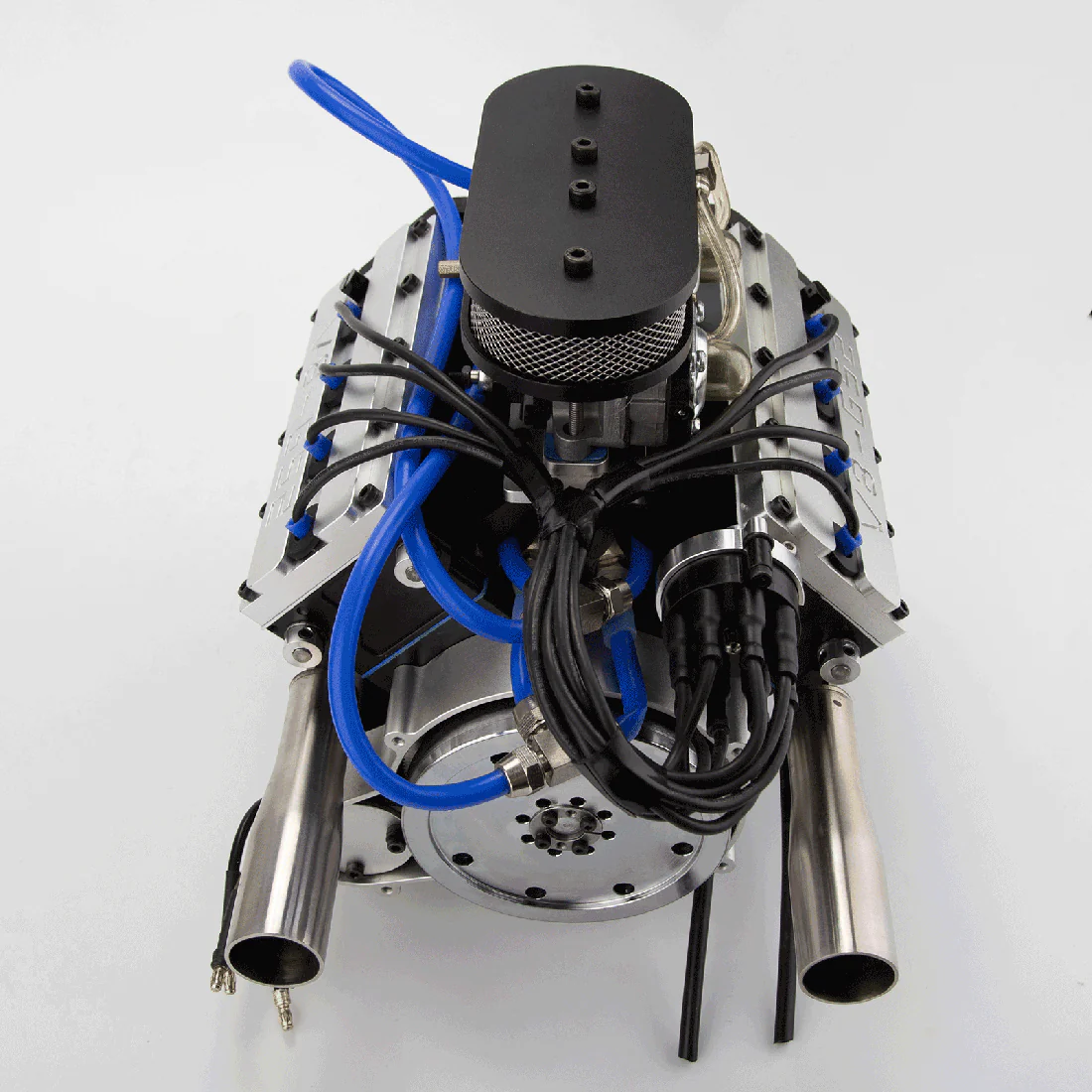

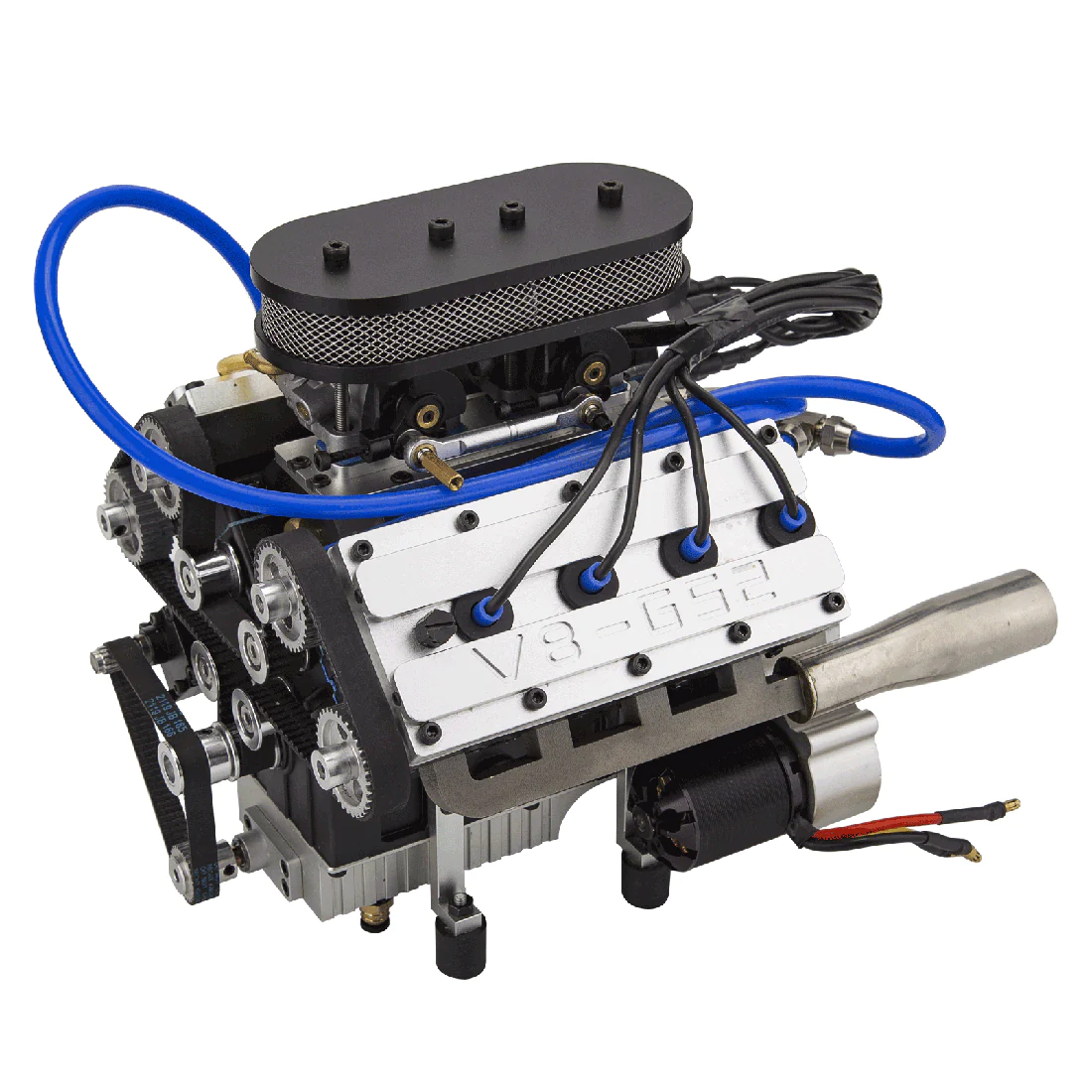

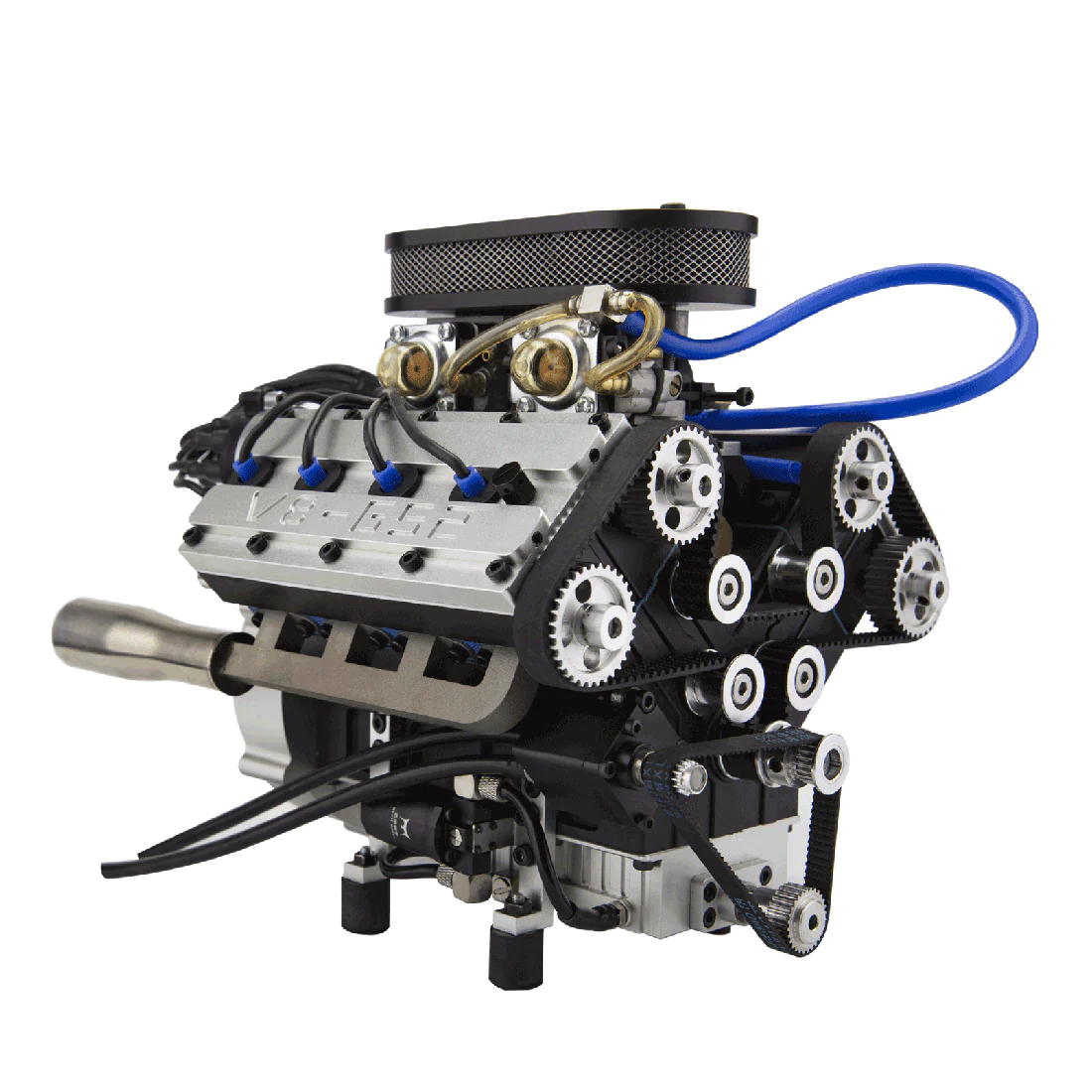

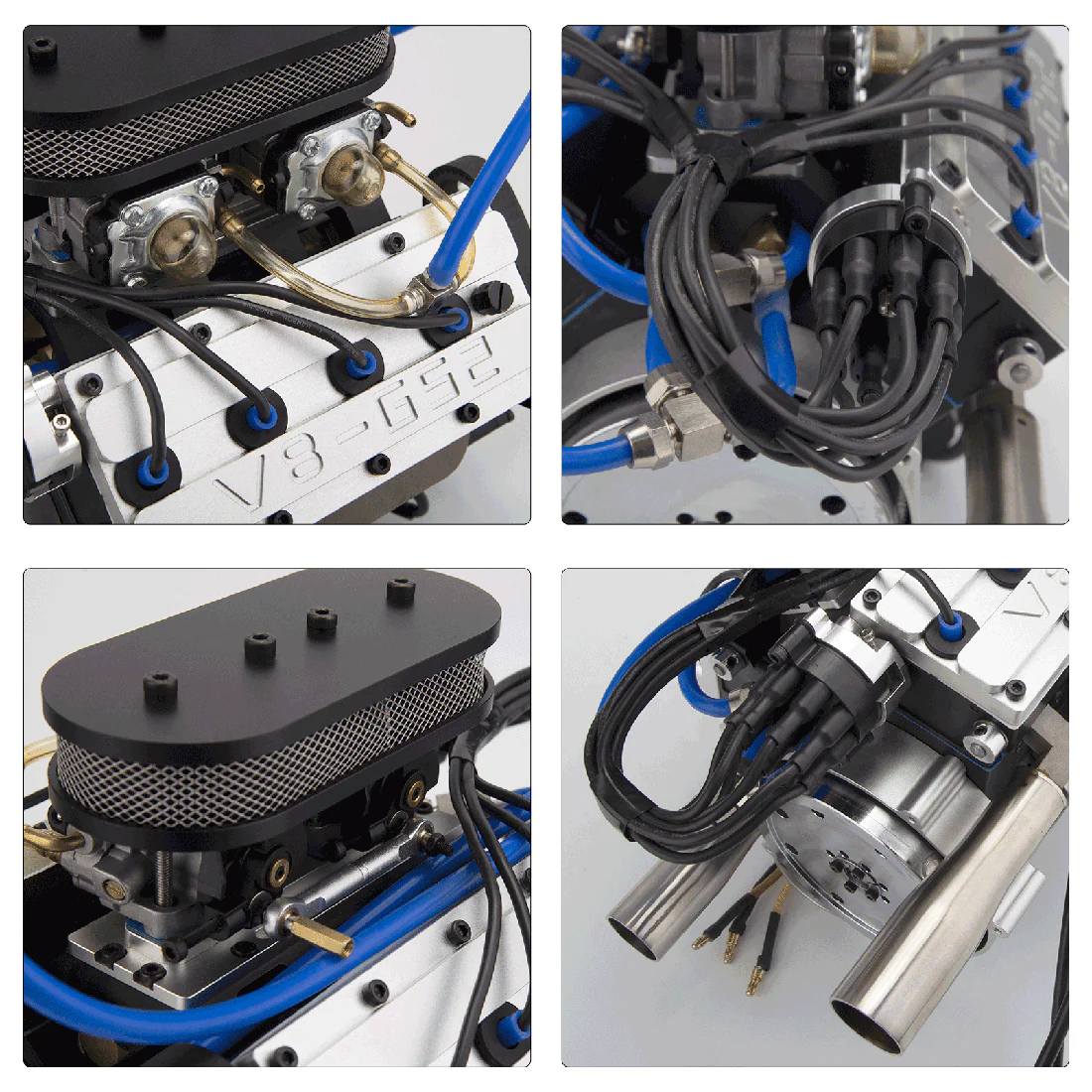

ENJOMOR V8 GS-V8 Working Scale Model Engine Gas 78CC DOHC 4 Stroke Water-cooled Pre-order

Features:

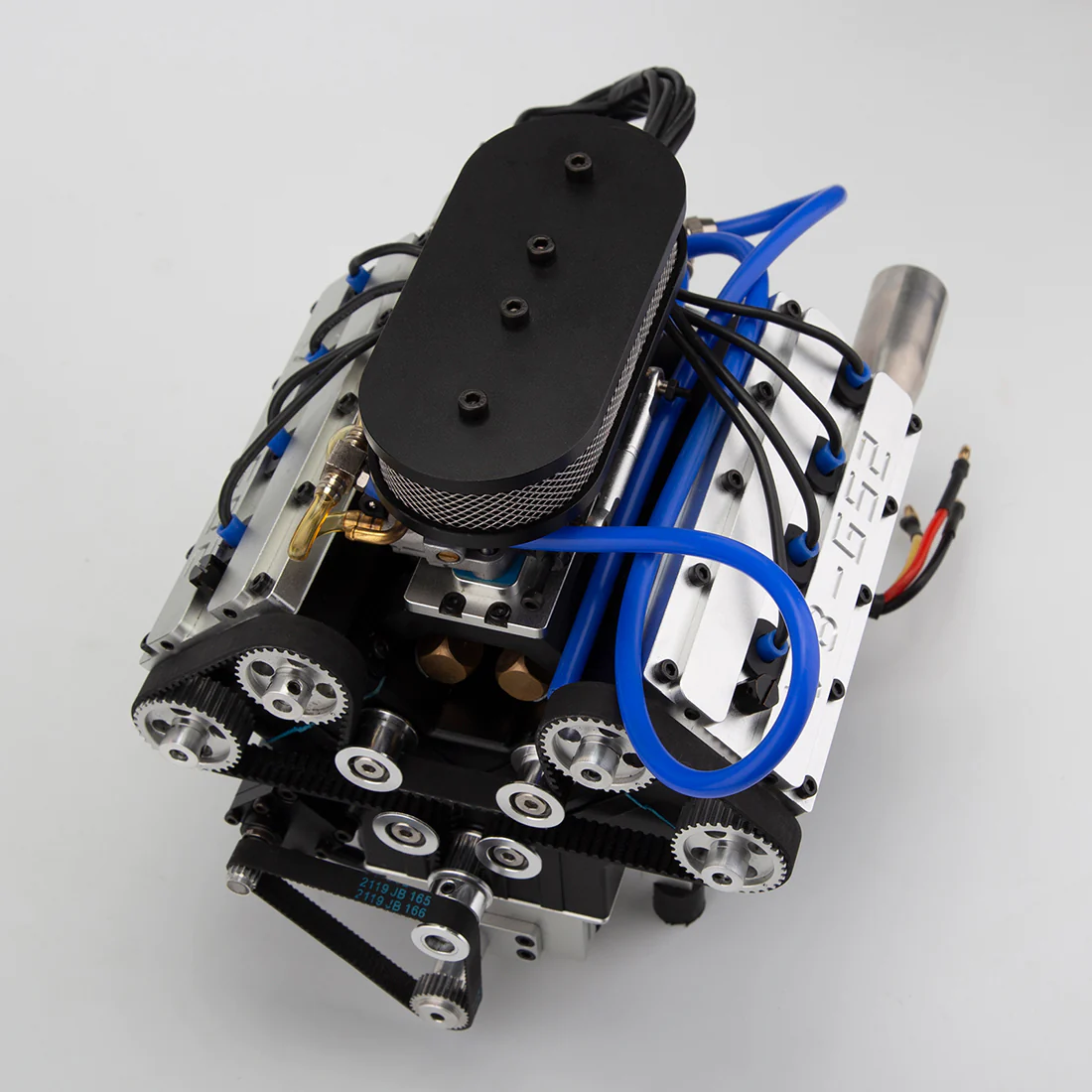

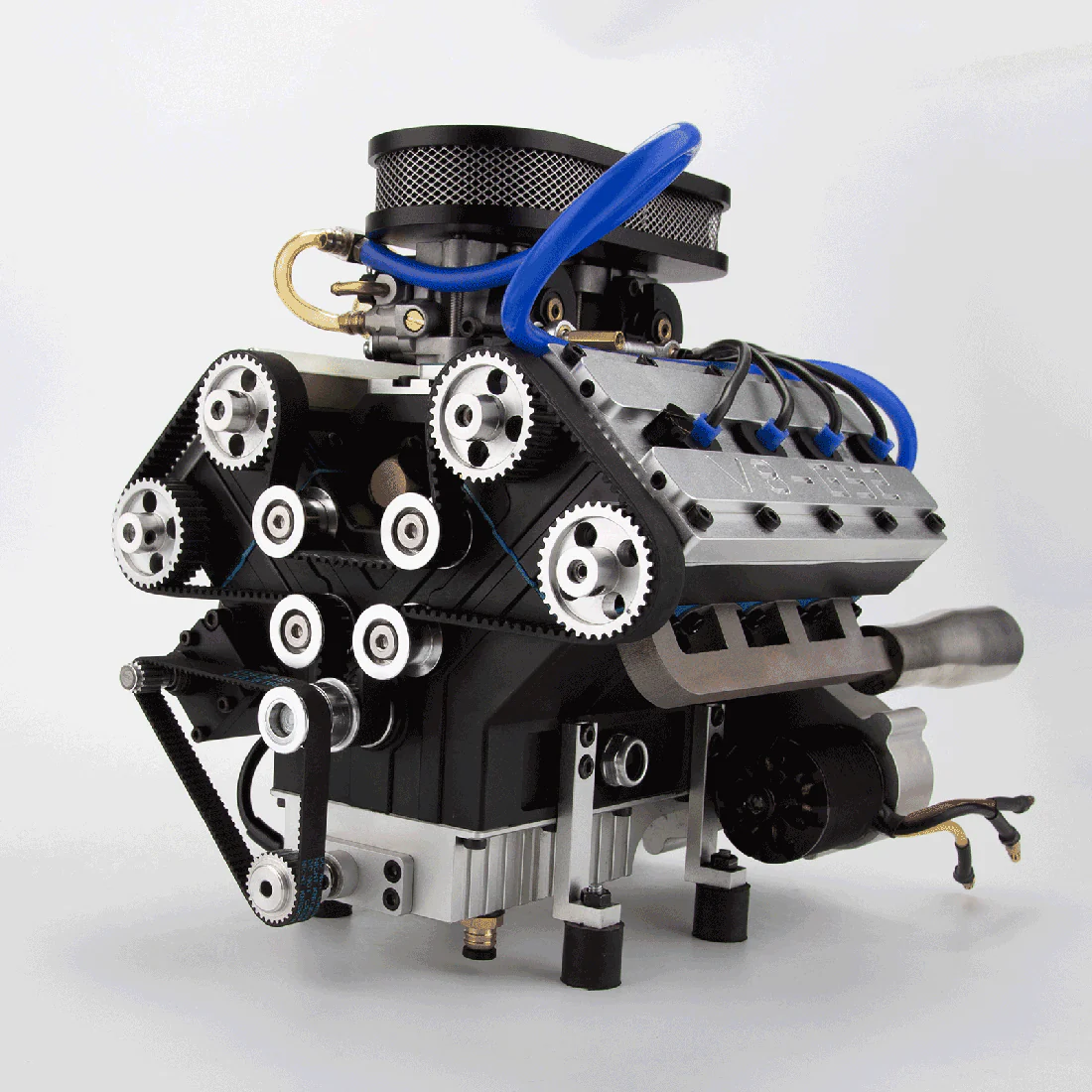

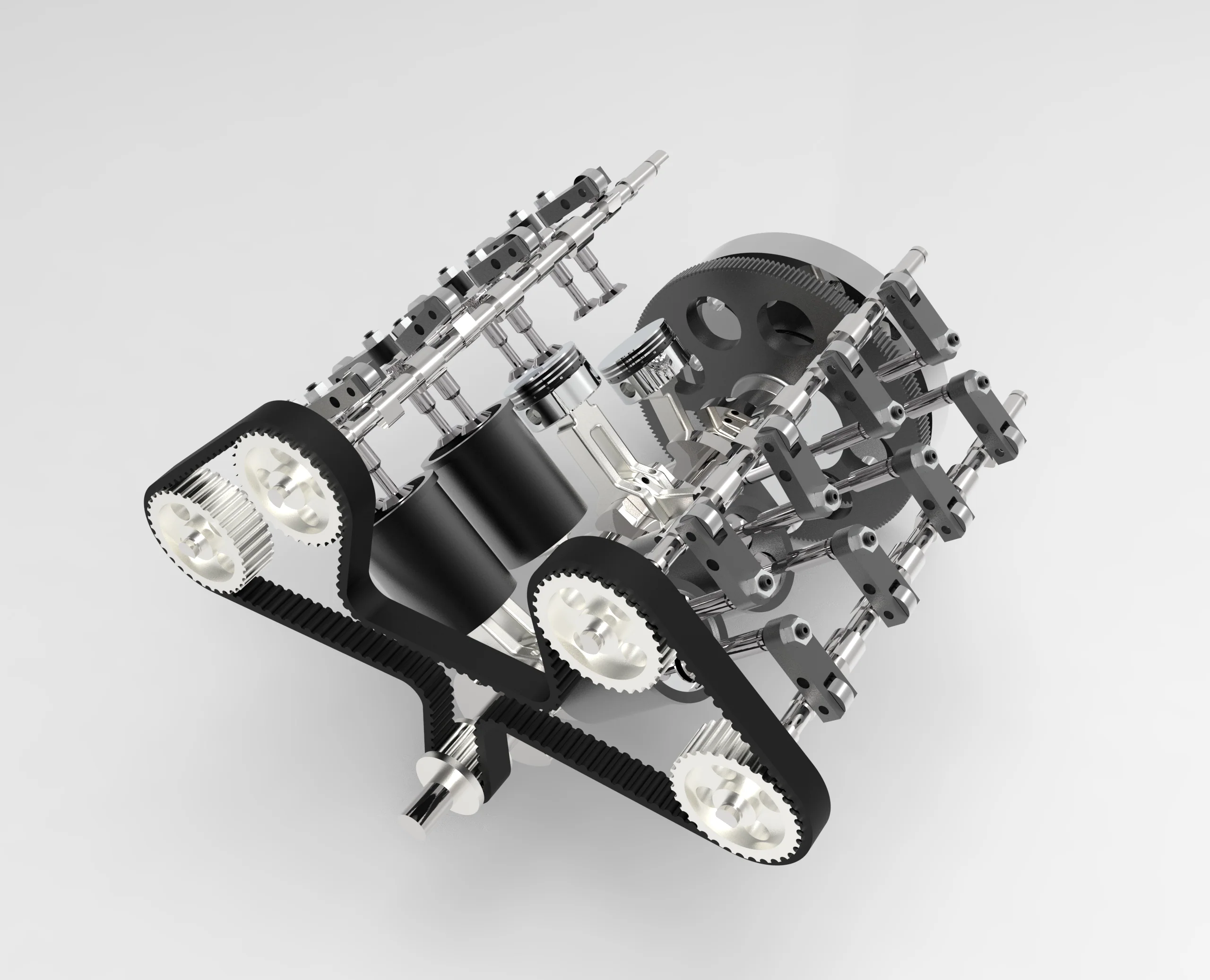

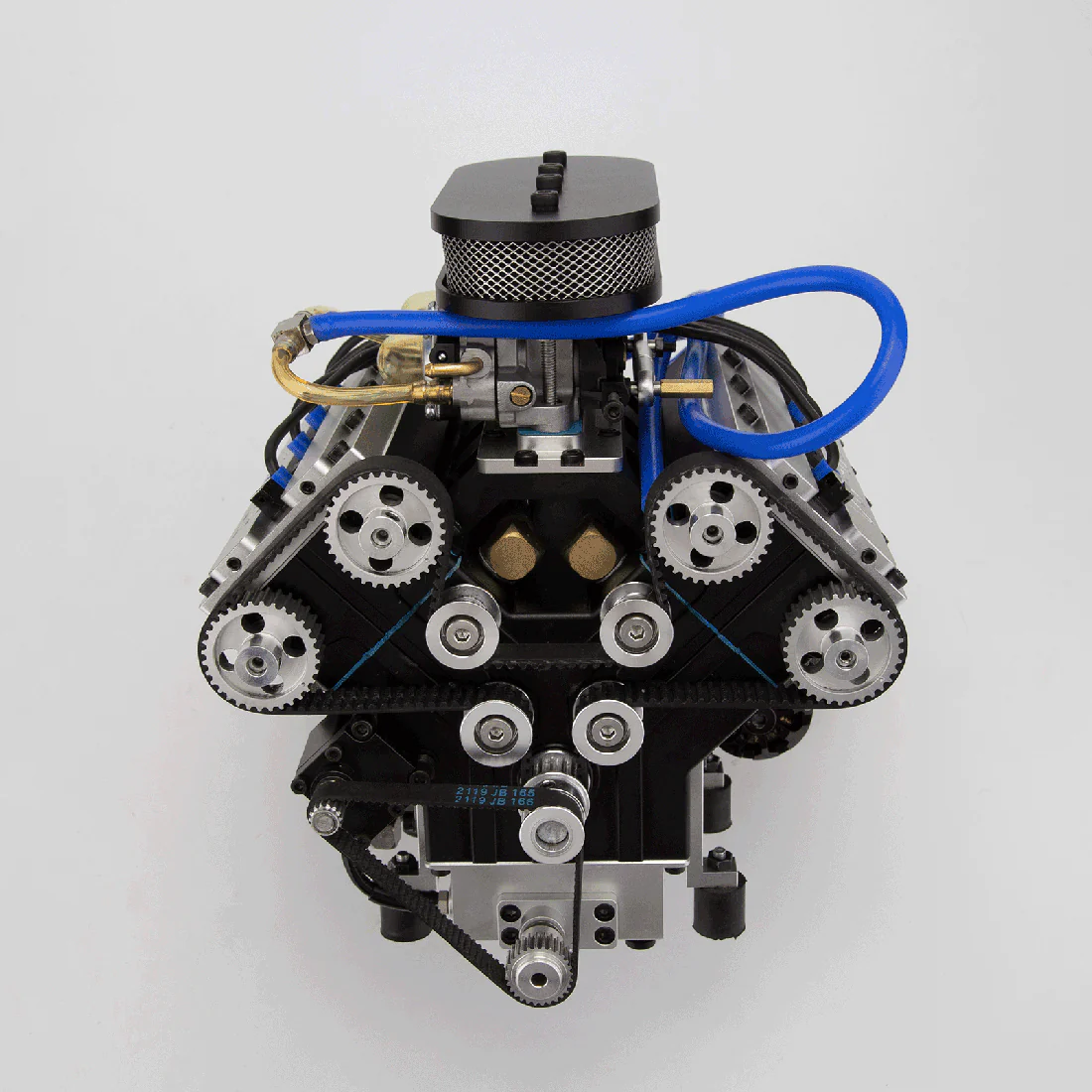

• Features the DOHC valve mechanism, exposed timing belt and perfect size & appearance for a high level of performance for extraordinary power.
• Independent Lubrication System: The oil pump pumps recyclable oil to the top CAM of the engine for lubrication.
• The side water-cooling pump provides effective heat dissipation, which helps extend the working time and service life of the engine.

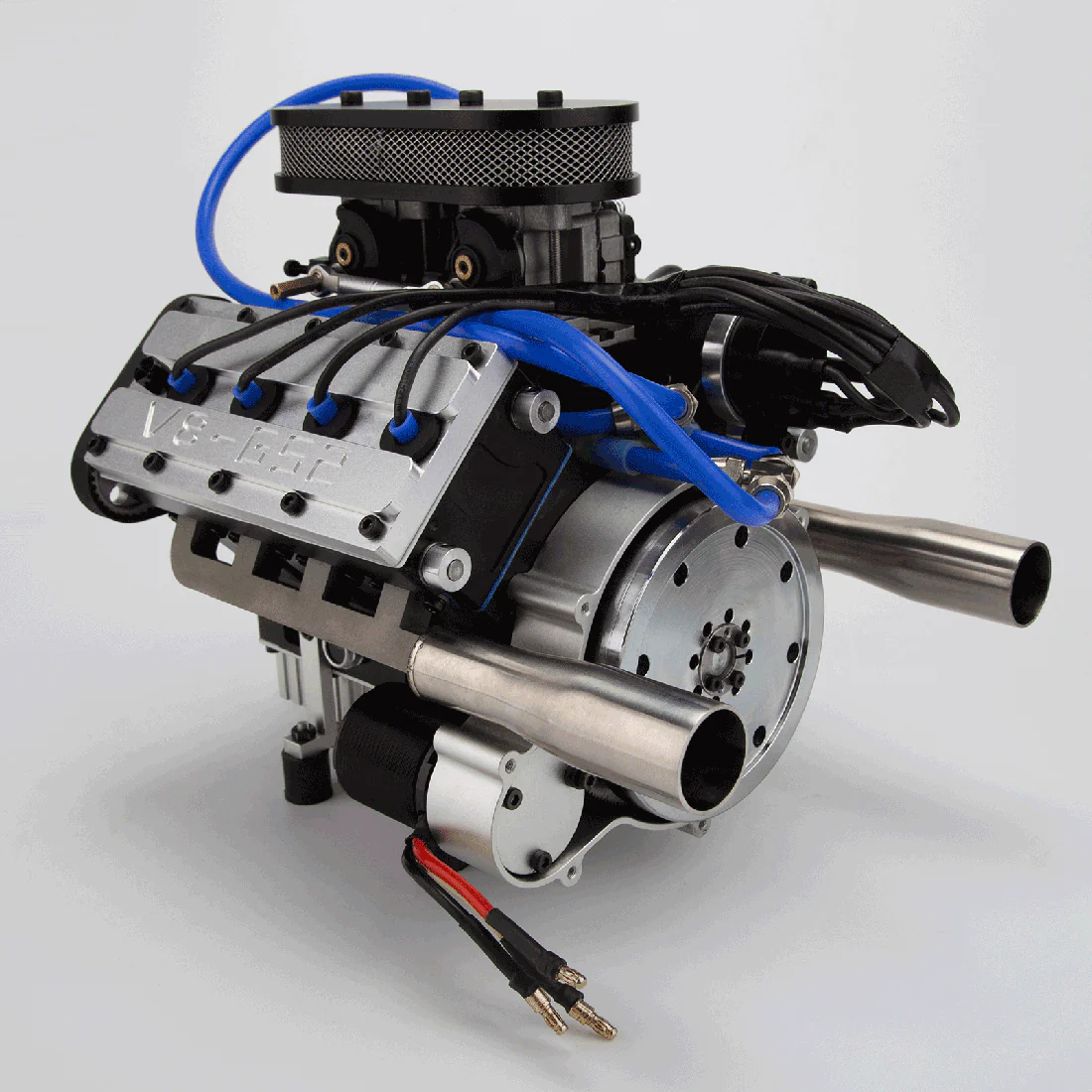

• Designed with the hall-type CDI pulse split ignition and 3548 brushless starter motor, the engine boasts one-key operation for added convenience.
• With the housing made of full aluminum CNC in precision manufacturing, the engine boasts the realistic appearance, integrated exhaust manifold and true engine sound.
• Adopts three piston rings (gas ring, taper ring&oil ring) and another oil ring made in 32 processes to ensure the compression force in the cylinder for higher combustion efficiency.

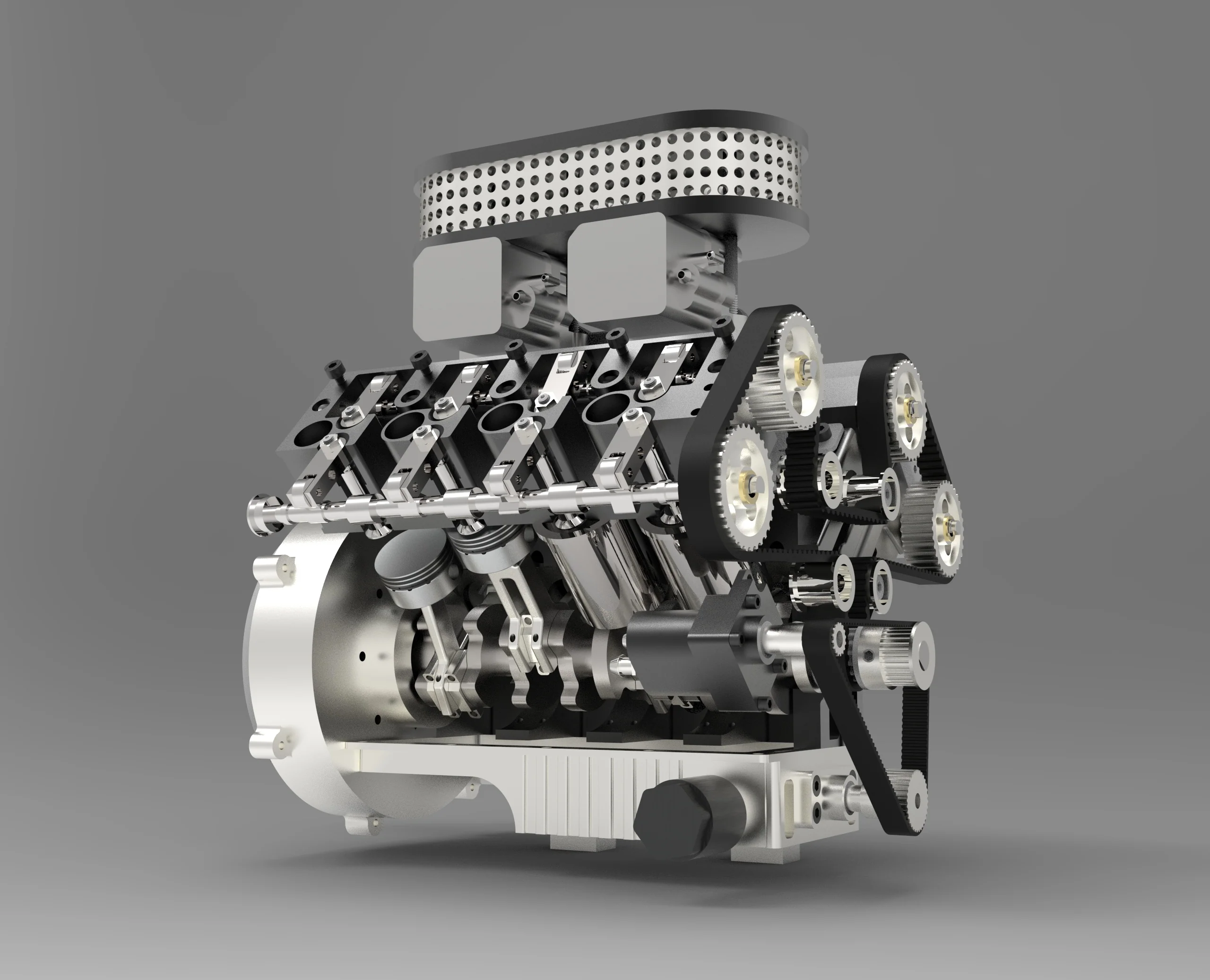

• Comes with the super hard piston cylinder liner and one-piece crankshaft with full bearing support (three big bearings in the middle, small bearings at both ends) for outstanding strength and durability.
• Designed for a wide range of applications, the engine can be used to refit large-scale model cars, boats, and tanks, and is also suitable as a desktop DIY engine model to play.
• The excellent reliability and working performance of the amazing engine model make it a popular mechanical artifact among high-end collector engine users and it will get more praise from model engine enthusiasts.
• The following additional ignition and water cooling parts are required for the engine model: one cdi ignition, supply voltage of 10-12V, one 80A ESC, supply voltage of 38-48V (10-12S Battery), one fuel tank, one fuel pipe, one cooling fan and one water cooling pipe.

Specifications:

• Material: Metal
• Brand: ENJOMOR
• Item NO.: GS-V8.
• Status: Finished Version
• Type: Gasoline Internal Combustion Engine
• Valve: DOHC
• Displacement: 78cc
• Cylinder: V-shaped Eight-cylinder
• Stroke: Four-stroke
• Bore: 22.9mm
• Stroke: 20.00mm
• Output Shaft Diameter: 10mm
• Compression Ratio: 1/14
• Maximum Speed: 9000rpm
• Maximum Power: 3.8kw
• Cooling: Water-cooling
• Lubrication: Independent Lubrication (Oil Pump Lubrication)
• Starting: Electric Starting (with Brushless Starter Motor)
• Ignition: CDI igniter & Distributor
• Spark Plug Type: ME8 Spark Plug with 1/4-32 Thread
• Ignition Voltage: 10-12V
• Starting Power: 24-48V Battery (Not Included)
• Fuel: 95# Gasoline
• Oil: 20W and above, Oil Volume: 50ml
• Age: 18+
• Product Dimensions: 13.6 x 17.9 x 13.8cm
• Product Weight: 4500g
• Package Dimensions: 35 x 20 x 20cm
• Package Weight: 5500g
• Packing: Box

Package List:

• 1 * ENJOMOR V8
• 8* spark Plugs
