Description

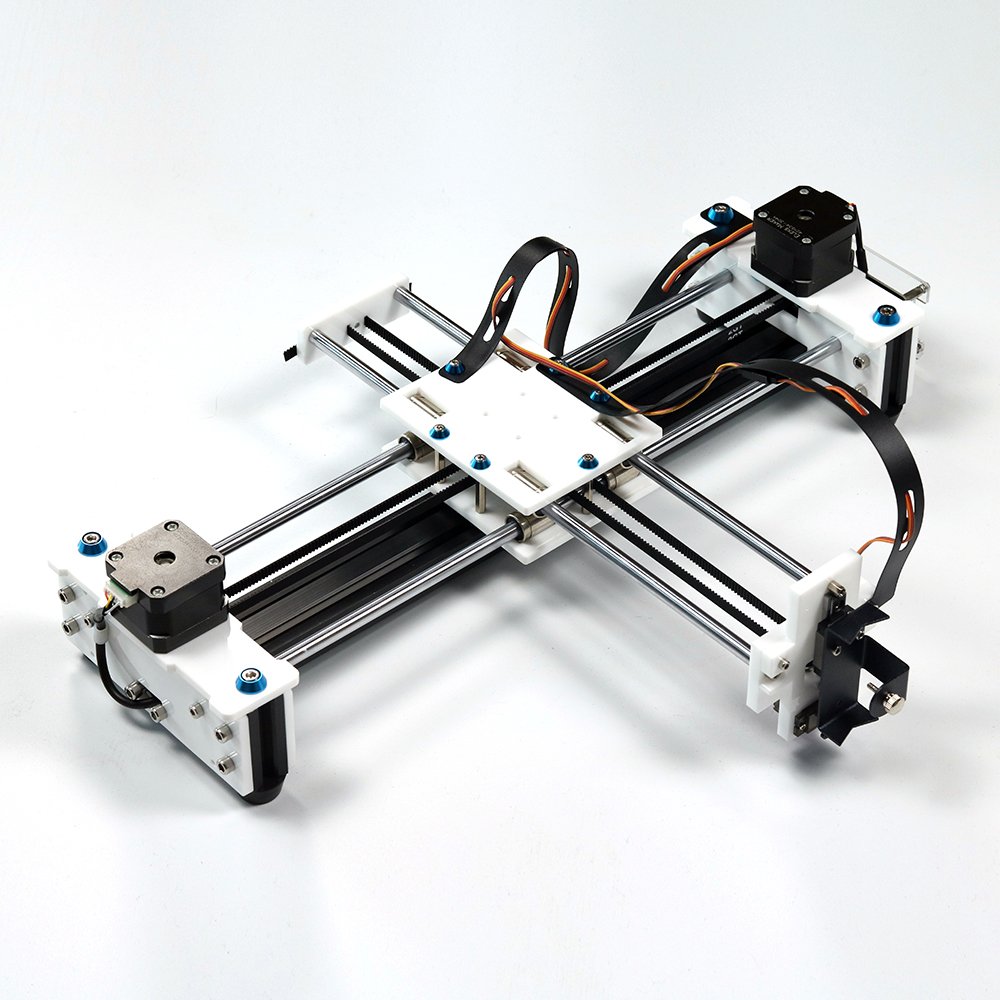

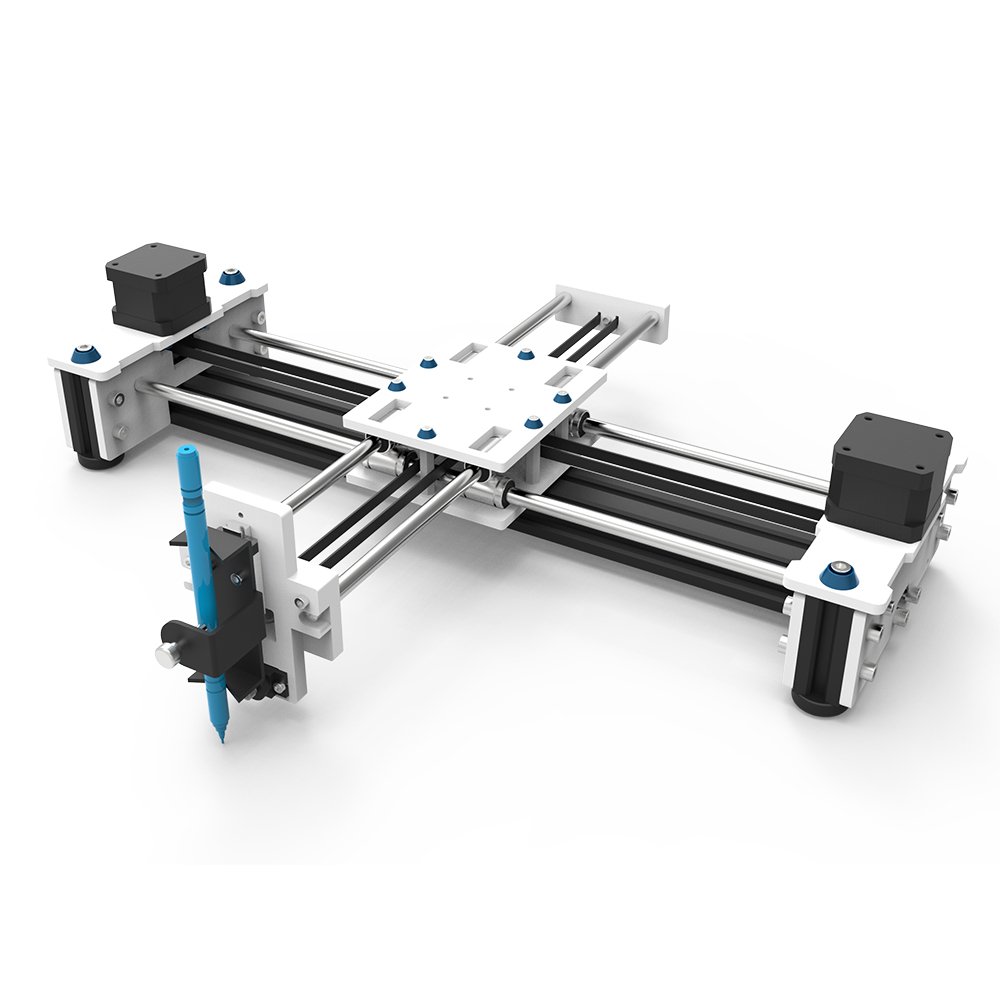

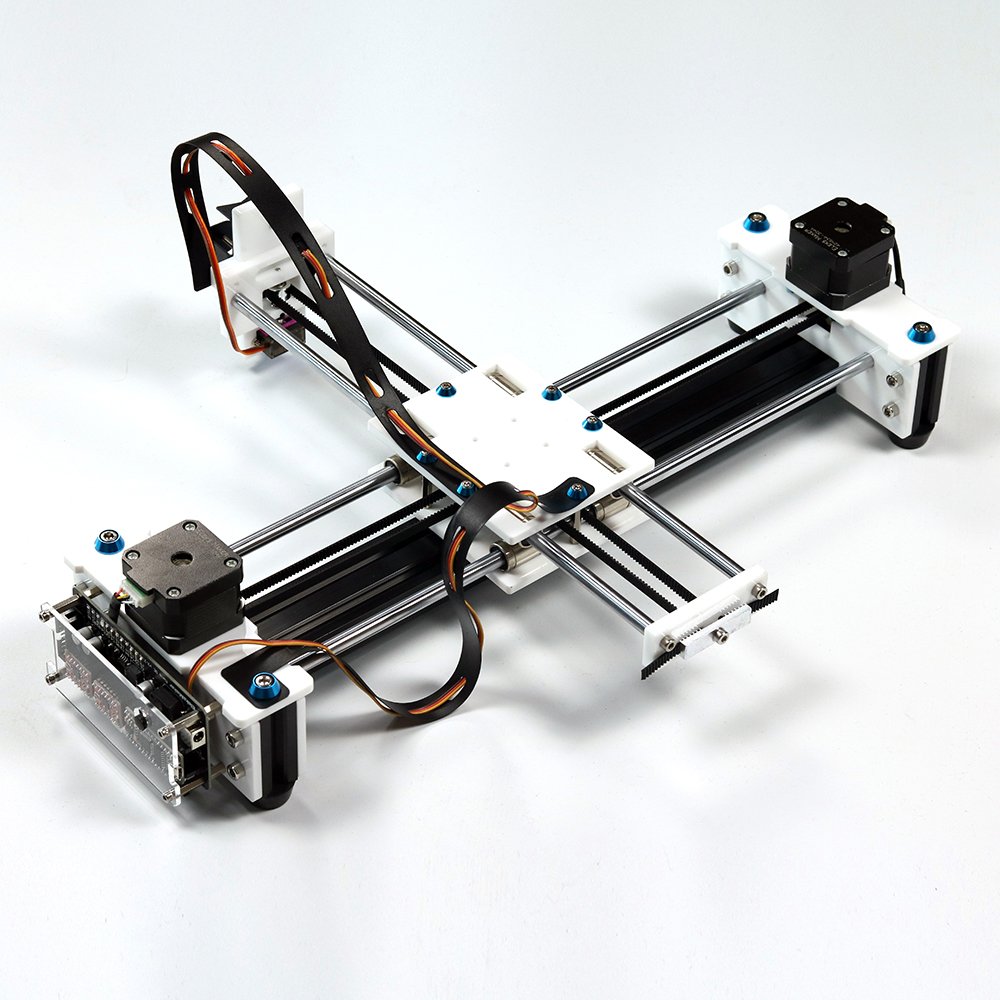

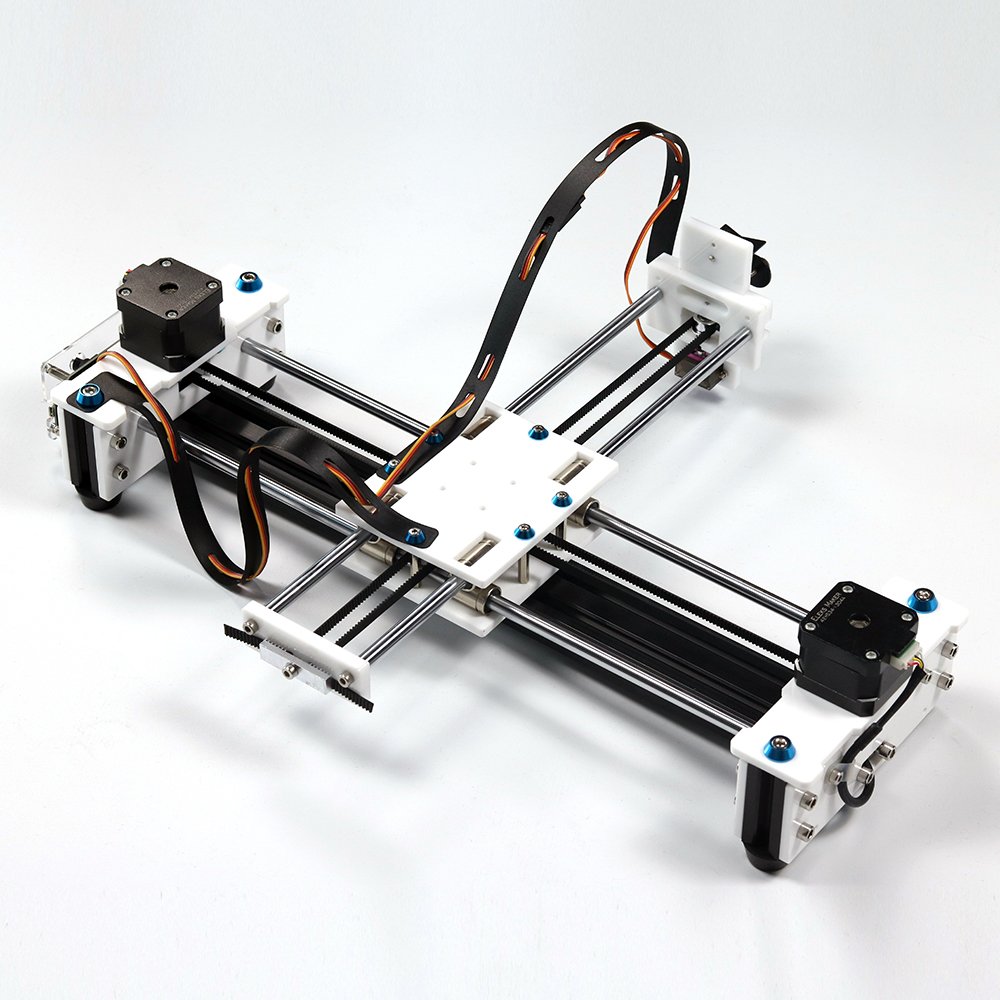

Writing Robot Drawing | XY Plotter Pen Drawing | Drawing Machine
Note:
① Please refer to the Wire Connection Diagram and connect the servo wire order as the picture shown: CLICK HERE
① Please refer to the Wire Connection Diagram and connect the servo wire order as the picture shown: CLICK HERE
② Please select the eleksdraw writing robot machine in EleksCam software.
③ Please Set the ON/OFF number to 25, NOT 1000.
Please note them. Otherwise, it might damage the servo. Please make sure you know before you bid. Thank you.
③ Please Set the ON/OFF number to 25, NOT 1000.
Please note them. Otherwise, it might damage the servo. Please make sure you know before you bid. Thank you.
Description:
This newest drawing robot will replace your hands to finish this works just by the fool-style open-source software (EleksCAM, Inkscape) controlled.
It is an extremely versatile machine, designed to serve a wide variety of every day and expert drawing and writing needs on almost any flat surface. It allows you to use your computer to produce writing that appears to be handmade, complete with the unmistakable appearance of using a real pen (as opposed to an inkjet or laser printer) to address an envelope or sign your name. And it does so with precision approaching that of a skilled artist, and — just as importantly — using an arm that never gets tired.Specifications:
This newest drawing robot will replace your hands to finish this works just by the fool-style open-source software (EleksCAM, Inkscape) controlled.
It is an extremely versatile machine, designed to serve a wide variety of every day and expert drawing and writing needs on almost any flat surface. It allows you to use your computer to produce writing that appears to be handmade, complete with the unmistakable appearance of using a real pen (as opposed to an inkjet or laser printer) to address an envelope or sign your name. And it does so with precision approaching that of a skilled artist, and — just as importantly — using an arm that never gets tired.Specifications:
| General Specification | |
| Brand | EleksMaker |
| Model | EleksDraw |
| Material | Acrylic Plate, Aluminum Rod |
| Package Size | 50x40x13cm / 19.7×15.7×5.1inch (L*W*H) |
| Assembled Product Size | 45x37x10cm / 17.7×14.6×3.9inch (L*W*H) |
| Package Weight | 3.5kg |
| Certifications | CE, FCC, FDA (Please contact us if you need them) |
| Technical Parameters | |
| Laser Module Compatibility | Can Fit up to 2500mW Laser Module (EleksMaker Original Laser Module Recomended.) |

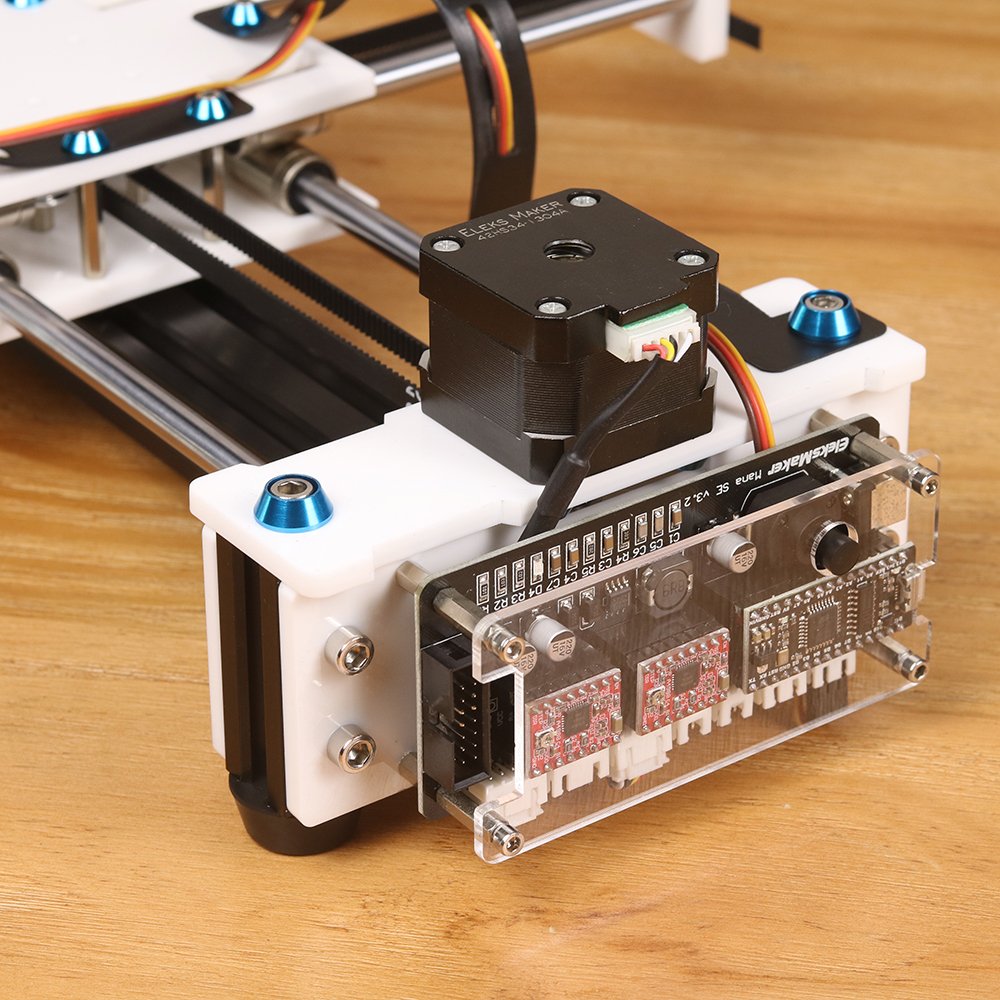

| Control Board | Mana SE |
| Communication Port | MircoUSB |
| Stepper Motor | 42H34S-1304A |
| Power Input | AC100-240V |
| Working Voltage | DC 12V |
| Working Current | 5A |
| System Support | Window XP, WIN7/8/10 |
| Control Software System | EleksCAM, InkSpace |
| Working Accuracy | 0.01mm |
| Continuous Working Time | 10 Hours |
| Working Area | 28x20cm / 11.0×7.9 inch (maximum) |
Tips:
1. Machine Assembly & Wire Connection: CLICK HERE
2. Official Software EleksCam Download & Instructions: CLICK HERE
3. Eleksdraw can compatible with laser engraving mode, you can add a laser module instead of the pen (up to 2500mw, while 5500mW laser module is too large in size to be installed). We recommend the EleksMaker Original Laser Module, please check it: 500mW Laser Module, 2500mW Laser Module.
1. Machine Assembly & Wire Connection: CLICK HERE
2. Official Software EleksCam Download & Instructions: CLICK HERE
3. Eleksdraw can compatible with laser engraving mode, you can add a laser module instead of the pen (up to 2500mw, while 5500mW laser module is too large in size to be installed). We recommend the EleksMaker Original Laser Module, please check it: 500mW Laser Module, 2500mW Laser Module.
Features:
● EleksMaker EleksDraw DIY mini 2 axes drawing robot machine

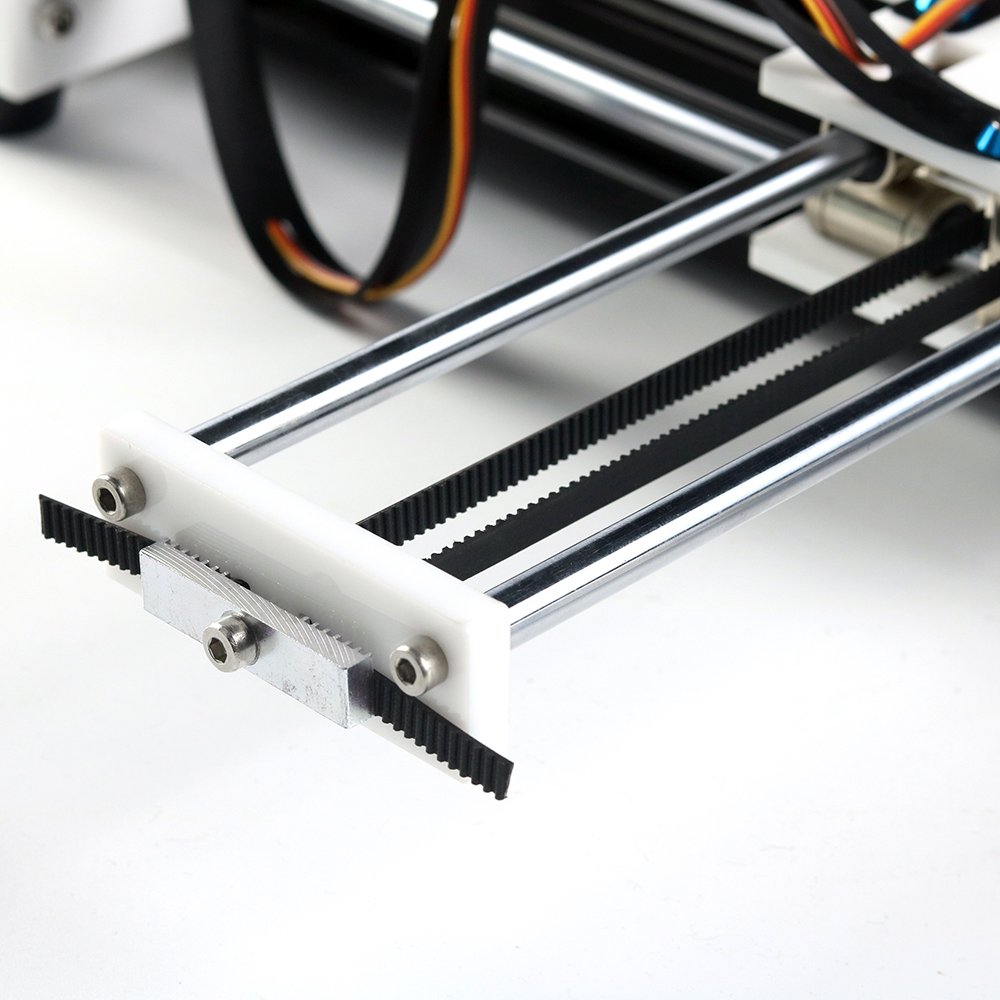

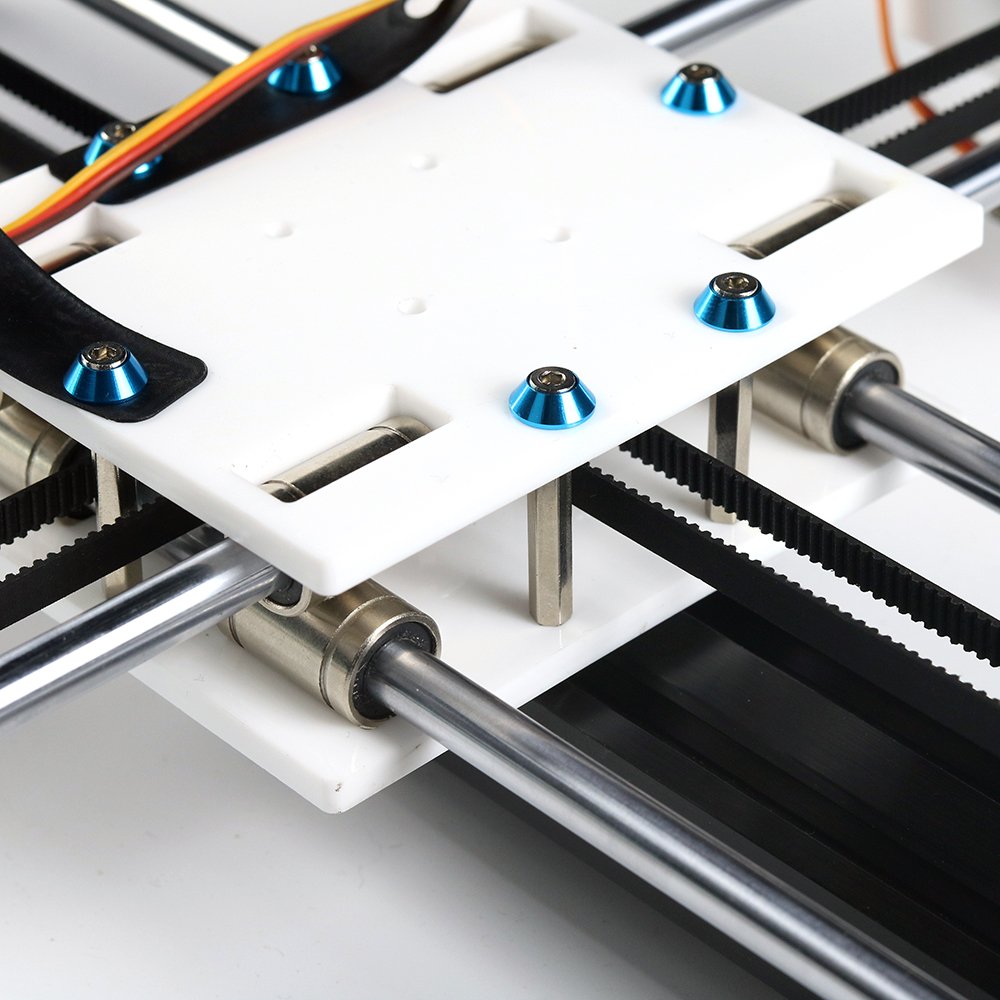

● XY structure with stepper motor driving, high accuracy up to 0.1mm
● Large working stroke up to 28 x 20cm
● Comes tested, but without assembled
● This kind of the writing robot drawing machine without laser module, you can equip laser module with the machine by yourselves.
● This kind of the writing robot drawing machine without laser module, you can equip laser module with the machine by yourselves.
Applications:
● Formal invitations
● Place cards for formal dining
● Signing diplomas and other certificates
● Addressing envelopes and boxes
● Decorating lunch bags
● Computer-generated artwork
● Technical drawing
● Writing signatures
Package Included:
1 x EleksDraw Drawing Machine (without Laser Module)
1 x Power Adapter
1 x USB Cable
1 x Plug Adapter
