Description

Fast Response Digital Interactive Camera for Whiteboards.  Size from 30-200 inches

Portable Interactive Whiteboard WB2700

Simple and easy installation method. Portable Interactive Whiteboard WB2700 makes the user’s investment and maintenance’s costs down to the minimum. This interactive teaching system transforms any standard dry wipe whiteboard, flat surface or wall into an interactive whiteboard.

Specifications:

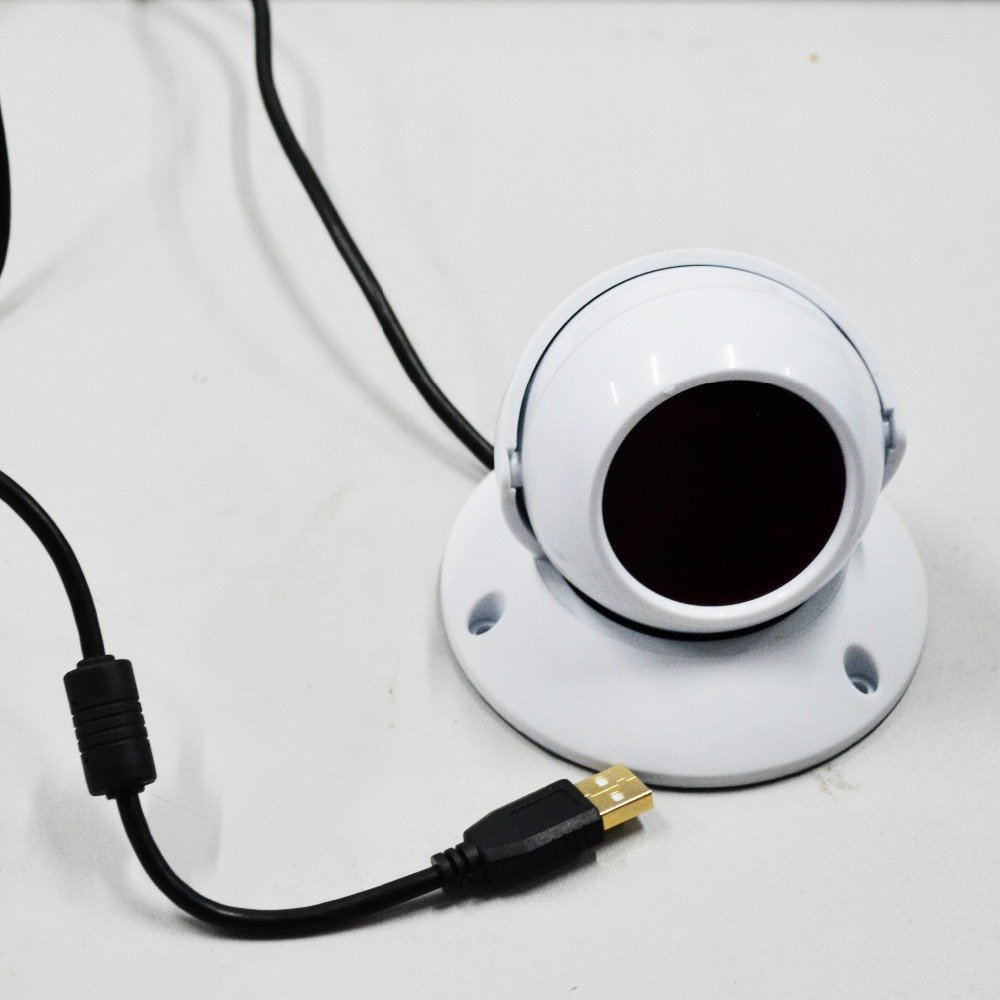

Signal Receiver
Movement Detection                                                Infrared
Active Area (max projection size)                            150 inch diagonal
Active Area (horizontal angle)                                  33 +/- 2 degrees
Active Area (vertical angle)                                      0-30 degrees
Calibration Technology                                             Infrared Positioning
Active Distance (from projection screen)                 1.5 ¨C 5 m
Connectivity Interface                                              1 x USB Cable (connection distance up to 20 m)
Power Requirement                                                 4.5 ¨C 9 W (from USB port)
Power Consumption                                                 < 1.5 W
Weight                                                                      140 g

Extendable Pointer
Movement Detection Technology                             LED Light
Power Requirement                                                 3 V CR12 3A x 2
Trigger methods of pointer                                       Button
Pen Body Weight                                                     85g (with battery)
Pointer Extendable Length                                      34.5-67.6cm (length); 1.0-1.3cm (diameter)
Net Weight                                                               61g

Stylus E-Pen
Movement Detection Technology                             LED Light
Power Requirement                                                 3 V CR12 3A x 2
Pen Body Dimension                                               13.5cm (length); 1.0-2.0cm (diameter)
Pen Weight                                                               66g (with battery)
Net Weight                                                                42g

System Requirements
OS Required                    Microsoft Windows xp, vista , Win7, 8,10, Linux,Ubuntu, Debian
Processor Type                                                Intel Pentium or above
RAM Size                                                         128 MB
Min Hard Drive Space                                      30 MB

Recommend Installation distance：

WB2700                     Projection Ratio: 1.28

Projection Size(4:3)         Recommend Installation Distance

70 inch                               2200mm

80 inch                              2600mm

100 inch                            3200mm

120inch                             3800mm

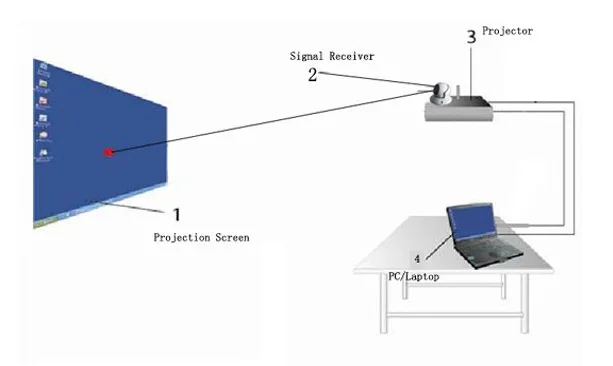

Various installation ways:

1). Put on the desk or projectors

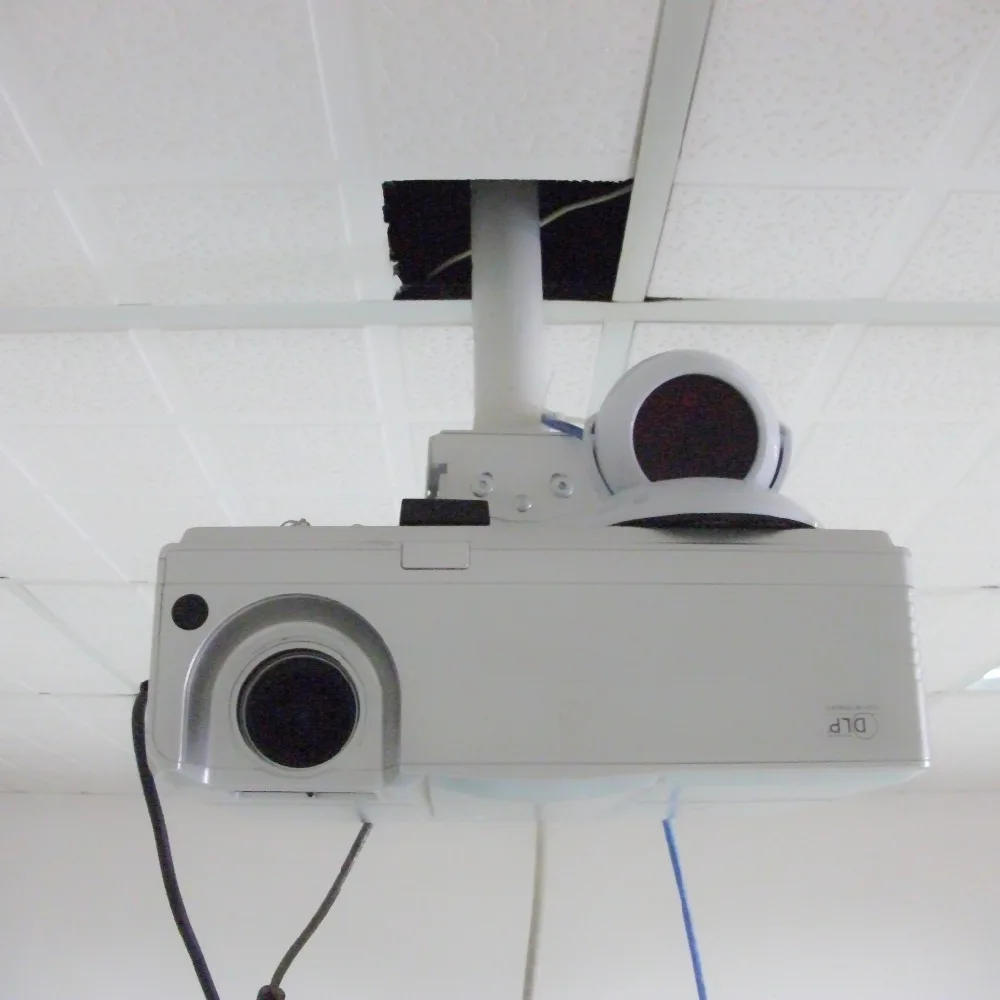

2).Ceiling-mount installation

WB2700 Features

Special Features with multi points touches

1. Technology

    Adopting infrared high speed tracking technology.

2. Various features:
     Strong adaptability
     Easy installation
     Supporting big screen to 150″
     Intense anti-interference
     Low cost performance.
3. Various installation ways:
     Put on the desk or projectors
     Ceiling-mount installation
4. USB Cable can be extended to 20M (MAX).
5. Modularization solution
     Enables other products to integrate interactive function easily.
6. New design pen
    excellent hand-feel and strong signal, which makes the writing closest to the hand-writing.
     Tailor-made pen point
     Guarantees the smoothing writing on any surface of any material, even the wall.
7. Retractable stylus
     Can reach to a large scale and meet different customers’ need.

8. Quickly disassembled
     The storage and maintenance are very easy.

 9. High response speed

10. High resolution
       Makes it have excellent operating precision and nearly perfect writing track.

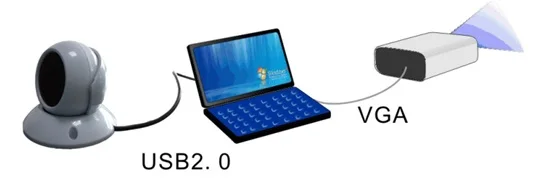

 11. Plug and Play
       USB interface
       HID form of communications,
       plug and play without extra power

 12. Strong adaptability

       simple and easy installation method. The portable interactive whiteboard makes the user’s investment and

       maintenance’s costs down to the minimum.

Applications:

Presentations and business review

Video conference and collaboration

Education and training

Exhibitions and conferences

Process control and plant monitoring

Military and government briefings

Customer retail sites

Gaming and entertainment

Hospitals

WB2700 parts and packaging details:

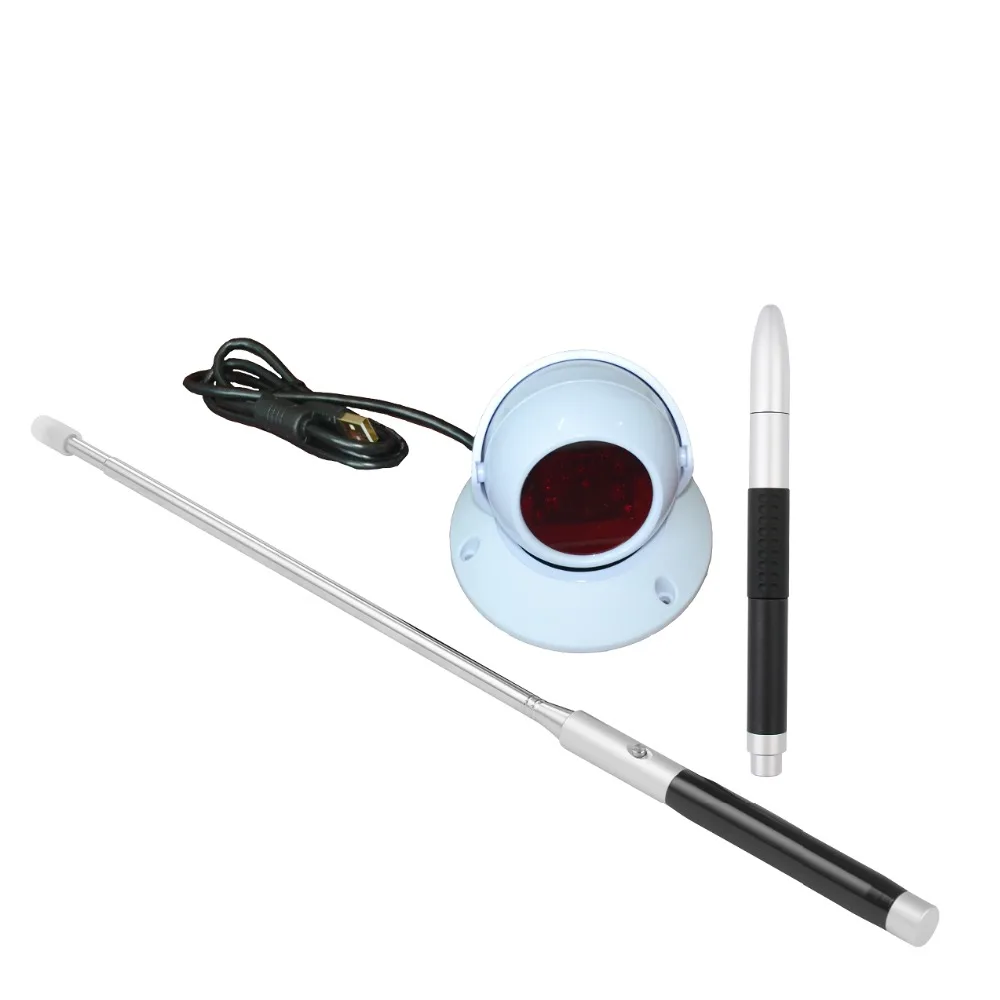

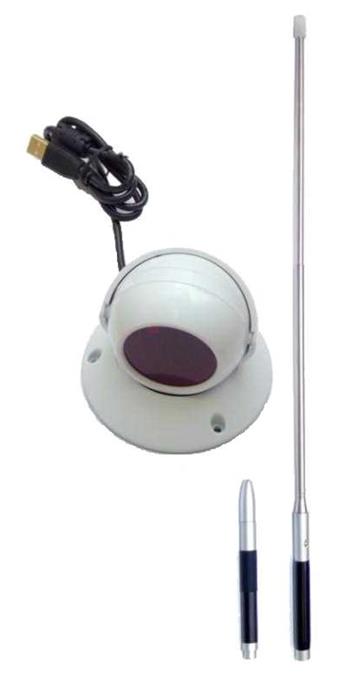

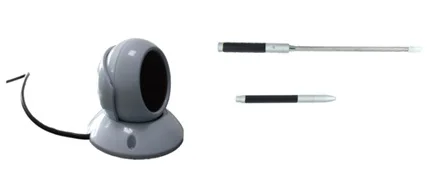

WB2700A standard equipped with two IR pens.
