CNC Hybrid Driver | Closed Loop Servo | Stepper Motor
Description:

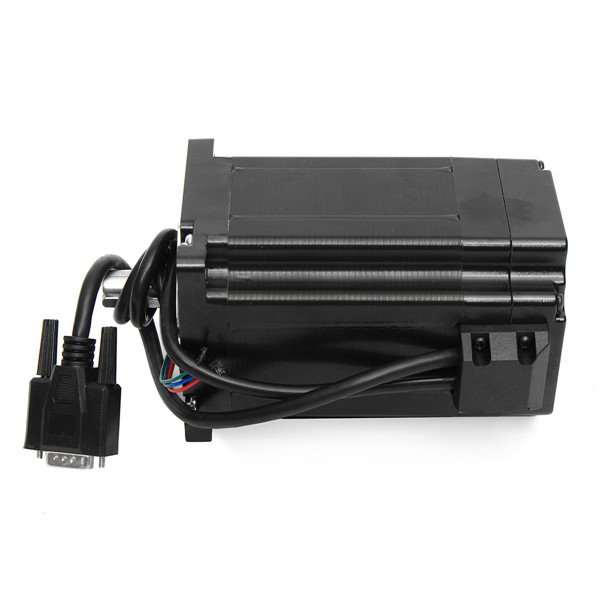

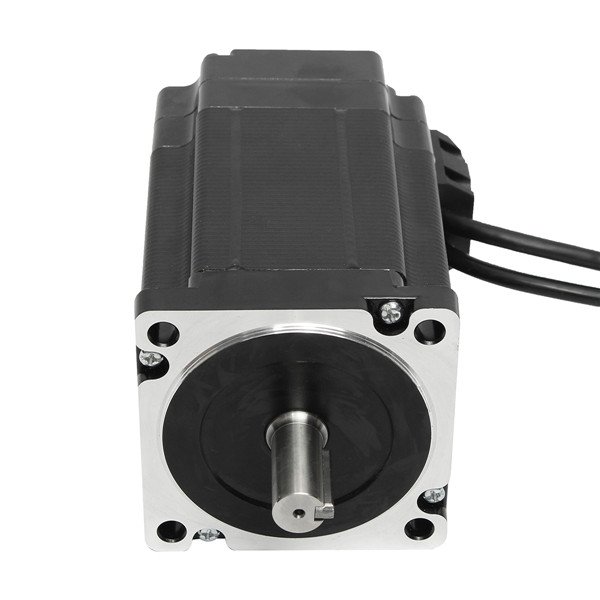

CNC HSS86 Hybrid Driver with Closed Loop Servo Stepper Motor 8.5N.m
Specification:
Model: 86HSE8N-BC38

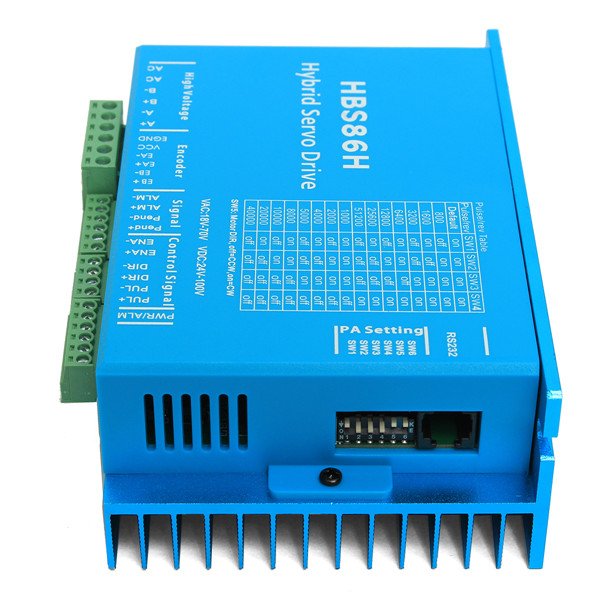

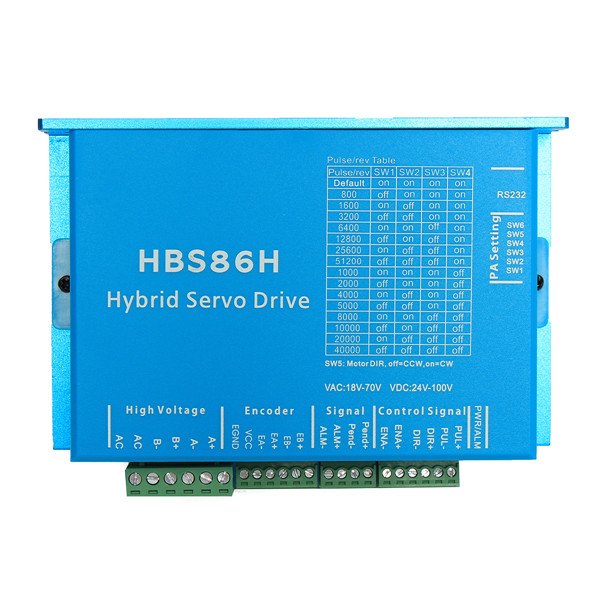

Drive: HSS86
VAC: 18V-70V
VDC: 24V-100V
Current: 6A
Torque: 8.5N.m
Rated Speed: 1000rpm
Encoder Leads
EB+:yellow EB-:green EA+:black EA-:blue VCC:red EGND:white
Wiring
Red:A+ Green:A- Yellow:B+ Blue:B-
Features:
1. Low heat (static, the current is almost zero, no heat).
2. Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping CNC Hybrid Driver motor troubled low-frequency resonance has a very good resistance).
3. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine /
winding machine / placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
4. Large torque output in some cases can simplify the complexity of the machine.

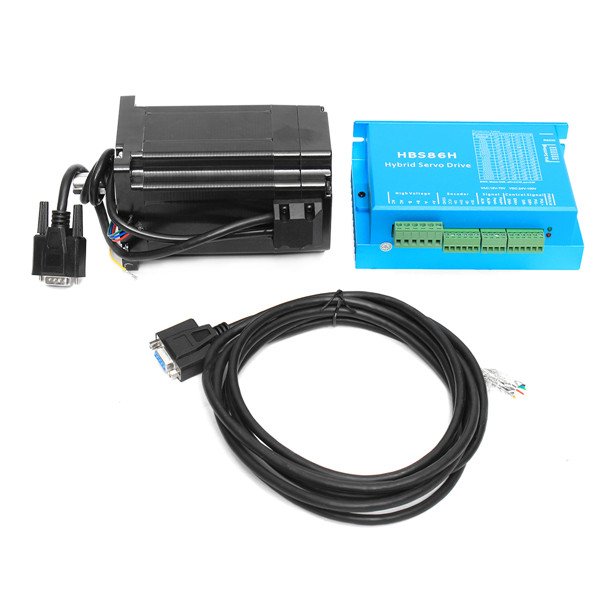

Package Included:
1 x CNC Hybrid Driver
1 x Closed Loop Motor

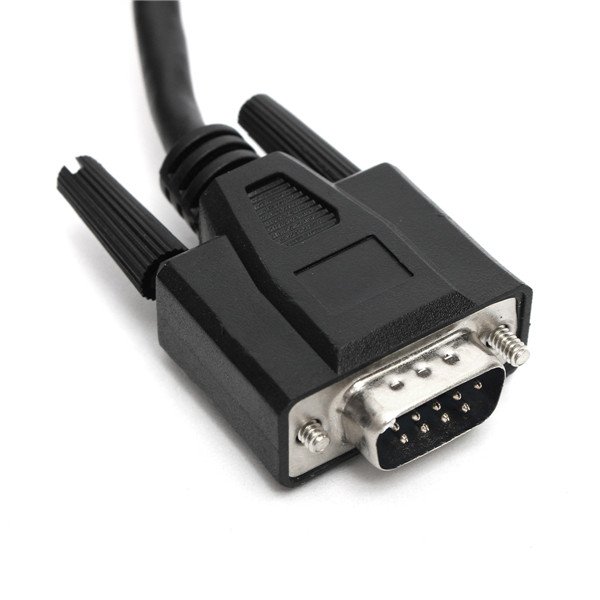

1 x Coding Line
