Description

Description :

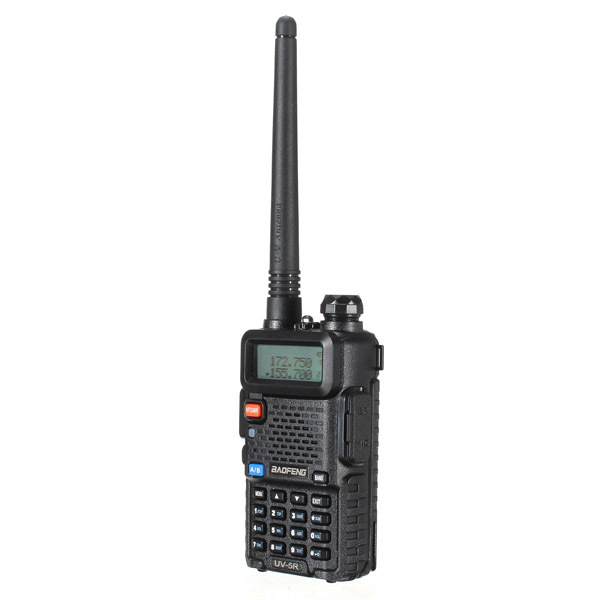

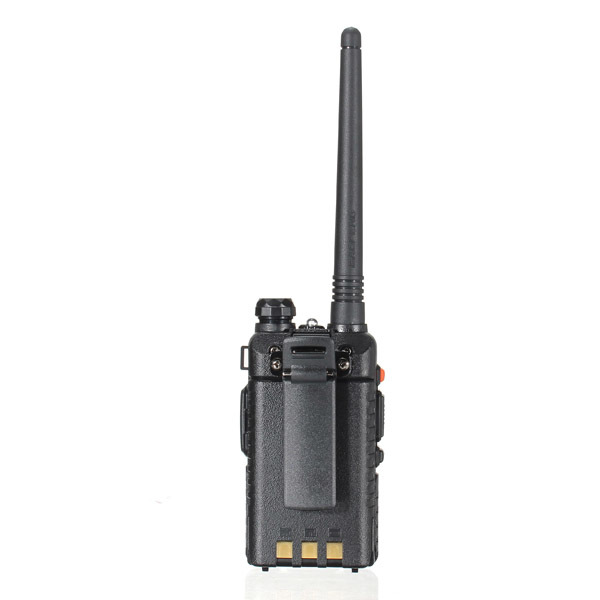

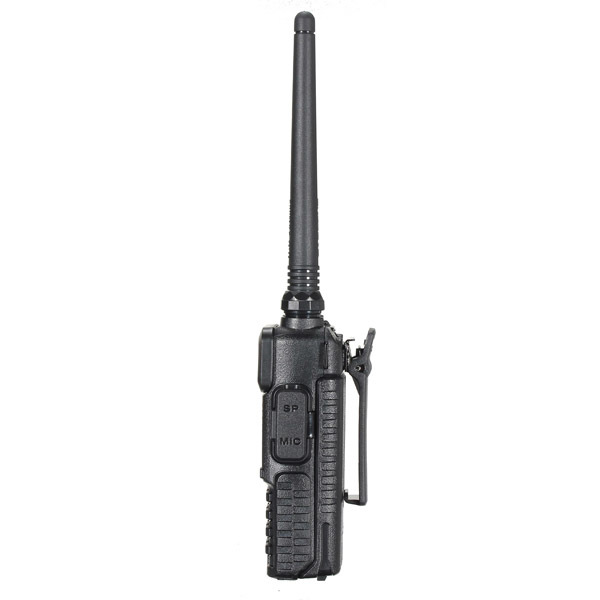

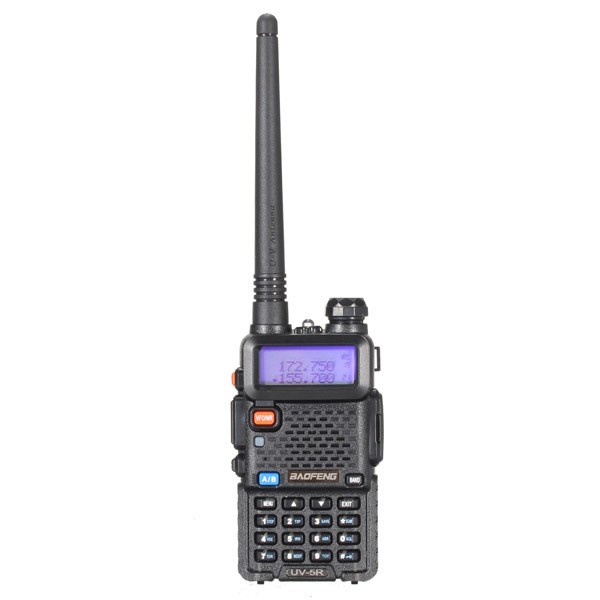

BAOFENG UV-5R Dual Band Handheld Transceiver Radio Interphone
 [This SKU’s power supply plug is US plug, You can also buy the original in ]

Features :

Frequency Rangee: 136-174 / 400-480MHz
Dual-Band Display, Dual Freq. Display, Dual-Standby
A/B band independent operation
128 groups channels storage
VFO & Memory channels scan
Shortcut menu operation mode
FM Radio (65.0MHz-108.0MHz)Built-in V0X Function
1750Hz Brust Tone
LED Flashlight
Large LCD Display
Battery Saver
Low Battery Alert
Emergency Alarm
Monitor Channel
ROGER SET
Tri-color background light selectable
0-9 grades V0X selectable
PTT & ANI ID FM radio
Keypad Lock
Channel Step: 2.5/5/6.25/10/12.5/25KHz
PC programmable
Voice companding 50 CTCSS/ 104DCS coder & tone searching
Wide/Narrow Band Switchable (25kHz/12.5kHz)
Transmitter time-out timer(TOT)
High/Low RF / TX power selectable
Busy channel lock-out(BCLO)

Specifications :

Brand: Baofeng
Model: UV-5R
Language : We set English for you.
Frequency Rangee: 65-108MHz(FM) 136-174MHZ and 400-480HZ (TX/RX)
Channel No. : 128
Frequency Stability: ±2.5ppm
Maxiimum Rangee: 3km-5km
Antenna:  High gain DualBand  antenna
Antenna Impedance: 50Ω
Operating Volt: DC 7.4V
Mode of operation: Simple or semi-duplex
Dimension(W x H x D): 100 x 52 x 32 mm
Weight: about 560g (including battery, antenna)
Antenna : SMA -Female
Earpiece / mic type : Kenwoood Plug type

Transmitter
Output power: 4W / 1W (Max 5W)
Modulation Mode: 16kΦF3E / 11kΦF3E
Maxiimum deviation: 5kHz(Wide) /  2.5kHz(Narrow)
Spurious Radiation: 7μW
Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics: 6dB
Current: ≤1.6A(5W)
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: ≤10%

Package included :

1 x Baofeng UV-5R Dual Band Handheld Radio
1 x 7.4V 1800mah Battery Pack
1 x Band Antenna

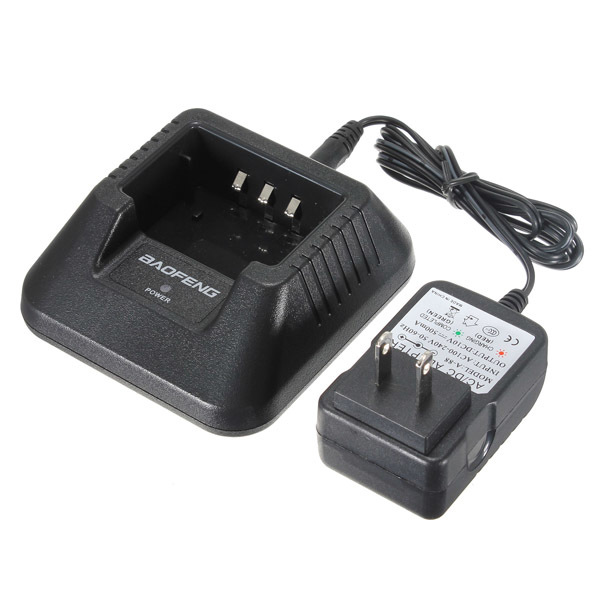

1 x Desktop Charger
1 x US Plug AC/DC Adapter  (100-240V) (Comes with an adapter according to your country)
1 x Belt Clip
1 x Hanng Rope
1 x English User Manual

This  61066 will sell as : Black
And  will sell as : Blue
And  will sell as : Yellow
And  will sell as : Red
And  will sell as : Green Camouflage

please choose the one suit for you, hope our customer love it 🙂

Details pictures :
