Description

Note:




The transmitter frequency of the lowest 70MHz.


Adjust L1 to adjust the firing frequency.


When you have finished soldering, you can use do a little adjustment to receive the ordinary radio.


This is a DIY kit, you need to assembly it.


Manual: Click here to open




Tips:




Due to the circuit of this kit is simple, the emission frequency is greatly affected by the environment, touch or close to the circuit board, antenna or shell may lead to changes in the frequency of transmission, it can be used as a model of the launch model, not recommended for industrial or commercial use.




Feature:




Package name: FM Transmitter


Kit Model: RF-01


Operating voltage: 1.5V (AAA battery *2) or DC3-6V (battery does not includes)


Operating current: 5mA (3V) – 10mA (6V)


Frequency range: 70MHz


Launch distance: 5-30 meters (Affected by the level of production and the use of the environment)


Antenna length: 200mm soft wire


Sensitivity: 1 meter range of speech can be received


Battery box: Yes


PCB size: 49 * 13mm

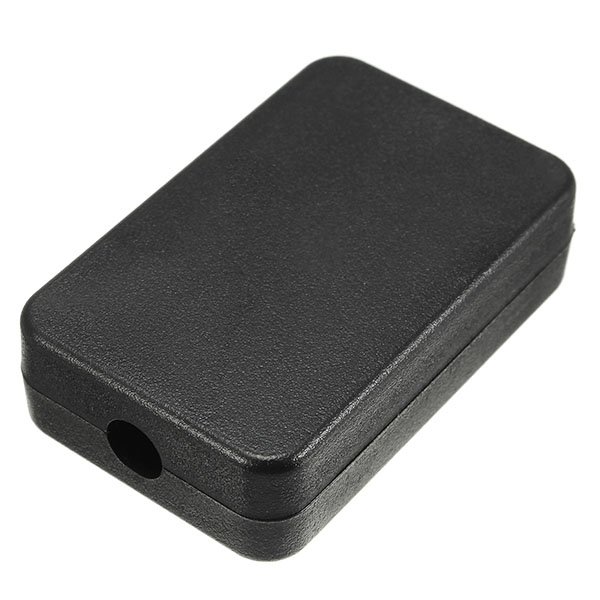

Dimensions: 55 * 35 * 15mm


Package weight: 18g




Package includes:

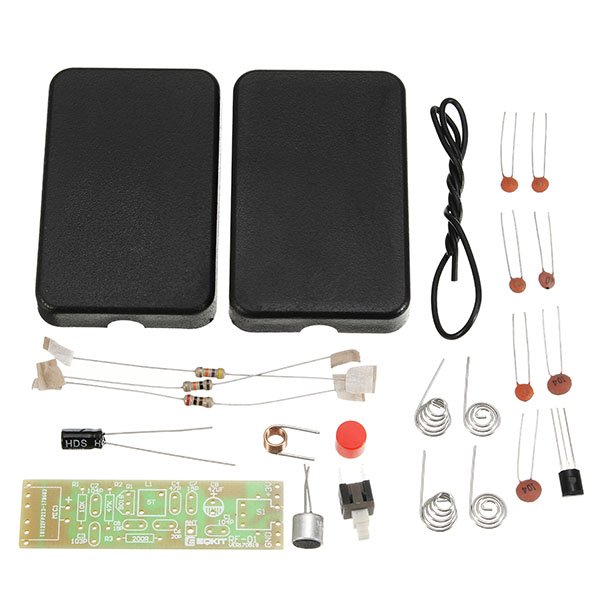

5 x FM Transmitter Production Kit

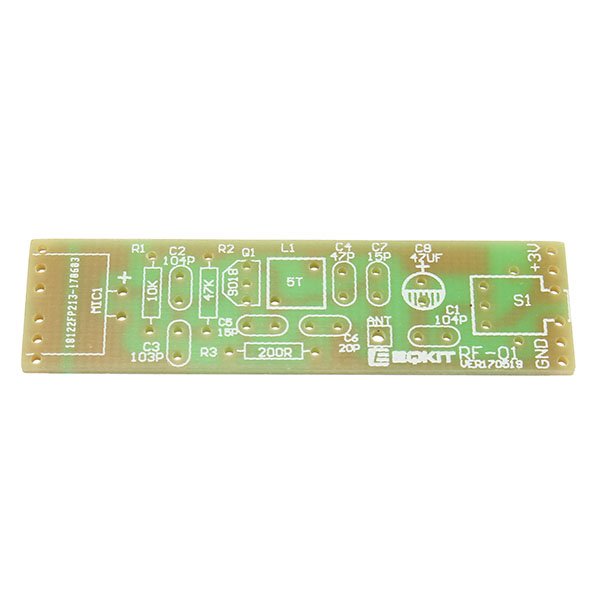

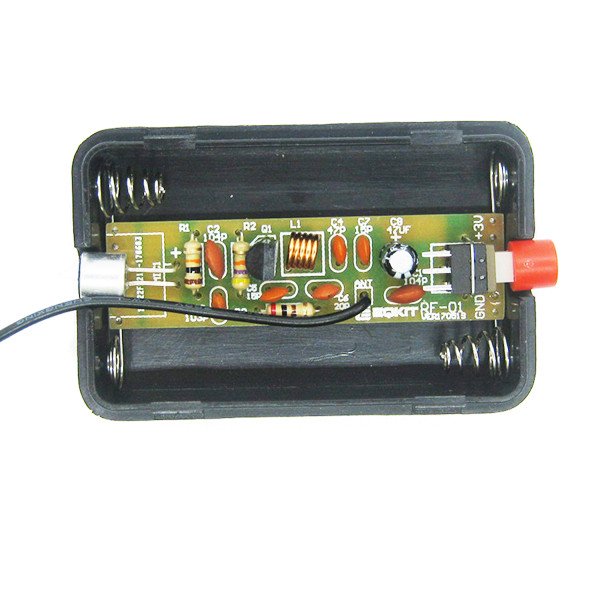

Soldered PCB, for reference only!
