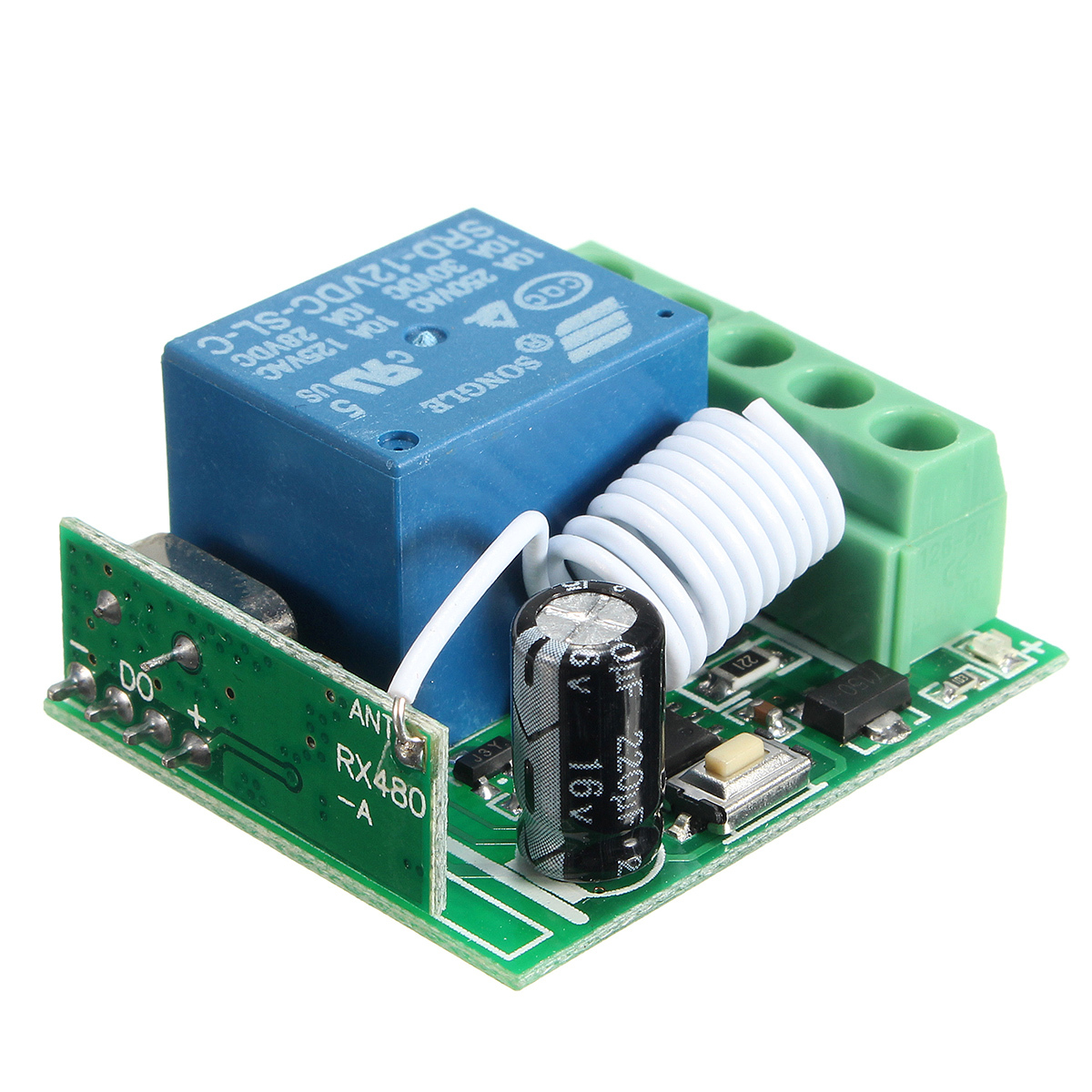

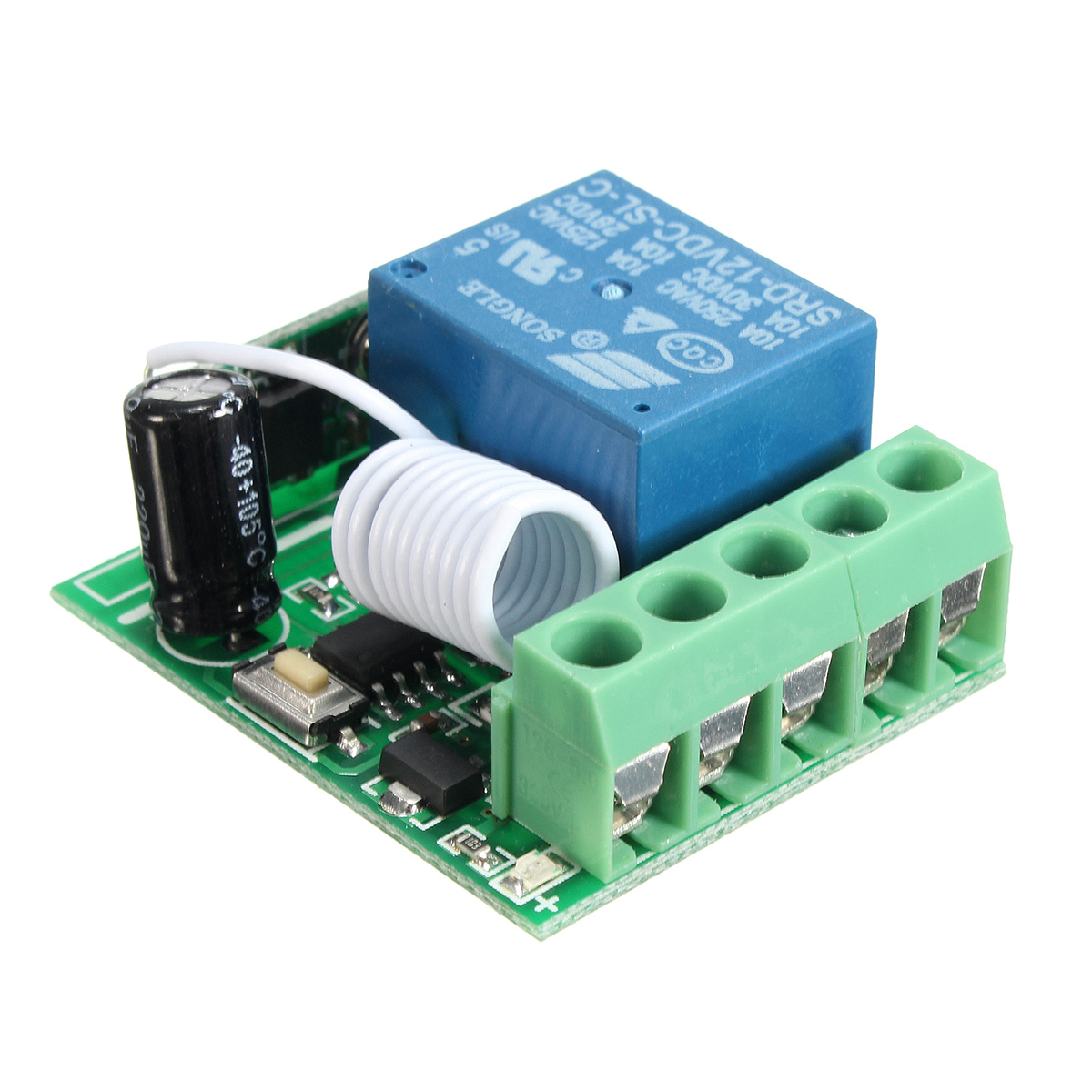

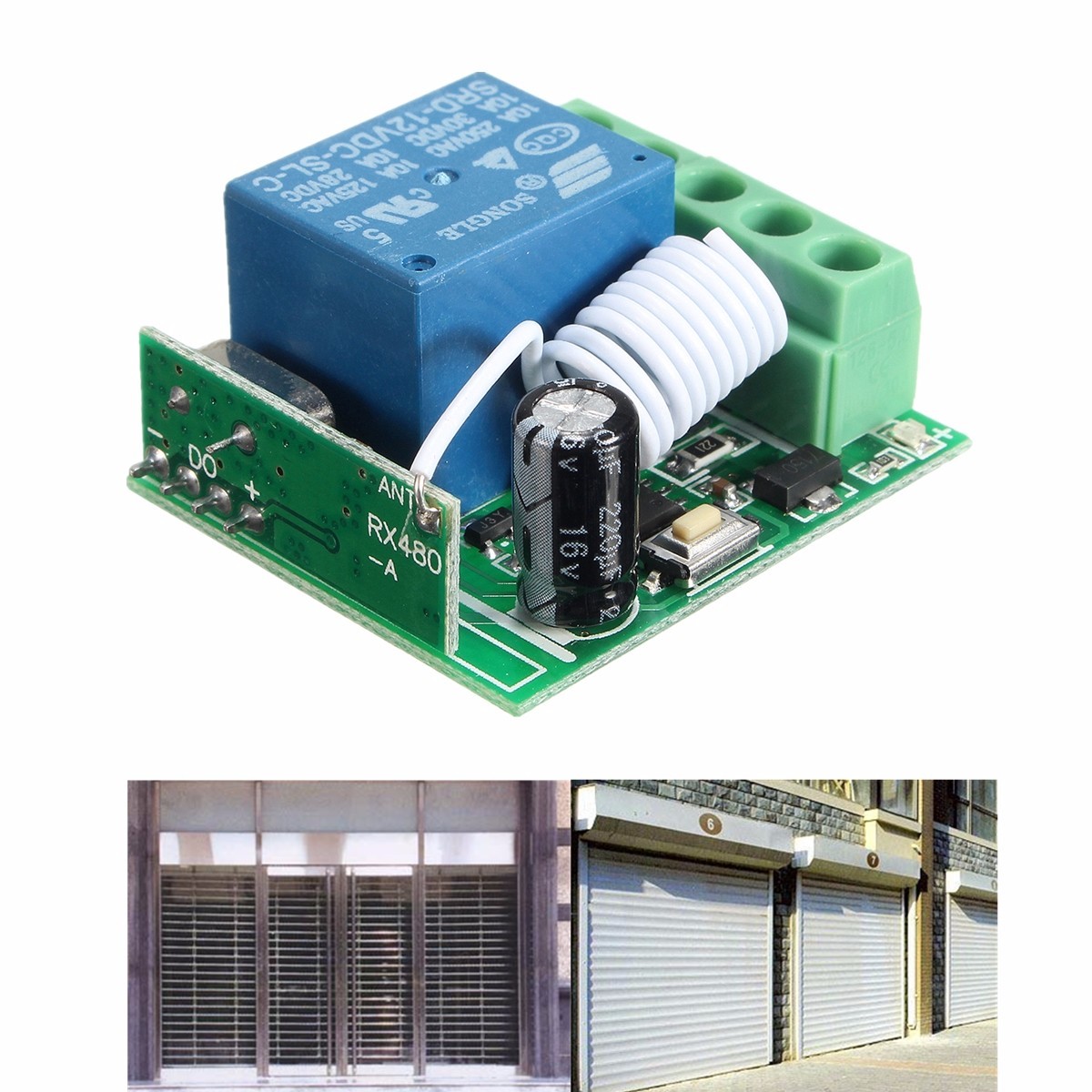

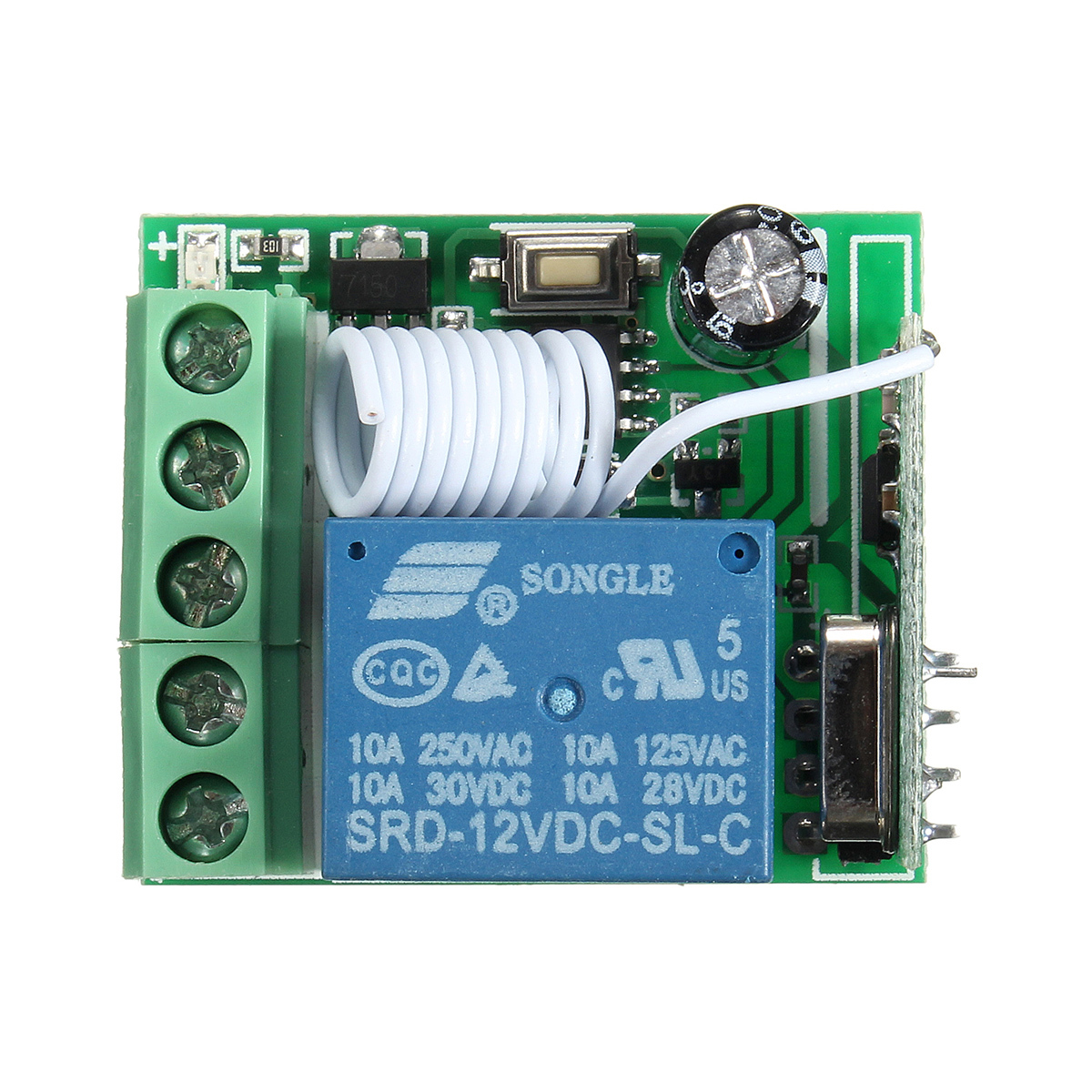

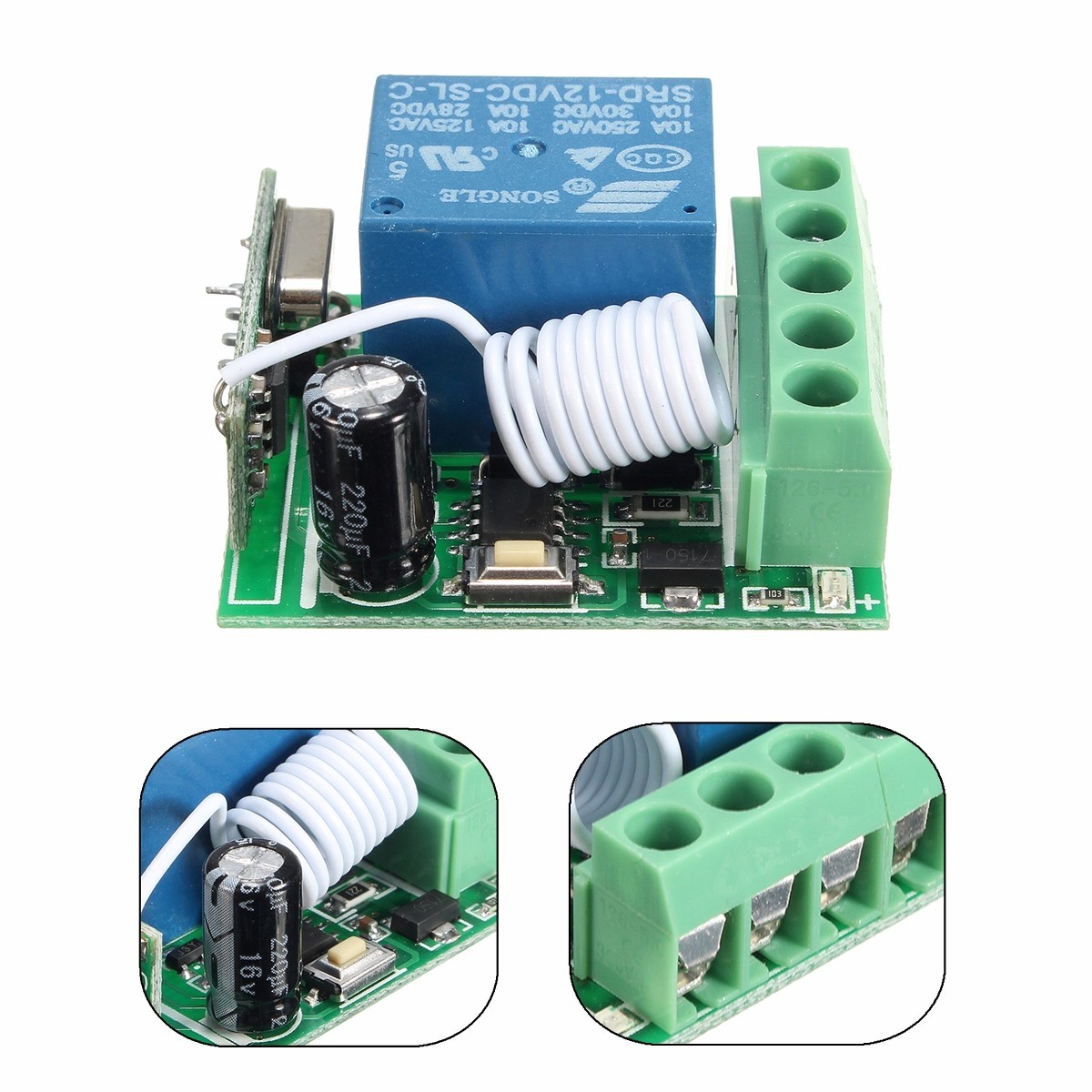

Description

Specification:1.Input Voltage: DC10-14V2.Standby Current: 90dBm6.Remote Control Distance: >100 meter(In open environment)7.Decoding Way: MCU Software decoding8.Can store the number of remote control:509.Support remote control type: Fixed code, learning code10.Channel: 1CH11.Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)12.Wiring Method:Fixed wiring terminal13.Working Voltage: DC12V14.Output Current: 10A15.Rated load:10A 250VAC / 10A 125VAC10A 30VDC / 10A 28VDC16.Output:Normally open,Common,Normally closed17.Dimension:3.5cm*3cm*1.6cmWorking/output way:1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.4.Delay: Press remote control relay pull-in,release the remote control and begin timekeeping,after 5s,10s,15s will automatically close the relayDescription:1.Jog: Press the learning button then release, set the mode from the system automatically working mode to action mode, wait for a while, when the board LED off, said it is into the learning state, press the remote control, the system received the signal. The LED flashes 5 times and goes off again. After 3S delay, LED light marked learning success, the system automatically withdraw from the learning state.2.Self-locking: Press the learning button, then release, press 2 times, the system automatically set to self-locking mode, wait for a while, LED off, it is into the learning state, press the remote control, LED flash 5 times Off. 3S after the delay, LED light learning success.3.Interlock: press the learning button, then release, press 3 times in succession, the system is set to interlock mode.4.Delay: Press remote control relay pull-in,release the remote control and begin timekeeping,after 5s,10s,15s will automatically close the relay Package included:5 x 12V 1CH 433MHz Wireless Relay Switch Receiver
