Descriptions:

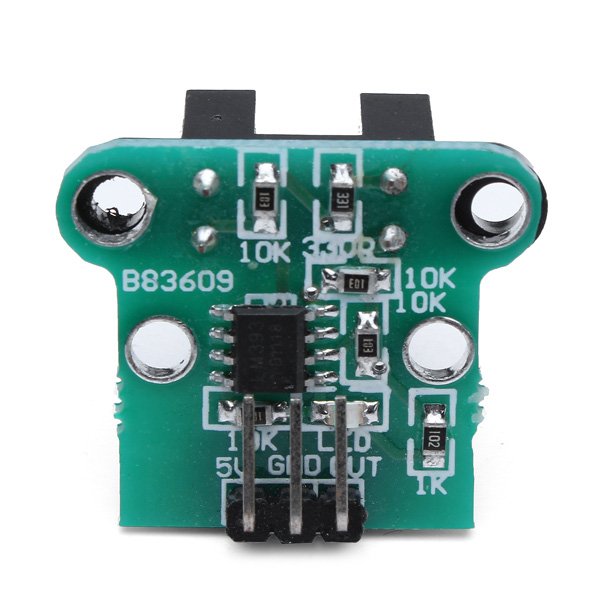

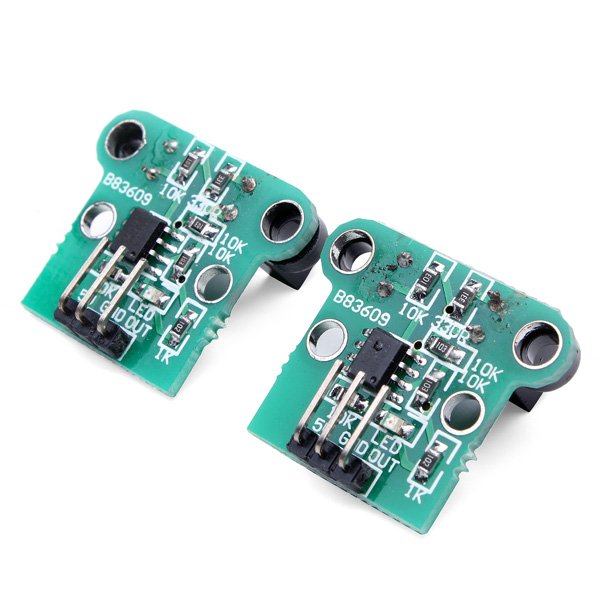

HC-020K is a high resolution, short response speed, wide voltage switch output speed measuring module, with black encoder can measure motor speed (Now provide the encoder type D, hole diameter is 4 mm. Can be used to output shaft is 4 mm motor).



Specifications:



1. Working voltage: 4.5V to 5.5 V.

2. Transmit tube pressure drop: Vf = 1.6 V

3. Transmit tube current: 20 mA

4. Signal output: A, B two way; The TTL level

5. Distinguish precision: 0.01 mm

6. Measurement frequency, 100 KHZ

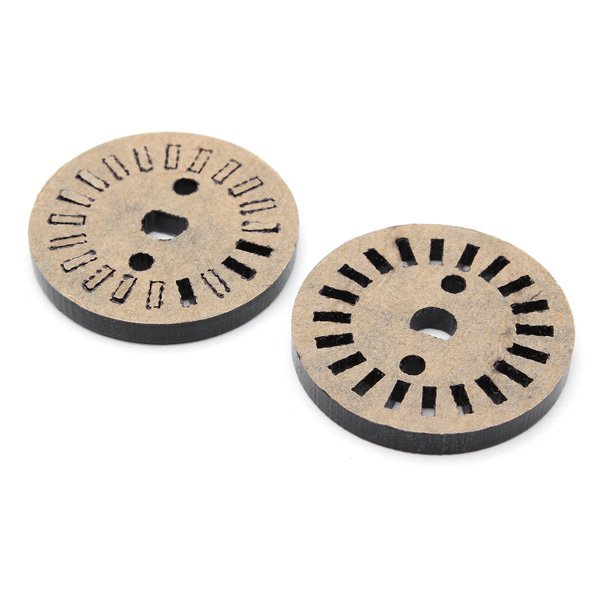

7. Encoder diameter: 24 mm

8. Encoder type D hole diameter: 4 mm

9. The encoder resolution: 20 line

10. Speed measuring sensor configuration: The configuration can measures 1 road motor speed



Note: This is for RP5 tank caterpillar vehicles speed measuring module, just hit four holes in the RP5 tracked vehicle

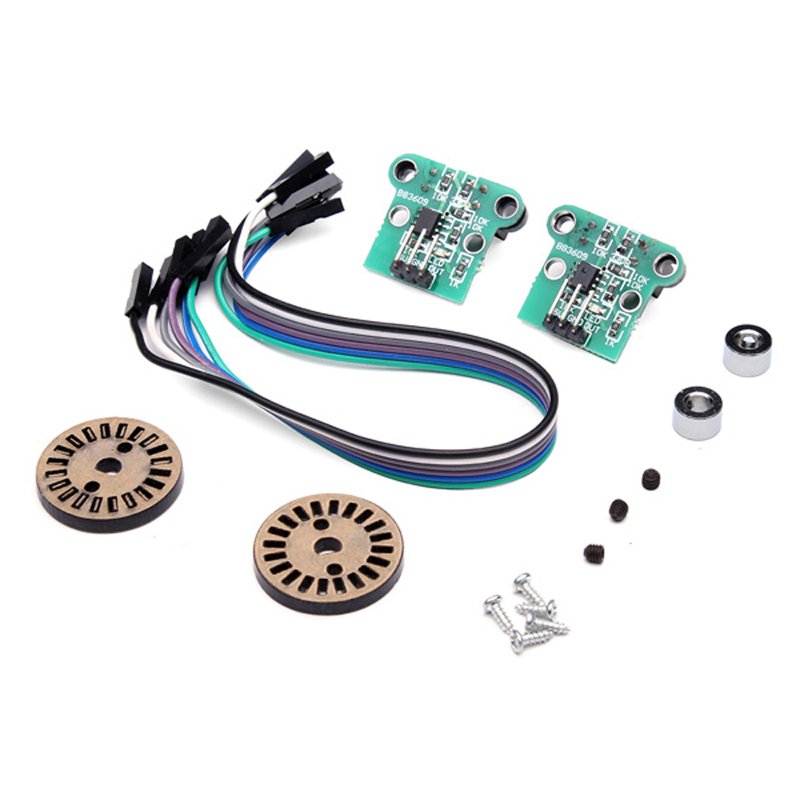

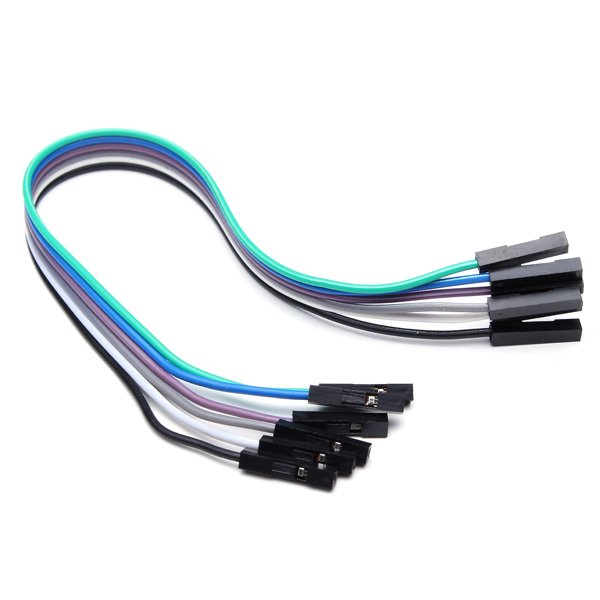

Package included:

4 x RP5 Double Speed Measuring Module kit
